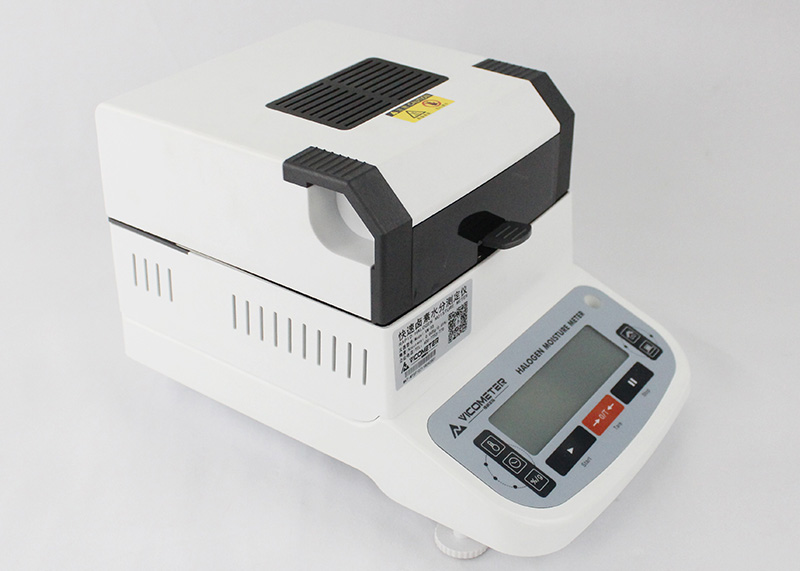

VM-5S Halogen Moisture Meter

VM-5S Halogen Moisture Analyzer works for the injection of iodine or bromine and other halogen gas in the bulb, at high temperature, the sublimation of tungsten and halogen chemical action, sublimation of tungsten on tungsten will re-solidify to form a balanced cycle, to avoid premature rupture of tungsten. Therefore, live longer than incandescent halogen bulbs. And because the filament can work at higher temperatures, resulting in a higher brightness, higher color temperature and higher luminous efficiency.

OVERVIEW Size Features Specifications Applications Optional accessories Download

OVERVIEW

VM-5S Halogen Moisture Analyzer works for the injection of iodine or bromine and other halogen gas in the bulb, at high temperature, the sublimation of tungsten and halogen chemical action, sublimation of tungsten on tungsten will re-solidify to form a balanced cycle, to avoid premature rupture of tungsten. Therefore, live longer than incandescent halogen bulbs. And because the filament can work at higher temperatures, resulting in a higher brightness, higher color temperature and higher luminous efficiency.


VM-5S Moisture Analyzer distinguish it from other products in that moisture traditional oven drying method is generally used to test a sample of three or even take two or three or four hours and needs by weighing scales, manual calculation, in order to obtain Moisture value (water content) of the sample. Low efficiency of traditional oven method of moisture determination, not able to adapt to the fast pace of production needs. VM-5S high efficiency of the drying heater - high quality ring halogen, samples are quick and uniform heating, water samples continued to be dried. The entire measurement process, rapid moisture analyzer fully automated real-time display of measurement results: Sample weight, moisture content, solids, measurement time, the heating temperature.


VM-5S Cheap Halogen Moisture Analyzer application of the international principle oven drying, moisture determination with the oven method of measurement of a good consistency, efficiency is much higher than the moisture determination oven method. Use VM-5S Halogen Moisture Analyzer, general sample measurement is completed only a few minutes, so by the business users love and praise.

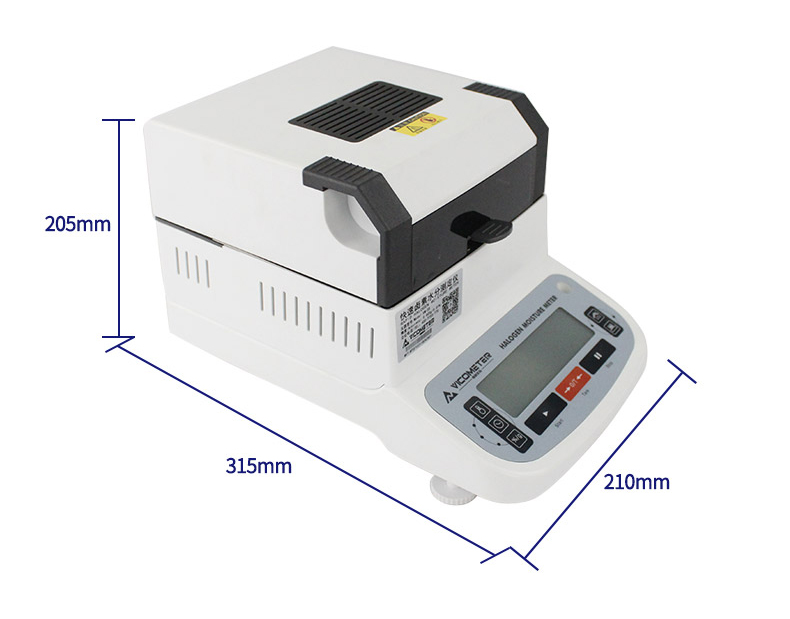

Size

VM-5S Halogen Moisture Meter

Features

VM-5S Halogen Moisture Meter

High-Performance Moisture Analyzers

Fulfils highest measurement performance and compliance needs. Accurate and repeatable results for any sample type.

VM-5S Halogen Moisture Meter

User-Friendly and Safe Operations

The large 7-inch color touchscreen offers an easy-to-navigate user interface. The operator is guided graphically through the workflow step-by-step.

VM-5S Halogen Moisture Meter

Quick and Easy Performance Test

As simple as a regular moisture measurement - takes only 10 minutes.

VM-5S Halogen Moisture Meter

Fit for Regulatory Demands

User management, method assignment and control limits. Performance testing at point of use.

VM-5S Halogen Moisture Meter

Robust and Compact Design

Tough metal housing and robust components ensure a long instrument lifetime. Along with a space-saving design, these features make the VM-S series a perfect choice for a busy lab or harsh production environment.

Specifications

Model VM-5SVM-1SVM-01S
Weighing accuracy(d)0.005g0.001g0.0001g
Readability0.01%0.001%
Moisture range MC%0.00%-100.00%0.000%-100.000%
Solid content range DC%100.00%-0.00%100.000%-0.000%
AD%100.00%-1000.00%100.000%-1000.000%
AM%100.00%-1000.00%100.000%-1000.000%
Max. Weight120g
weighing sensorStrain force sensorElectromagnetic force sensor
Calibration methodExternal weight calibration (range calibration, linear calibration)
Repeatability (standard deviation)allowed ≤ 3d (actual ≤ 1d)
Heating modehalogen lamp heating
Temperature sensorHigh Precision PT100 platinum RTD
Drying procedureStandard heating, Step heating, Extremely Fast Heating
Heating Temperature Range40-200℃
Heating interval1℃
Drying time setting1-99minute interval 1 minute
Stop methodAutomatic stop, Manual stop, Timing stop
Determination procedure5 groups of Custom measurement procedures100 sets of custom measurement procedures
Display parametermoisture value MC% solid content DC% AD% AM% sample total weight g sample dry weight g temperature °C time trend curve
Display ScreenLCD (Liquid Crystal Display)
Sample tray304 stainless steel sample tray Ø90mm
Heating chamber height23mm
Sample visualizationTransparent window for observation of internal sample changes
Protective devicehalogen lamp protective tempered glass
Baud rate options2400、4800、9600
Data communicationRS232 can be connected to a computer or printer, PLC, etc.
Print functionOptional printer (thermal, pin, sticker, etc.)
Use environment1-38 °C (18-25 °C best)
Working power220v 50HZ (export can be customized 110V power supply and power cord)
Dimensions:(W*D*H)315mm*210mm*205mm
Power supply voltage220V 50HZ maximum 500W
Weight3.9KG5.9KG
Instrument ProgramInstrument has optimized version (standard) and simplified version two operating program, simplified version removed some functions

Applications

VM-S series halogen moisture meter is used in all industries that need rapid moisture measurement, as long as granular, powder, flakes, and non-volatile liquids can be measured, such as: pharmaceutical, chemical, electronics and semiconductor industries, plastic materials, rubber, tobacco, tea, food, starch, feed, coal, molding sand, sewage sludge, dairy etc. VM-S Halogen moisture meter is the best choice for the company's production process and laboratory moisture measurement equipment!


General industryfood, wood, paper, textile, coal, ore, sand, soil, fertilizer, feed, chemical, tobacco
Inorganic saltcalcium carbonate, refractory material, talcum powder, alumina, gypsum, desiccant, eramic slurry, ceramic powder
Food and DrugChinese medicine, western medicine, health food, essential oil, dehydrated food, food stuffing, food powder, fruits and vegetables, dried fruit, noodles, sugar, meat, cooking oil, etc.
Battery industrylithium battery powder, Lithium battery paste, battery class, graphene.
Plastic rubber industryABS, PP, PVB, PC, COC, BMC, DMC, SMC, BOPP, PBT plastic film, ESP polylon,PET plastic, PA polyamide, LCP, PVC, recycled plastic, bottle flakes, PE polyethylene, rubber, PS styrene, EPE pearl wool
Solid contentpaint, milk and soy milk, glue, adhesive, rubber, slurry, mud, sludge, silica gel, chocolate, soy sauce, toothpaste, etc.

Optional accessories

1. Halogen Moisture Analyzer is used to measure the moisture content of the sample, for any other purpose may be personal injury and damage the equipment.

2. Be sure to read the instructions before use, do not meet the requirements under the environmental conditions.

3. The instrument around should ensure that there is enough space to avoid heat accumulation and overheating.

4. Due to the heating unit surrounding area around the instrument becomes hot, do not place flammable materials around the instrument.

5. After the test, because the sample itself and the heating unit and its container will still be very hot, so be careful when removed samples.

6. In the heating and drying process ,heating element temperature will reaches 400 °C. So do not open or touch the heating unit. If you need to open disconnect the power and wait until it is com-

pletely cool.

7. Matix contains toxic elements, which matix only under conditions of good ventiation, heating and drying.

Download

Download
Video 1.4MB Downloads
Manual 1.4MB Downloads
Industrial Solutions 1.4MB Downloads
