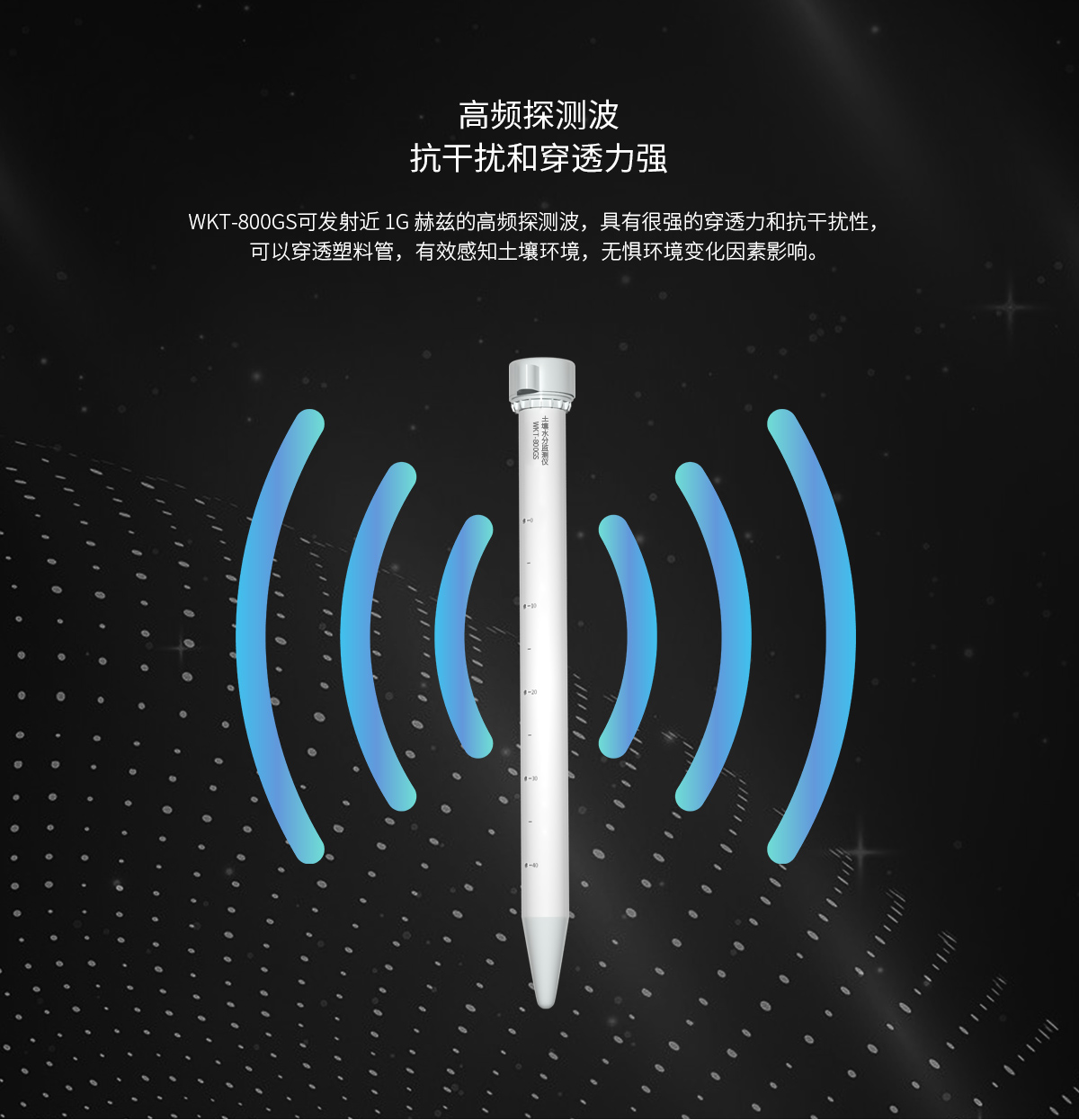

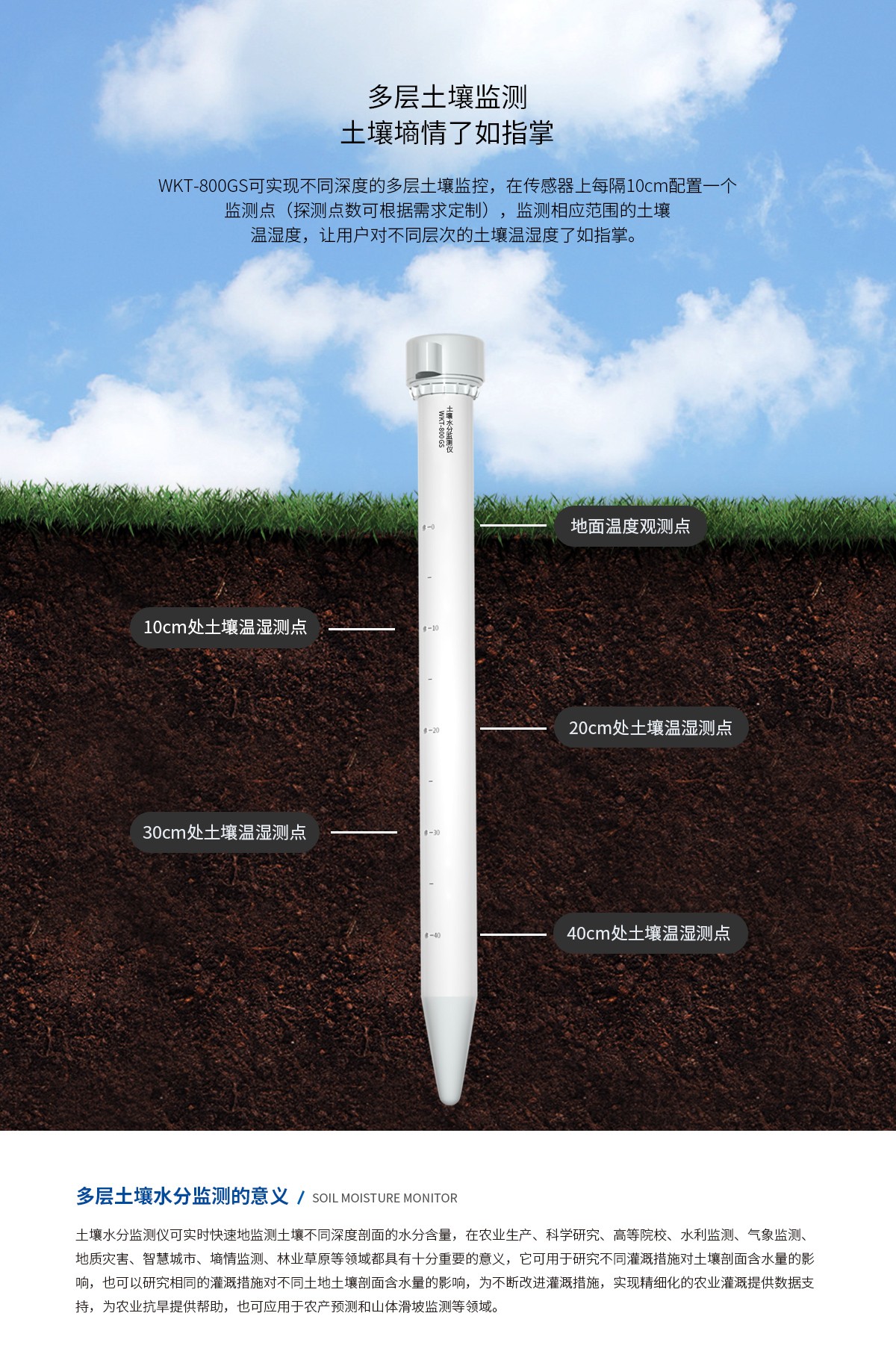

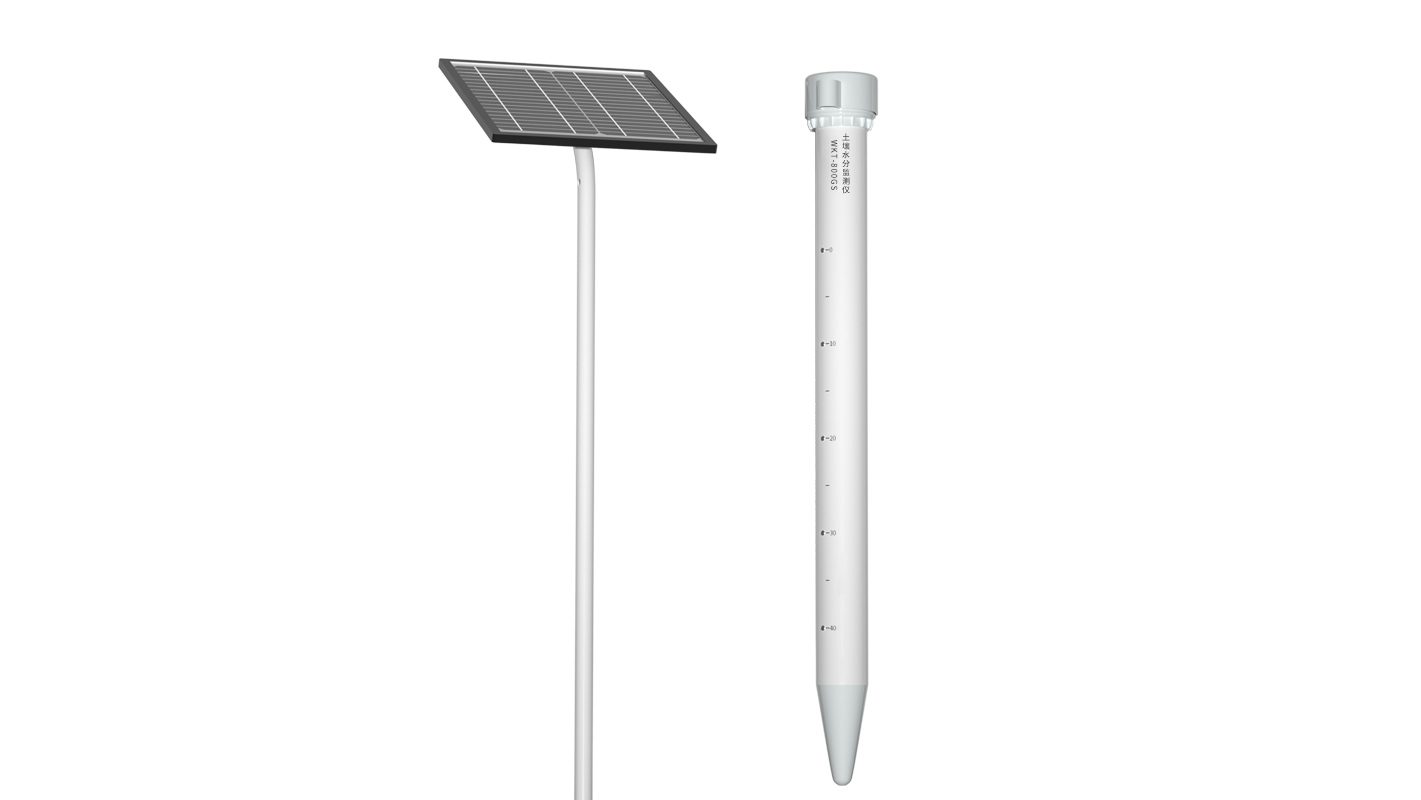

The VicoMeter WKT-800GS soil moisture meter, also called a non-contact soil moisture meter or soil moisture monitor, is based on the dielectric constant detection principle. It dynamically observes soil moisture at different layers — fast, accurate, and comprehensive. Its layered design places one temperature point on the ground and one soil temperature & humidity point every 10 cm underground, observing the corresponding range.
Overview

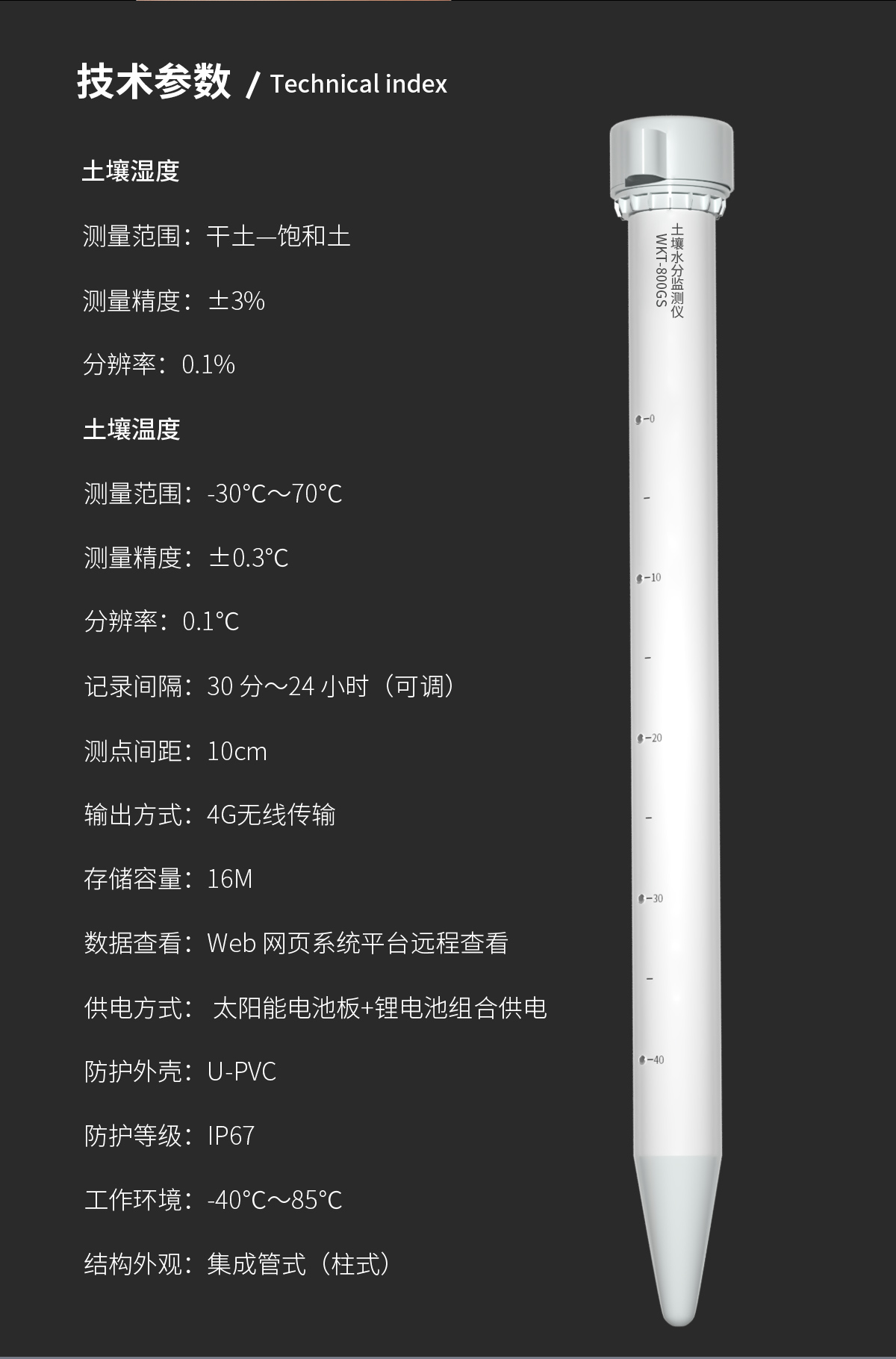

Technical Specifications
| Model | WKT-800GS |
| Soil Moisture | Measuring range: dry soil–saturated soil |
| Accuracy3% | |
| Soil Temperature | Measuring Range：-30℃～70℃ |
| Accuracy0.1℃ | |
| Recording Interval | 30 min–24 hours (adjustable) |
| Measurement Point Spacing | 10cm |
| Output | USB data export |
| Storage Capacity | 1M |

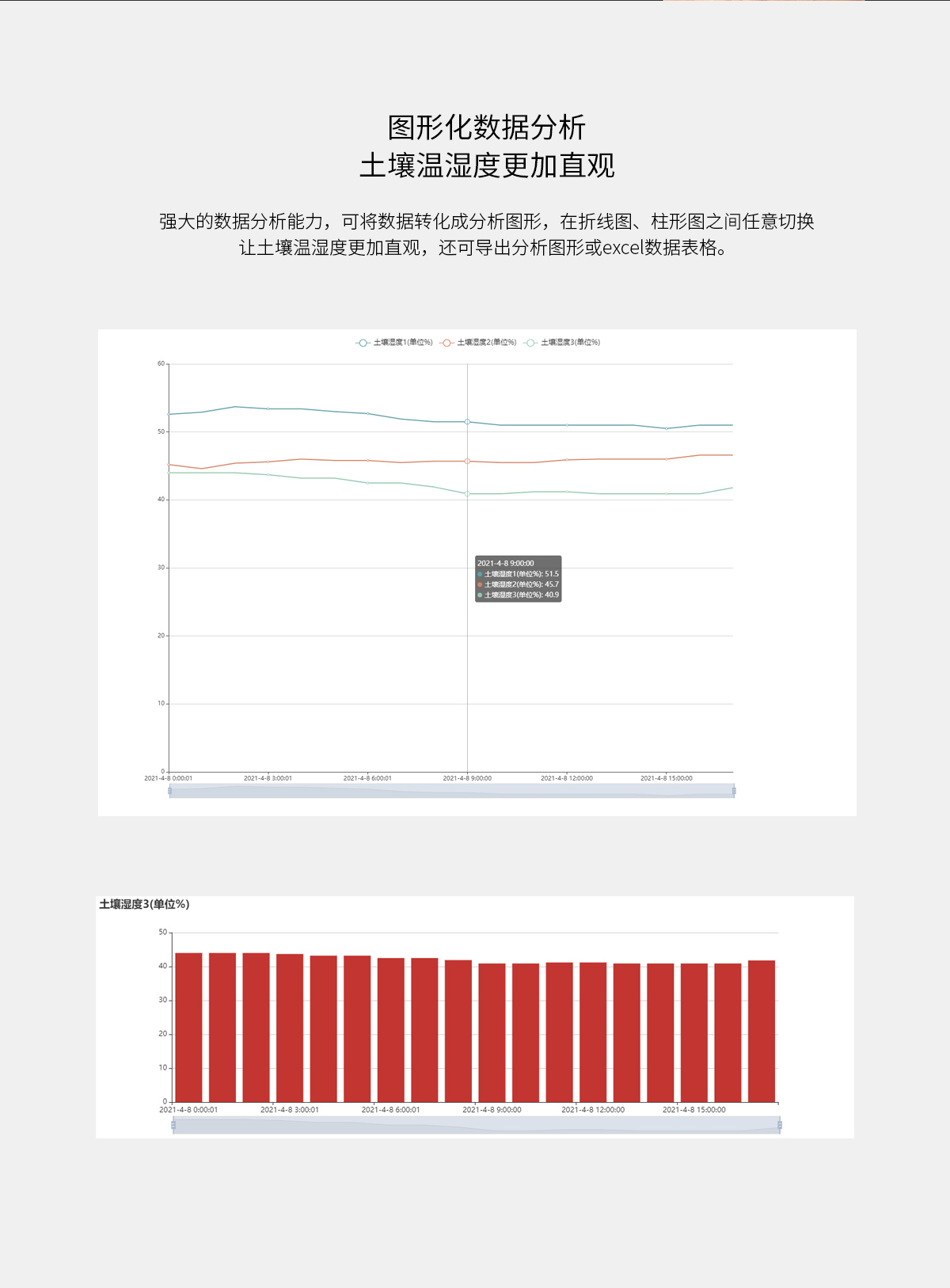

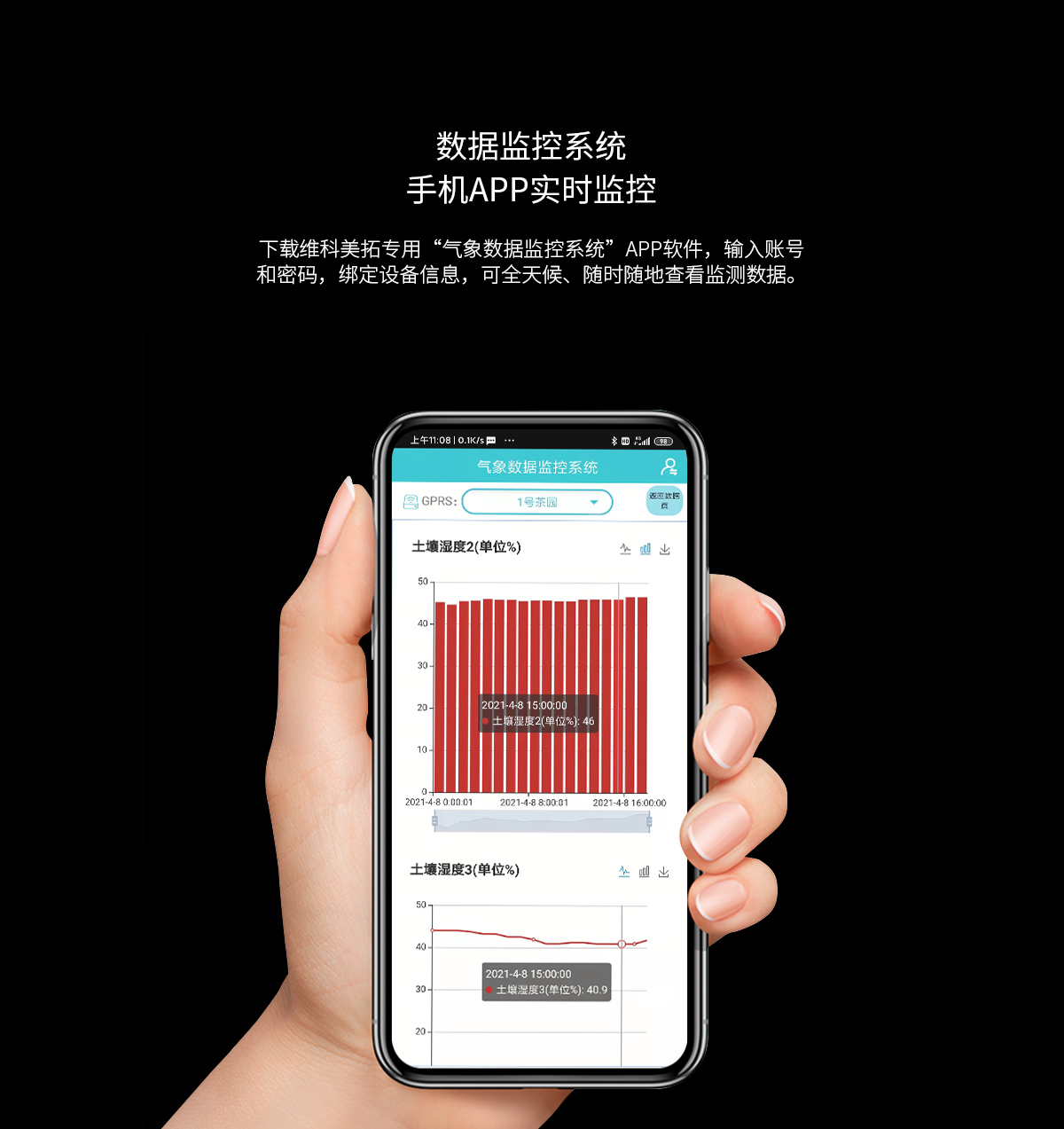

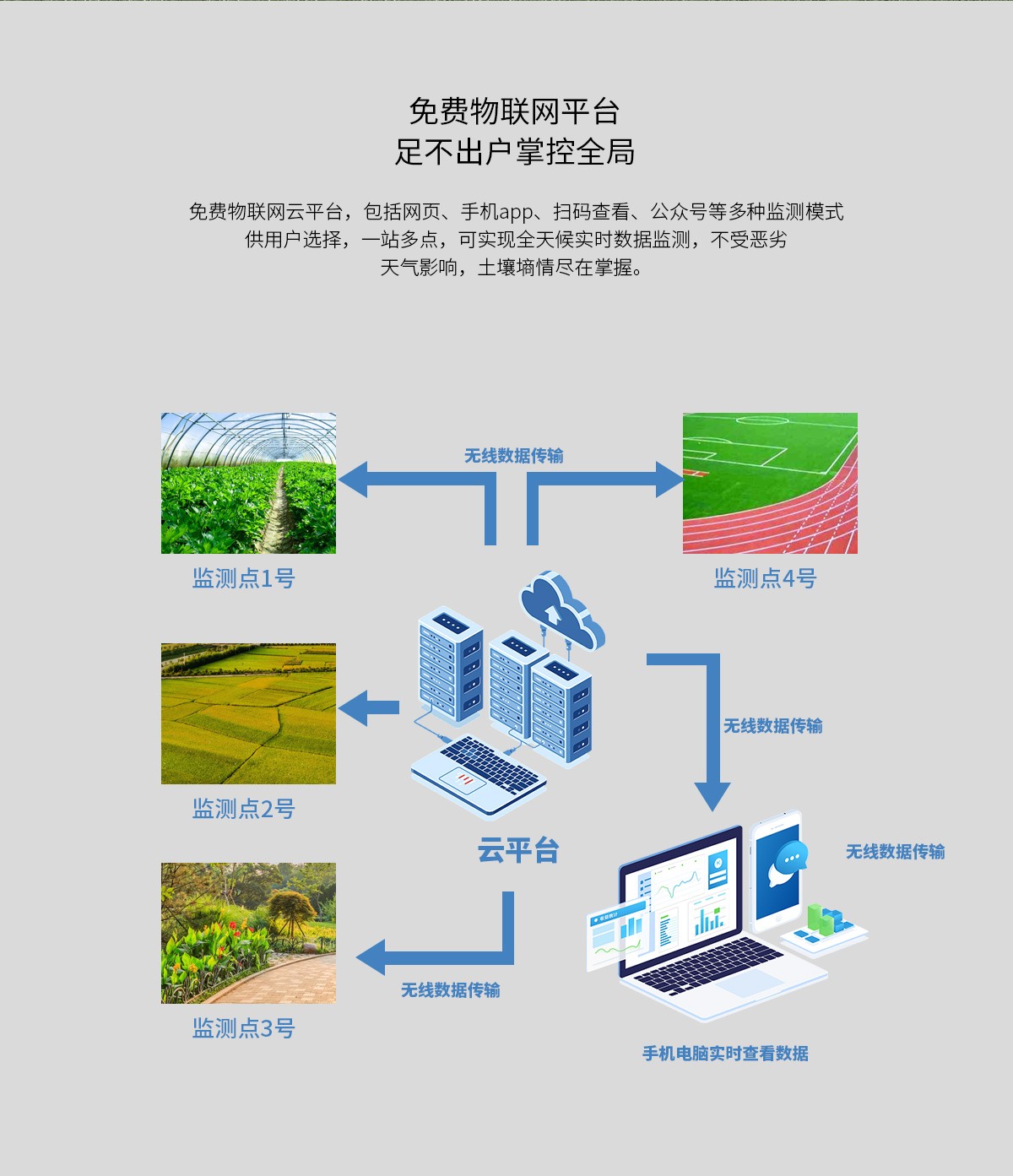

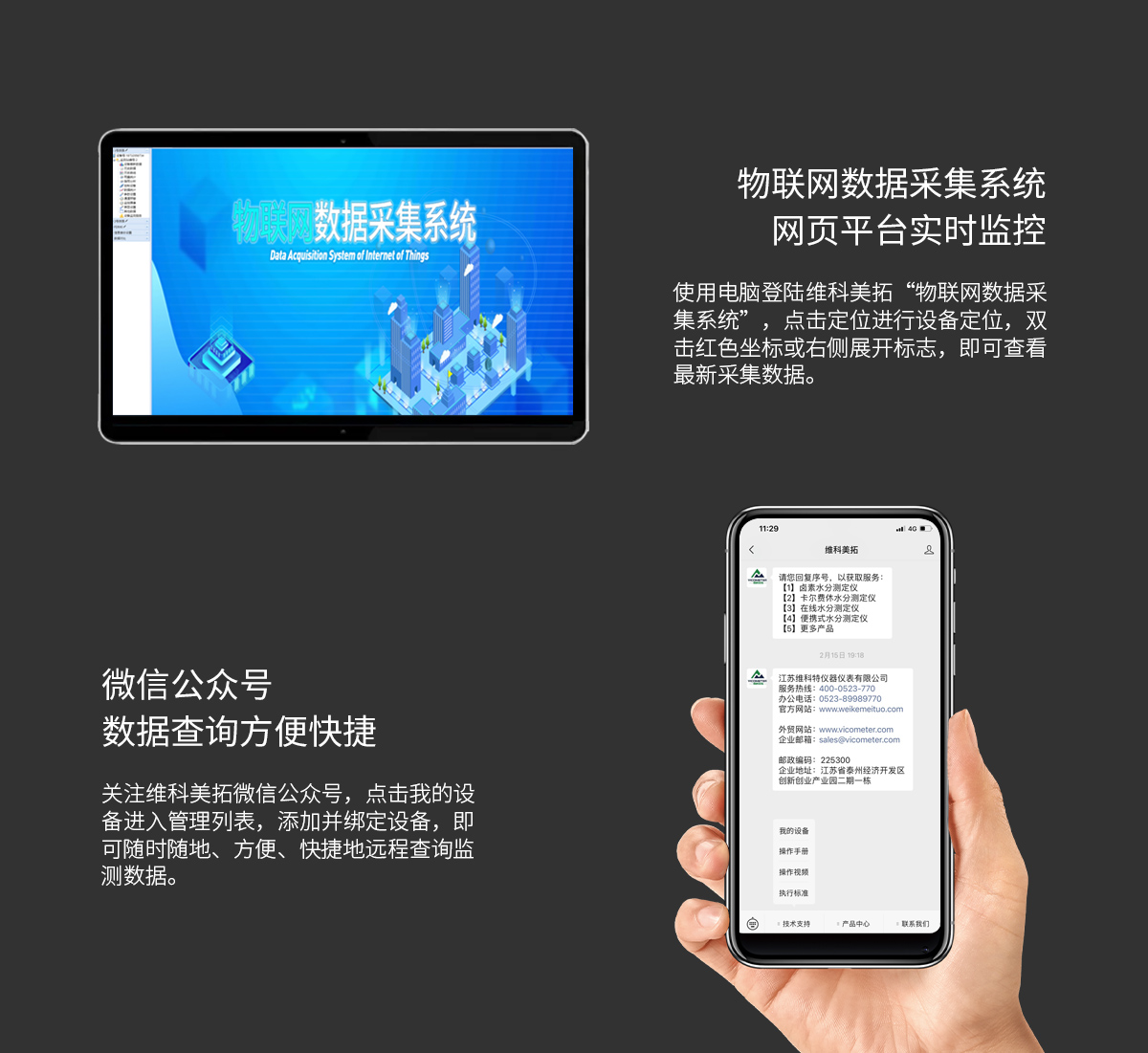

| Data Viewing | Remote viewing via web platform |

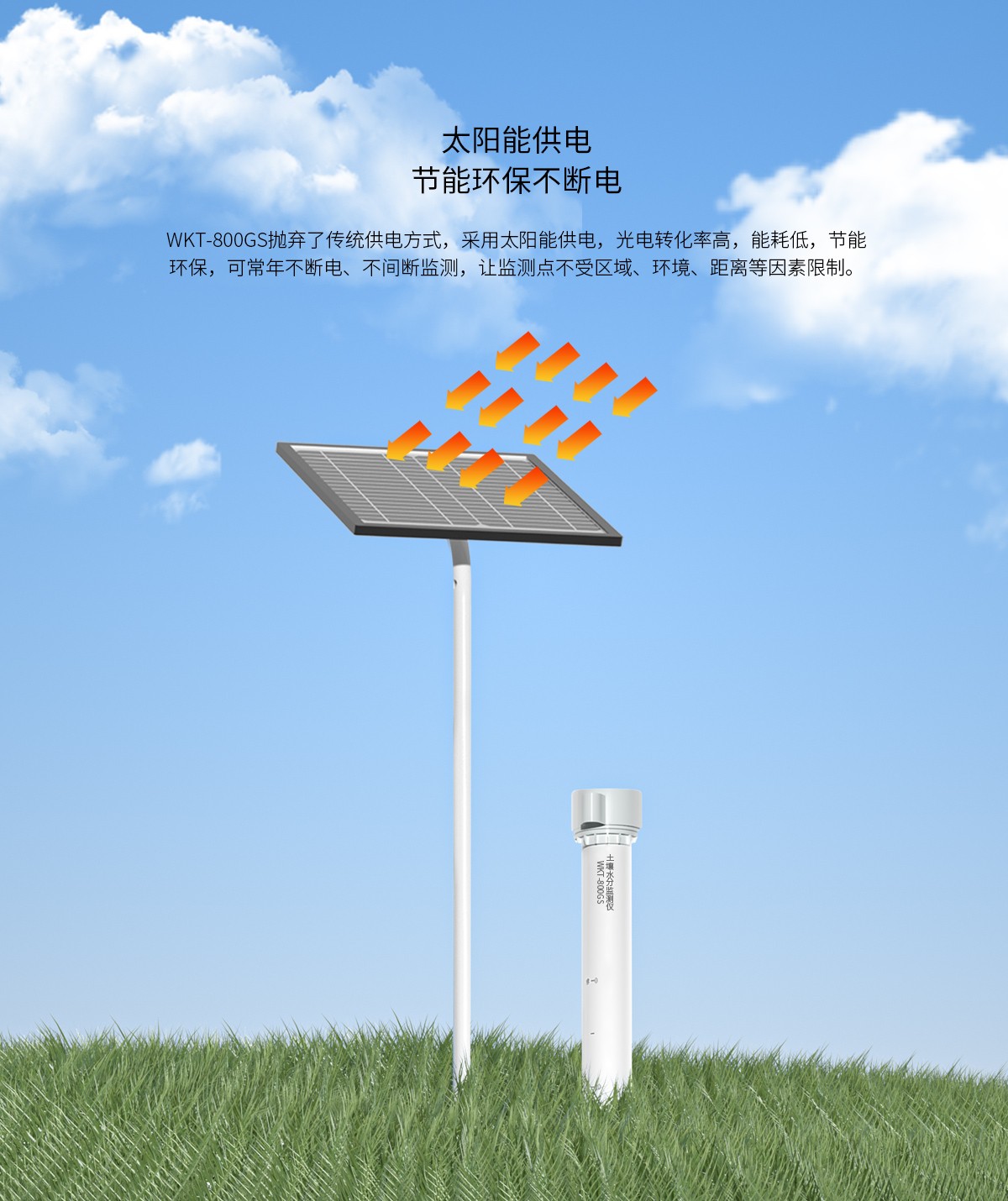

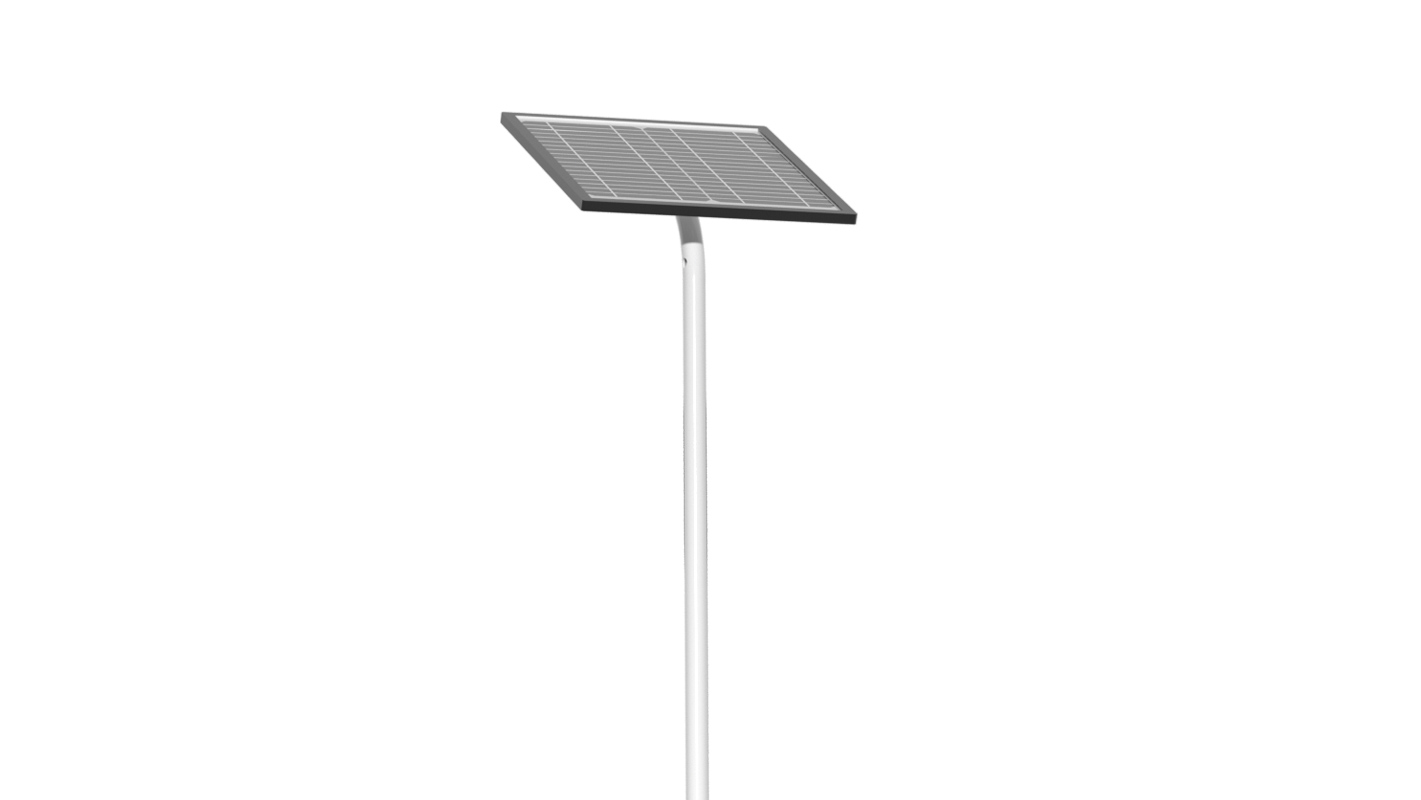

| Power Supply | Solar panel + lithium battery power supply |
| Protective Housing | PVC |
| Ingress Protection | IP68 |
| Operating Environment | -20℃～85℃ |

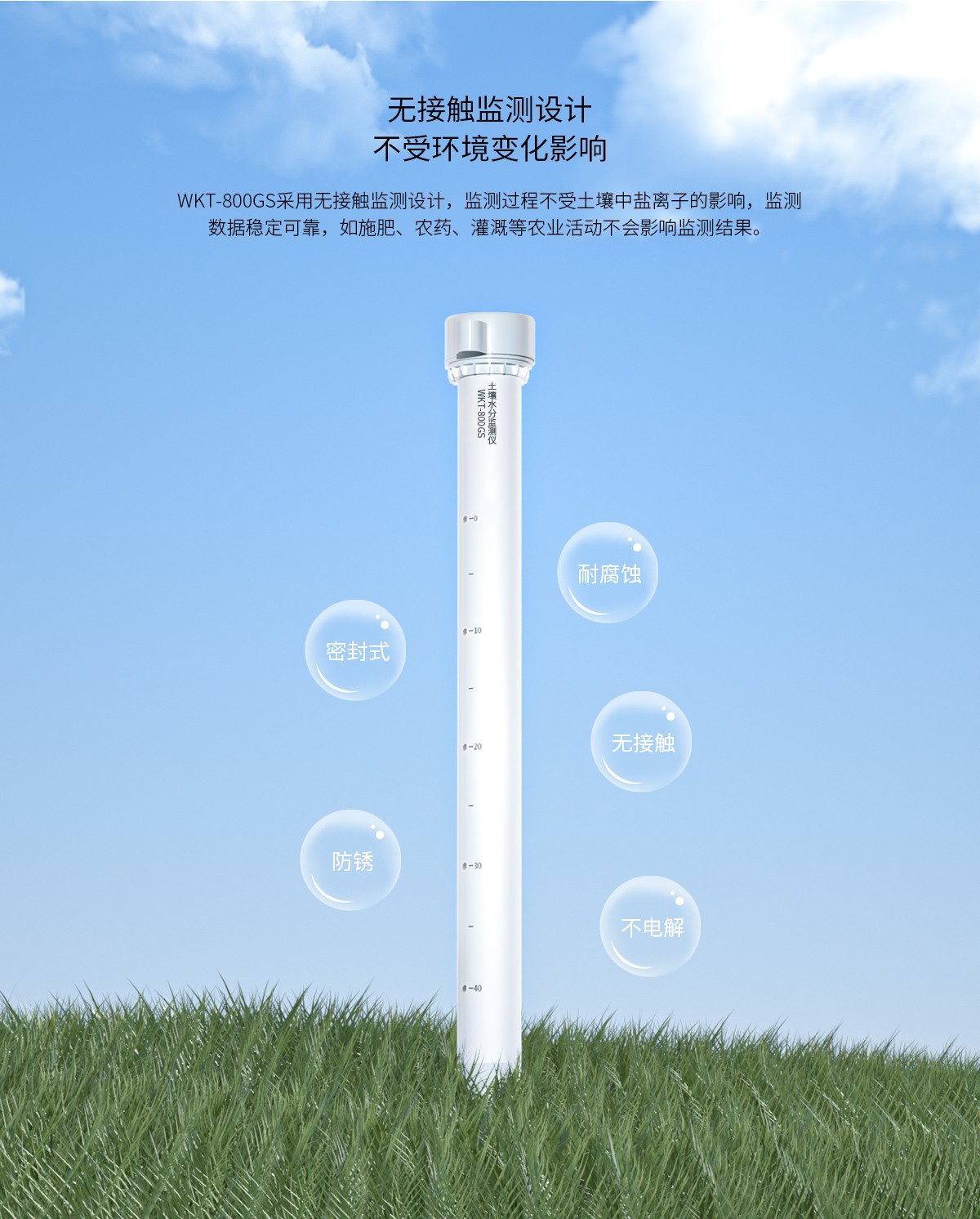

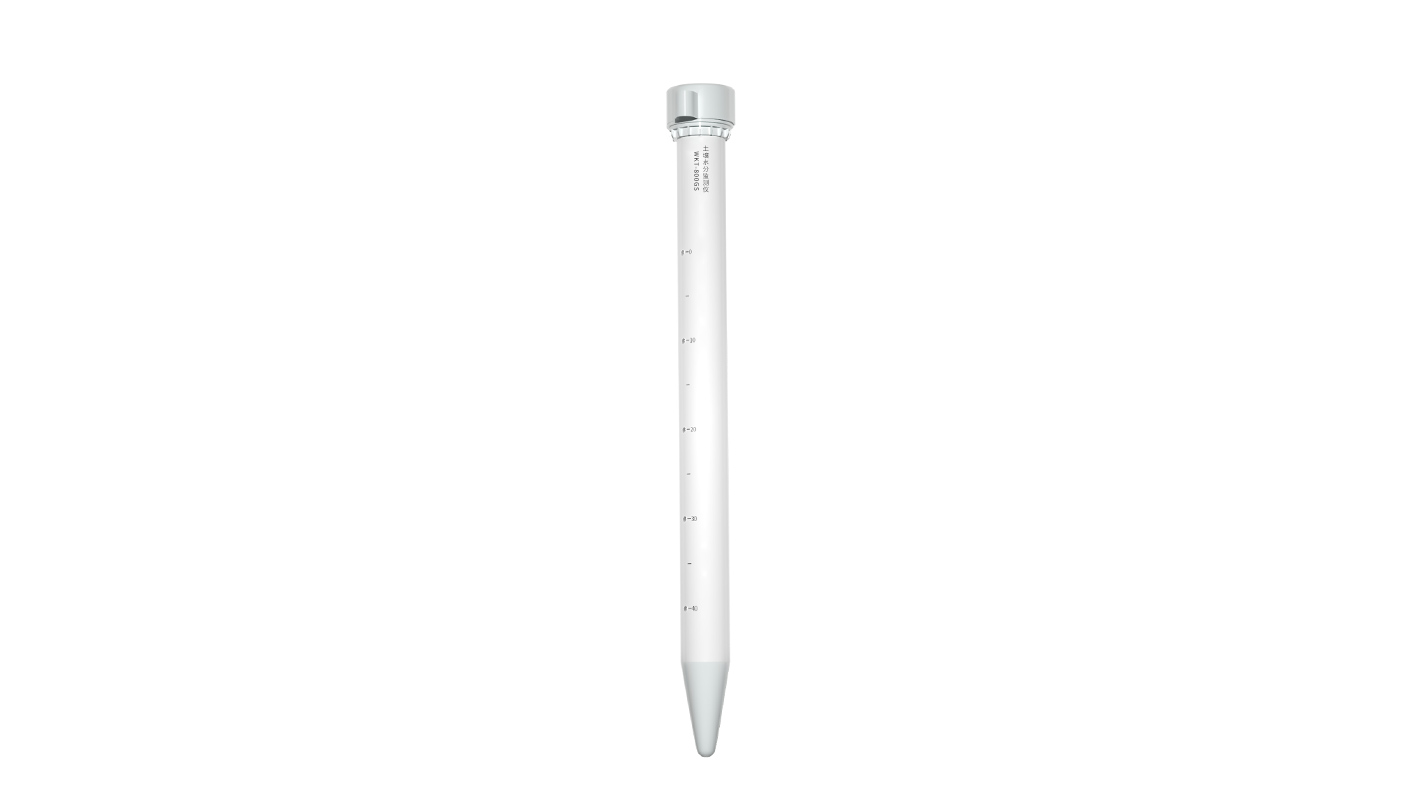

| Structure & Appearance | Integrated tube-type (column-type) |
| Dimensions | 6 cm outer diameter, 78.2 cm high |
