HDT & Vicat Softening Point Tester

Home > Products > Material Testing Instruments > HDT & Vicat Softening Point Tester
Overview Product Filter Related Services Related Products
Need Help? Get a Quote

Product Filter

Filter Options
Instrument Comparison

Compare

Model & Name
Number of Stations
Control System
Printing Method
Cooling Method
WKT-VST300 HDT & Vicat Softening Point Tester WKT-VST300 HDT & Vicat Softening Point Tester
3 Stations
Touchscreen Control
Built-in Micro Printer
Natural Cooling or Water Cooling
Material No.: 2022098898006
Detailed Specifications
ModelWKT-VST300
Temperature Control RangeAmbient-300℃
Ramp Rate(120±10)℃/h (12±1)℃/6min
(50±5)℃/h   (5±0.5)℃/6min
Temperature Indication Resolution0.1℃
Maximum Temperature Measurement Error±0.5℃
Maximum Deformation Indication Error±0.001mm
Maximum Deformation Measurement Range0-12mm
Number of Specimen Frames3
Heating MediumMethyl silicone oil (kinematic viscosity generally 100 cSt) or transformer oil
Maximum Heating Power4 kW
Oil Tank Capacity15L
Cooling MethodAir cooling above 150℃, water cooling below 150℃
Load Rod and Pan Mass68g
Power RequirementsAC220V ±10%  50HZ
Inquire Now
WKT-VST300DW HDT & Vicat Softening Point Tester WKT-VST300DW HDT & Vicat Softening Point Tester
3 Stations
PC Software Control
Print via PC-Connected Printer
Natural Cooling or Water Cooling
Material No.: 2022098898008
Detailed Specifications
ModelWKT-VST300DW
Temperature Control RangeAmbient-300℃
Ramp Rate(120±10)℃/h      (12±1)℃/6min
(50±5)℃/h          (5±0.5)℃/6min
Temperature Indication Resolution0.1℃
Temperature Control Error±0.5℃
Maximum Deformation Indication Error±0.001mm
Maximum Deformation Measurement Range0-12mm
Number of Specimen Frames3
Specimen Frame MaterialInvar steel specimen frame (low deformation)
Indenting Needle MaterialTitanium Alloy
Heating MediumMethyl silicone oil (kinematic viscosity generally 100 cSt) or transformer oil
Maximum Heating Power4 kW 16A
Cooling MethodAir cooling above 150℃, water cooling below 150℃
Load Rod and Pan Mass68g
Oil Tank Capacity15L
OperationComputer Software Operation
Power RequirementsAC220V ±10%  50HZ
Inquire Now
WKT-VST400 HDT & Vicat Tester WKT-VST400 HDT & Vicat Tester
4 Stations
Touchscreen Control
Built-in Micro Printer
Natural Cooling or Water Cooling
Material No.: 2022098898007
Detailed Specifications
ModelWKT-VST400
Temperature Control RangeAmbient-300℃
Ramp Rate(120±10)℃/h (12±1)℃/6min
(50±5)℃/h   (5±0.5)℃/6min
Temperature Indication Resolution0.1℃
Maximum Temperature Measurement Error±0.5℃
Maximum Deformation Indication Error±0.001mm
Maximum Deformation Measurement Range0-12mm
Number of Specimen Frames4
Heating MediumMethyl silicone oil (kinematic viscosity generally 100 cSt) or transformer oil
Maximum Heating Power4 kW
Cooling MethodAir cooling above 150℃, water cooling below 150℃
Load Rod and Pan Mass68g
Power RequirementsAC220V ±10%  50HZ
Inquire Now
WKT-VST400DW HDT & Vicat Tester WKT-VST400DW HDT & Vicat Tester
4 Stations
PC Software Control
Print via PC-Connected Printer
Natural Cooling or Water Cooling
Material No.: 2022098898008
Detailed Specifications
ModelWKT-VST400DW
Temperature Control RangeAmbient-300℃
Ramp Rate(120±10)℃/h      (12±1)℃/6min
(50±5)℃/h          (5±0.5)℃/6min
Temperature Indication Resolution0.1℃
Temperature Control Error±0.5℃
Maximum Deformation Indication Error±0.001mm
Maximum Deformation Measurement Range0-12mm
Number of Specimen Frames4
Specimen Frame MaterialInvar steel specimen frame (low deformation)
Indenting Needle MaterialTitanium Alloy
Heating MediumMethyl silicone oil (kinematic viscosity generally 100 cSt) or transformer oil
Maximum Heating Power4 kW 16A
Cooling MethodAir cooling above 150℃, water cooling below 150℃
Load Rod and Pan Mass68g
Oil Tank Capacity20L
OperationComputer Software Operation
Power RequirementsAC220V ±10%  50HZ
Inquire Now
WKT-VST100 HDT & Vicat Tester WKT-VST100 HDT & Vicat Tester
1 Station
Touchscreen Control
Built-in Micro Printer
Natural Cooling or Water Cooling
Material No.:
Detailed Specifications
ModelWKT-VST100
Temperature Control RangeAmbient-300℃
Ramp Rate(120±10)℃/h (12±1)℃/6min
(50±5)℃/h   (5±0.5)℃/6min
Temperature Indication Resolution0.1℃
Maximum Temperature Measurement Error±0.5℃
Maximum Deformation Indication Error±0.001mm
Maximum Deformation Measurement Range0-12mm
Number of Specimen Frames1
Heating MediumMethyl silicone oil (kinematic viscosity generally 100 cSt) or transformer oil
Maximum Heating Power4 kW
Cooling MethodAir cooling above 150℃, water cooling below 150℃
Load Rod and Pan Mass68g
Power RequirementsAC220V ±10%  50HZ
Inquire Now

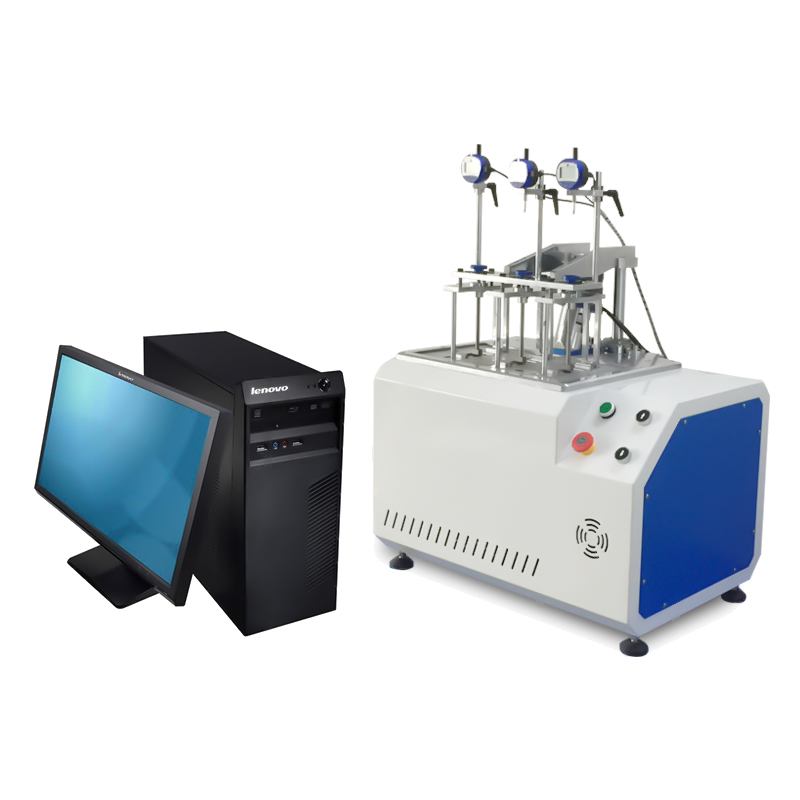

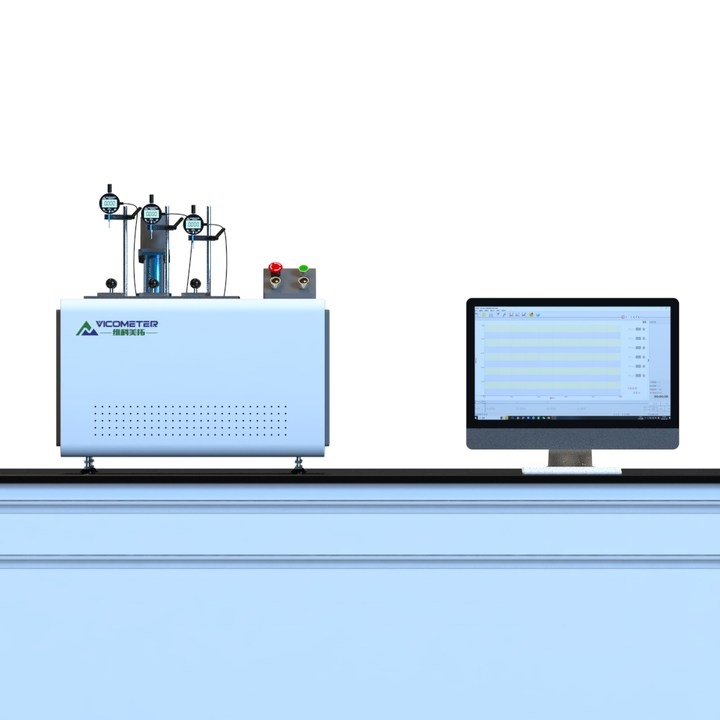

WKT-VST100DW HDT & Vicat Tester WKT-VST100DW HDT & Vicat Tester
1 Station
PC Software Control
Print via PC-Connected Printer
Natural Cooling or Water Cooling
Material No.:
Detailed Specifications
ModelWKT-VST100DW
Temperature Control RangeAmbient-300℃
Ramp Rate(120±10)℃/h      (12±1)℃/6min
(50±5)℃/h          (5±0.5)℃/6min
Temperature Indication Resolution0.1℃
Temperature Control Error±0.5℃
Maximum Deformation Indication Error±0.001mm
Maximum Deformation Measurement Range0-12mm
Number of Specimen Frames1
Specimen Frame MaterialInvar steel specimen frame (low deformation)
Indenting Needle MaterialTitanium Alloy
Heating MediumMethyl silicone oil (kinematic viscosity generally 100 cSt) or transformer oil
Maximum Heating Power4 kW 16A
Cooling MethodAir cooling above 150℃, water cooling below 150℃
Load Rod and Pan Mass68g
Oil Tank Capacity20L
OperationComputer Software Operation
Power RequirementsAC220V ±10%  50HZ
Inquire Now

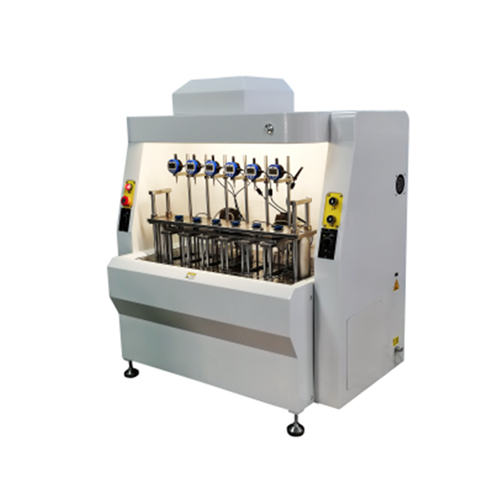

WKT-VST600C Automatic Cooled HDT & Vicat Tester WKT-VST600C Automatic Cooled HDT & Vicat Tester
6 Stations
PC Software Control
Print via PC-Connected Printer
Compressor Cooling
Material No.: 2022098898009
Detailed Specifications
ModelWKT-VST600C
Temperature Control RangeAmbient-300℃
Ramp Rate（120±10）℃/h      (12±1)℃/6min
       （50±5)℃/h            (5±0.5)℃/6min
Temperature Indication Resolution0.1℃
Maximum Temperature Measurement Error±0.5℃
Maximum Deformation Indication Error±0.001mm
Maximum Deformation Measurement Range0-12mm
Number of Specimen Frames6
Test Span Range64 or 100 mm per standard
Oil Tank Capacity25L
Heating MediumMethyl silicone oil (kinematic viscosity generally 100 cSt) or transformer oil
Maximum Heating Power9 kW
Load Rod and Pan Mass68g
Inquire Now

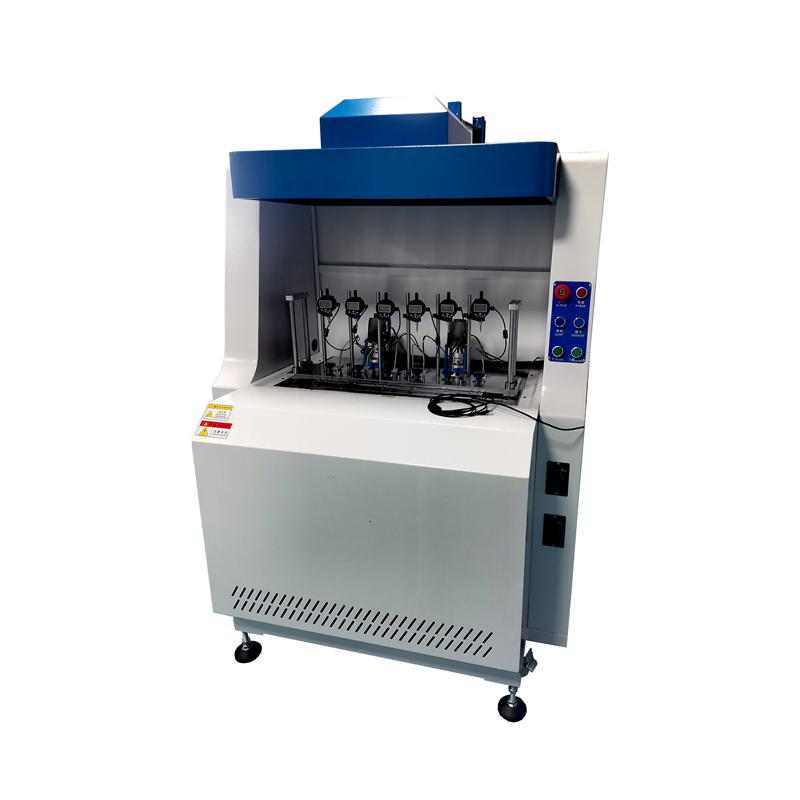

WKT-VST600DW HDT & Vicat Softening Point Tester WKT-VST600DW HDT & Vicat Softening Point Tester
6 Stations
PC Software Control
Print via PC-Connected Printer
Natural Cooling or Water Cooling
Material No.: 2022098898010
Detailed Specifications
ModelWKT-VST300D
Temperature Control RangeAmbient-300℃
Ramp Rate(120±10)℃/h (12±1)℃/6min
(50±5)℃/h   (5±0.5)℃/6min
Temperature Indication Resolution0.1℃
Temperature Control Accuracy±0.5℃
Maximum Deformation Indication Error±0.001mm
Maximum Deformation Measurement Range0-12mm
Number of Specimen Frames3
Heating MediumMethyl silicone oil (kinematic viscosity generally 100 cSt) or transformer oil
Maximum Heating Power4 KW  16A
Cooling MethodAir cooling above 150℃, water cooling below 150℃
Load Rod and Pan Mass68g
Instrument Dimensions600 mm × 570 mm × 1300 mm (3 stations)
Power SupplyAC220V ±10%  50HZ
Inquire Now
