WKT-M Soil Moisture Meter WKT-M Soil Moisture Meter
Handheld
Temperature, humidity, salinity, conductivity, nitrogen, phosphorus, potassium, pH, latitude & longitude
PC Software
Needle-Type (parameters freely combinable, expandable)
Lithium battery powered, parameter expansion
Material No.: 2022098898031
Detailed Specifications
Instrument ModelWKT-M
Compatible ProbesSoil moisture, soil temperature, soil salinity, conductivity, pH, nitrogen-phosphorus-potassium, latitude & longitude
Display12864 LCD display 56*34 (mm)
Charging Voltage12V
Charging Current1A
Battery Capacity3000mAh
Battery Voltage8.4V
Sampling Interval1 minute–24 hours
Storage CapacityApprox. 2.6 million measured data points
Operating Power40mA
Low-Power Mode70uA
Dimensions204*100*36（mm）
Weight0.3kg
Inquire Now

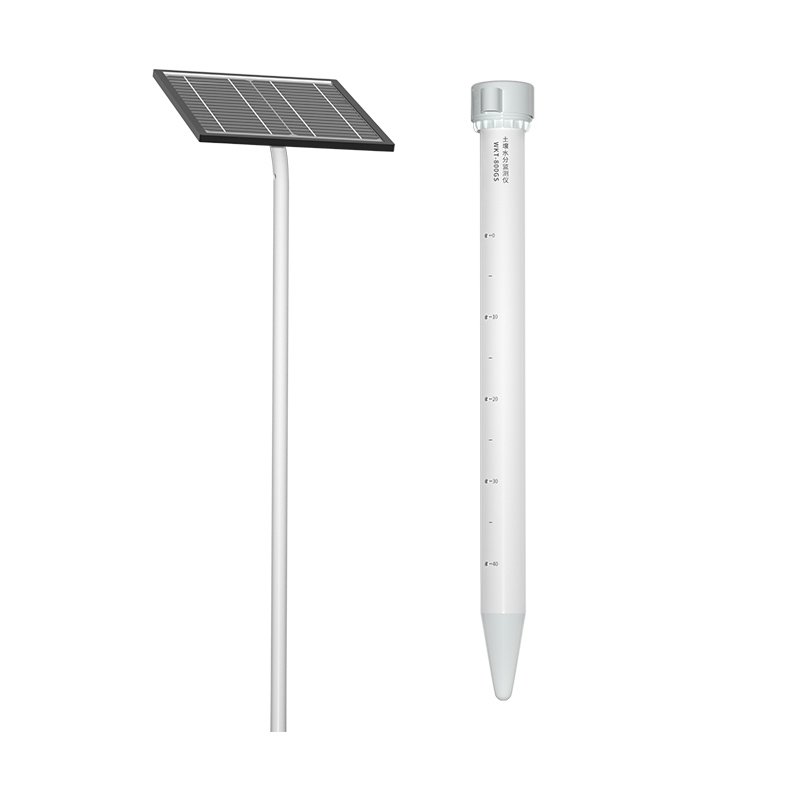

WKT-800GS Multi-Layer Soil Moisture Monitor WKT-800GS Multi-Layer Soil Moisture Monitor
Tube Type
Temperature & Humidity
IoT platform, APP software, WeChat official account platform, scan QR code to view data
Tube-Type Multi-Layer Detection (customizable points)
Solar Powered
Material No.: 2022098898023
Detailed Specifications
ModelWKT-800GS
Soil MoistureMeasuring range: dry soil–saturated soil
 Accuracy3%
Soil TemperatureMeasuring Range：-30℃～70℃
 Accuracy0.1℃
Recording Interval30 min–24 hours (adjustable)
Measurement Point Spacing10cm
OutputUSB data export
Storage Capacity1M
Data ViewingRemote viewing via web platform
Power SupplySolar panel + lithium battery power supply
Protective HousingPVC
Ingress ProtectionIP68
Operating Environment-20℃～85℃
Structure & AppearanceIntegrated tube-type (column-type)
Dimensions6 cm outer diameter, 78.2 cm high
Inquire Now

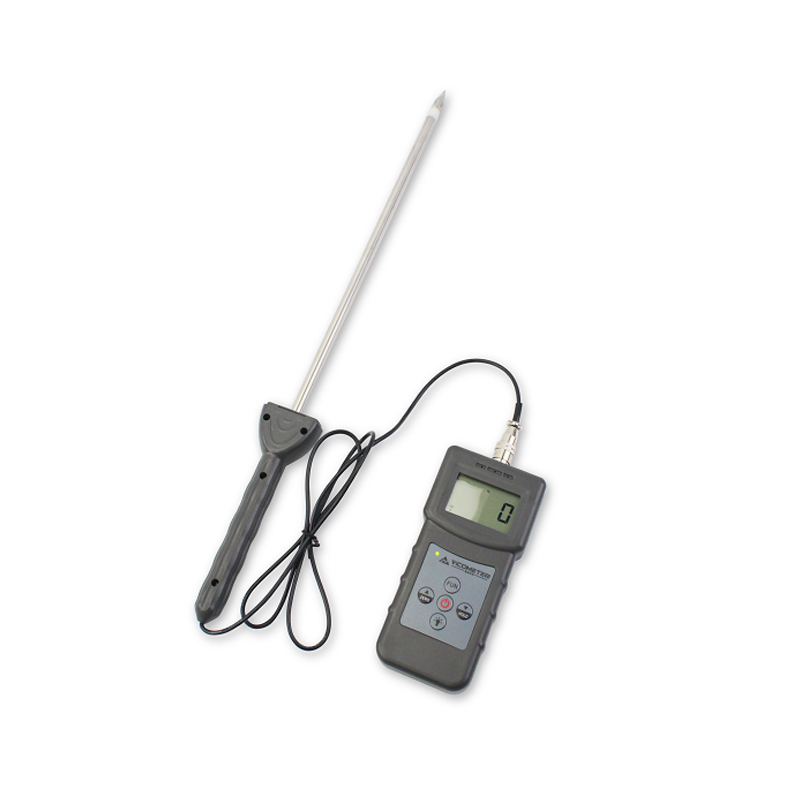

VM-210S Portable Moisture Analyzer VM-210S Portable Moisture Analyzer
Handheld
Moisture Only
Material No.: 2022068898022
Detailed Specifications
ModelVM-210S
Moisture Content Range0%-50%
Ambient TemperatureTemperature: -10°C-60°C   Humidity: 5%-85%
Measuring PrincipleConductivity method, temperature compensation
Accuracy±2%n (within the non-saturated range)
Resolution0.1%
Code3 sets
Power Requirements4 AAA batteries
DisplayBacklit LCD digital display
Overall DimensionsMain unit: 140mm×60mm×24mm, handle: 445mm×40mm×20mm
Net Weight210g
Inquire Now
WKT-M1 Soil Moisture Meter WKT-M1 Soil Moisture Meter
Handheld
Temperature & Humidity
PC Software
Needle-Type (parameters freely combinable, expandable)
Lithium battery powered, parameter expansion
Material No.: 202209889808
Detailed Specifications
Instrument ModelWKT-M1
Compatible ProbesSoil moisture, soil temperature (expandable to salinity, conductivity, pH, N-P-K)
Display12864 LCD display 56*34 (mm)
Charging Voltage12V
Charging Current1A
Battery Capacity3000mAh
Battery Voltage8.4V
Sampling Interval1 minute–24 hours
Storage CapacityApprox. 2.6 million measured data points
Operating Power40mA
Low-Power Mode70uA
Dimensions204*100*36（mm）
Weight0.3kg
Inquire Now
WKT-MY1 Analyzer WKT-MY1 Analyzer
Handheld
Temperature, humidity, salinity
PC Software
Needle-Type (parameters freely combinable, expandable)
Lithium battery powered, parameter expansion
Material No.: 2022098898029
Detailed Specifications
Instrument ModelWKT-MY1
Compatible ProbesSoil moisture, soil temperature, soil salinity (expandable to conductivity, pH, N-P-K)
Display12864 LCD display 56*34 (mm)
Charging Voltage12V
Charging Current1A
Battery Capacity3000mAh
Battery Voltage8.4V
Sampling Interval1 minute–24 hours
Storage CapacityApprox. 2.6 million measured data points
Operating Power40mA
Low-Power Mode70uA
Dimensions204*100*36（mm）
Weight0.3kg
Inquire Now
WKT-MY1 + Soil Moisture Meter WKT-MY1 + Soil Moisture Meter
Handheld
Temperature, humidity, latitude & longitude
PC Software
Needle-Type (parameters freely combinable, expandable)
Lithium battery powered, parameter expansion
Material No.: 2022098898030
Detailed Specifications
Instrument ModelWKT-M1
Compatible ProbesSoil moisture, soil temperature, soil salinity, latitude & longitude (expandable to conductivity, pH, N-P-K)
Display12864 LCD display 56*34 (mm)
Charging Voltage12V
Charging Current1A
Battery Capacity3000mAh
Battery Voltage8.4V
Sampling Interval1 minute–24 hours
Storage CapacityApprox. 2.6 million measured data points
Operating Power40mA
Low-Power Mode70uA
Dimensions204*100*36（mm）
Weight0.3kg
Inquire Now
