Pendulum Impact Tester

Home > Products > Material Testing Instruments > Pendulum Impact Tester
Overview Product Filter Related Services Related Products
Need Help? Get a Quote

Product Filter

Filter Options
Instrument Comparison

Compare

Model & Name
Operation
Impact Method
Impact Energy (J)/Mass (kg)
WKT-XJ8001 Touchscreen Combined Izod/Charpy Impact Tester WKT-XJ8001 Touchscreen Combined Izod/Charpy Impact Tester
Touchscreen
Izod/Charpy Combined
Full Energy
Material No.: 202204889815
Detailed Specifications
Instrument NameTouchscreen Izod/Charpy Combined Impact Tester
Instrument ModelModel WKT-XJ8001
DisplayColor touchscreen (Chinese/English)
Angle Sensor AccuracyOriginal imported OMRON encoder, accuracy 0.01°
Izod Impact Energy2.75J、5.5J、11J、22J
Charpy Impact Energy1J、2J、4J、5J、7.5J、15J、25J、50J
Energy Display Accuracy0.01J
Pre-Lift Angle150°
Izod Impact Speed3.5M/S
Charpy Impact Speed2.9M/S (for ≤5J), 3.8M/S (for >5J)
Pendulum Center Distance335mm、230mm、395mm
Charpy Support Span40mm、60mm、70mm、95mm
Izod Striking Edge RadiusR=0.8±0.2mm
Charpy Striking Edge RadiusR=2mm±0.5mm
Distance from Striking Edge to Upper Jaw Surface22mm±0.05mm
Striking Edge Angle30°±1°
Power RequirementsAC220V±10%   50HZ
Inquire Now
WKT-XJ5001 Combined Izod/Charpy Impact Tester WKT-XJ5001 Combined Izod/Charpy Impact Tester
Touchscreen
Izod/Charpy Combined
Charpy (≤5J), Izod (≤5.5J)
Material No.: 202209889878
Detailed Specifications
Instrument NameTouchscreen Izod/Charpy Combined Impact Tester
Instrument ModelModel WKT-XJ5001
DisplayColor touchscreen (Chinese/English)
Angle Sensor AccuracyOriginal imported OMRON encoder, accuracy 0.01°
Izod Impact Energy2.75J、5.5J
Charpy Impact Energy1J、2J、4J、5J
Energy Display Accuracy0.01J
Pre-Lift Angle150°
Izod Impact Speed3.5M/S
Charpy Impact Speed2.9M/S
Pendulum Center Distance335mm、230mm、395mm
Charpy Support Span40mm、60mm、70mm、95mm
Izod Striking Edge RadiusR=0.8±0.2mm
Charpy Striking Edge RadiusR=2mm±0.5mm
Distance from Striking Edge to Upper Jaw Surface22mm±0.05mm
Striking Edge Angle30°±1°
Power RequirementsAC220V±10%   50HZ
Inquire Now

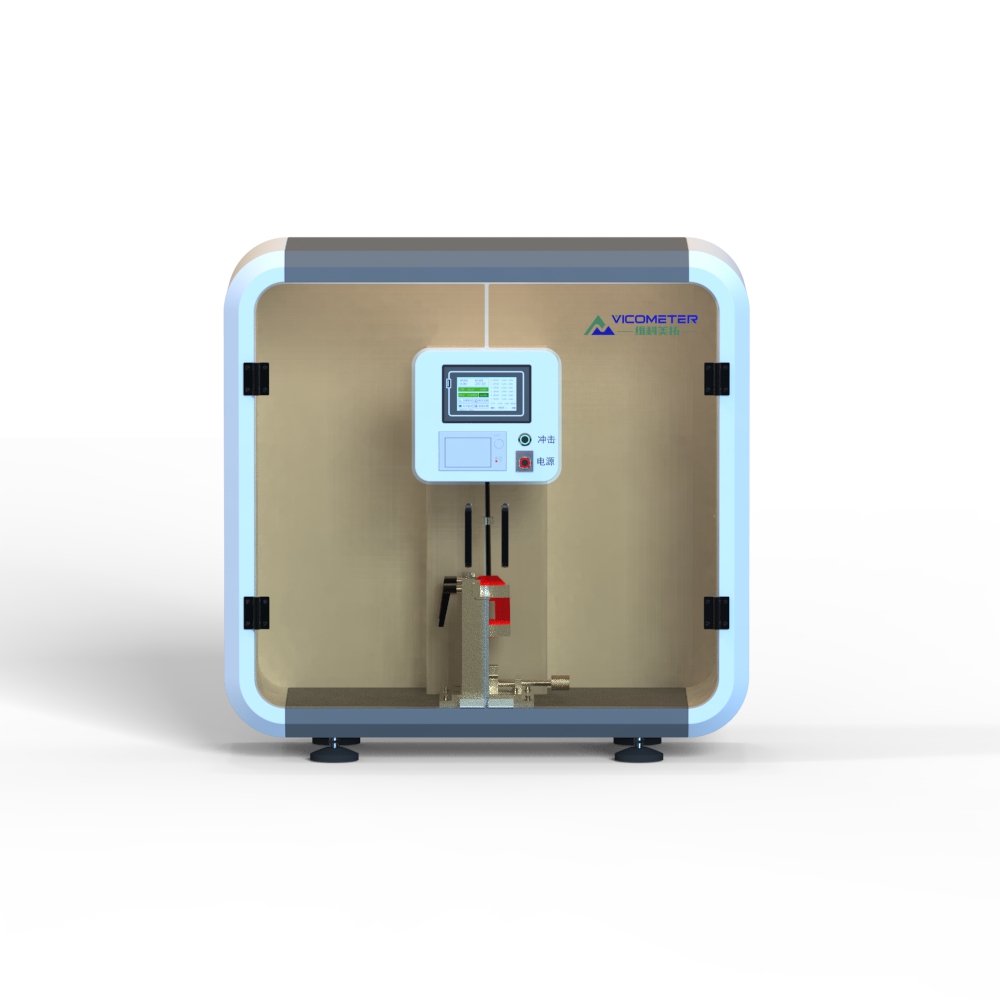

WKT-XJ6001 Touchscreen Combined Izod/Charpy Impact Tester WKT-XJ6001 Touchscreen Combined Izod/Charpy Impact Tester
Touchscreen
Izod/Charpy Combined
Charpy (>5J), Izod (>5.5J)
Material No.: 2022098898001
Detailed Specifications
Instrument NameTouchscreen Izod/Charpy Combined Impact Tester
Instrument ModelModel WKT-XJ6001
DisplayColor touchscreen (Chinese/English)
Angle Sensor AccuracyOriginal imported OMRON encoder, accuracy 0.01°
Izod Impact Energy11J、22J
Charpy Impact Energy7.5J、15J、25J、50J（Optional）
Energy Display Accuracy0.01J
Pre-Lift Angle150°
Izod Impact Speed3.5M/S
Charpy Impact Speed3.8M/S
Pendulum Center Distance335mm、230mm、395mm
Charpy Support Span40mm、60mm、70mm、95mm
Izod Striking Edge RadiusR=0.8±0.2mm
Charpy Striking Edge RadiusR=2mm±0.5mm
Distance from Striking Edge to Upper Jaw Surface22mm±0.05mm
Striking Edge Angle30°±1°
Power RequirementsAC220V±10%   50HZ
Inquire Now
WKT-J8001 Charpy Impact Tester Full Energy WKT-J8001 Charpy Impact Tester Full Energy
Touchscreen
Charpy
Full Energy
Material No.:
Detailed Specifications
Instrument NameTouchscreen Charpy Impact Tester
Instrument ModelModel WKT-J8001
DisplayColor touchscreen (Chinese/English)
Angle Sensor AccuracyOriginal imported OMRON encoder, accuracy 0.01°
Impact Energy1J、2J、4J、5J、7.5J、15J、25J、50J
Energy Display Accuracy0.01J
Pre-Lift Angle150°
Impact Speed2.9M/S (for ≤5J), 3.8M/S (for >5J)
Pendulum Center Distance221mm、380mm、230mm、395mm
Izod Striking Edge RadiusR=1mm
Distance from Striking Edge to Upper Jaw Surface40mm、60mm、70mm、95mm
Striking Edge Angle30°±1°
Striking Edge Fillet RadiusR=2mm±0.5mm
Power RequirementsAC220V±10%   50HZ
Instrument Weight85Kg
Inquire Now

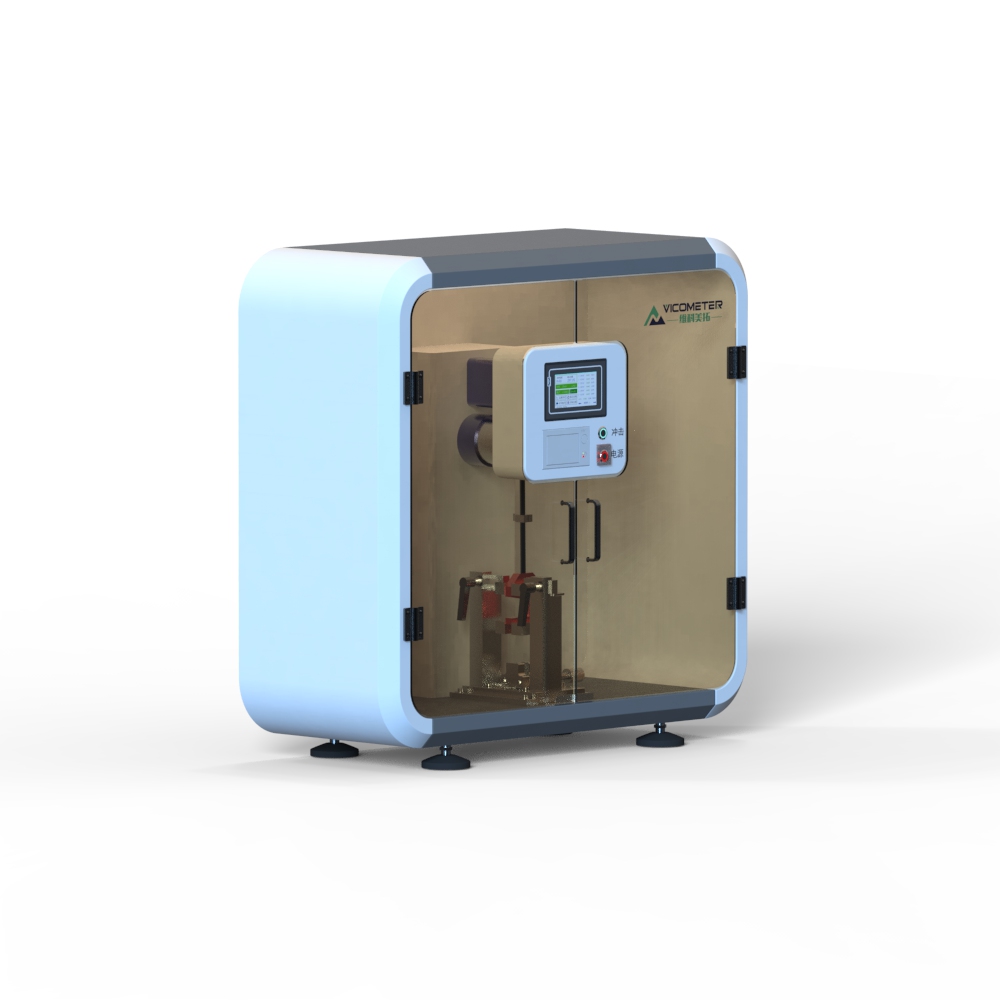

WKT-X8001 Izod Impact Tester Full Energy WKT-X8001 Izod Impact Tester Full Energy
Touchscreen
Izod
Full Energy
Material No.: 2022098898002
Detailed Specifications
Instrument NameTouchscreen Izod Impact Tester
Instrument ModelModel WKT-X8001
DisplayColor touchscreen (Chinese/English)
Angle Sensor AccuracyOriginal imported OMRON encoder, accuracy 0.01°
Impact Energy2.75J、5.5J、11J、22J
Energy Display Accuracy0.01J
Pre-Lift Angle150°
Impact Speed3.5M/S
Distance from Pendulum Center to Striking Edge335mm
Distance from Striking Edge to Upper Jaw Plane22mm
Izod Striking Edge RadiusR=0.8±0.2mm
Power RequirementsAC220V±10%   50HZ
Instrument Weight85Kg
Inquire Now
WKT-X5001 Touchscreen Izod Impact Tester WKT-X5001 Touchscreen Izod Impact Tester
Touchscreen
Izod
Izod (≤5.5J)
Material No.: 2022098898003
Detailed Specifications
Instrument NameTouchscreen Izod Impact Tester
Instrument ModelModel WKT-X5001
DisplayColor touchscreen (Chinese/English)
Angle Sensor AccuracyOriginal imported OMRON encoder, accuracy 0.01°
Impact Energy2.75J、5.5J
Energy Display Accuracy0.01J
Pre-Lift Angle150°
Impact Speed3.5M/S
Distance from Pendulum Center to Striking Edge335mm
Distance from Striking Edge to Upper Jaw Plane22mm
Izod Striking Edge RadiusR=0.8±0.2mm
Power RequirementsAC220V±10%   50HZ
Instrument Weight85Kg
Inquire Now

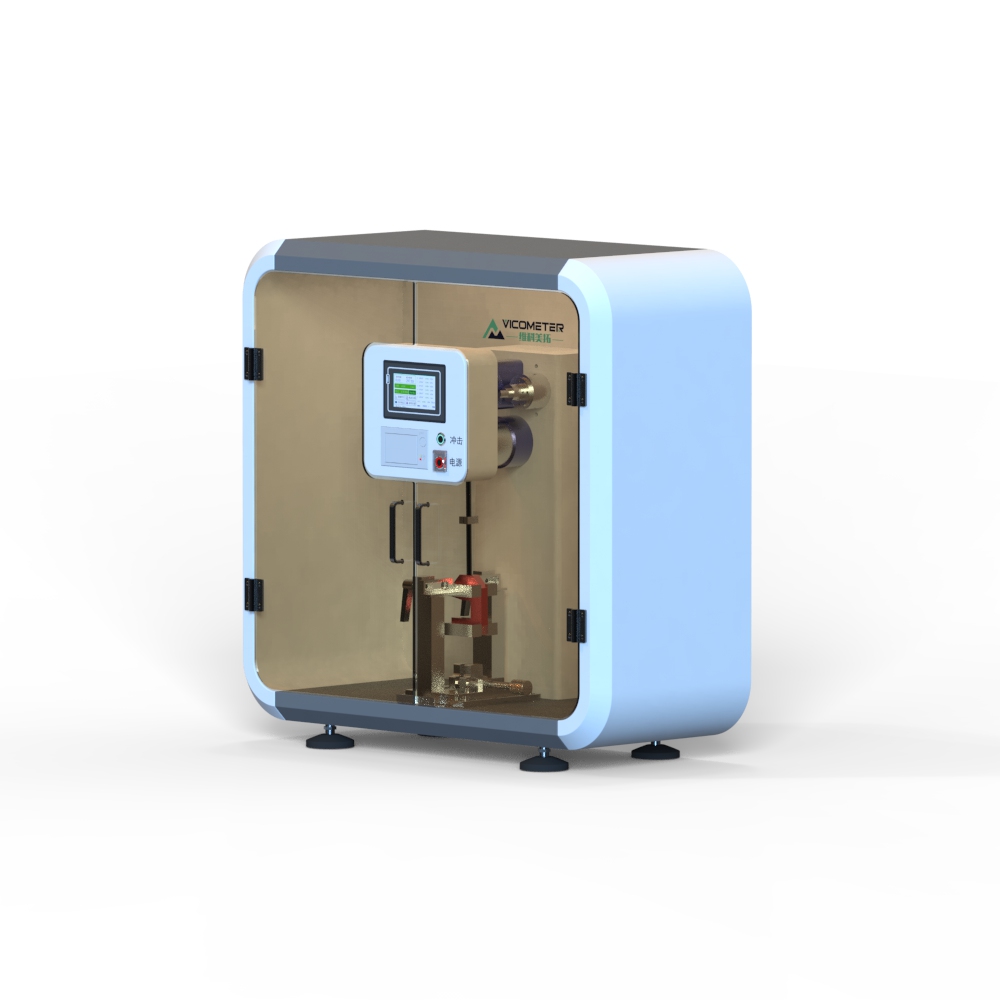

WKT-J5001 Charpy Impact Tester WKT-J5001 Charpy Impact Tester
Touchscreen
Charpy
Charpy (≤5J)
Material No.:
Detailed Specifications
Instrument NameTouchscreen Charpy Impact Tester
Instrument ModelModel WKT-J5001
DisplayColor touchscreen (Chinese/English)
Angle Sensor AccuracyOriginal imported OMRON encoder, accuracy 0.01°
Impact Energy1J、2J、4J、5J
Energy Display Accuracy0.01J
Pre-Lift Angle150°
Impact Speed2.9M/S
Pendulum Center Distance221mm、380mm
Izod Striking Edge RadiusR=1mm
Distance from Striking Edge to Upper Jaw Surface40mm、60mm、70mm、95mm
Striking Edge Angle30°±1°
Striking Edge Fillet RadiusR=2mm±0.5mm
Power RequirementsAC220V±10%   50HZ
Instrument Weight85Kg
Inquire Now
WKT-X6001 Izod Impact Tester WKT-X6001 Izod Impact Tester
Touchscreen
Izod
Izod (>5.5J)
Material No.: 2022048898005
Detailed Specifications
Instrument NameTouchscreen Izod Impact Tester
Instrument ModelModel WKT-X6001
DisplayColor touchscreen (Chinese/English)
Angle Sensor AccuracyOriginal imported OMRON encoder, accuracy 0.01°
Impact Energy11J、22J
Energy Display Accuracy0.01J
Pre-Lift Angle150°
Impact Speed3.5M/S
Distance from Pendulum Center to Striking Edge335mm
Distance from Striking Edge to Upper Jaw Plane22mm
Izod Striking Edge RadiusR=0.8±0.2mm
Power RequirementsAC220V±10%   50HZ
Instrument Weight85Kg
Inquire Now
WKT-J6001 Touchscreen Charpy Impact Tester WKT-J6001 Touchscreen Charpy Impact Tester
Touchscreen
Charpy
Charpy (>5J)
Material No.:
Detailed Specifications
Instrument NameTouchscreen Charpy Impact Tester
Instrument ModelModel WKT-J6001
DisplayColor touchscreen (Chinese/English)
Angle Sensor AccuracyOriginal imported OMRON encoder, accuracy 0.01°
Impact Energy7.5J、15J（Optional25J、50J）
Energy Display Accuracy0.01J
Pre-Lift Angle150°
Impact Speed3.8M/S
Pendulum Center Distance230mm、395mm
Izod Striking Edge RadiusR=1mm
Distance from Striking Edge to Upper Jaw Surface40mm、60mm、70mm、95mm
Striking Edge Angle30°±1°
Striking Edge Fillet RadiusR=2mm±0.5mm
Power RequirementsAC220V±10%   50HZ
Instrument Weight85Kg
Inquire Now
