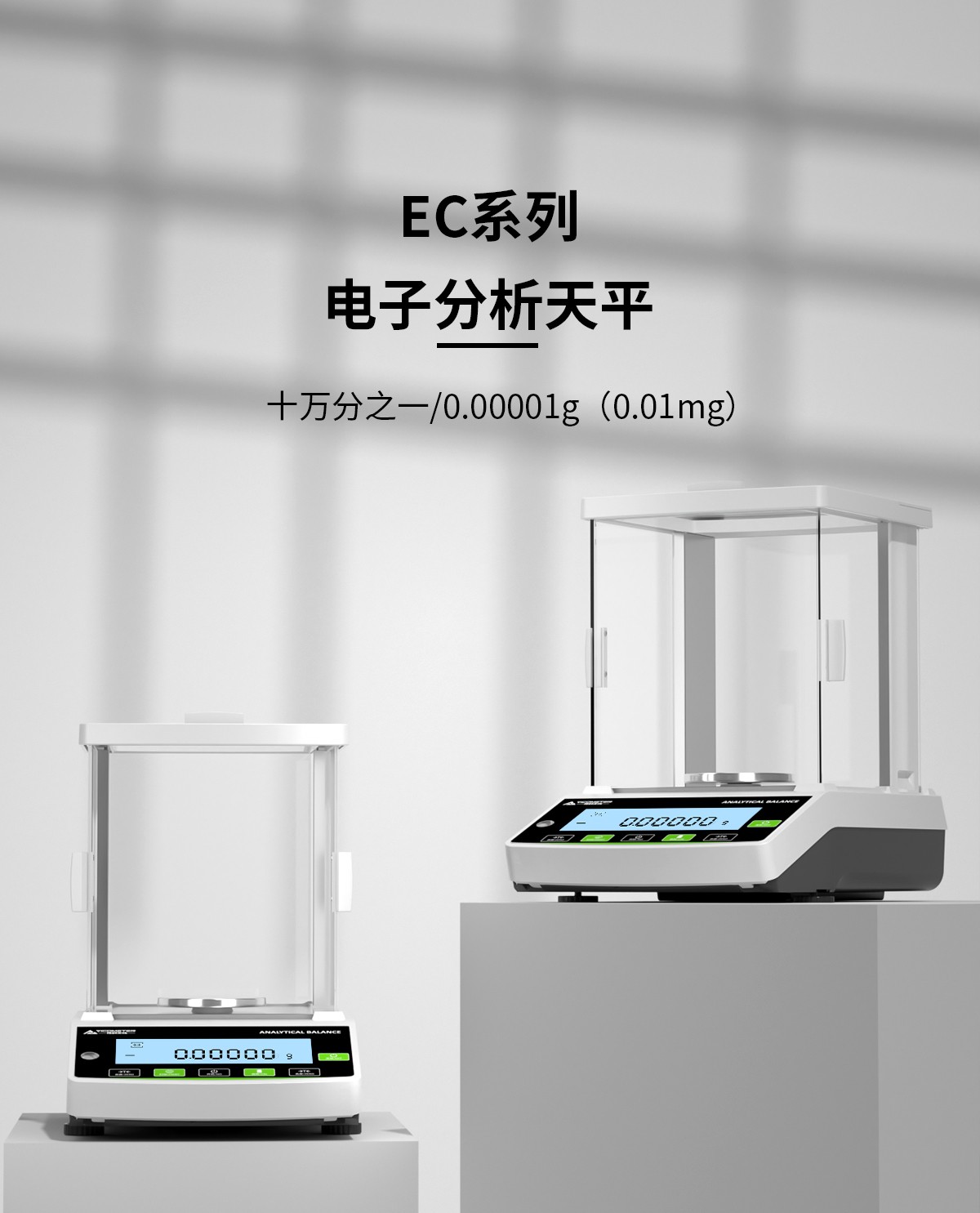

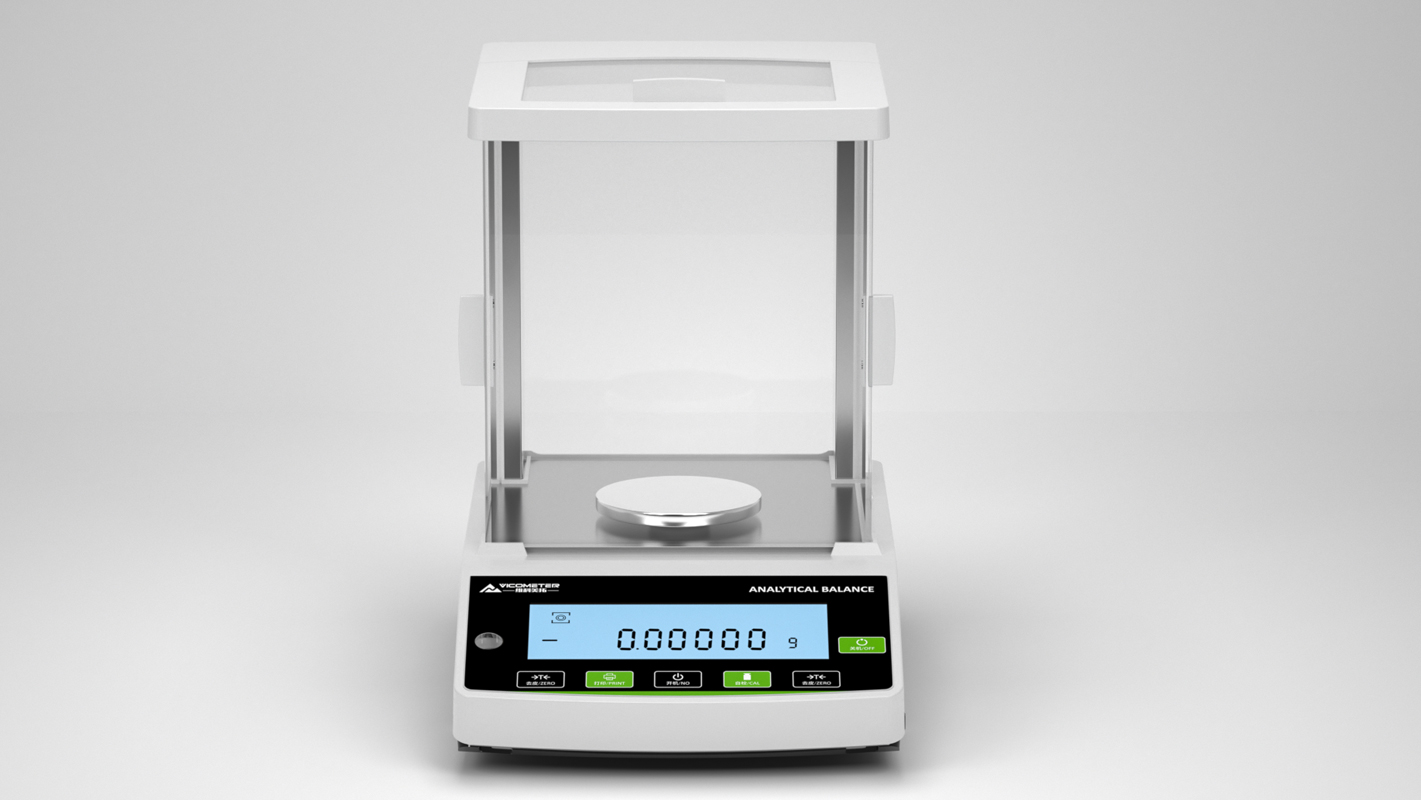

VicoMeter weighing technology delivers accurate measurement results. EC Series balances provide fast, accurate results, and internal calibration enables quick one-key balance calibration.
A clear, intuitive interface gives direct access to all operating programs and daily calibration; combined with easy cleaning, your daily tasks become fast and efficient, supporting your everyday work.

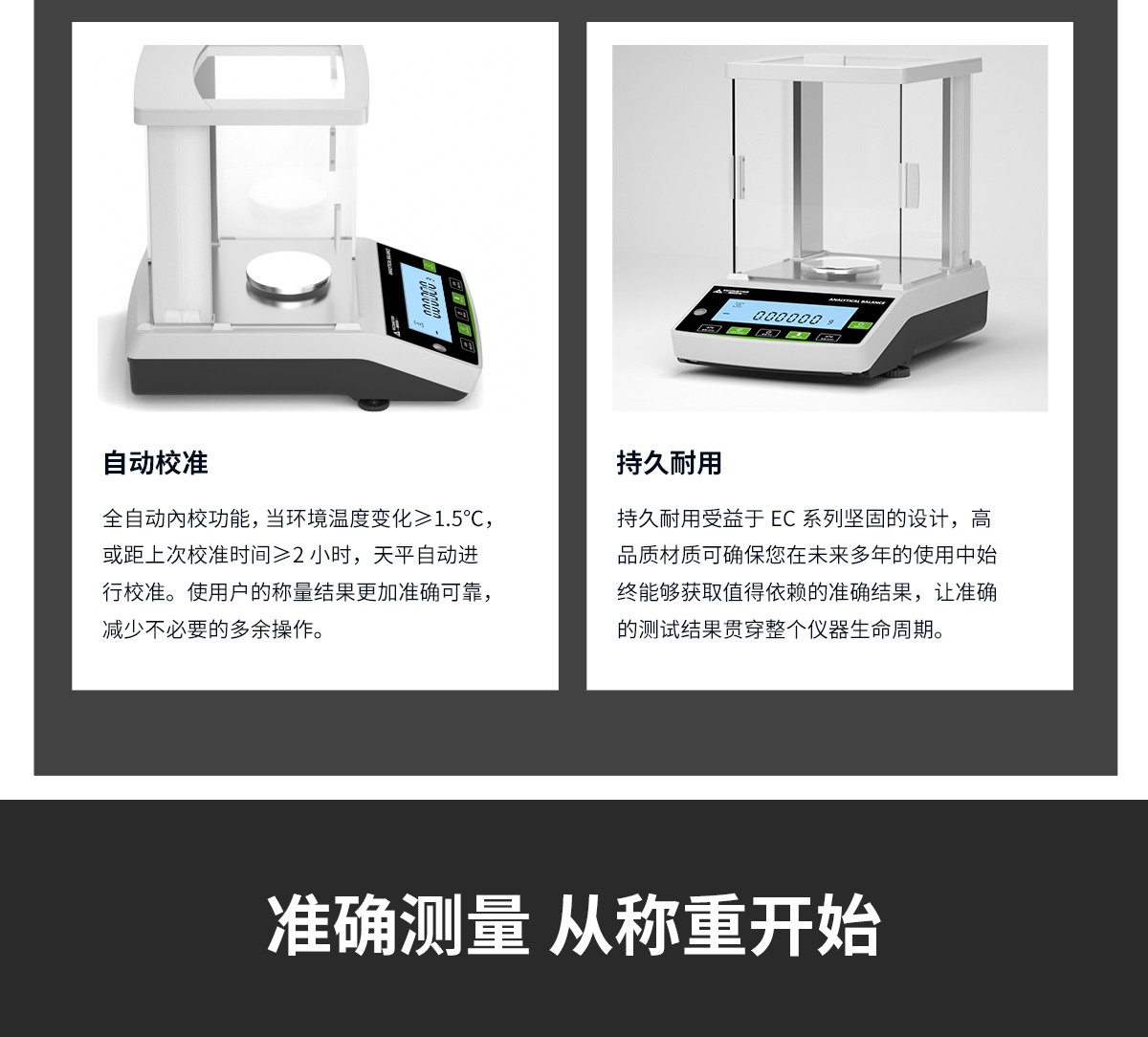

Fully automatic internal calibration: the balance calibrates itself whenever the ambient temperature changes by ≥1.5 ℃ or when ≥2 hours have passed since the last calibration.
Keeps your weighing results accurate and reliable with fewer unnecessary steps. Built to last — thanks to the AC series' robust design, high-quality materials ensure dependable, accurate results for years to come, throughout the instrument's entire life cycle.

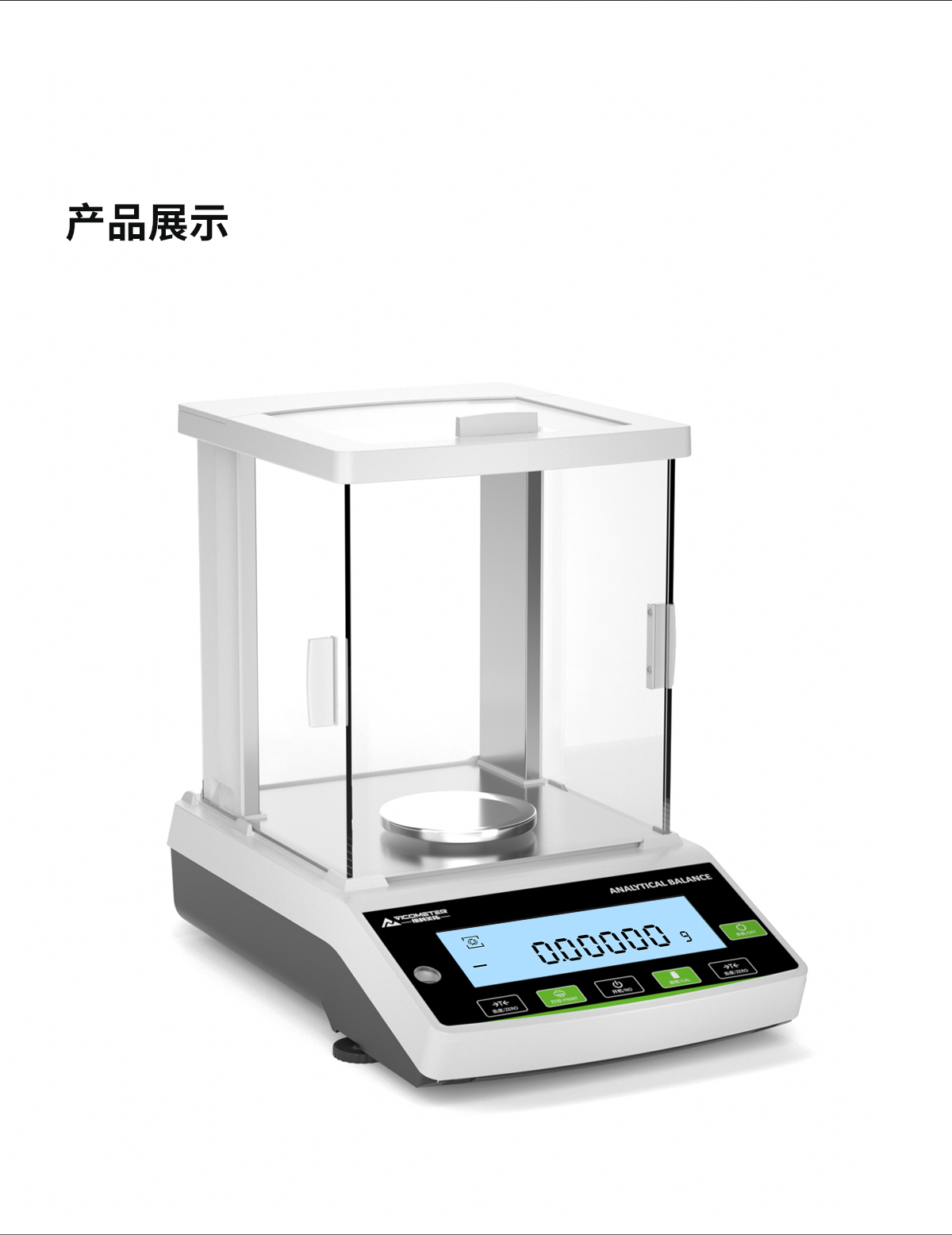

Product Details











Technical Specifications

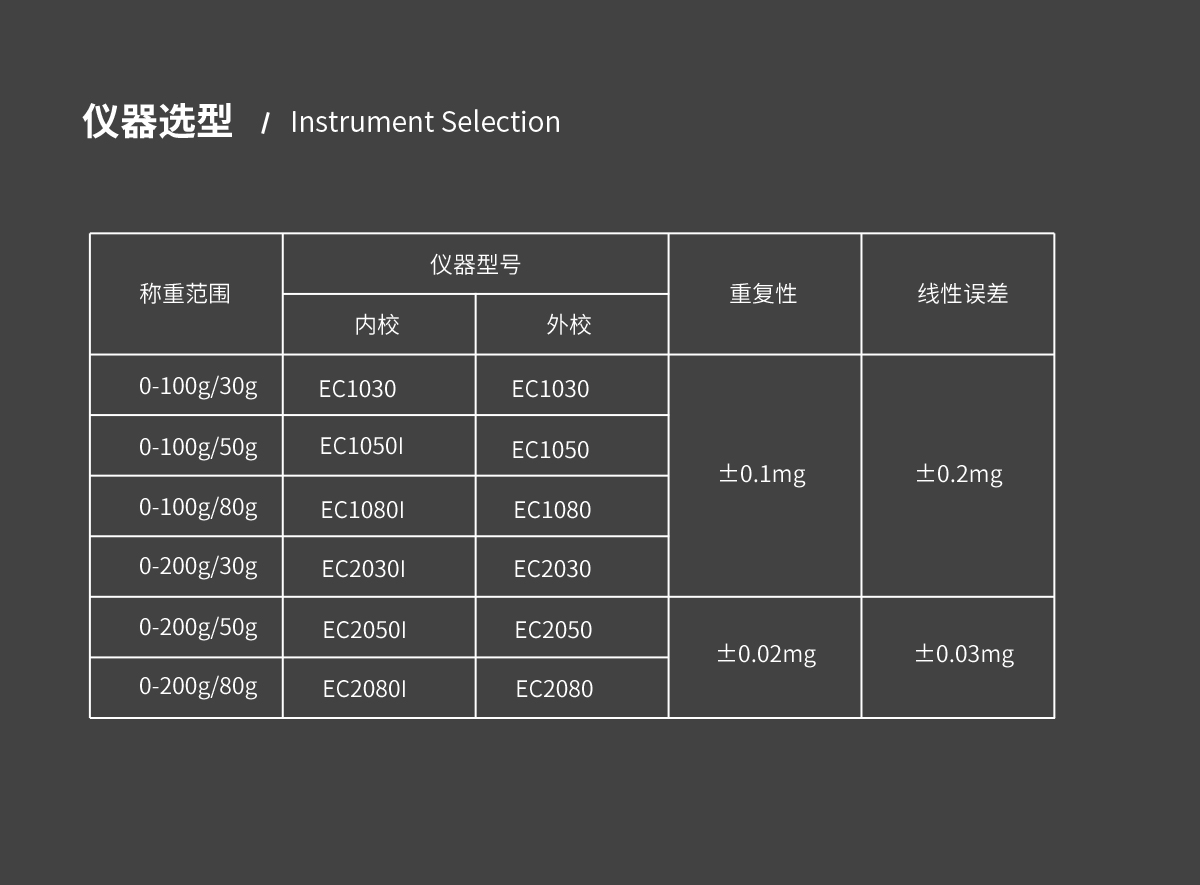

| Weighing Range | Instrument Model | Repeatability | Linearity Error | |
| Internal Calibration | External Calibration | |||
| 100g/30g | EC1030 | EC1030I | ±0.1mg | ±0.2mg |
| 100g/50g | EC1050 | EC1050I | ||
| 100g/80g | EC1080 | EC1080I | ||
| 200g/30g | EC2030 | EC2030I | ||
| 200g/50g | EC2050 | EC2050I | ±0.02mg | ±0.03mg |
| 200g/80g | EC2080 | EC2080I | ||

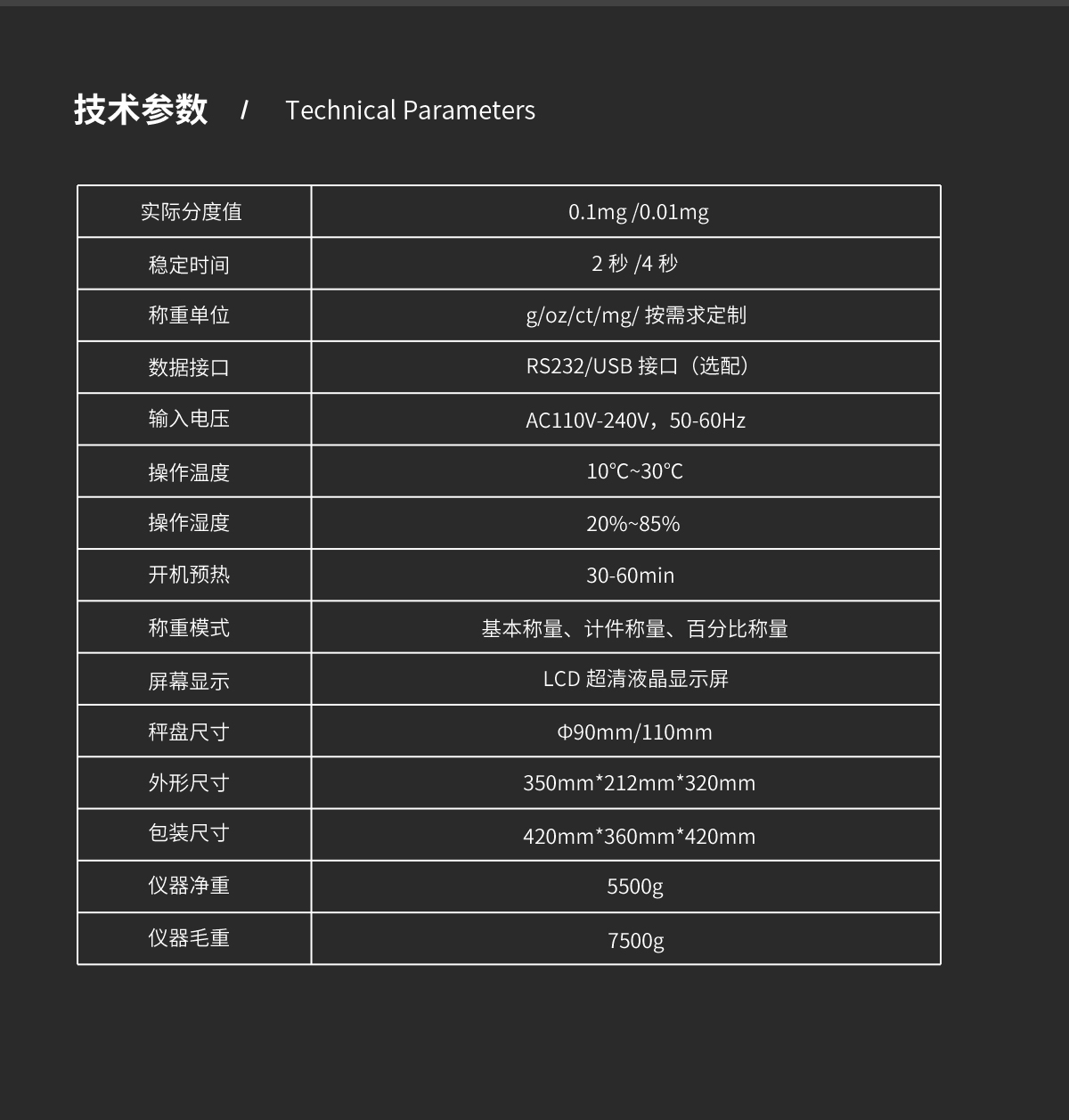

| Readability | 0.1mg /0.01mg |
| Stabilization Time | 2 s / 4 s |
| Weighing Units | g/oz/ct/mg/Customizable on Request |

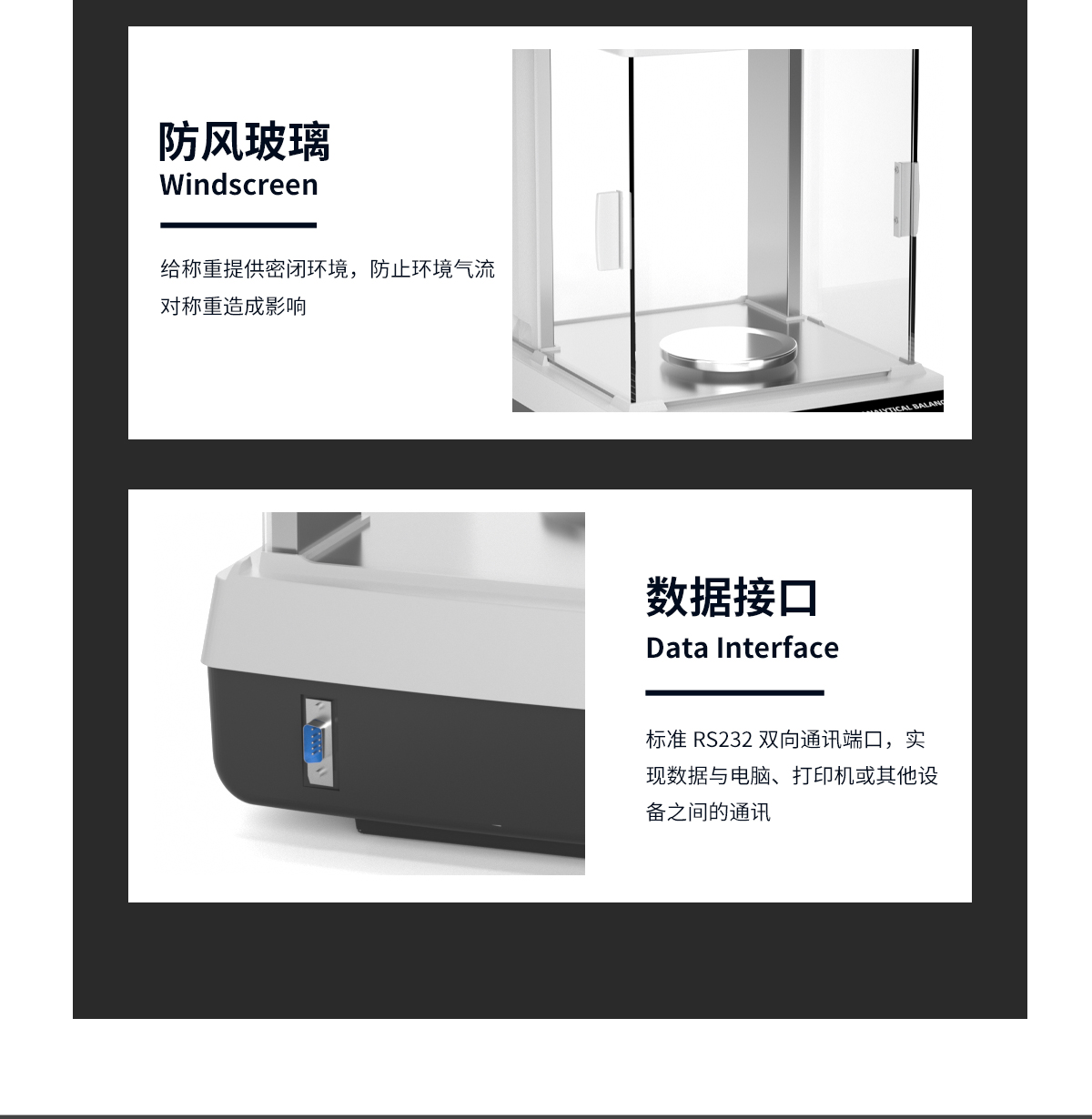

| Data Interface | RS232/USB Interface (Optional) |
| Input Voltage | AC110V-240V,50-60Hz |
| Operating Temperature | 10℃~30℃ |
| Operating Humidity | 20%~85% |
| Warm-Up at Power-On | 30-60min |
| Weighing Modes | Basic Weighing, Piece Counting, Percentage Weighing |

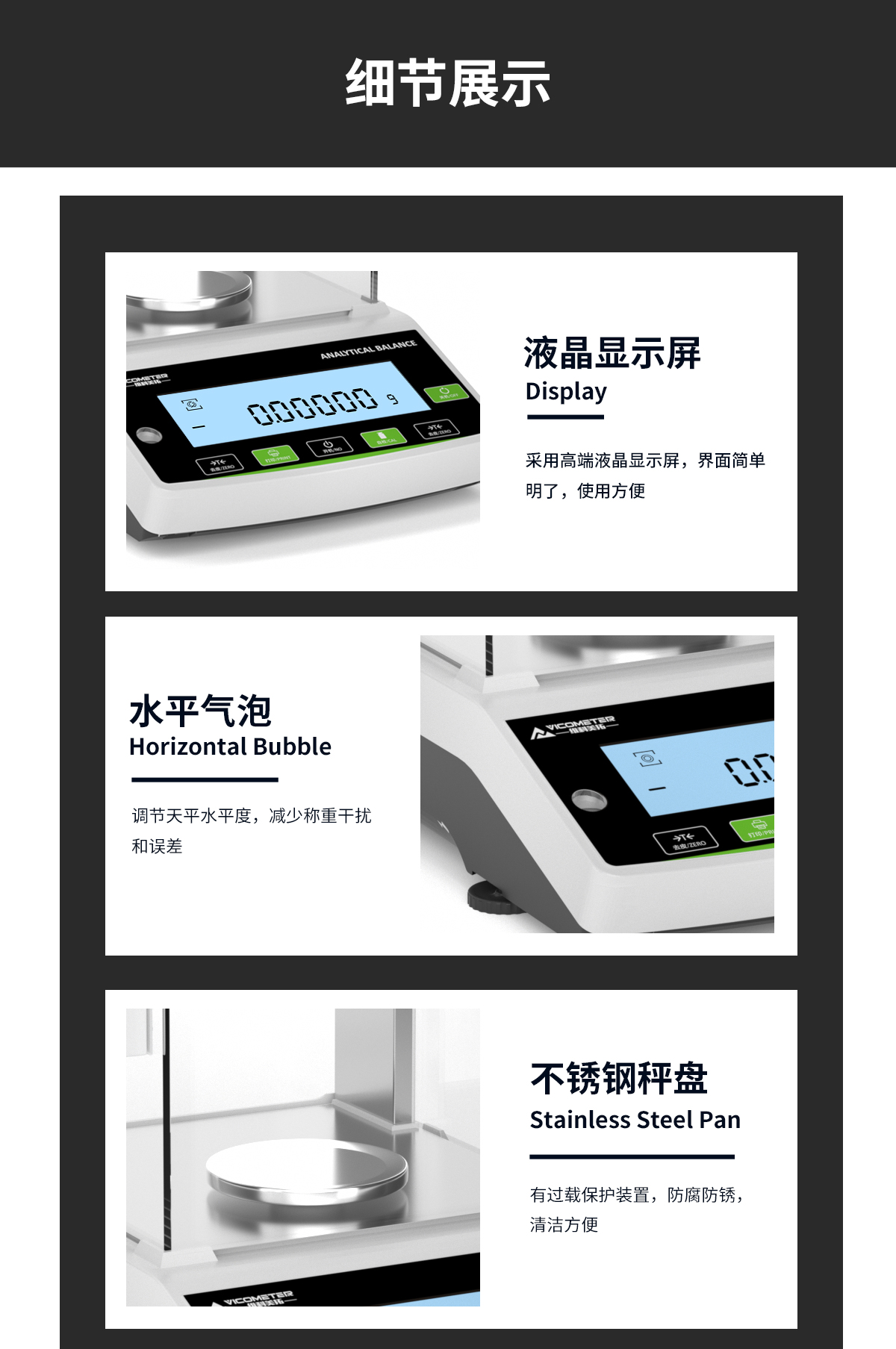

| Screen Display | Ultra-Clear LCD Display |
| Pan Size | Φ90mm |
| Overall Dimensions | 350mm*212mm*320mm |
| Package Dimensions | 420mm*360mm*420mm |
| Net Weight of Instrument | 5500g |
| Gross Weight of Instrument | 7500g |
