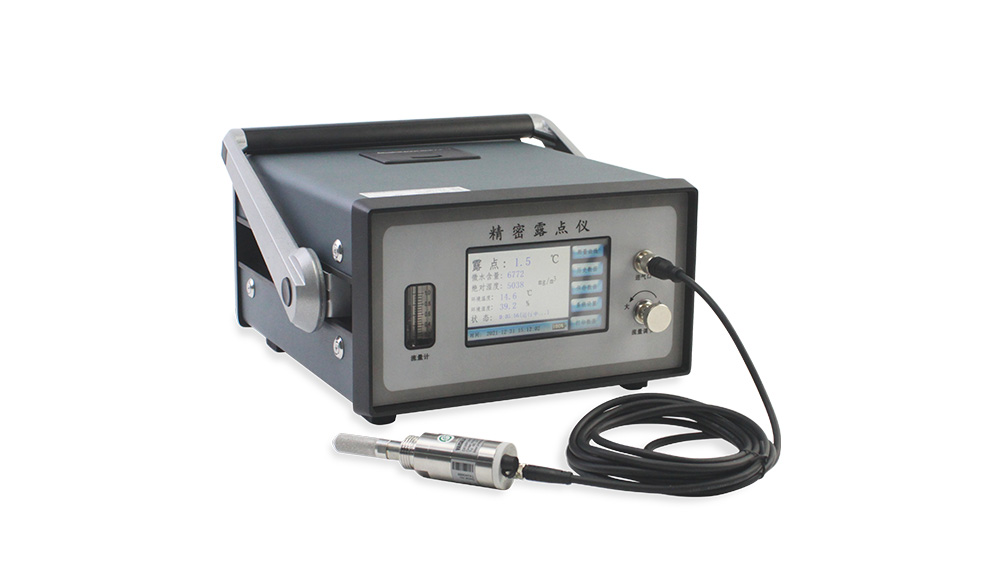

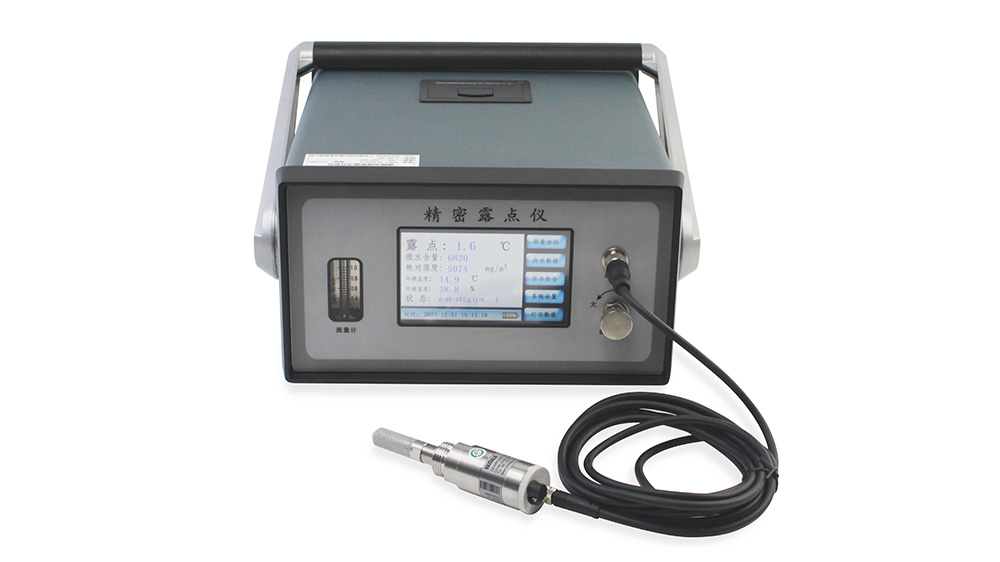

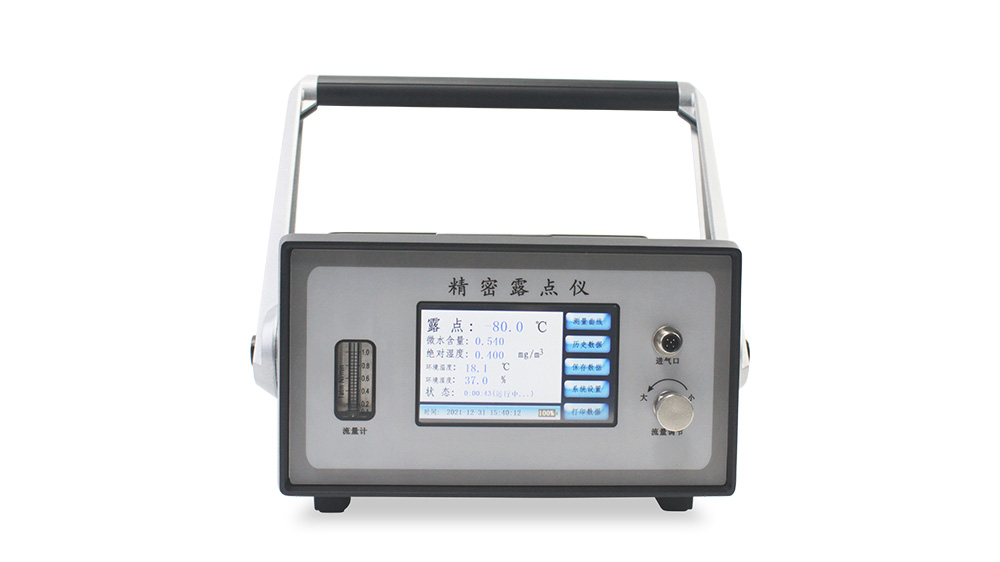

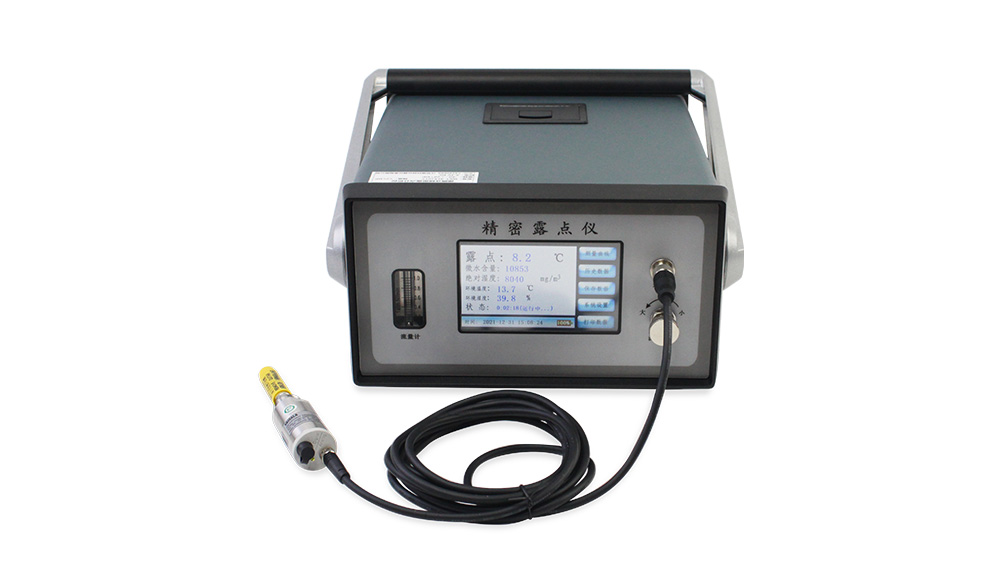

Built around a high-performance humidity sensor, the WKT-AFX2017 precision dew point meter delivers true, reliable sampled data. Its color touchscreen display is friendly, elegant, and easy to operate. The sensor is accurate and dependable across the full measurement range with outstanding long-term stability, unaffected by dust particles and most chemical contamination — extremely well suited to industrial environments. The WKT-AFX2017 is the ideal choice for industrial settings with low dew points and dry-point control requirements. Its chemical purge option allows accurate, stable measurement even in environments with high concentrations of chemicals and cleaning agents, ensuring accuracy between calibration intervals; the purge can run online via the control system or at preset time intervals.
Overview
Built around a high-performance humidity sensor, the WKT-AFX2017 precision dew point meter delivers true, reliable sampled data. Its color touchscreen display is friendly, elegant, and easy to operate. The sensor is accurate and dependable across the full measurement range with outstanding long-term stability, unaffected by dust particles and most chemical contamination — extremely well suited to industrial environments. The WKT-AFX2017 is the ideal choice for industrial settings with low dew points and dry-point control requirements. Its chemical purge option allows accurate, stable measurement even in environments with high concentrations of chemicals and cleaning agents, ensuring accuracy between calibration intervals; the purge can run online via the control system or at preset time intervals.
5.0-inch TFT touchscreen design
32-bit ARM microcontroller
Large-capacity storage
Digital battery level display
Good repeatability and fast response
Automatic slope calibration
Color LCD display
Advanced probe protection
Resistant to contamination and interference
High sensitivity and good stability
Compact, elegant and easy to carry
Technical Specifications
| Measuring Range | Dew point -60℃~+60℃/-80℃~+20℃ (ppmv and more supported) |
| Dew Point Accuracy | ±2℃ (when the dew point temperature is below 0℃, the sensor outputs frost point) |
| Response Time63％[90％] | +20→-20℃ Td 5s[45s] |
| -20→-60℃ Td 10s[240s] | |
| Res olution | Dew point 0.1℃ or 0.1ppm |
| Repea tability | ±0.2℃ |
| Gas Flow | SF6 regulated at 0.7~0.9L/min |
| Probe Protection | Stainless steel sintered filter |
| Operating Voltage | 110~220VAC, AC/DC dual use |
| Storage Temperature | -40～+70℃ |
| Output Interface | USB specification |
| Operating Environment: | Temperature : -25~+60℃ |
| Pressure : 0~10bar | |
| Sample gas flow rate: no effect | |
| Power Supply | Lithium battery, AC/DC dual use with automatic switching and overcharge/overdischarge protection |
| Dimensions & Weight | 300×260×180（mm），2.5kg |
