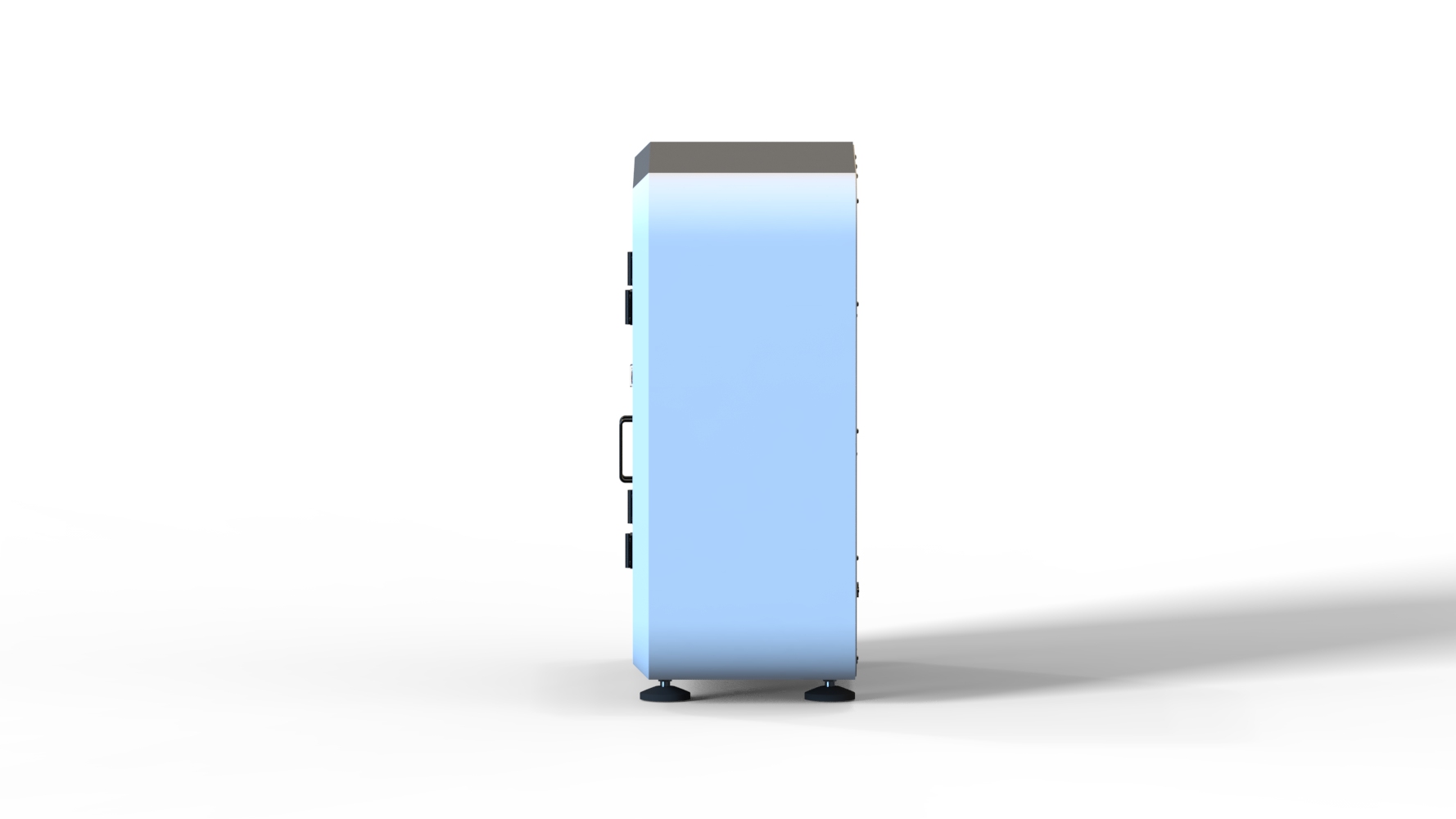

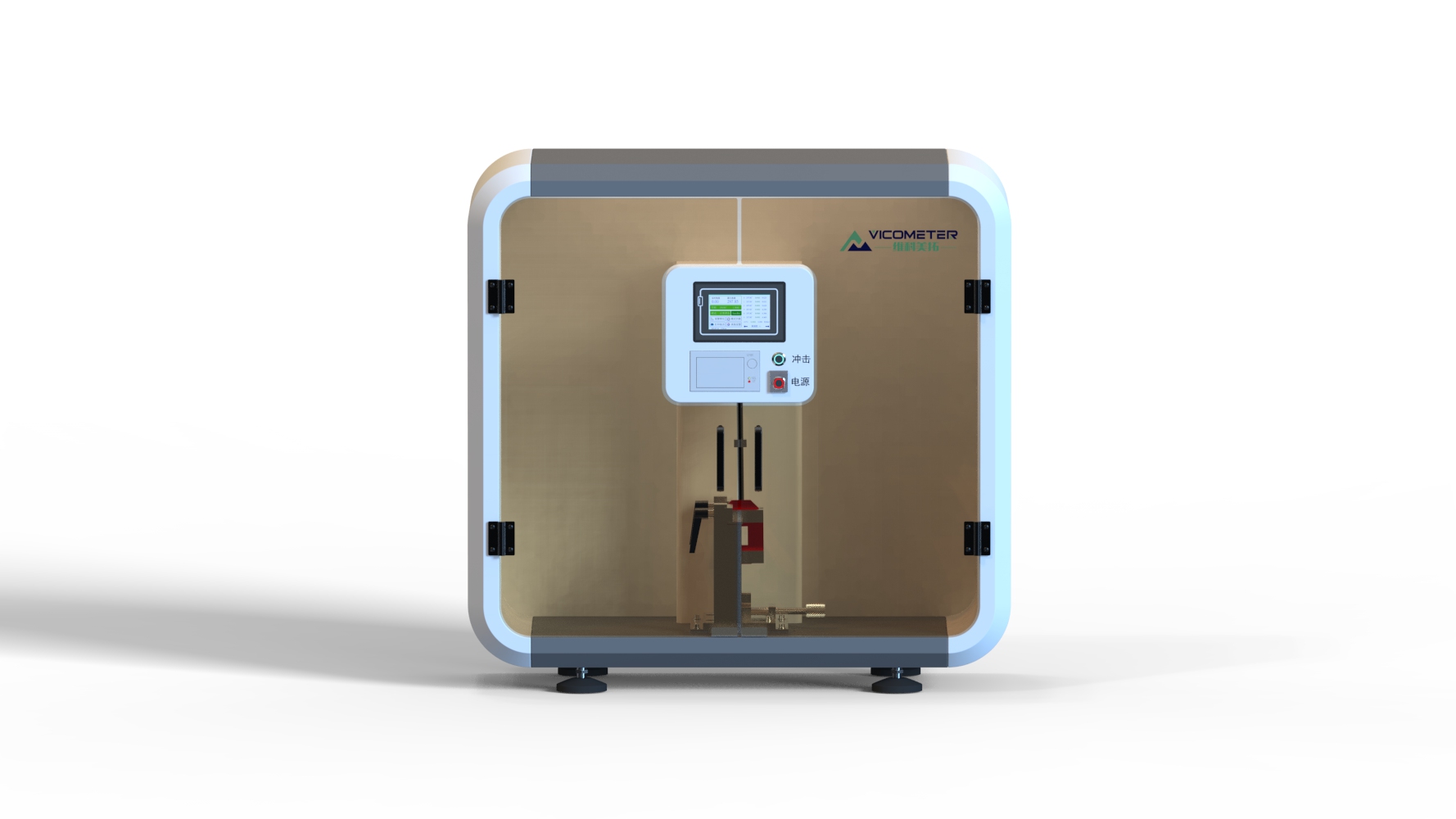

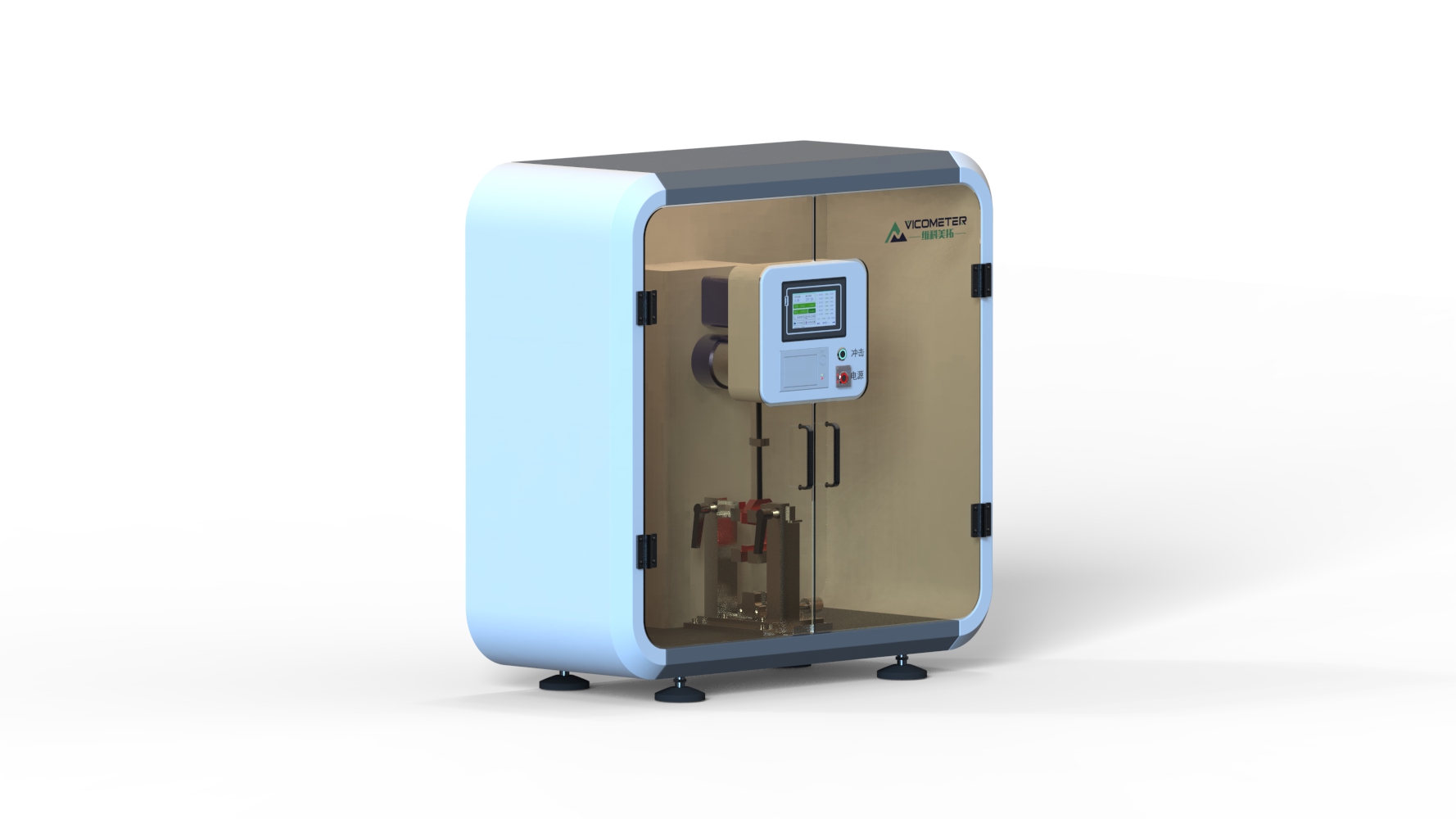

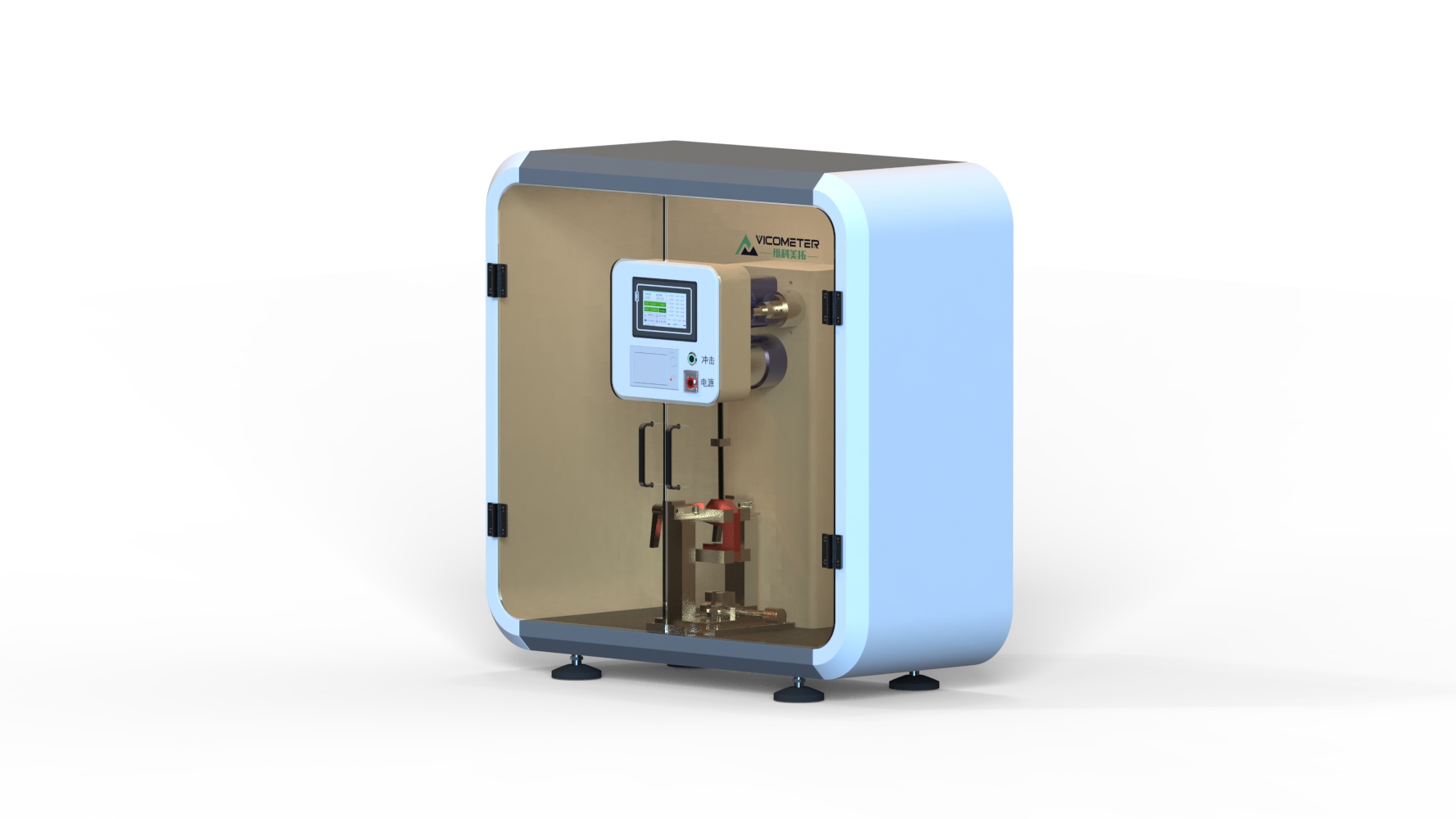

The WKT-XJ6001 touchscreen Izod/Charpy combined impact tester integrates VicoMeter's proven technology in impact testing, making the entire testing system more complete. The WKT-XJ6001 is a new multifunctional integrated Izod and Charpy impact tester; by simply removing the fixture and specimen holder, it automatically switches between Izod and Charpy test methods. The instrument is widely praised by users for its ease of use, simple operation and high test accuracy.
Overview
Technical Specifications
| Instrument Name | Touchscreen Izod/Charpy Combined Impact Tester |
| Instrument Model | Model WKT-XJ6001 |
| Display | Color touchscreen (Chinese/English) |
| Angle Sensor Accuracy | Original imported OMRON encoder, accuracy 0.01° |
| Izod Impact Energy | 11J、22J |
| Charpy Impact Energy | 7.5J、15J、25J、50J（Optional） |
| Energy Display Accuracy | 0.01J |
| Pre-Lift Angle | 150° |
| Izod Impact Speed | 3.5M/S |
| Charpy Impact Speed | 3.8M/S |
| Pendulum Center Distance | 335mm、230mm、395mm |
| Charpy Support Span | 40mm、60mm、70mm、95mm |
| Izod Striking Edge Radius | R=0.8±0.2mm |
| Charpy Striking Edge Radius | R=2mm±0.5mm |
| Distance from Striking Edge to Upper Jaw Surface | 22mm±0.05mm |
| Striking Edge Angle | 30°±1° |
| Power Requirements | AC220V±10% 50HZ |
