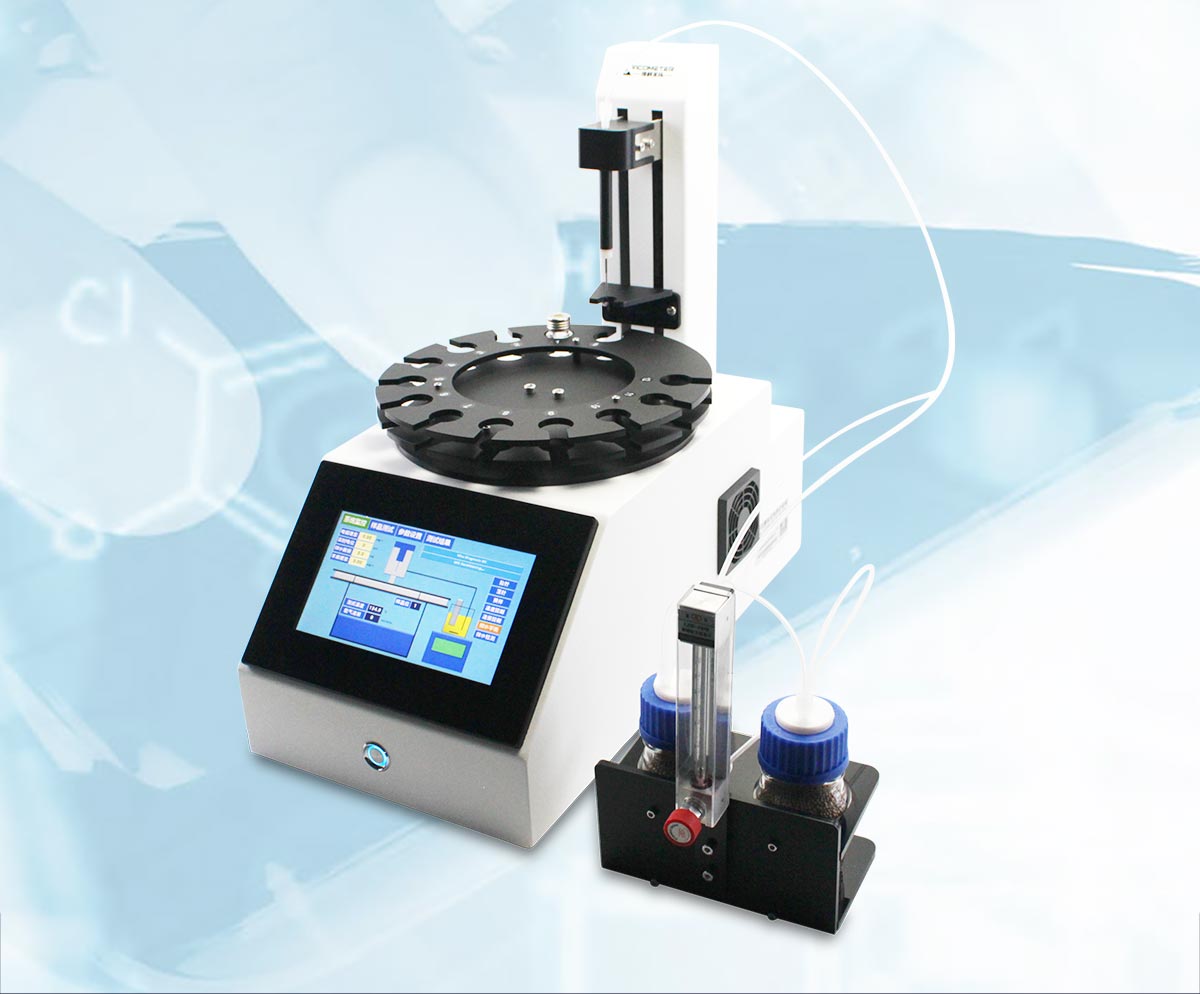

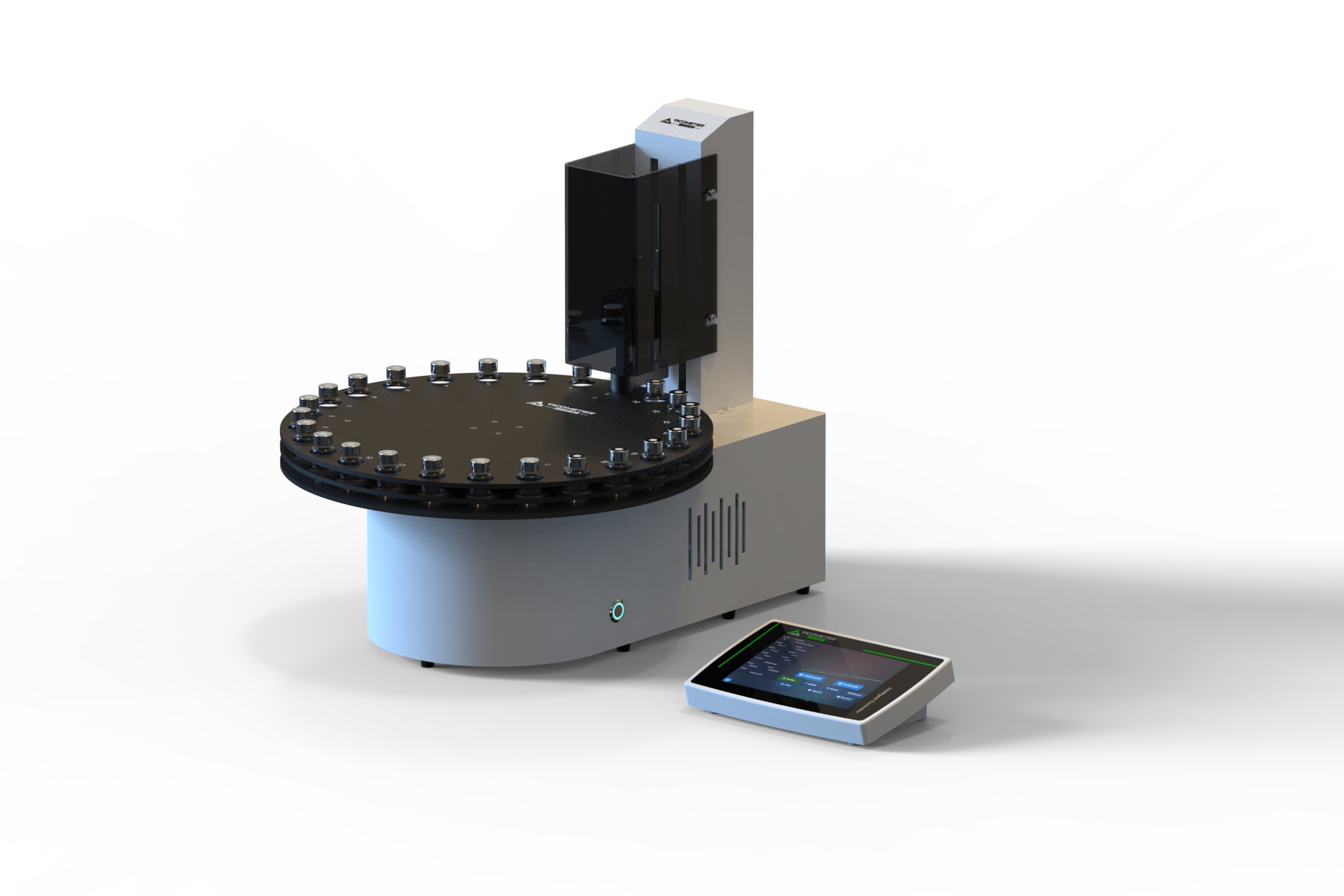

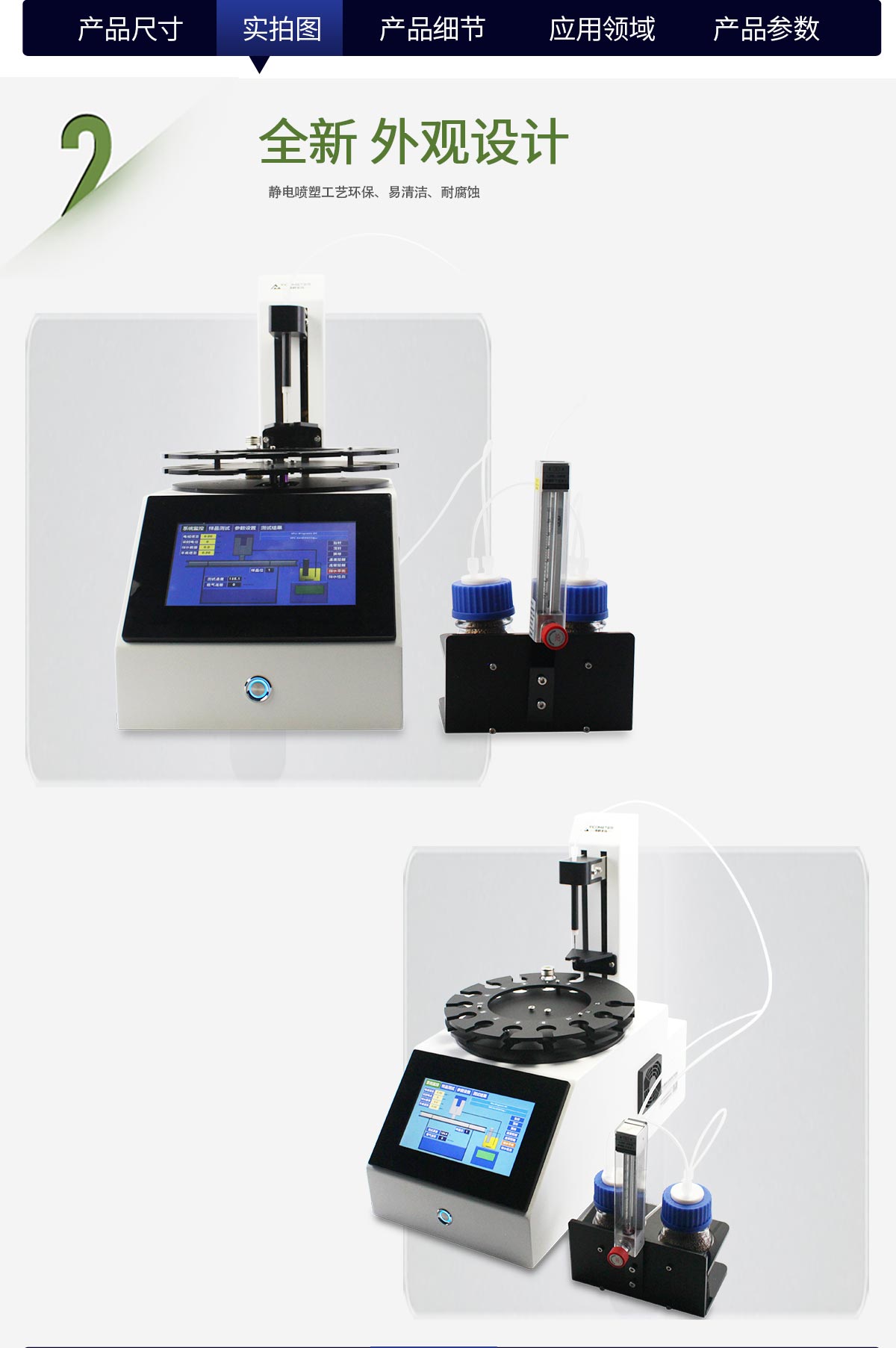

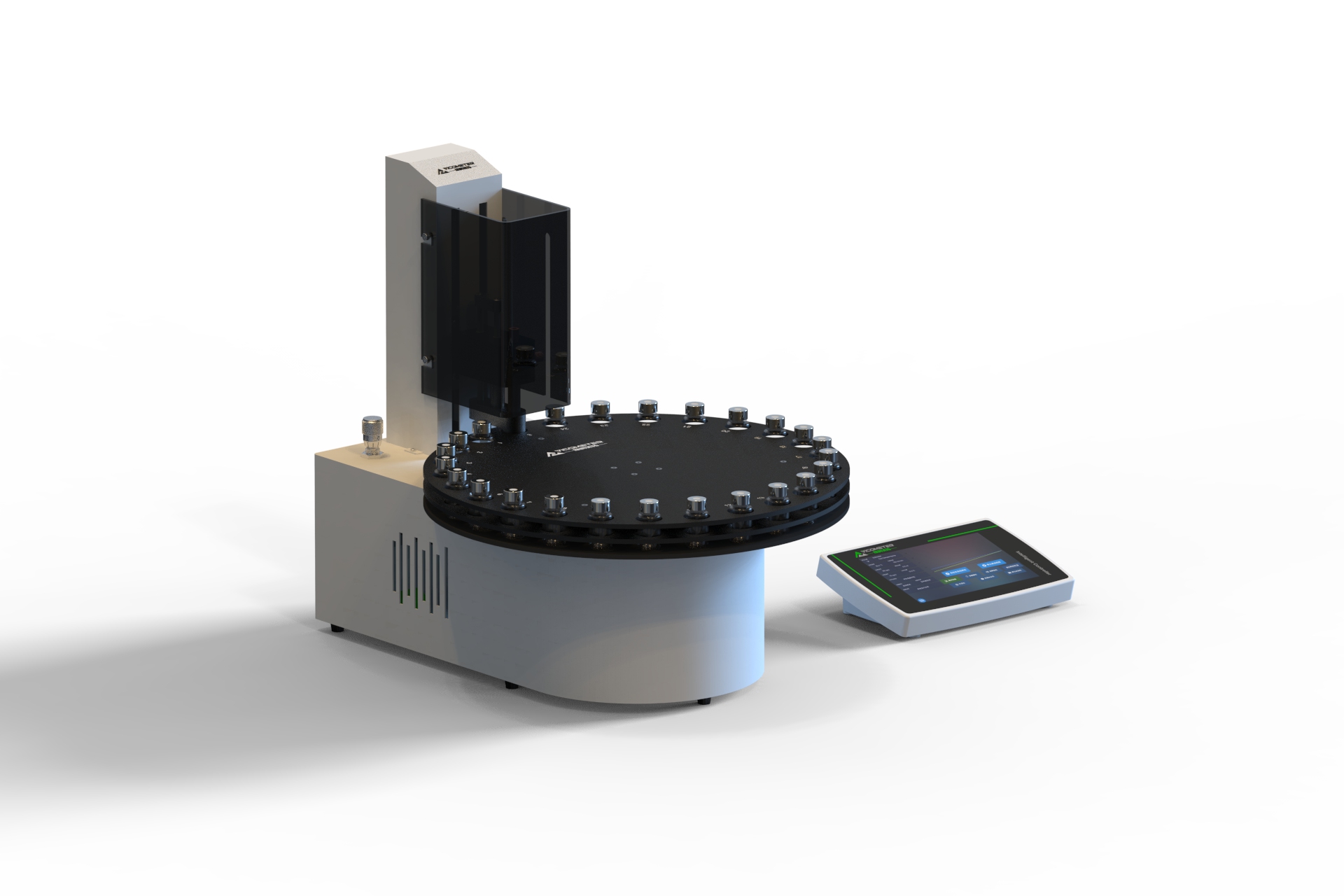

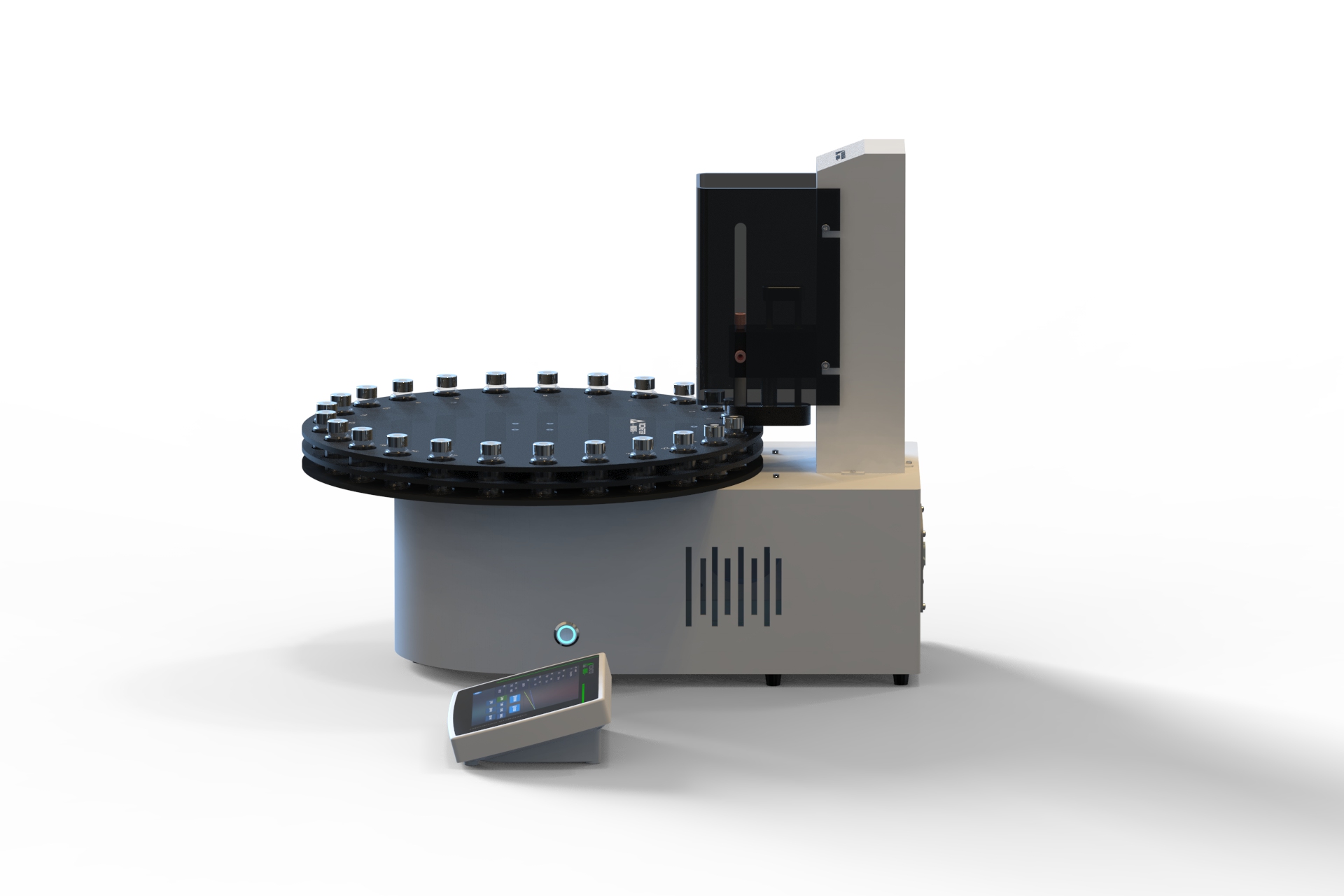

The VicoMeter Volcano series WKT-V6 Karl Fischer oven, combined with our dedicated moisture analyzer, is suitable for moisture determination of all kinds of insoluble samples (battery materials, plastics & rubber, new materials, moisture-regaining samples, and samples with volatile components), and has been widely used in the plastics, battery, new materials, and electronics industries!
Overview

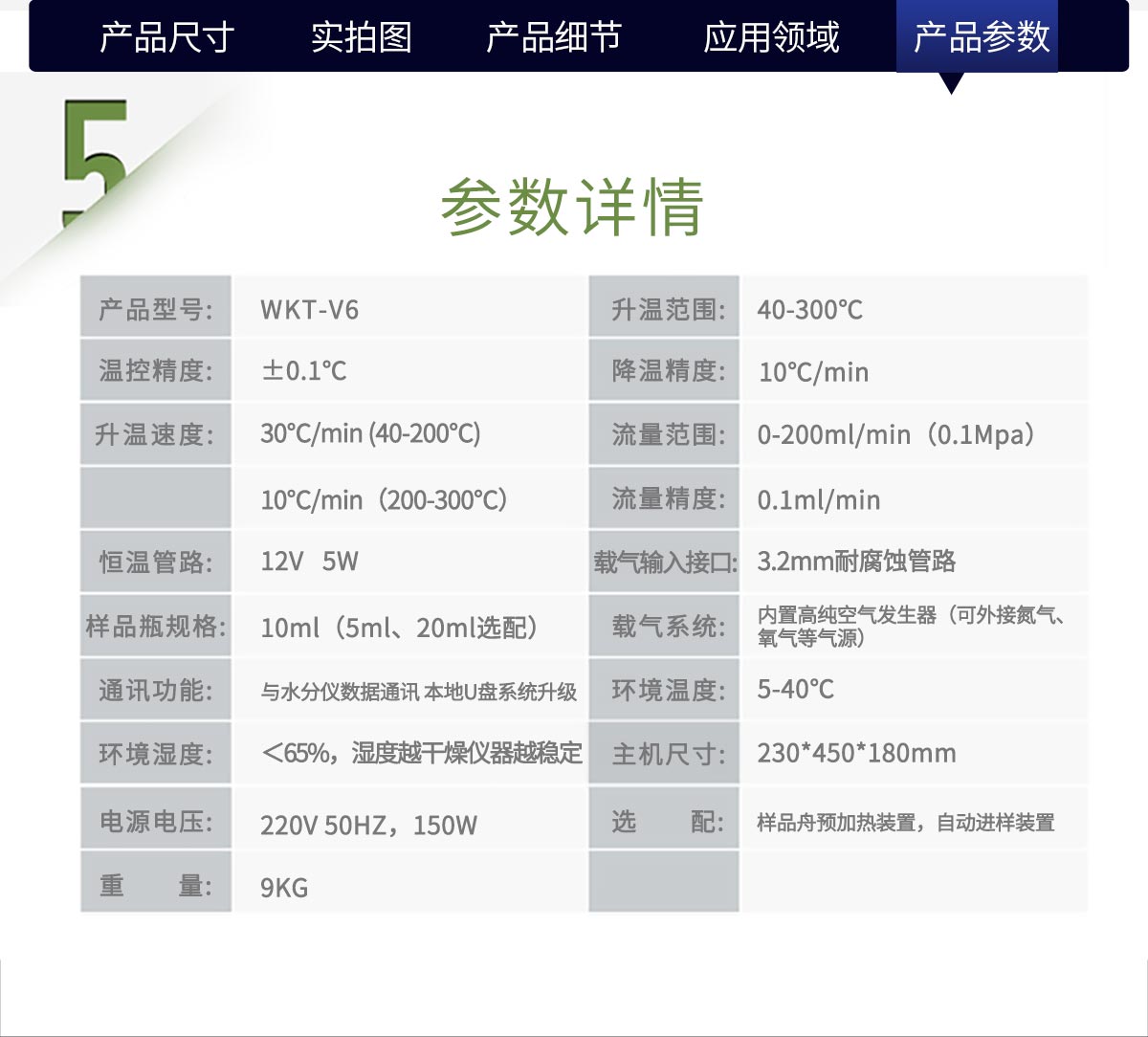

Technical Specifications
| Model | WKT-V6 |
| Temperature Control Accuracy | ±0.1℃ |
| Ramp Range | 40-300℃ |
| Ramp Rate | 30℃/min (40-200℃) 10℃/min（200-300℃） |
| Cooling Rate | 10℃/min |
| Flow Range | 0-200ml/min（0.1Mpa） |
| Flow Accuracy | 0.1ml/min |
| Sample Vial Size | 10ml（5ml、20mlOptional） |
| Sample Introduction | Automatic sampling, automatic needle withdrawal, automatic measurement |

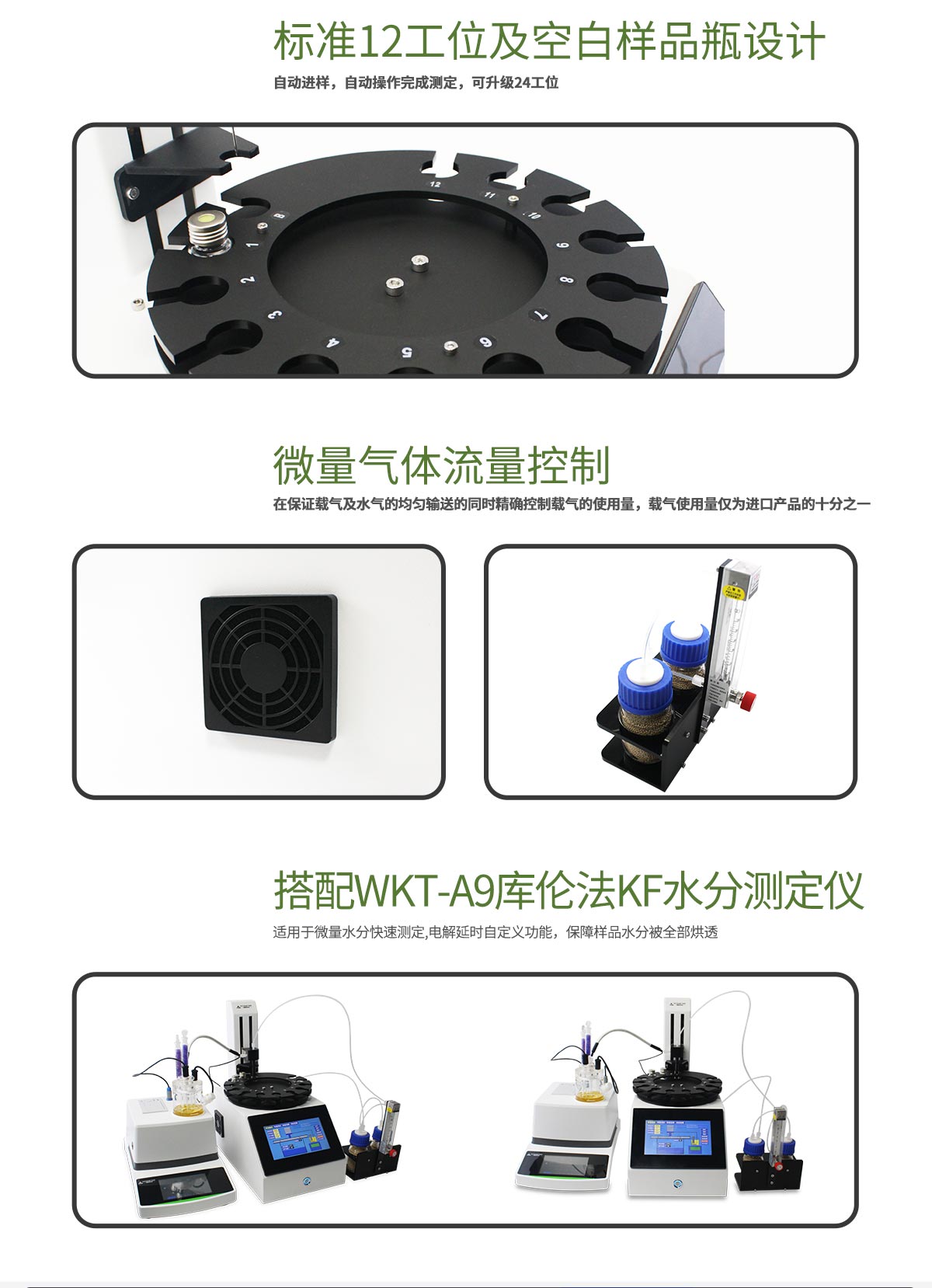

| Sample Capacity | 12 standard stations, optionally expandable to 24 |
| Special Functions | Data storage, curve analysis, electronic flow control, USB update |
| Operation | 7-inch color capacitive touchscreen |
| Heated Line | 12V 5W |
| Carrier Gas Inlet | 3.2mm Corrosion-Resistant Tubing |
| Carrier Gas System | Built-in high-purity air generator (external nitrogen, oxygen and other gas sources can be connected) |
| Communication | Data communication with the moisture analyzer; local system upgrade via USB drive |
| Ambient Temperature | 5-40°C |
| Ambient Humidity | <65%; the drier the humidity, the more stable the instrument |
| Unit Dimensions | 350*250*220mm |
| Power Supply | 220V 50HZ，150W |
| Optional | Sample boat pre-heating unit, automatic sampling unit |
| Weight | 9Kg |
Applicable Industries
| Plastics Industry | Ethylene, propylene, vinyl chloride, styrene, polyester chips, rubber, etc. |
| Lithium Battery | Cathode/anode materials, electrolytes, lithium iron phosphate materials, iron phosphate, lithium cobalt oxide, lithium manganate, lithium nickel oxide, ternary materials, anode membranes, graphite powder, etc. |
| Medical Industry | Artificial bone, surgical sutures, etc. |
| Metals & Powders Industry | Alumina powder, freeze-dried powder, new materials, nuclear materials, etc. |
| Grain Industry | Freeze-dried seeds, dehydrated products |
| Other Insoluble Solids | Insoluble solids, easily contaminated and cross-contaminating samples (lubricating greases, aldehydes and ketones), samples that react with Karl Fischer reagent, and samples with slow moisture release |
