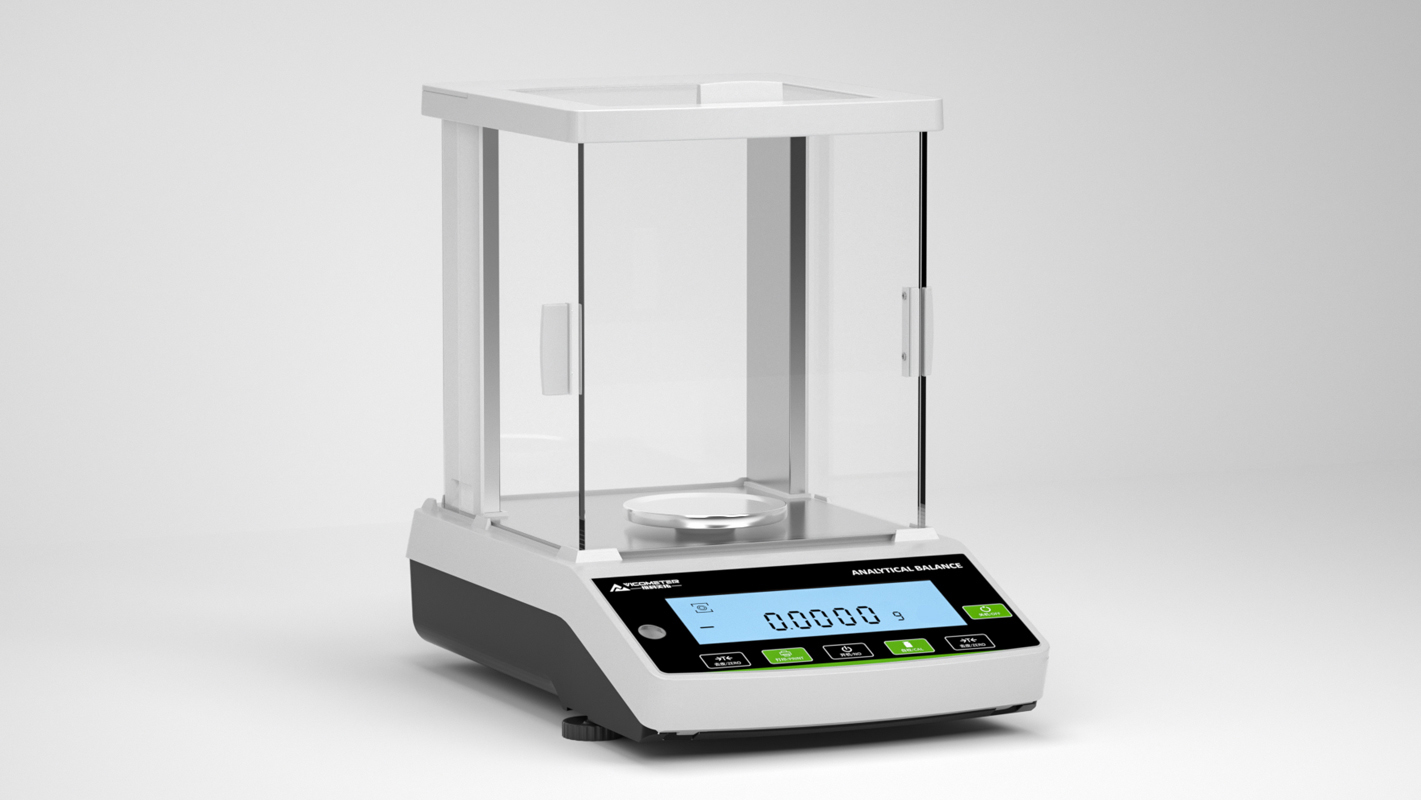

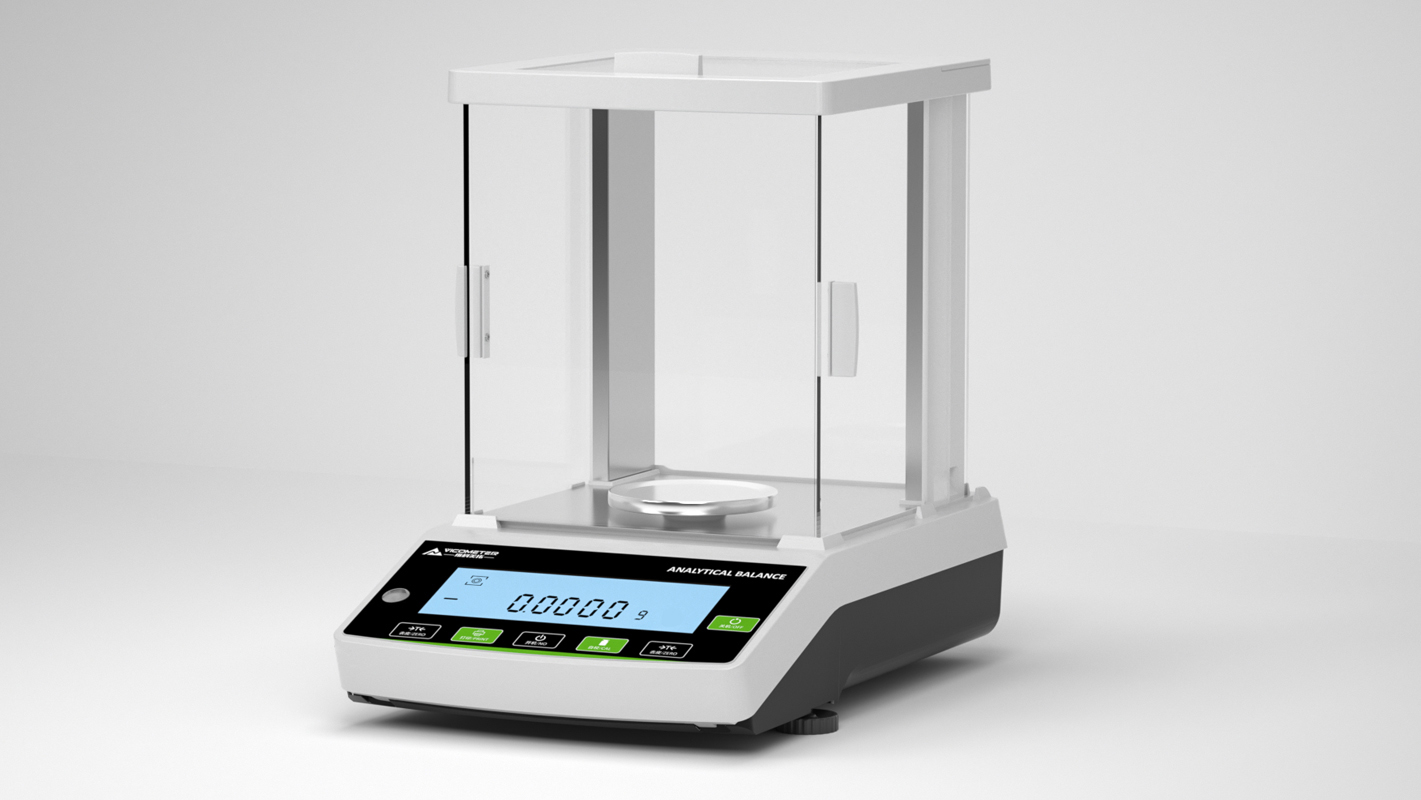

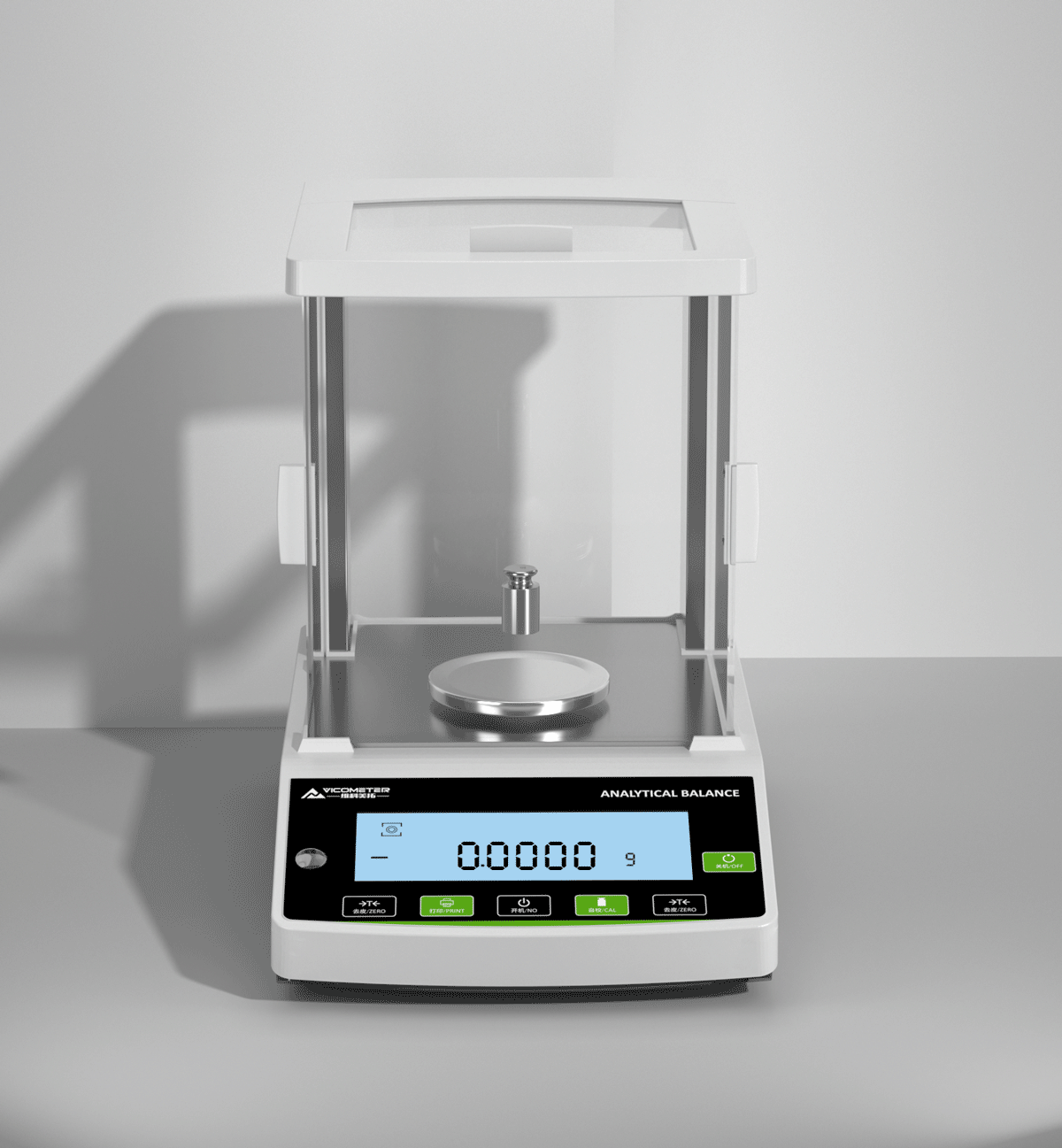

AC Series Electronic Analytical Balance

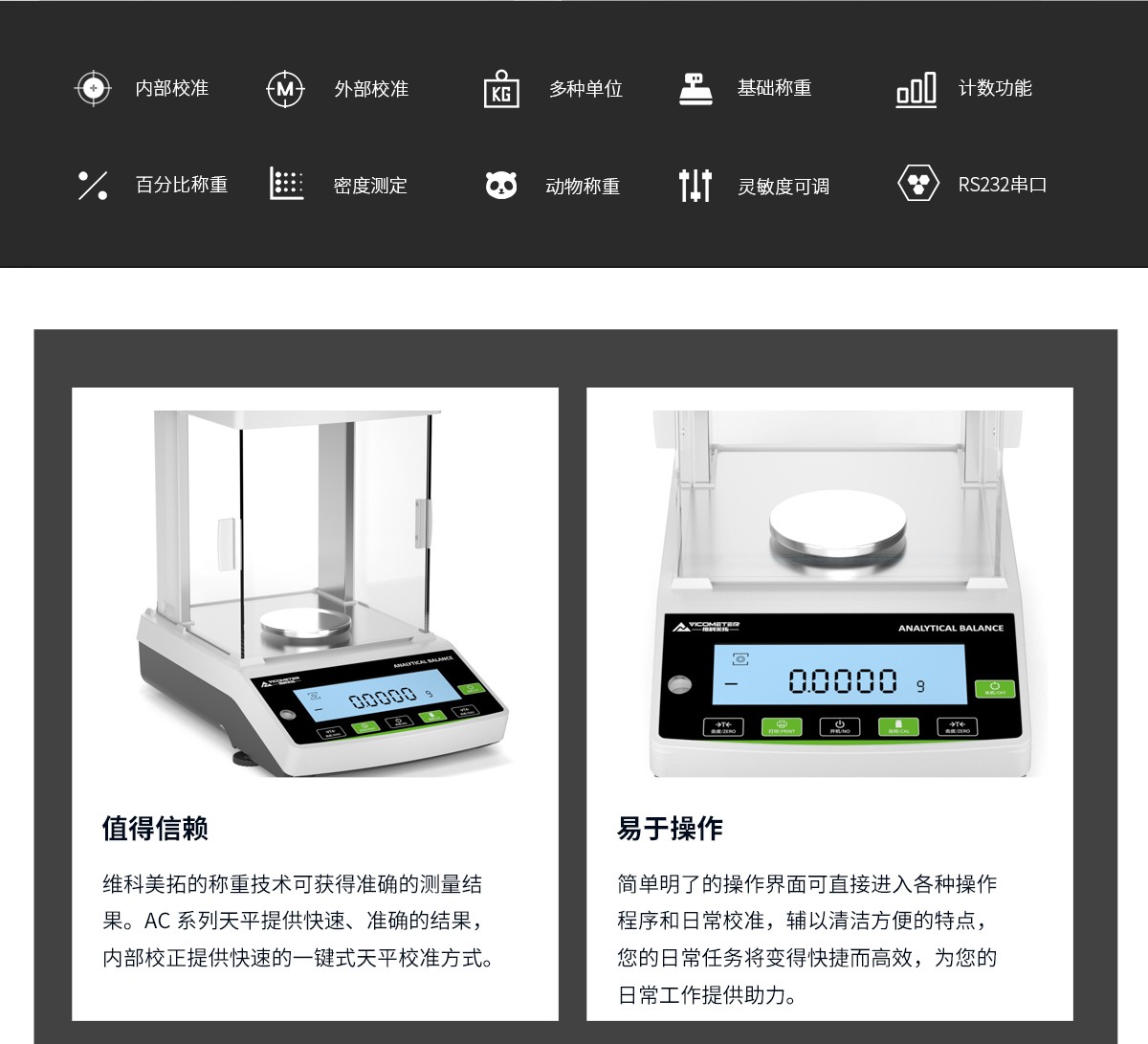

VicoMeter weighing technology delivers accurate measurement results. AC series balances provide fast, accurate readings, and internal calibration offers a quick one-touch balance calibration method.

A clear, intuitive interface gives direct access to all operating programs and daily calibration; combined with easy cleaning, your daily tasks become fast and efficient, supporting your everyday work.

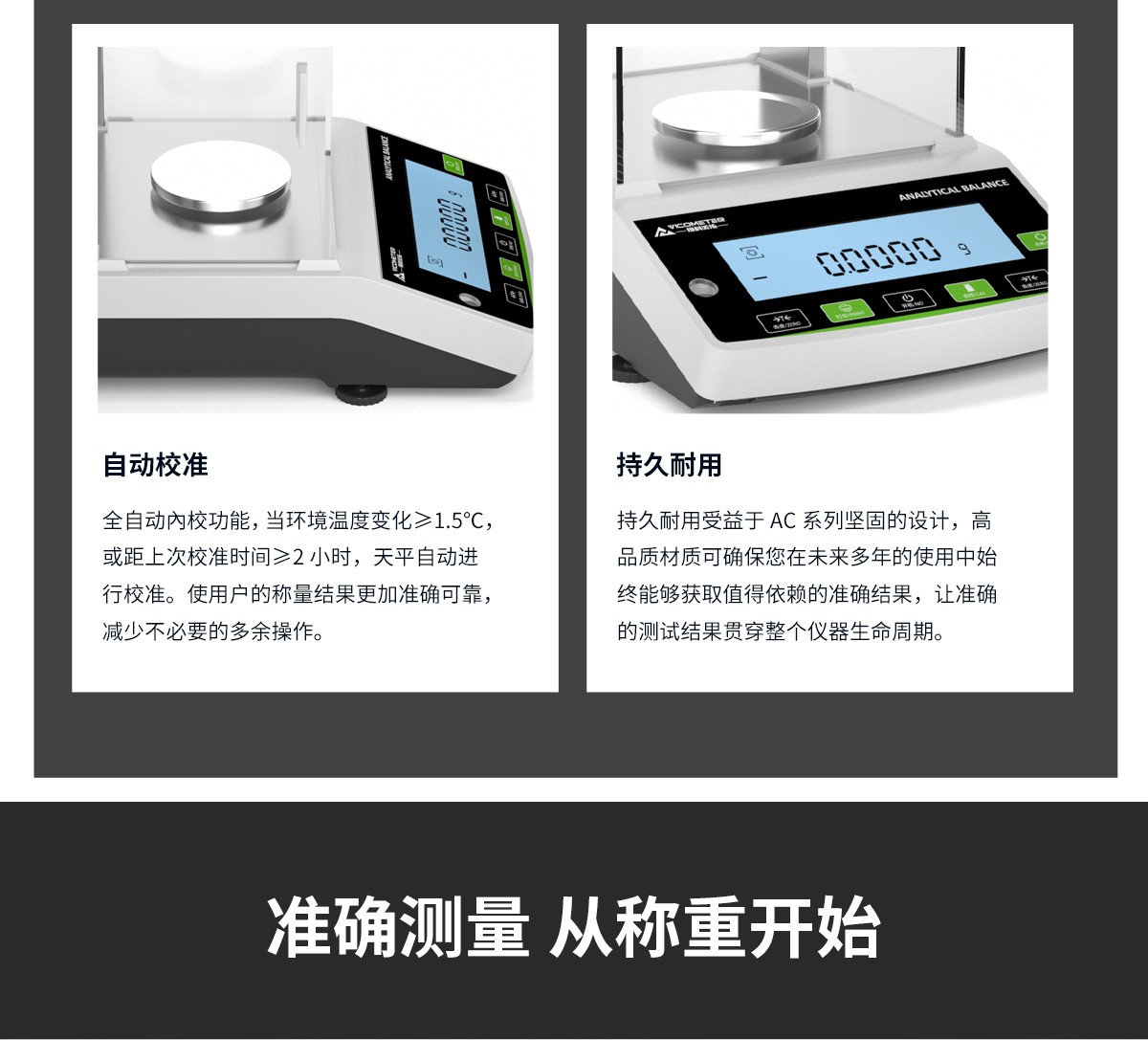

 Fully automatic internal calibration: the balance calibrates itself whenever the ambient temperature changes by ≥1.5 ℃ or when ≥2 hours have passed since the last calibration.

Keeps your weighing results accurate and reliable with fewer unnecessary steps. Built to last — thanks to the AC series' robust design, high-quality materials ensure dependable, accurate results for years to come, throughout the instrument's entire life cycle.

Product Details Technical Specifications

Product Details

AC Series Electronic Analytical Balance

AC Series Electronic Analytical Balance

AC Series Electronic Analytical Balance

AC Series Electronic Analytical Balance

AC Series Electronic Analytical Balance

AC Series Electronic Analytical Balance

AC Series Electronic Analytical Balance

AC Series Electronic Analytical Balance

AC Series Electronic Analytical Balance

AC Series Electronic Analytical Balance

AC Series Electronic Analytical Balance


Technical Specifications

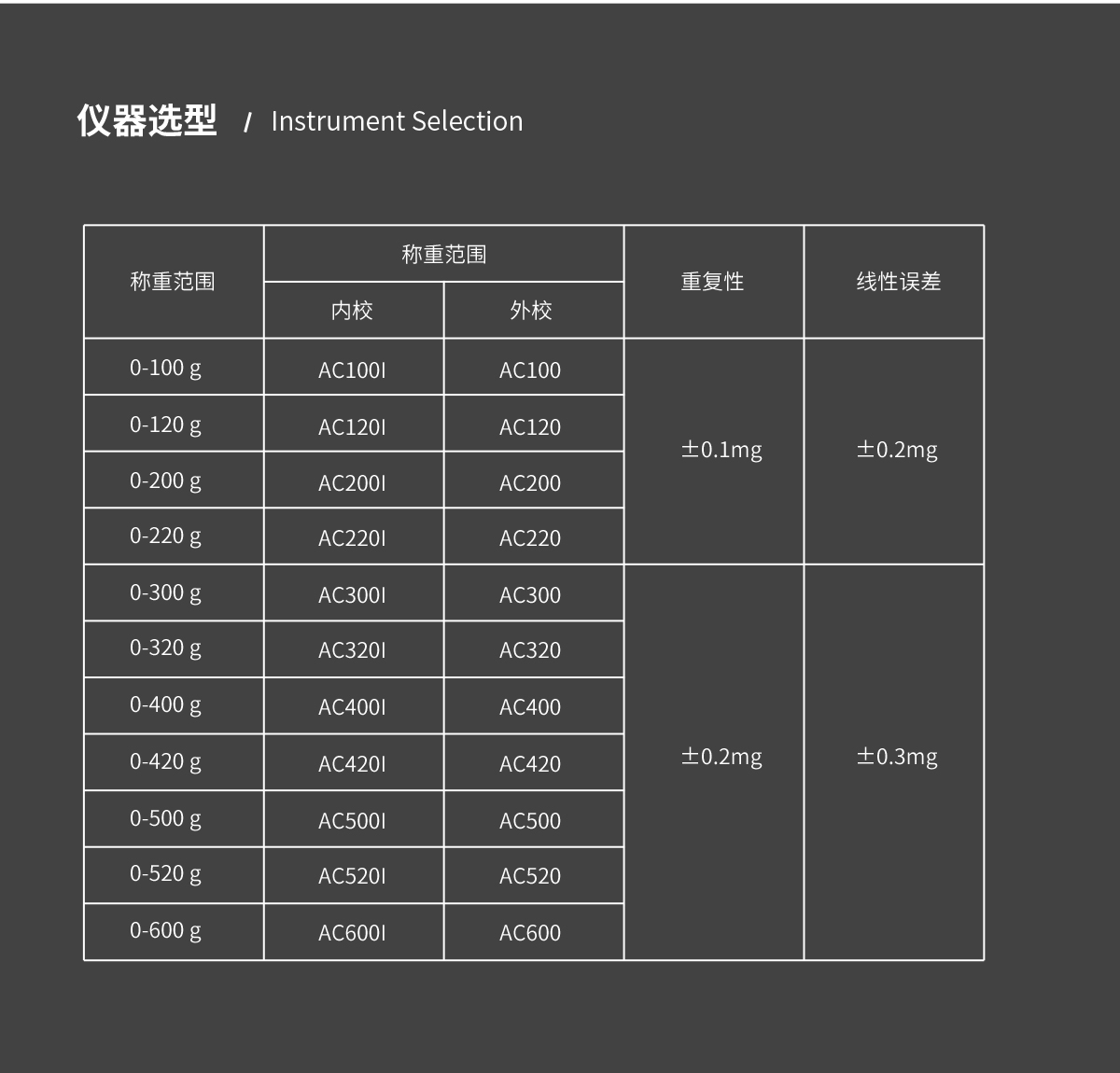

Model Selection

Weighing RangeInstrument ModelRepeatabilityLinearity Error
Internal CalibrationExternal Calibration
0-100gAC100IAC100±0.1mg±0.2mg
0-120gAC120IAC120
0-200gAC200IAC200
0-220gAC220IAC220
0-300gAC300IAC300±0.2mg±0.3mg
0-320gAC320IAC320
0-400gAC400IAC400
0-420gAC420IAC420
0-500gAC500IAC500
0-520gAC520IAC520
0-600gAC600IAC600

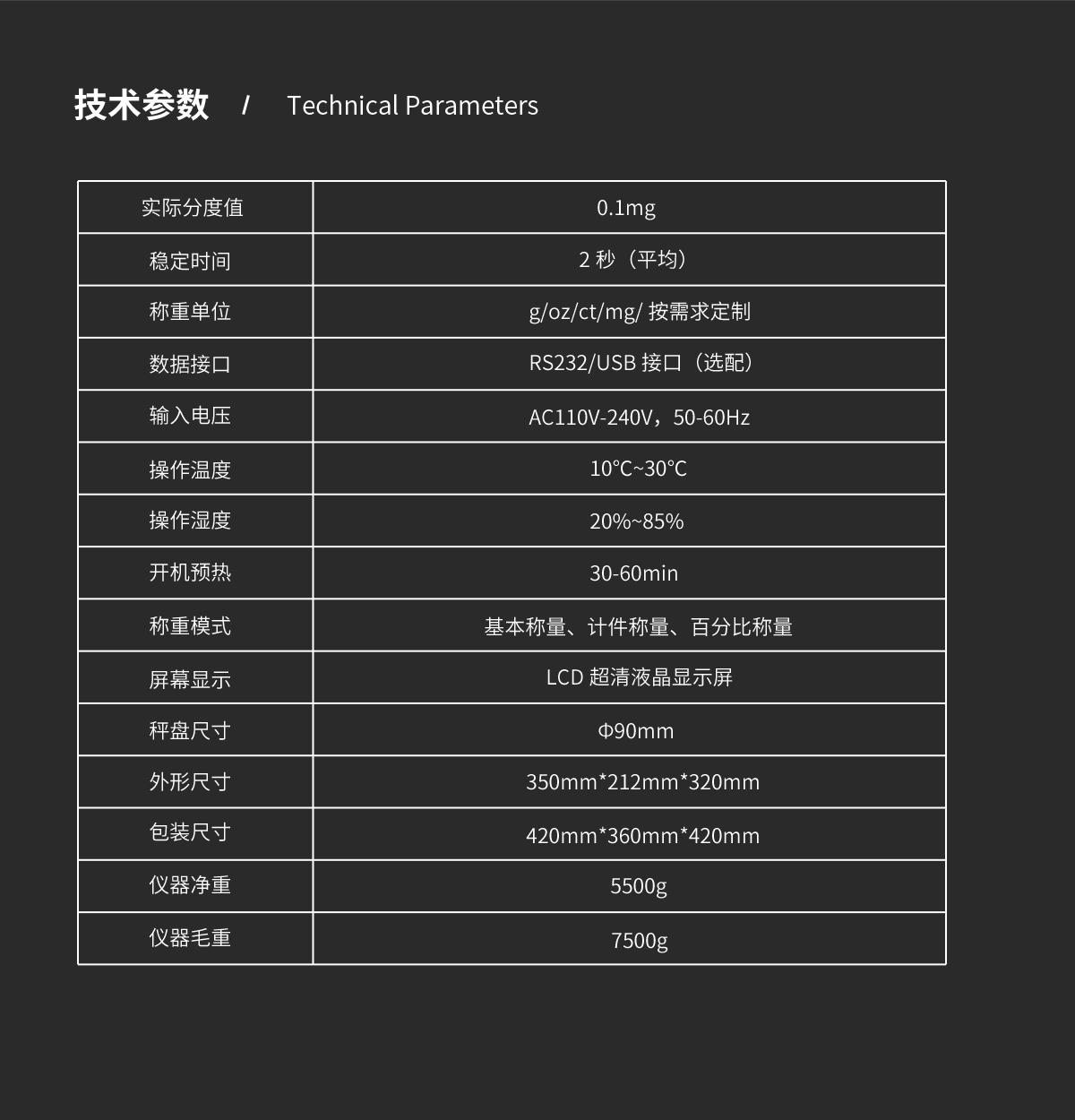

Technical Specifications

Readability0.1mg
Stabilization Time2 s (average)
Weighing Unitsg/oz/ct/mg/Customizable on Request
Data InterfaceRS232/USB Interface (Optional)
Input VoltageAC110V-240V,50-60Hz
Operating Temperature10℃~30℃
Operating Humidity20%~85%
Warm-Up at Power-On30-60min
Weighing ModesBasic Weighing, Piece Counting, Percentage Weighing
Screen DisplayUltra-Clear LCD Display
Pan SizeΦ90mm
Overall Dimensions350mm*212mm*320mm
Package Dimensions420mm*360mm*420mm
Net Weight of Instrument5500g
Gross Weight of Instrument7500g
