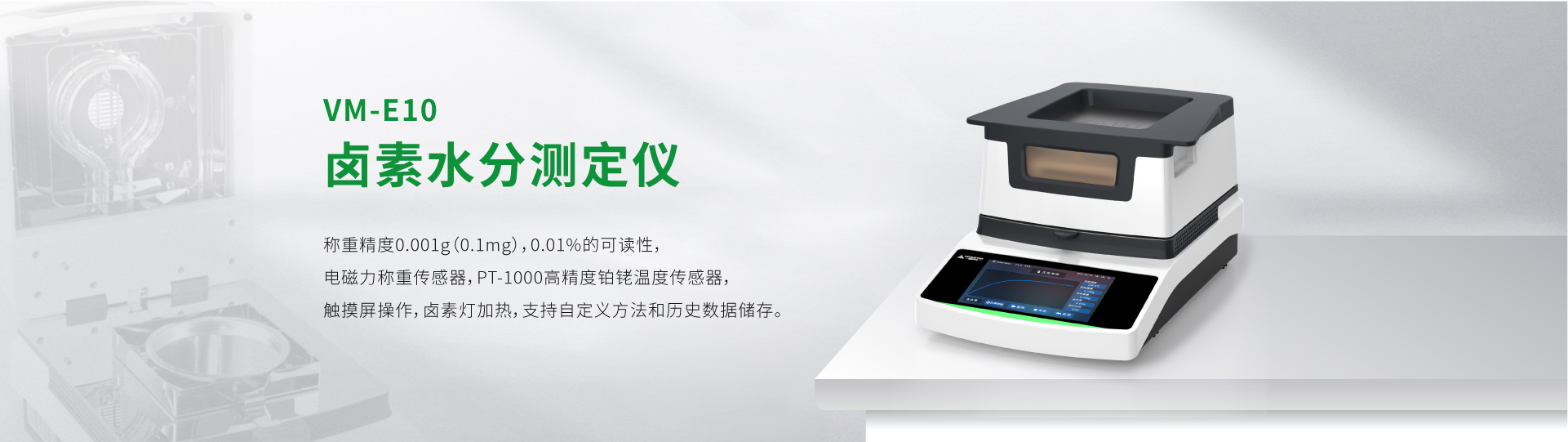

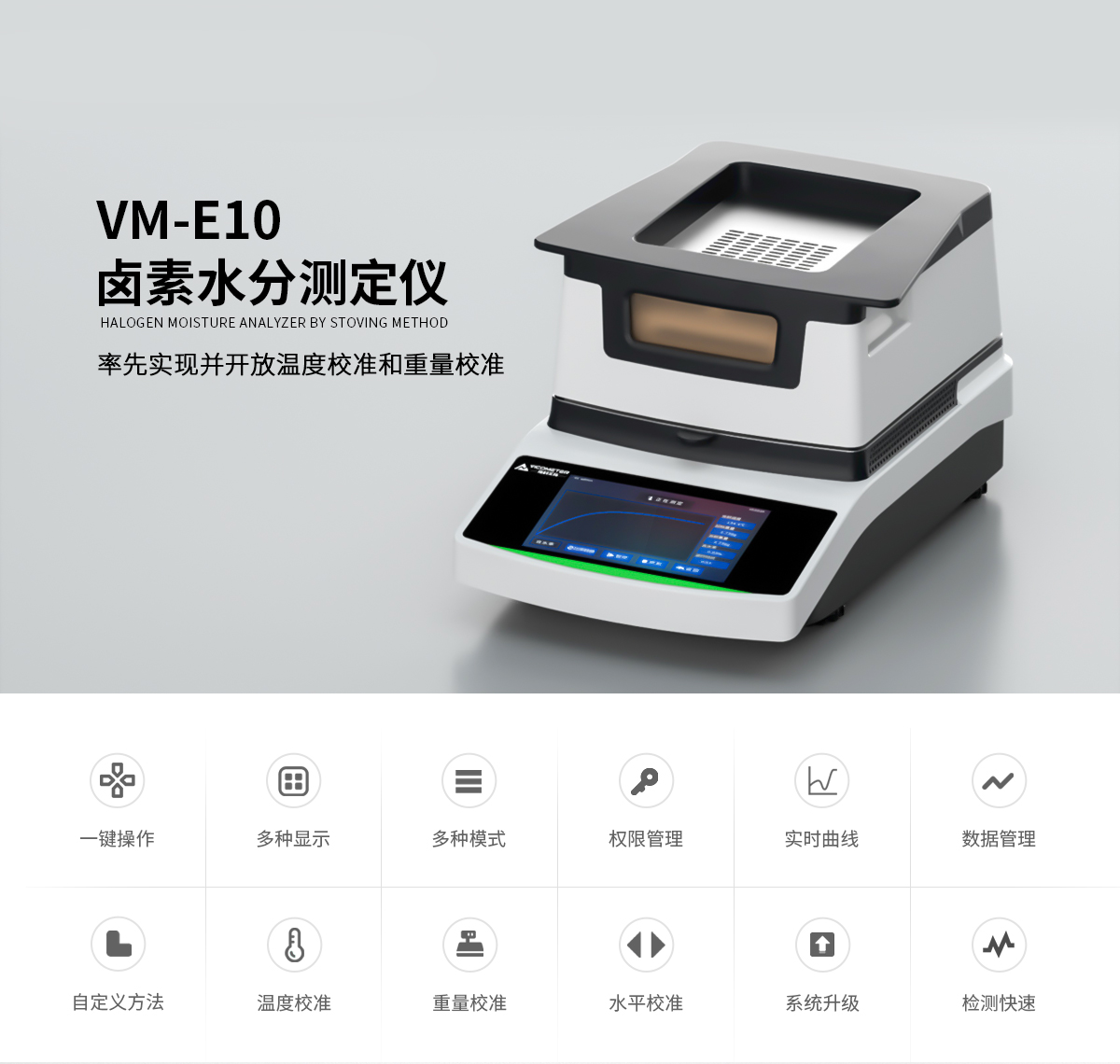

Weighing accuracy 0.001g (1mg), 0.01% readability, electromagnetic force weighing sensor, PT-1000 high-precision platinum-rhodium temperature sensor, touchscreen operation, halogen lamp heating, with support for custom methods and historical data storage.

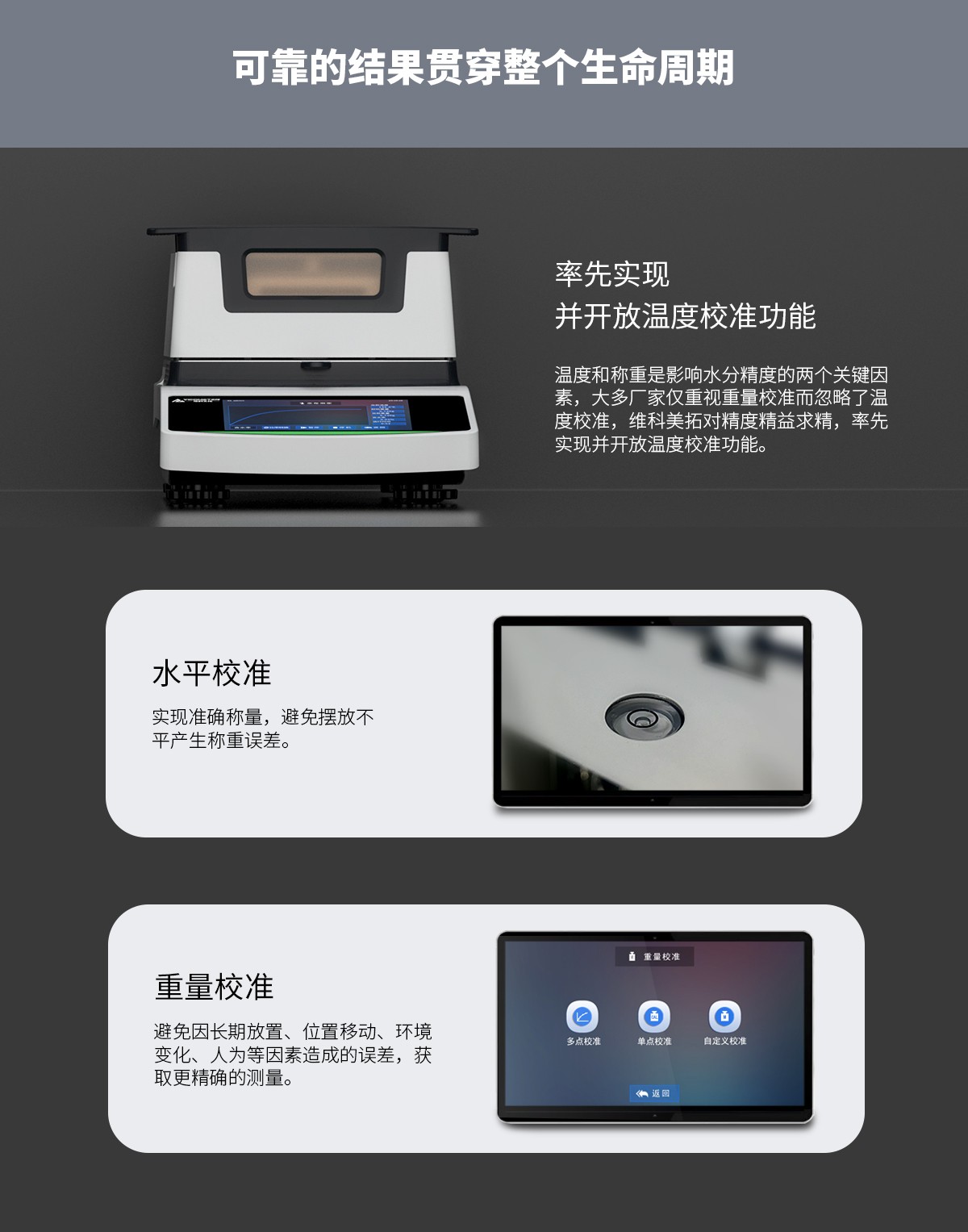

First in the industry to combine temperature calibration and weight calibration.

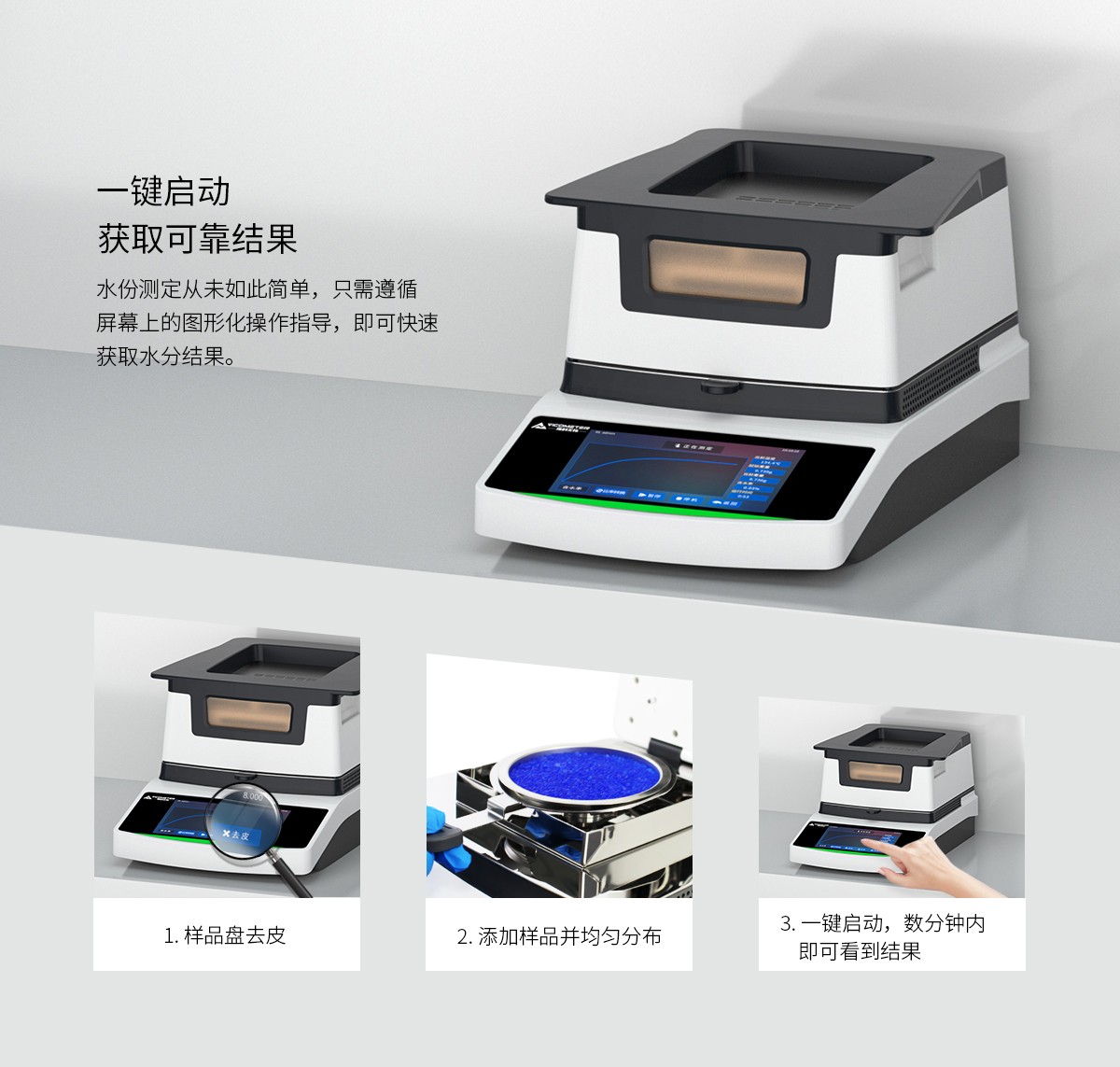

Simple operation — one-touch start, reliable results.

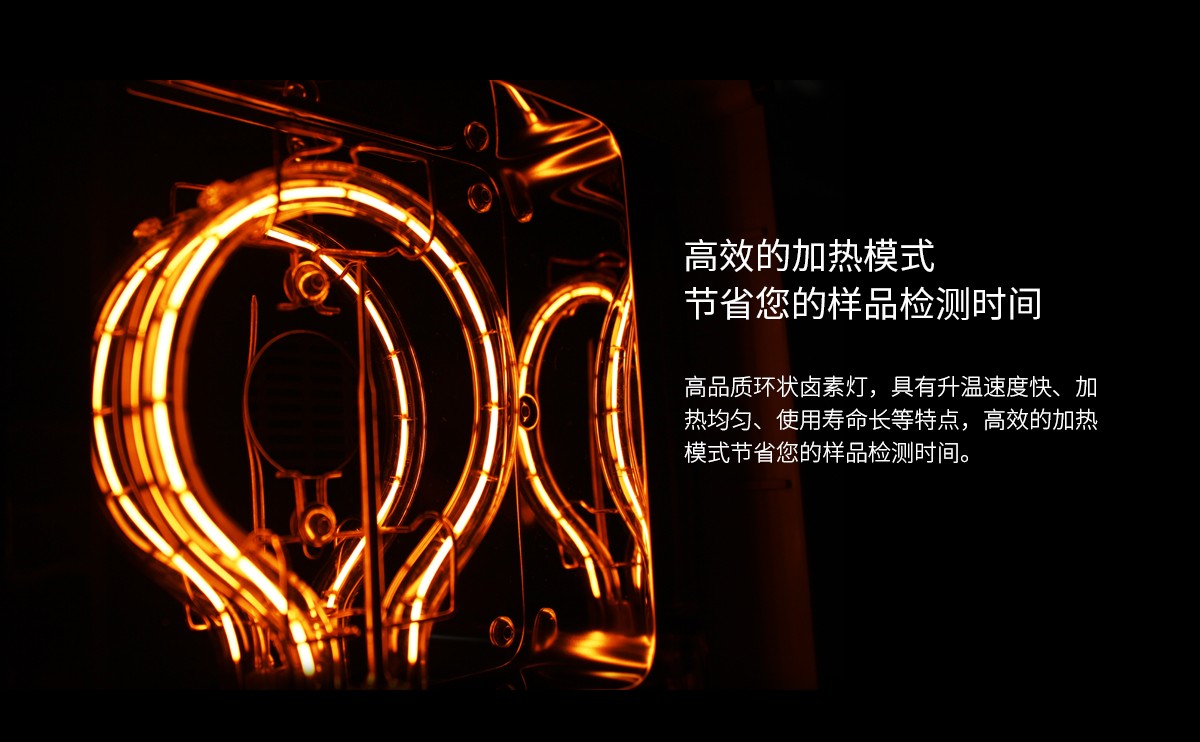

Upgraded ring halogen lamp: fast heat-up, even heating, long service life

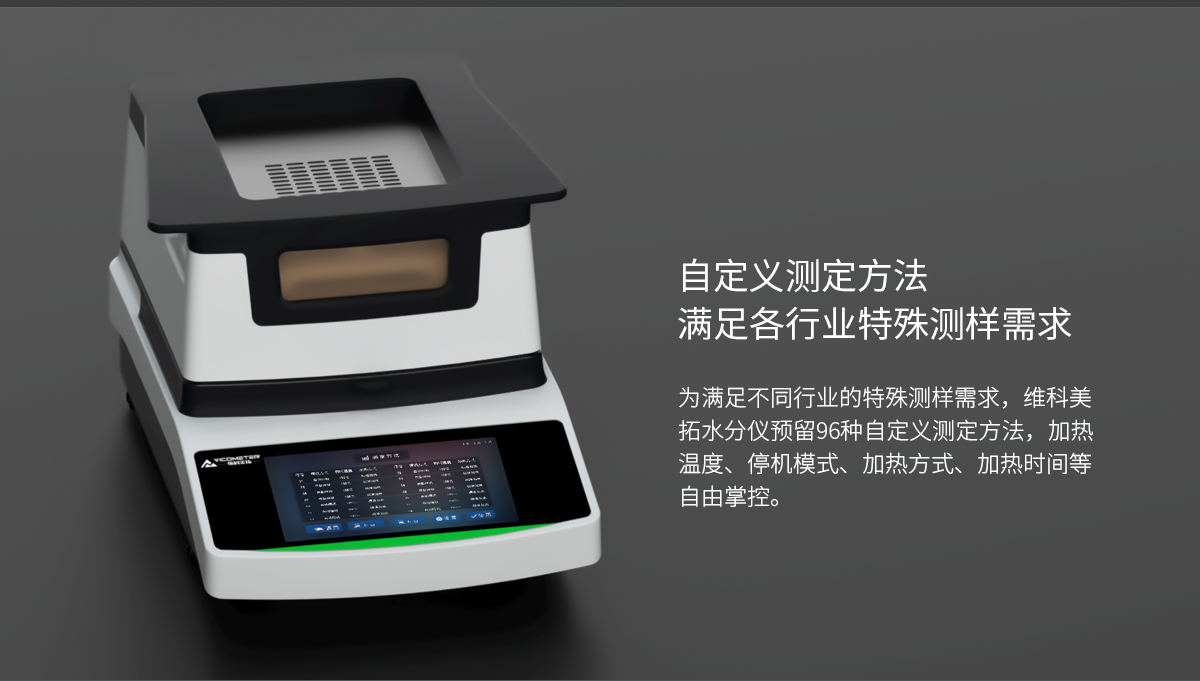

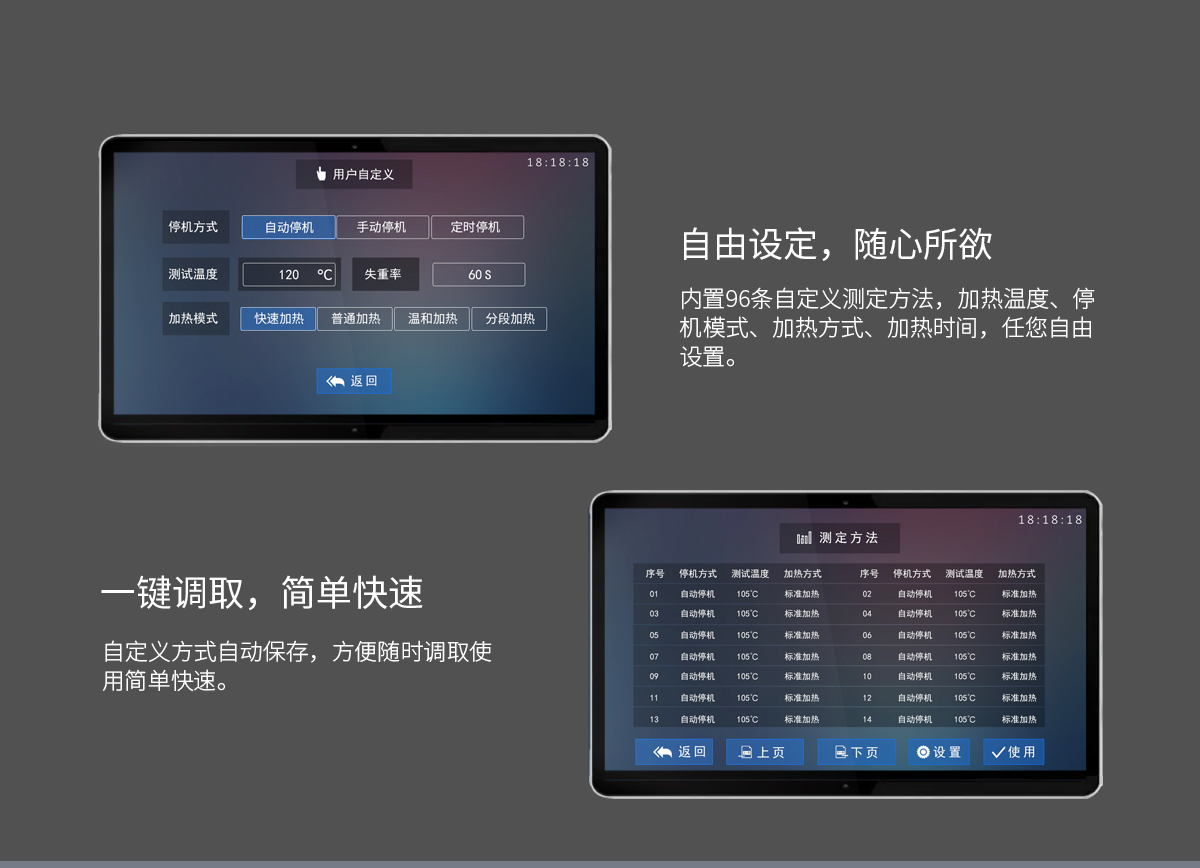

Custom determination methods for different industries and sample types

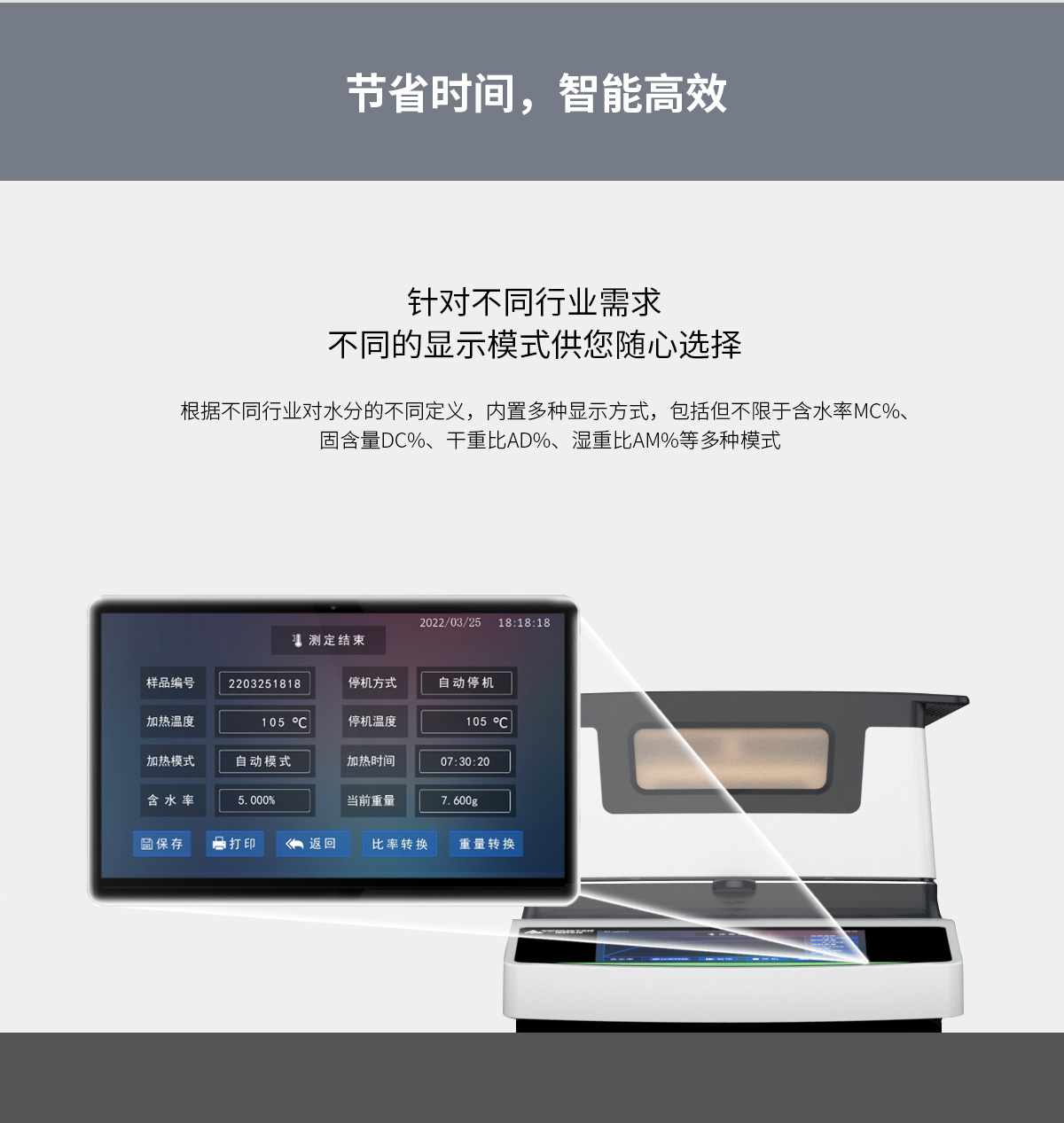

Display modes including but not limited to MC%, DC%, AM%, and AD%.
Complies with international oven-method moisture determination standards
RS232 interface for connection to a PC, printer, PLC, or LIMS
Product Details
Technical Specifications
| Model | VM-E10 |
| Weighing Readability | 0.001g (d） |
| Moisture Readability | 0.01% |
| Moisture Range | 0.00%-100.00% (MC% ) |
| Solids Content Range | 100.00%-0.00%(DC%) |
| Weighing Sensor | Electromagnetic Force Sensor |
| Instrument Weight | 8.8KG |
| Temperature Resolution | 0.1℃ |
| Weighing Capacity | 124g (optional 220g/300g) |
| Calibration Method | External weight calibration, fully automatic temperature calibrator |
| Repeatability | Allowed ≤3d (actual ≤1d) |

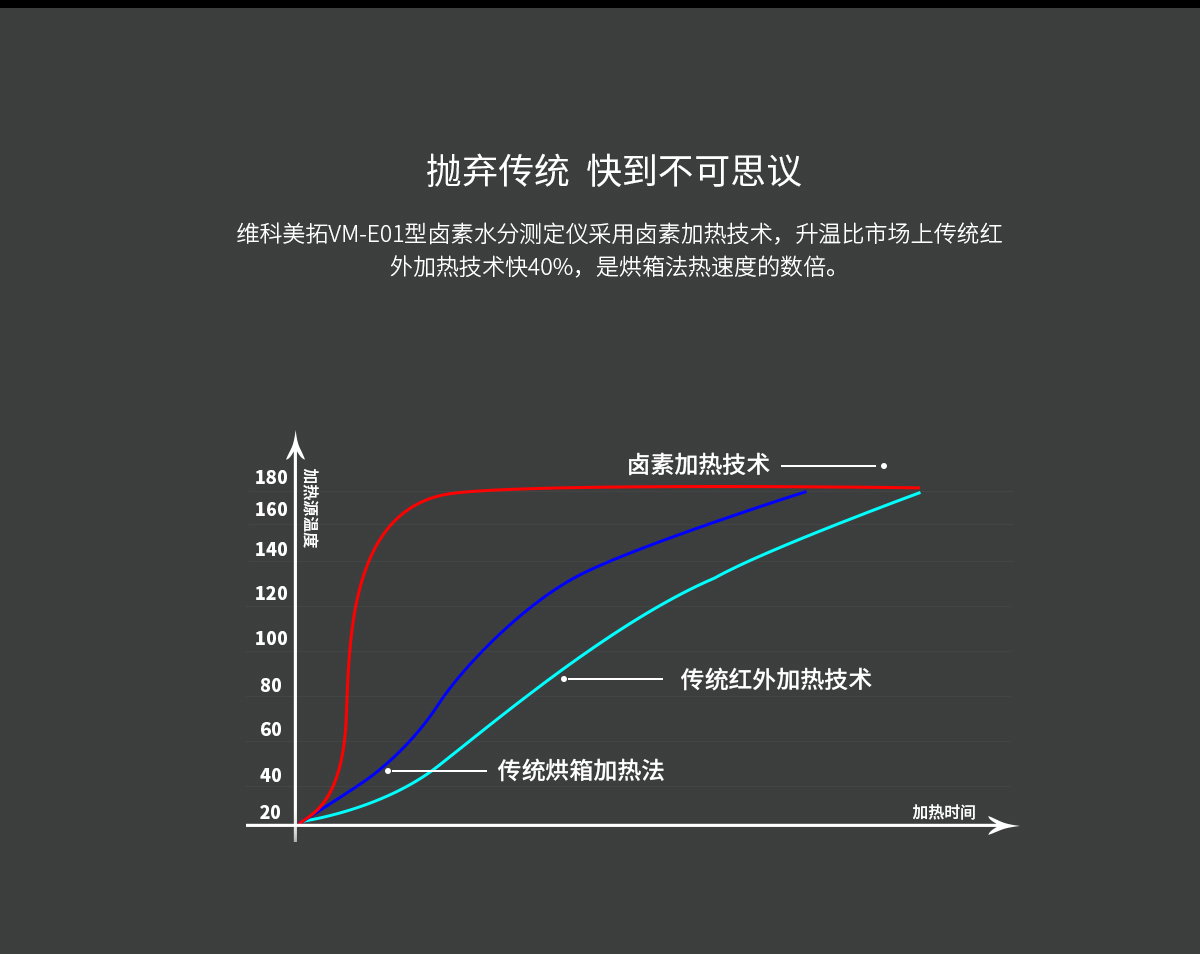

| Heating Method | High-efficiency ring halogen lamp heating |
| Temperature Sensor | PT-1000 high-precision platinum-rhodium temperature sensor |

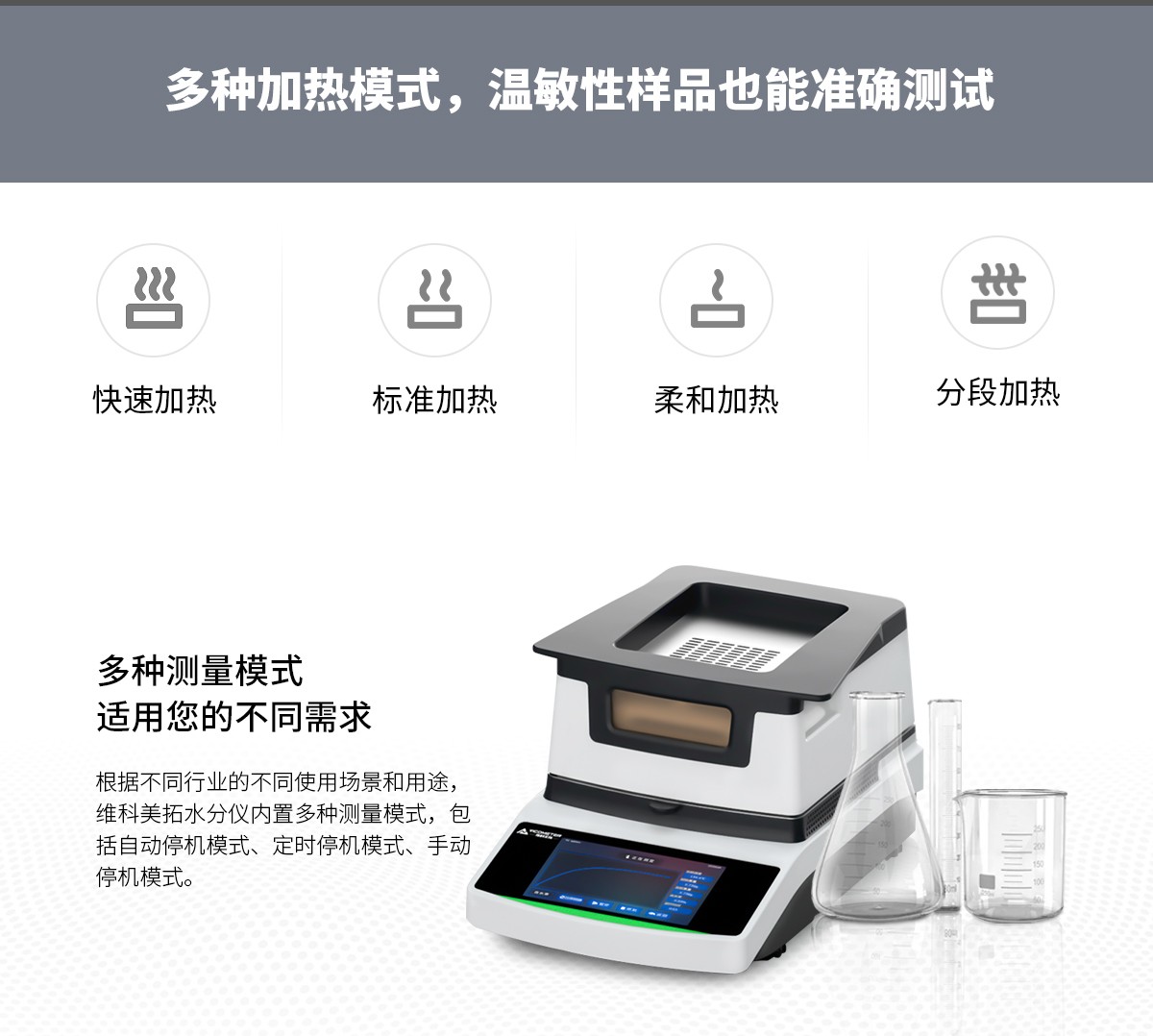

| Drying Program | Four heating modes: standard, step, rapid, and gentle |
| Ramp Range | 40-200°C (250°C high-temperature program customizable) |
| Temperature Increment | 0.1°C PID temperature control |
| Drying Time | Settable from 1-99 minutes (1-second intervals) |

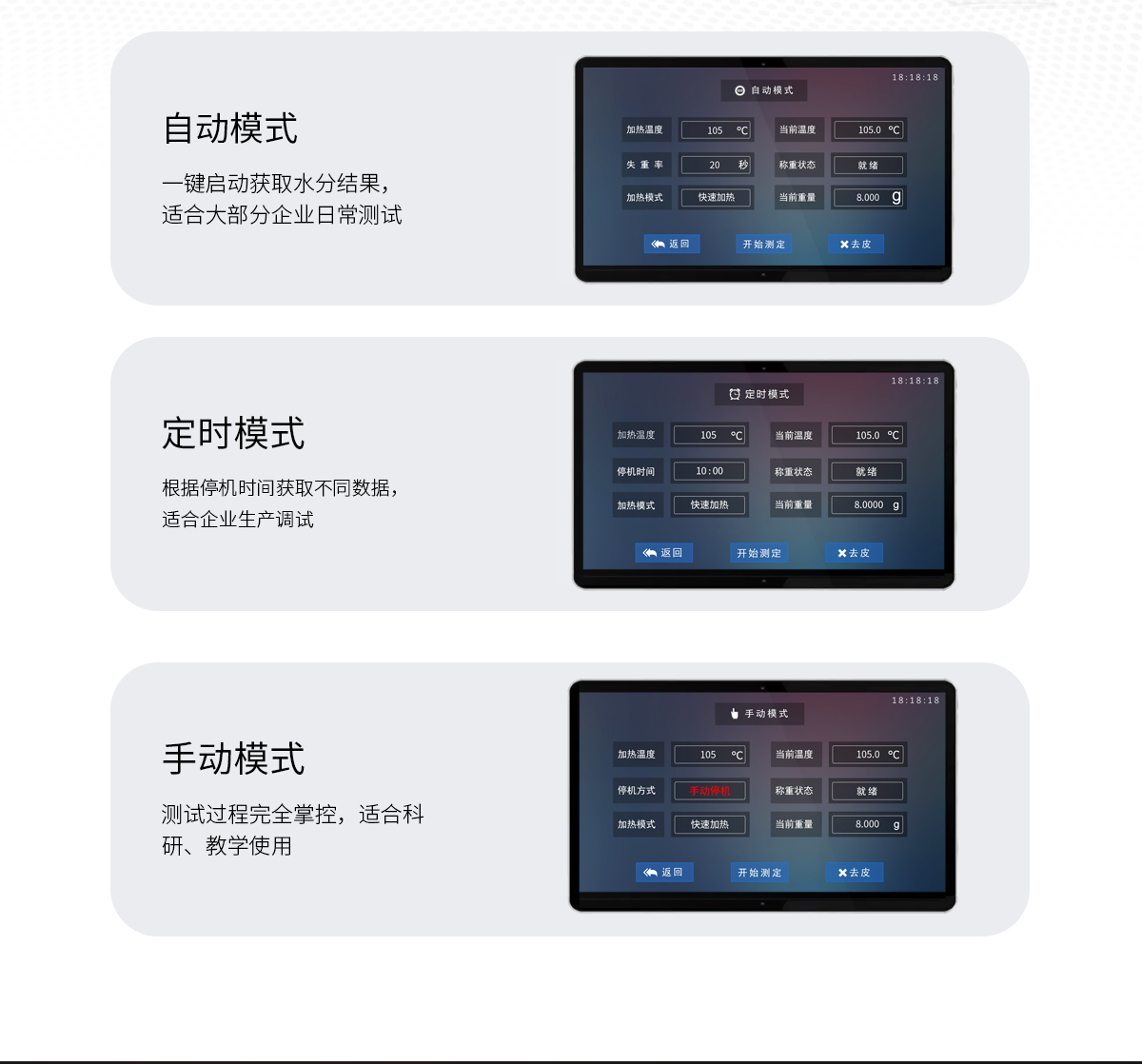

| Shutoff Mode | Three shutdown modes: timed, manual, and automatic (one-touch fully automatic measurement, meeting over 90% of user needs) |
| Data Storage | 2004 sets of historical data |

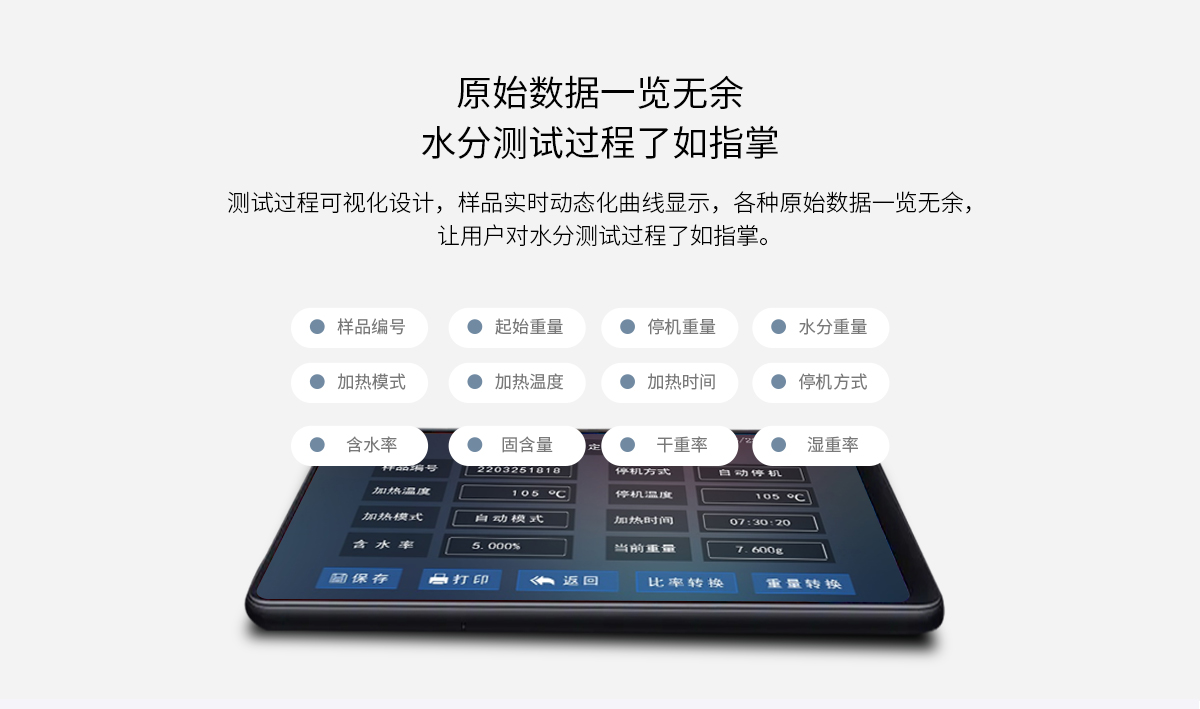

| Displayed Parameters | Moisture MC%, solids DC%, dry-mass ratio AM%, wet-mass ratio AD%, total and dry sample weight, temperature, time, etc. |

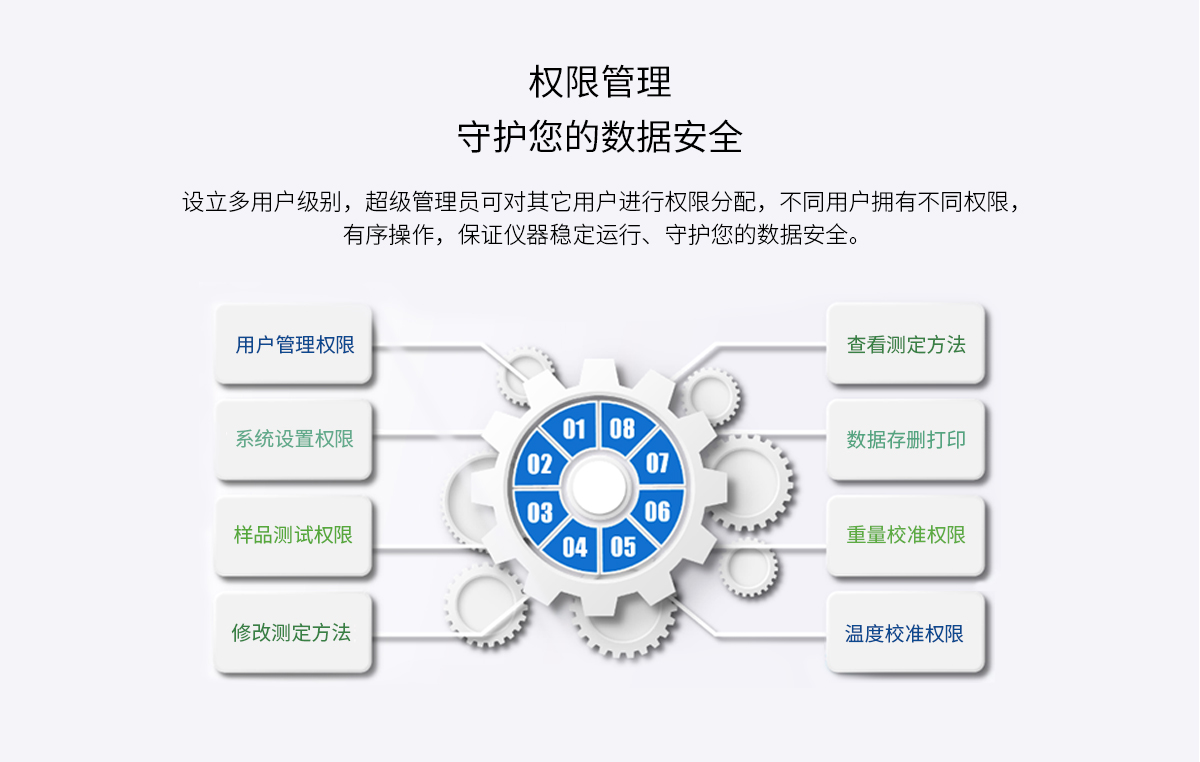

| Special Functions | User management / permission management / temperature calibration / dynamic curves / customizable sample IDs |
| Test Method | Complies with national, industry, and international standards; supports custom methods |
| Firmware Upgrade | Supports USB flash drive program updates and upgrades |

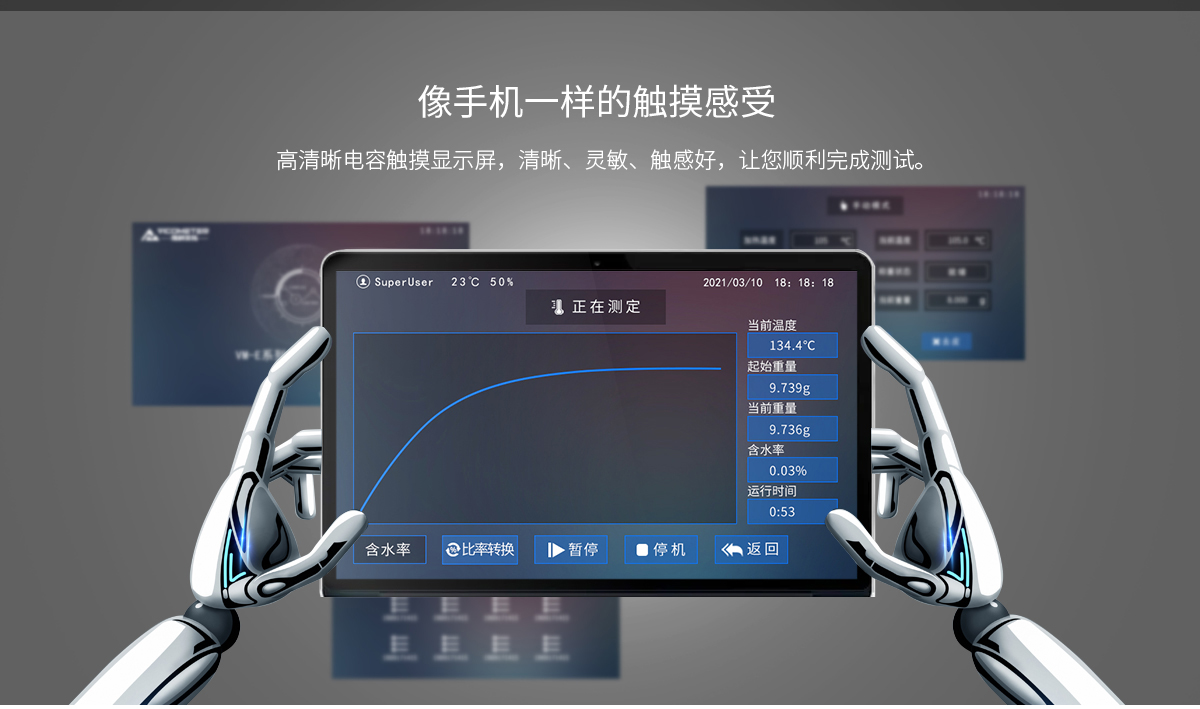

| Display | 5-inch LCD touchscreen |
| Sample Pan | 50 aluminum sample pans (Φ90mm) and 4 stainless steel sample pans |
| Heating Chamber Height | 24.5mm |
| Sample Visibility | Allows real-time observation of samples inside |
| Protection | High-temperature-resistant aluminum heat sink |
| Baud Rate | 2400、4800、9600、19200 |
| Data Communication | RS232 port expandable to PC, printer, PLC communication, LIMS platform, networked management platform, etc.; |
| Printing | Optional printers (thermal, dot-matrix, label, etc.) |
| Operating Environment | 1-38°C (18-25°C ideal) |
| Unit Dimensions | 315mm*210mm*205mm |
| Power Requirements | Voltage 220V±10%, frequency 50Hz±1Hz (110V supply and cord customizable for export), max 500W |

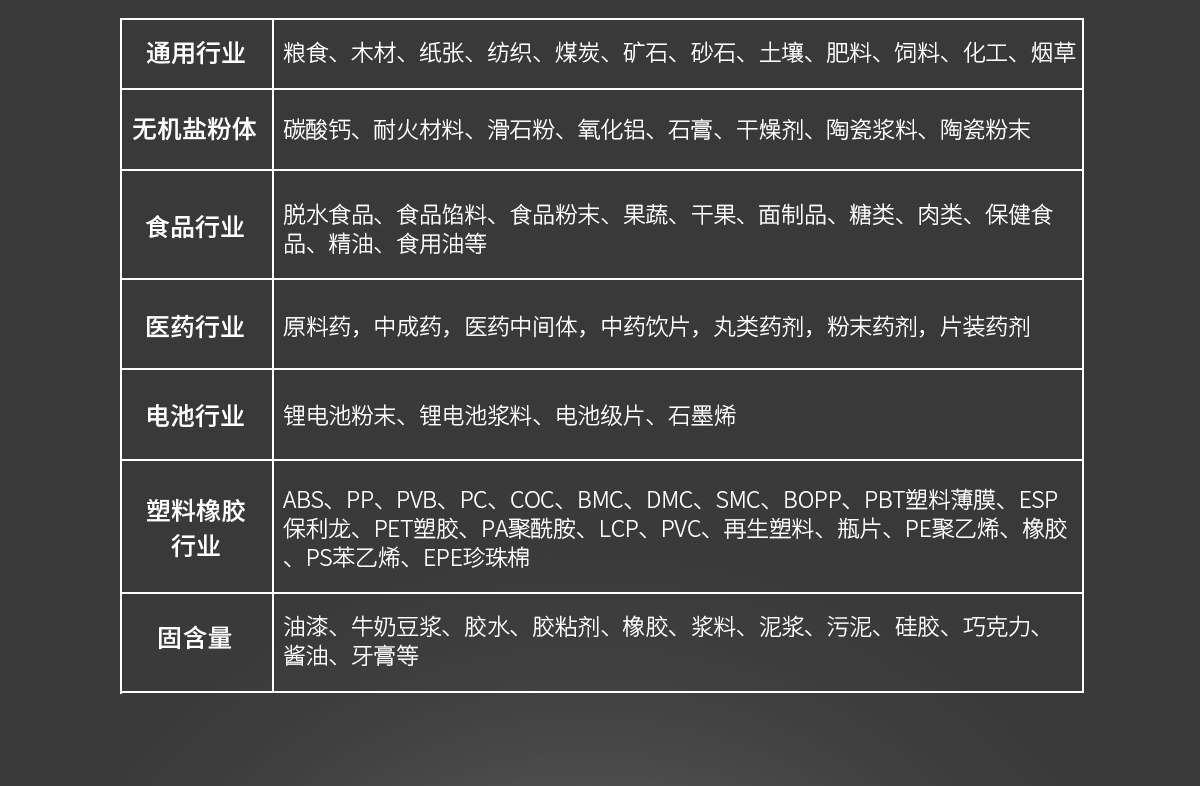

Applicable Industries
| General Industries | Grain, wood, paper, textiles, coal, ore, sand and gravel, soil, fertilizer, feed, chemicals, tobacco |
| Inorganic Salt Powders | Calcium carbonate, refractory materials, talc powder, alumina, gypsum, desiccants, ceramic slurry, ceramic powder |
| Food & Pharma | Traditional Chinese and Western medicine, health foods, essential oils, dehydrated foods, food fillings and powders, fruits and vegetables, dried fruits, flour products, sugars, meat, edible oils, etc. |
| Battery | Lithium battery powders, lithium battery slurries, battery-grade sheets, graphene |
| Plastics & Rubber | ABS, PP, PVB, PC, COC, BMC, DMC, SMC, BOPP, PBT plastic films, EPS foam, PET plastics, PA polyamide, LCP, PVC, recycled plastics, bottle flakes, PE polyethylene, rubber, PS styrene, EPE foam |
| Solids Content | Paint, milk and soy milk, glue, adhesives, rubber, slurry, mud, sludge, silica gel, chocolate, soy sauce, toothpaste, etc. |
