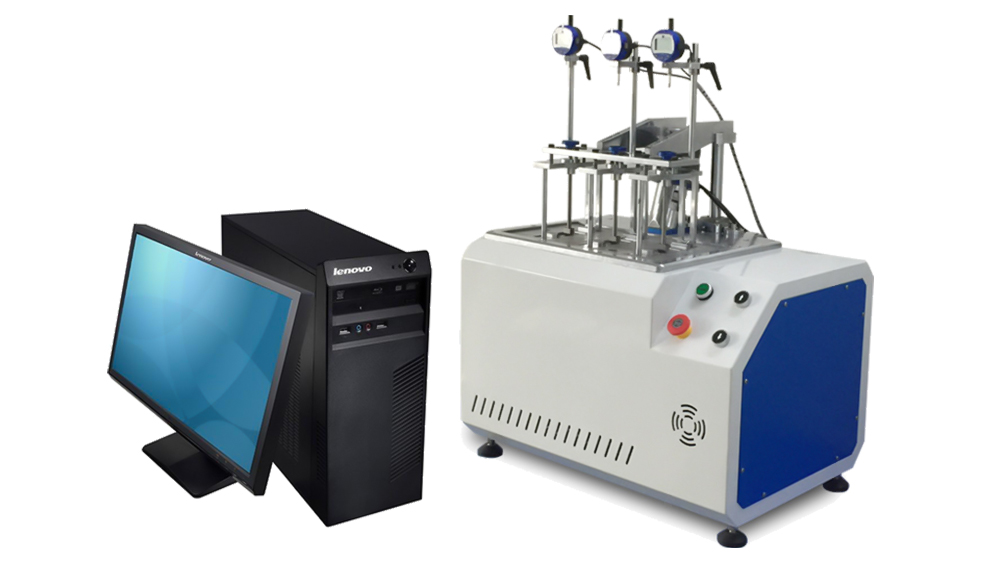

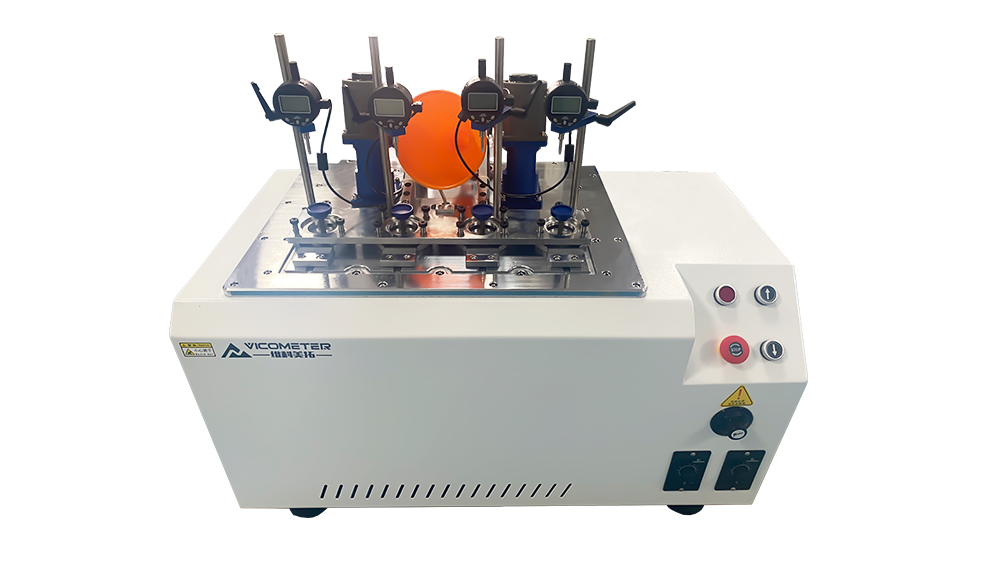

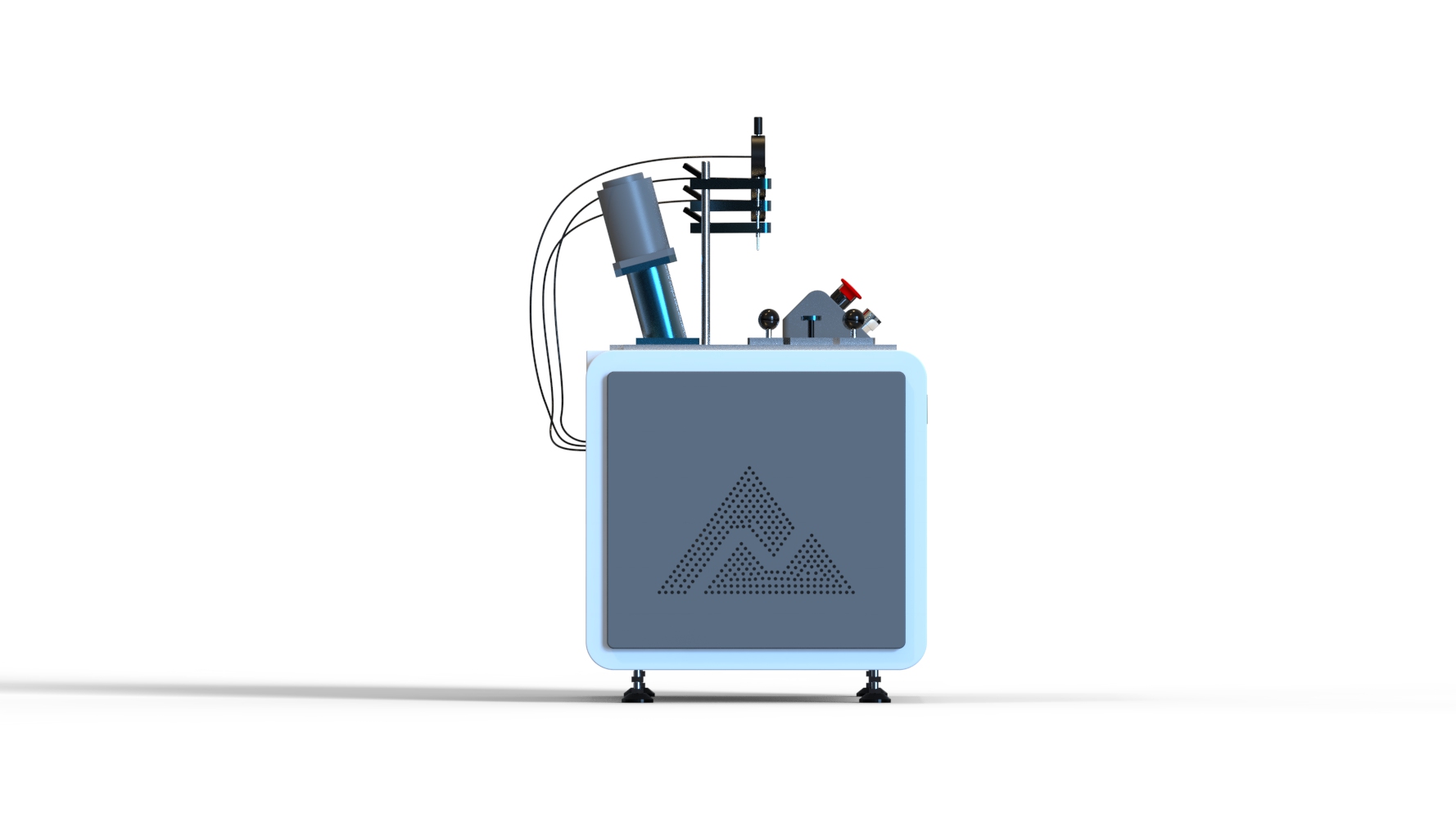

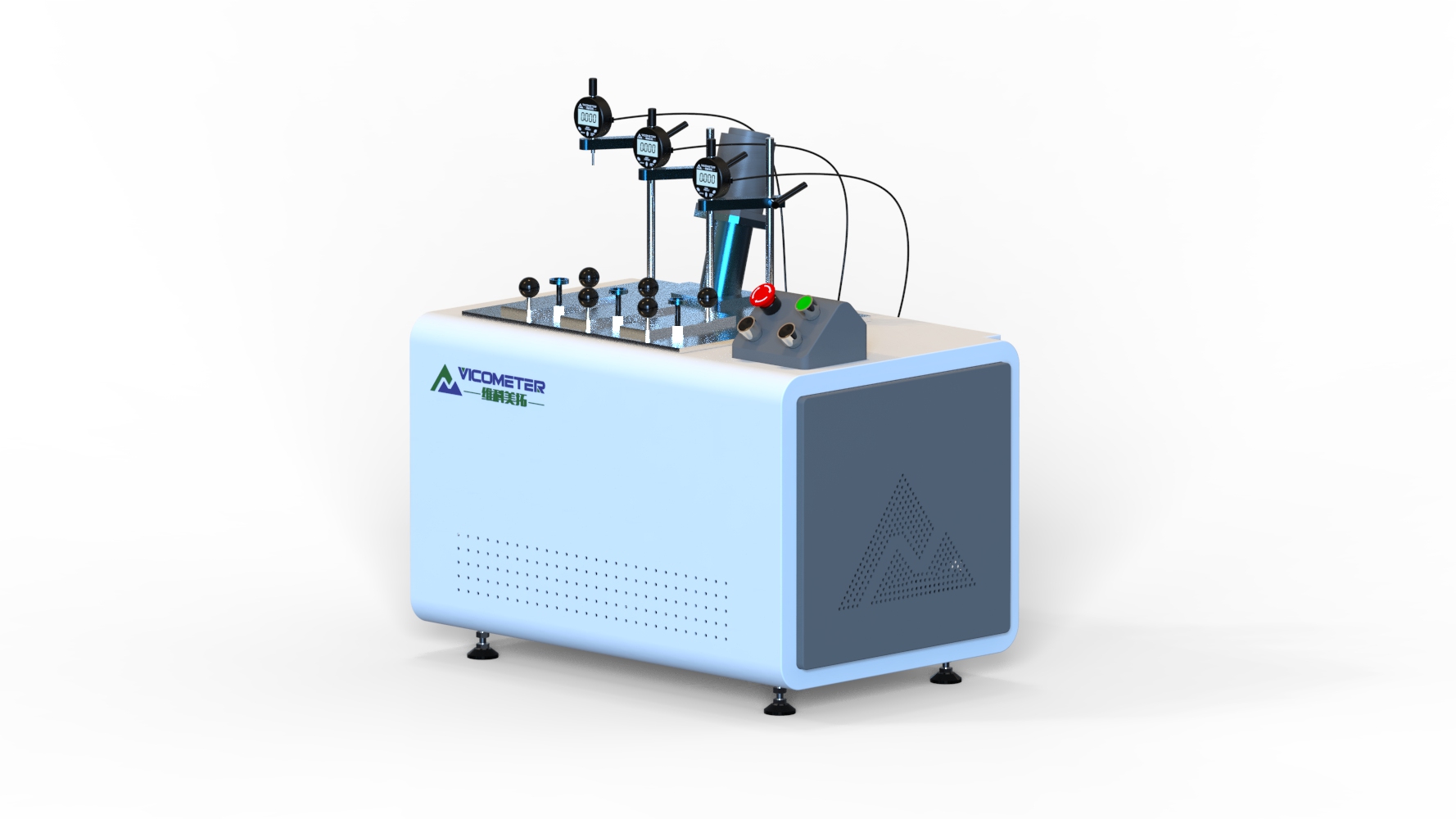

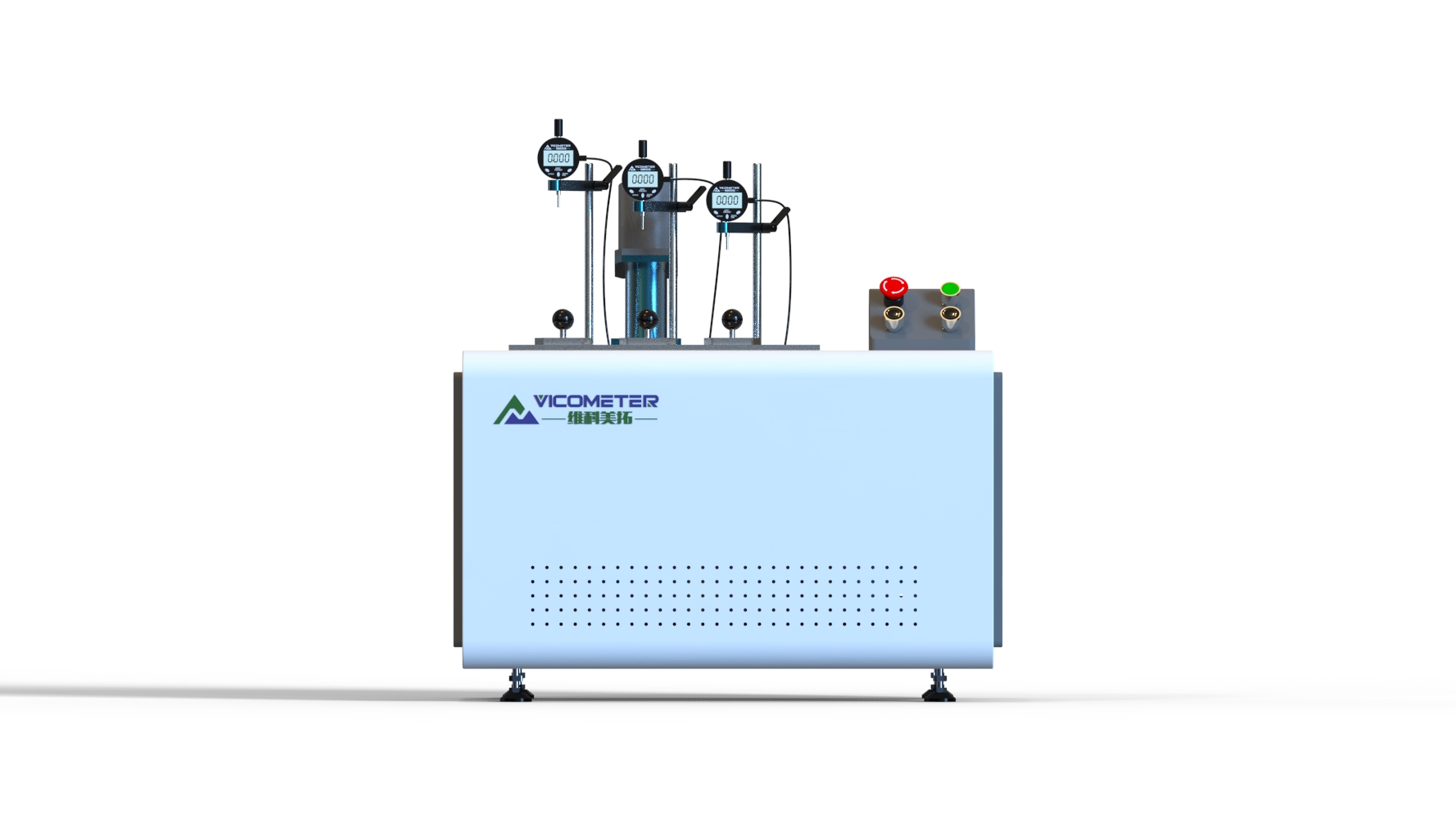

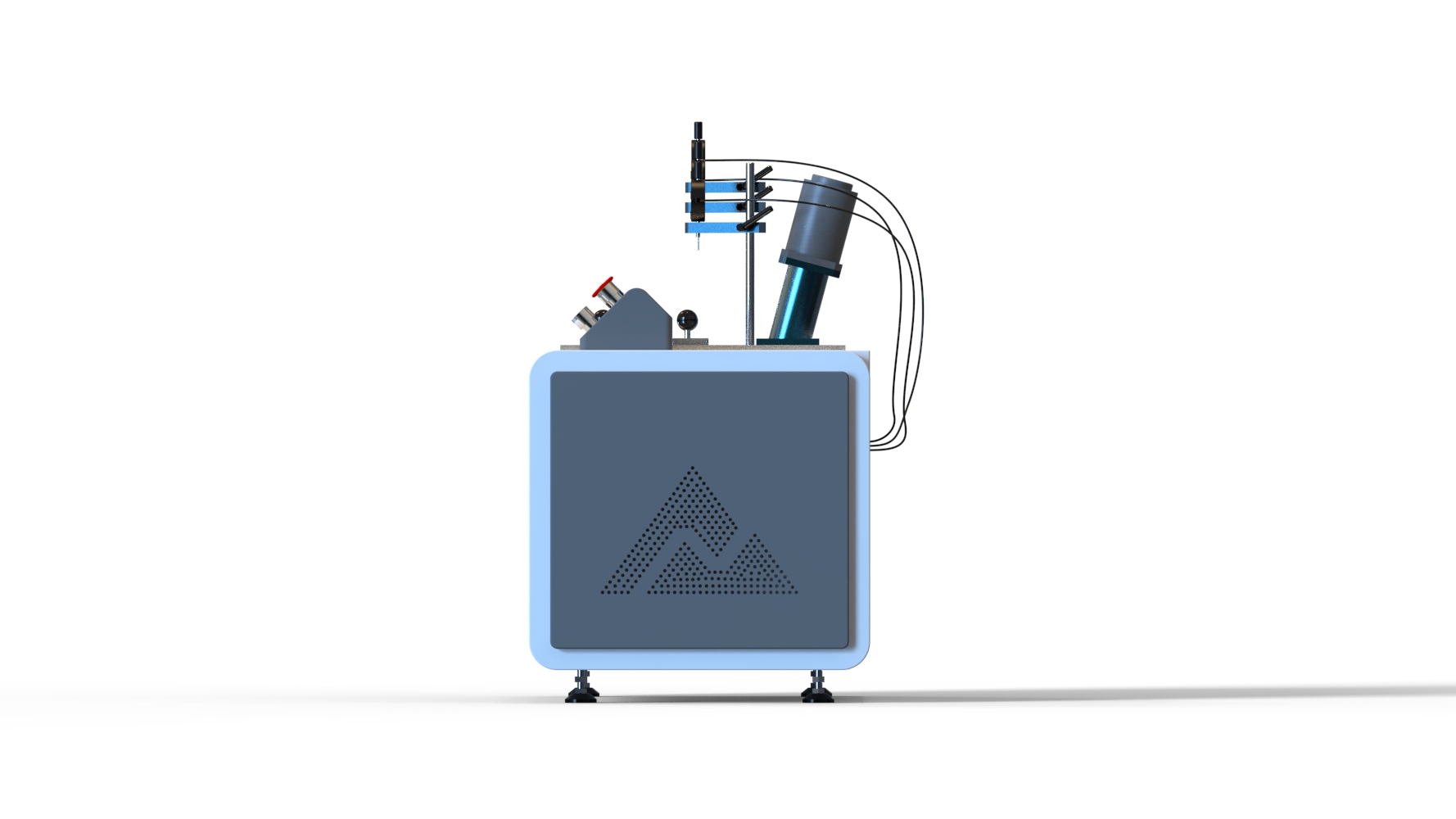

WKT-VST400DW HDT & Vicat Tester

VicoMeter WKT-VST400DW — The Vicat Softening Temperature (VST) is the temperature at which a thermoplastic specimen, placed in a liquid heat-transfer medium under a specified load and a constant heating rate, is penetrated to a depth of 1 mm by a 1 mm² needle; the corresponding national standard is GB/T 1633-2000. VST is one of the indicators used to evaluate a material's heat resistance, reflecting the physical and mechanical properties of a product under heated conditions. Although VST cannot be used directly to evaluate a material's actual service temperature, it can guide quality control. The higher the Vicat softening temperature, the better the material's dimensional stability when heated and the smaller the thermal deformation — that is, the better its resistance to heat deformation, the greater its rigidity, and the higher its modulus.

1.  Intelligent PID control with accurate heating rate and precise, uniform temperature control

2.  Performs HDT tests on various standard specimens

3.  Performs Vicat softening point tests on various standard specimens

4.  Performs HDT and Vicat softening point tests simultaneously

5.  Automatically calculates the required load based on test standard and specimen dimensions

6.  Two selectable heating rates, freely switchable, simple to operate

7.  Automatically shuts off temperature control and powers down when the test completes or the temperature limit is exceeded

8.  Dual protection: software over-temperature protection plus external mechanical over-temperature protector for worry-free testing

Versatile report settings with comprehensive report printing

The WKT-VST400DW is mainly used for HDT and Vicat softening point measurement of non-metallic materials (such as plastics, rubber, nylon, and electrical insulating materials). It is widely applied to HDT and Vicat softening point testing of plastics, rubber, nylon, electrical insulating materials, and chemical building materials.
