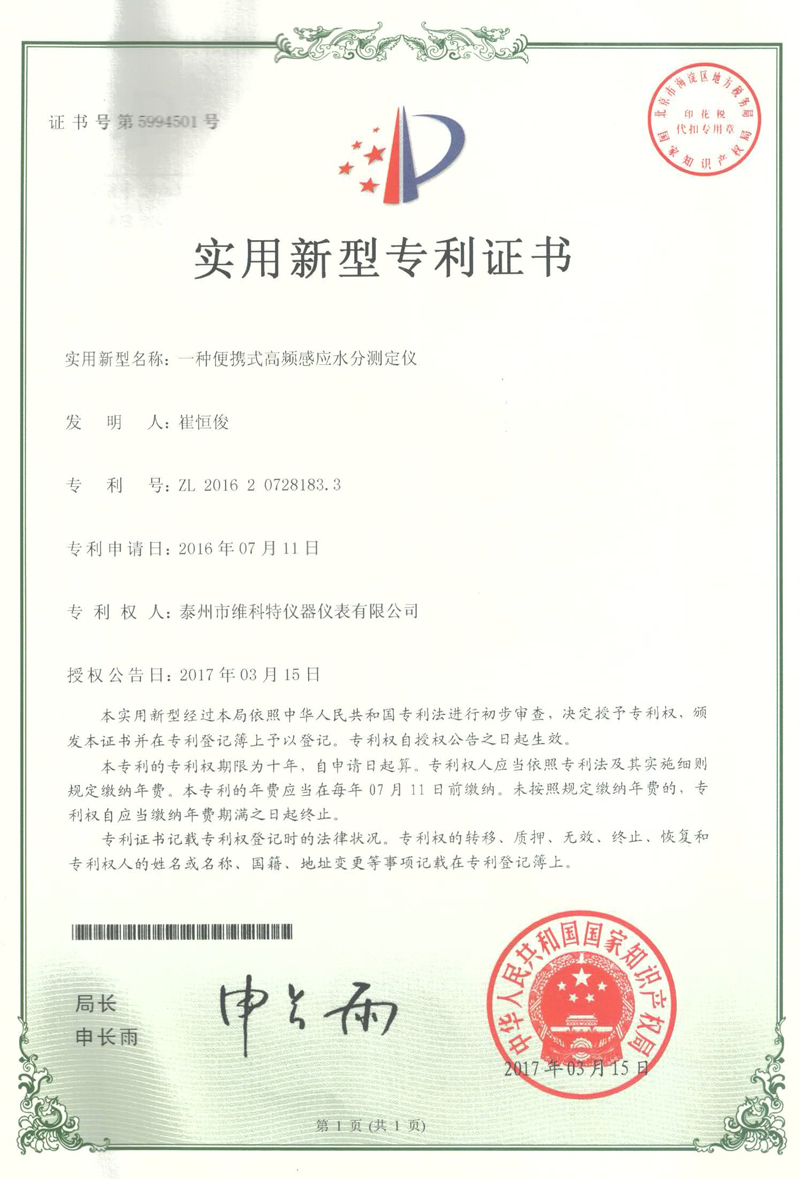

Recently, the Portable High-Frequency Induction Moisture Analyzer designed by VicoMeter (Jiangsu Victor Instrument Meter Co., Ltd.) was granted a national utility model patent, patent No. CN201620728183.3, and received the Utility Model Patent Certificate issued by the China National Intellectual Property Administration. This signifies VicoMeter's recognition in the field of utility model patents, deeper protection for its innovations, and a further enhancement of its overall competitiveness.
A patent certificate is a legal document issued by the patent administration department under the State Council (i.e., the China National Intellectual Property Administration) to the patent applicant, after a patent application has been examined and found qualified, with no grounds for rejection discovered, and the conditions for granting a patent right have been met, along with the decision to grant the patent right.
Patent certificates are divided into invention patent certificates, utility model patent certificates, and design patent certificates.
A utility model is one of the three types of patents (invention, utility model, and design). A utility model refers to a new technical solution proposed for the shape, structure, or combination thereof of a product that is suitable for practical use. The Patent Law sets lower requirements for the inventiveness and technical level of utility models than for invention patents, but their practical value is great.
Through years of establishment, operation, and improvement, VicoMeter has effectively enhanced the intellectual property awareness of its leaders and employees, mobilized employees' enthusiasm for invention and creation, closely integrated technological innovation achievements with intellectual property, and strengthened the company's core competitiveness.
In the future, VicoMeter will continue to provide customers with quality products and services and make due contributions to China's analytical instrument industry — making testing more accurate, operation simpler, and users more reassured.
The present utility model discloses a portable high-frequency induction moisture analyzer. The analyzer comprises a main body and a probe detachably connected to the main body. A power supply and a control chip are provided inside the main body. The surface of the main body is provided with a display screen electrically connected to the control chip, as well as an adjustment knob and adjustment buttons electrically connected to the control chip. The end of the probe is provided with a moisture detection sensor that is electrically connected to the control chip when the probe is inserted into the main body. The top of the main body is provided with a conductive connector for the probe to be inserted into, the conductive connector being electrically connected to the control chip and the power supply, and the end of the probe opposite the moisture detection sensor is provided with a conductive plug that can be inserted into the conductive connector.
1. A portable high-frequency induction moisture analyzer, characterized in that the analyzer comprises a main body and a probe detachably connected to the main body; a power supply and a control chip are provided inside the main body; the surface of the main body is provided with a display screen electrically connected to the control chip, as well as an adjustment knob and adjustment buttons electrically connected to the control chip; the end of the probe is provided with a moisture detection sensor that is electrically connected to the control chip when the probe is inserted into the main body; the top of the main body is provided with a conductive connector for the probe to be inserted into, the conductive connector being electrically connected to the control chip and the power supply; and the end of the probe opposite the moisture detection sensor is provided with a conductive plug that can be inserted into the conductive connector.
2. The portable high-frequency induction moisture analyzer according to claim 1, characterized in that the sidewall surface of the conductive plug is provided with an elastic limiting protrusion, and the conductive connector is provided with a limiting hole for the elastic limiting protrusion to snap into.
3. The portable high-frequency induction moisture analyzer according to claim 2, characterized in that the elastic limiting protrusion comprises a hemispherical protrusion and a spring disposed between the hemispherical protrusion and the conductive plug.
A Portable High-Frequency Induction Moisture Analyzer
Technical Field
[0001] The present utility model relates to a moisture analyzer, and more particularly to a portable high-frequency induction moisture analyzer.
Background
[0002] In existing portable moisture analyzers, the probe and the main unit are usually fixedly connected, which means that the analyzer occupies considerable carrying space when carried by the user, causing inconvenience.
Content of the Utility Model
[0003] The technical problem to be solved by the present utility model is to provide a portable high-frequency induction moisture analyzer in view of the above defects of the prior art.
[0004] The technical solution adopted by the present utility model to solve its technical problem is to construct a portable high-frequency induction moisture analyzer, comprising a main body and a probe detachably connected to the main body. A power supply and a control chip are provided inside the main body. The surface of the main body is provided with a display screen electrically connected to the control chip, as well as an adjustment knob and adjustment buttons electrically connected to the control chip. The end of the probe is provided with a moisture detection sensor that is electrically connected to the control chip when the probe is inserted into the main body. The top of the main body is provided with a conductive connector for the probe to be inserted into, the conductive connector being electrically connected to the control chip and the power supply, and the end of the probe opposite the moisture detection sensor is provided with a conductive plug that can be inserted into the conductive connector.
[0005] In the portable high-frequency induction moisture analyzer of the present utility model, the sidewall surface of the conductive plug is provided with an elastic limiting protrusion, and the conductive connector is provided with a limiting hole for the elastic limiting protrusion to snap into.
[0006] In the portable high-frequency induction moisture analyzer of the present utility model, the elastic limiting protrusion comprises a hemispherical protrusion and a spring disposed between the hemispherical protrusion and the conductive plug.
[0007] The portable high-frequency induction moisture analyzer of the present utility model offers the following beneficial effects: when using the analyzer, the probe can be inserted into the conductive connector at the end of the main body through the conductive plug to establish a conductive connection between the probe and the main body, and moisture measurement can then be performed. When carrying is required, the probe can be detached from the main body, and the probe and the main body can be carried separately, making the analyzer easy to carry.
Description of Drawings
[0008] The utility model will be further described below with reference to the accompanying drawings and embodiments, in which:

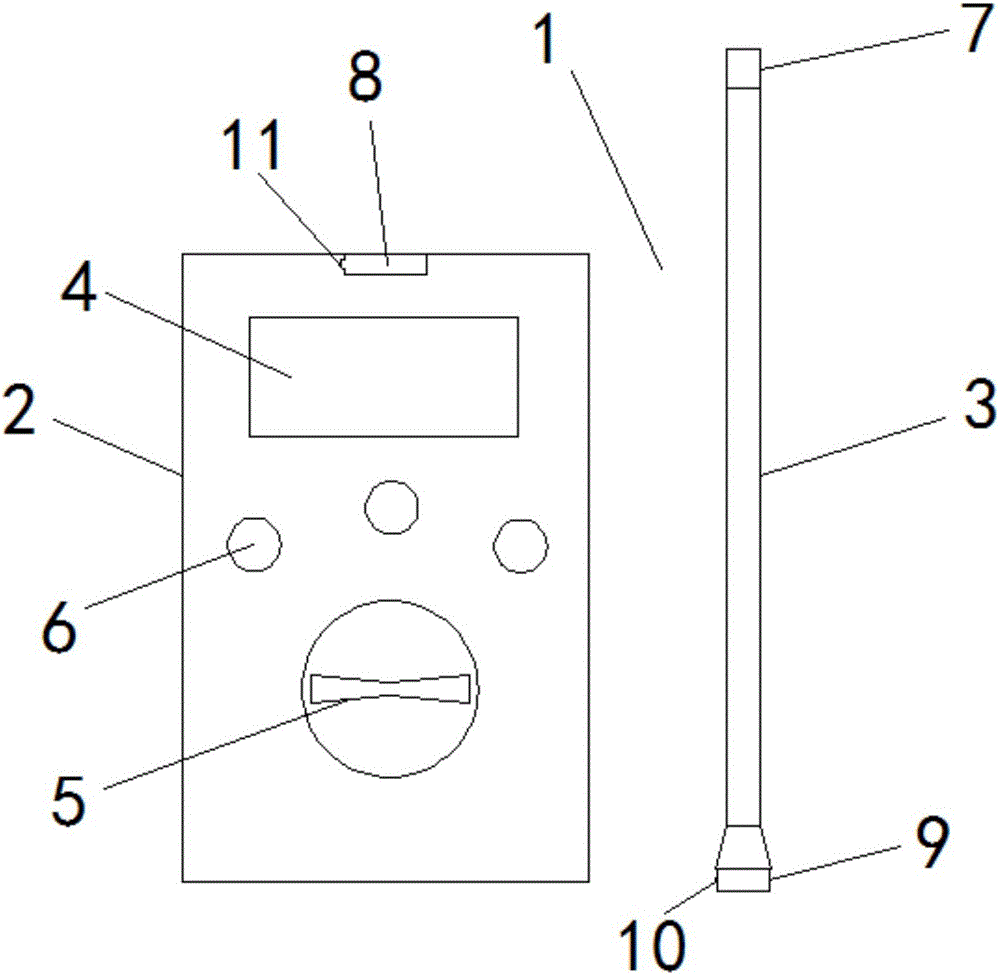

[0009] FIG. 1 is a schematic structural diagram of the portable high-frequency induction moisture analyzer of the present utility model.
Detailed Implementation
[0010] To make the purpose, technical solutions, and advantages of the utility model clearer, the embodiments of the utility model are further described in detail below with reference to the accompanying drawings.
[0011] As shown in FIG. 1, in the first embodiment of the portable high-frequency induction moisture analyzer of the present utility model, the analyzer 1 comprises a main body 2 and a probe 3 detachably connected to the main body 2. A power supply and a control chip are provided inside the main body 2. The surface of the main body 2 is provided with a display screen 4 electrically connected to the control chip, as well as an adjustment knob 5 and adjustment buttons 6 electrically connected to the control chip. The end of the probe 3 is provided with a moisture detection sensor 7 that is electrically connected to the control chip when the probe 3 is inserted into the main body 2. The top of the main body 2 is provided with a conductive connector 8 for the probe 3 to be inserted into, the conductive connector 8 being electrically connected to the control chip and the power supply, and the end of the probe 3 opposite the moisture detection sensor 7 is provided with a conductive plug 9 that can be inserted into the conductive connector 8.
[0012] When using the portable high-frequency induction moisture analyzer 1 of the present utility model, the probe 3 can be inserted into the conductive connector 8 at the end of the main body 2 through the conductive plug 9 to establish a conductive connection between the probe 3 and the main body 2, and moisture measurement can then be performed. When carrying is required, the probe 3 can be detached from the main body 2, and the probe 3 and the main body 2 can be carried separately, making the analyzer easy to carry.
[0013] Furthermore, to prevent the probe 3 from falling off the main body 2 during use, the sidewall surface of the conductive plug 9 is provided with an elastic limiting protrusion 10, and the conductive connector 8 is provided with a limiting hole 11 for the elastic limiting protrusion 10 to snap into.
[0014] Specifically, the elastic limiting protrusion 10 comprises a hemispherical protrusion and a spring disposed between the hemispherical protrusion and the conductive plug 9.
[0015] The above descriptions are merely embodiments of the utility model and are not intended to limit the patent scope of the utility model. Any equivalent structure or equivalent process transformation made using the contents of the specification and drawings of the utility model, or direct or indirect application in other related technical fields, shall likewise fall within the scope of patent protection of the utility model.
