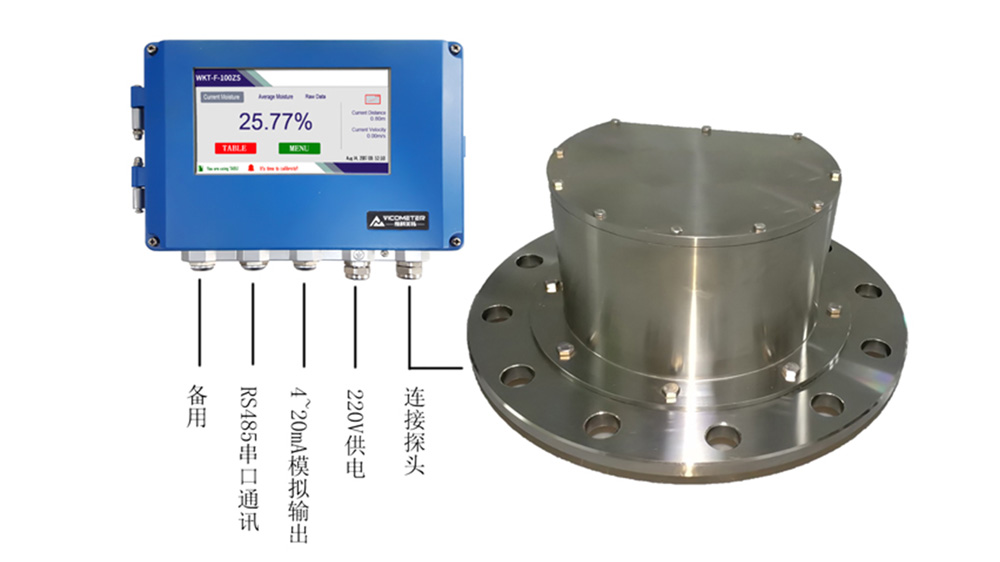

The WKT-F-100ZS online phased-array microwave moisture analyzer is an innovative, cost-effective product consisting of a main unit and a phased-array microwave probe. Using reflective measurement, the probe does not need to contact the material under test to simultaneously and accurately obtain three types of measurement data: moisture value, distance between the probe and the material, and the moving speed of the material. Users can select static or dynamic measurement modes to suit different working conditions. The main unit features a 7-inch color LCD industrial screen for simple operation. The probe is made of high-strength stainless steel, and a signal cable of up to 200 meters can connect the main unit and the probe. All components are waterproof and dustproof, the rugged stainless steel housing resists accidental impact, and the entire unit can work for long periods in harsh environments.
Overview
VicoMeter's WKT-F-100ZS online phased-array microwave moisture analyzer is a reflective non-contact moisture analyzer using a phased-array microwave antenna. Designed to industrial requirements, the WKT-F-100ZS offers excellent accuracy and reliability, rugged durability, and fast response. With a moisture measurement range of 0–50% and a maximum accuracy of 0.1%, it is highly practical and is designed for continuous moisture measurement of products during production. It can measure many different media, with up to 100 sets of calibration data.
The WKT-F-100ZS online phased-array microwave moisture analyzer is an innovative, cost-effective product consisting of a main unit and a phased-array microwave probe. Using reflective measurement, the probe does not need to contact the material under test (the distance between the material and the probe is 0.2–2 meters) to simultaneously and accurately obtain three types of measurement data: moisture value, distance between the probe and the material, and the moving speed of the material. Users can select static or dynamic measurement modes to suit different working conditions. The main unit features a 7-inch color LCD industrial screen for simple operation. The probe is made of high-strength stainless steel, and a signal cable of up to 200 meters can connect the main unit and the probe. All components are waterproof and dustproof, the rugged stainless steel housing resists accidental impact, and the entire unit can work for long periods in harsh environments.
The WKT-F-100ZS online phased-array microwave moisture analyzer is a reflective non-contact moisture analyzer using a phased-array microwave antenna, widely applied to online real-time monitoring of moisture content in various raw materials. The instrument integrates VicoMeter's mature technologies in the field of moisture determination, making the entire analysis system more complete and the test results stable and reliable.
Phased-array microwave sensor with single-probe design
Simultaneously measures moisture, distance, and conveyor belt speed
Real-time compensation for moisture value deviations caused by distance and speed
Non-contact measurement with the probe freely positioned 0.2–2 meters from the material
Selectable static and dynamic measurement modes to suit different working environments
Moisture measurement range 0–50%, accuracy 0.1%
Up to 100 calibration tables
Rugged stainless steel probe
Color 7-inch LCD display
The reflective moisture-measurement phased-array microwave antenna designed and manufactured by VicoMeter is highly distinctive. The phased-array microwave antenna consists of numerous small microwave antennas. Leveraging the flexibility, speed, and multi-beam capability of electronic scanning, and working in coordination with the main unit, it enables simultaneous measurement of moisture, distance, and speed. The phased array contains many antenna groups operating in parallel; even if a small number of microwave antenna components fail, the unit still works normally, delivering very high reliability.
The phased-array microwave antenna can adjust the microwave irradiation angle by controlling each micro antenna. After repeated testing, the microwave irradiation angle is set to 30°, balancing measurement accuracy and material coverage.
VicoMeter can customize dedicated instruments according to user requirements; customers in need can also request changes to the microwave irradiation angle.
The probe with a phased-array microwave antenna offers advantages such as a compact structure and easy installation. It features an all-stainless-steel metal housing with IP67 protection; the microwave emission part is protected by PTFE (polytetrafluoroethylene), providing a high protection rating and corrosion- and explosion-proof performance.
The single-probe design allows customers to install it freely at a distance of 0.5–2 meters from the material.
The graphical operating system developed by VicoMeter allows users to select menus by touch — simple and intuitive to operate.
The 7-inch color LCD display shows multiple data: current moisture, average moisture, trend curves, current measuring height, current measuring speed, time, and more.
When measuring moving materials on conveyor belts, long-term comparative test data shows that the WKT-F-100ZS online phased-array microwave moisture analyzer delivers excellent measurement accuracy — an advantage not found in other similar products.
The WKT-F-100ZS online phased-array microwave moisture analyzer measures the moisture content of an entire truckload of cargo as the truck passes through the gate.
In industrial production, conveyor belts are the primary means of transporting goods. The WKT-F-100ZS online phased-array microwave moisture analyzer accurately measures material moisture online. With up to 100 built-in calibration curves, it can measure the moisture of a wide variety of materials.
Every moisture analyzer undergoes repeated measurement across multiple processes to ensure all parameters are foolproof — an attitude of absolute responsibility toward customers.
Technical Specifications
| Sensor | Phased-array microwave reflective type |
| Moisture Reading Range | 0-50% |
| Velocity Range | 0-10m/s |
| Distance Range | 0-3m |
| Max Resolution | 0.01% |
| Mounting | DN250 standard flange |
| Measuring Method | Non-contact online measurement; customers can choose static or dynamic measurement mode according to working conditions |
| Weight | Approx. 15 kg (dimensions of standard probe and main unit) |
| Probe-to-Material Distance | 200mm-2000mm |
| Probe Material | 304 stainless steel |
| Explosion Protection | Explosion-proof DIICT6 (optional) |
| Power | 220AC±20% |
| Microwave Frequency | 24GHz |
| Sampling Rate | Moisture value: 5,000 points/second; material height: 1,000 points/second; belt speed: 1,000 points/second |
| Ingress Protection | IP67 |
| Calibration Tables | 10 on the main unit; up to 100 with host computer software |
| Screen Display | Real-time moisture value, average value, and trend curve; Material running speed; Distance between probe and material; |
| Detectable Materials | Coal, grain, plastics, flour, seeds, tobacco, tobacco leaves, mineral powder, quartz sand, and other solids or slurries |
