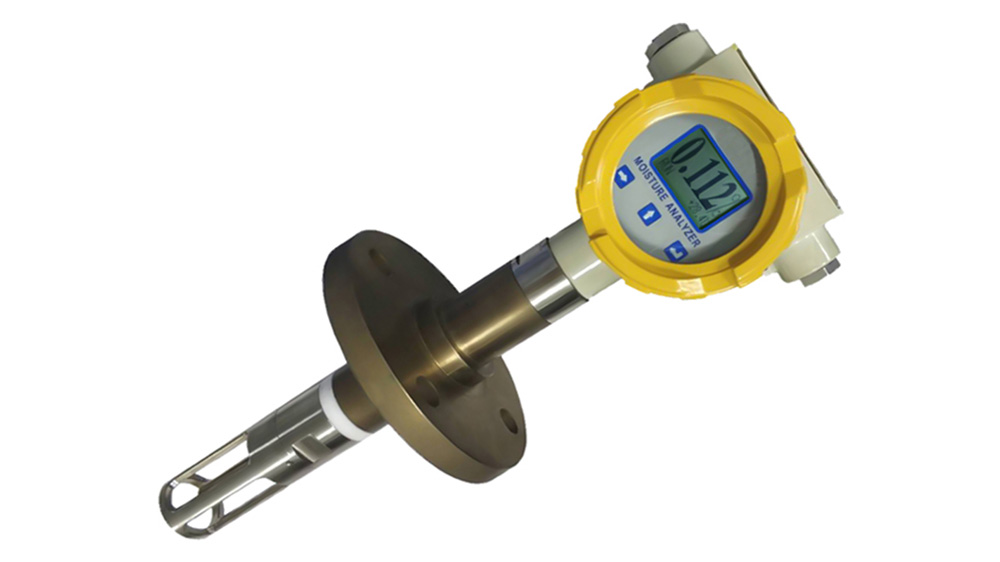

The WKT-L-50ZS online microwave liquid moisture analyzer is an intelligent, high-precision industrial instrument for online microwave liquid moisture measurement. Its sensor uses dual-frequency microwave signals, delivering better accuracy than moisture analyzers using single-frequency microwave signals. Made entirely of stainless steel, it is exceptionally rugged and durable, withstanding pressures up to 4 MPa and temperatures up to 120°C. The moisture content range of 0–100% can be freely selected, and high-precision temperature compensation is provided. Using a three-dimensional calibration method, it includes 8 calibration tables for measuring different media. It is widely used for moisture content measurement of various oils, chemical liquids, and food and beverages.
Overview
The WKT-L-50ZS online microwave liquid moisture analyzer is an intelligent, high-precision industrial instrument for online microwave liquid moisture measurement. Its sensor uses dual-frequency microwave signals, delivering better accuracy than moisture analyzers using single-frequency microwave signals. Made entirely of stainless steel, the WKT-L-50ZS is exceptionally rugged and durable, withstanding pressures up to 4 MPa and temperatures up to 120°C. The moisture content range of 0–100% can be freely selected, and high-precision temperature compensation is provided. Using a three-dimensional calibration method, it includes 8 calibration tables for measuring different media.
The WKT-L-50ZS is an ideal industrial liquid analysis instrument, widely applicable to moisture content measurement of various oils, chemical liquids, and food and beverages.
The WKT-L-50ZS is insensitive to liquid color and can even measure most weakly conductive media. Microwave measurement is a depth detection technology — microwaves penetrate a certain distance into the measured medium, making it superior to surface detection technologies such as infrared detection.
Built-in temperature measurement and temperature compensation for high-precision measurement;
Real-time measurement with high speed and fast response (less than one second);
The probe is made of stainless steel with PTFE fittings — corrosion-resistant and rust-proof;
No moving parts — low maintenance and long service life
Meets explosion-proof (Ex ia d IIC T6 Ga/Gb) and protection (IP68) ratings for harsh sites;
Adopts dual-frequency microwave detection technology, unaffected by flow state and industrial environment factors;
Built-in temperature measurement and temperature compensation for high-precision measurement;
Real-time measurement with high speed and fast response (less than one second);
The probe is made of stainless steel with PTFE fittings — corrosion-resistant and rust-proof;
No moving parts — low maintenance and long service life
Meets explosion-proof (Ex ia d IIC T6 Ga/Gb) and protection (IP68) ratings for harsh sites;
Adopts dual-frequency microwave detection technology, unaffected by flow state and industrial environment factors;
Structural Diagram of the WKT-L-50ZS Online Microwave Liquid Moisture Analyzer
The WKT-L-50ZS is made entirely of stainless steel; corrosion-resistant materials can be customized for corrosive liquids. It offers excellent pressure resistance (standard type: 1 MPa; high-pressure type: 4 MPa), and high-pressure versions can be customized according to on-site needs (up to 40 MPa). Its temperature resistance reaches 120°C (standard: 80°C; for temperatures above 120°C, please contact us for customization). Rugged and durable, it is an ideal industrial analysis instrument.
The software offers rich functionality: automatically recording and displaying trend curves; real-time display of medium temperature, current moisture value, and average value; remote calibration settings for the instrument; export of moisture measurement data; alarm settings; curve printing; and more.
Using dual-frequency microwave signals and a three-dimensional calibration method with up to 8 calibration tables, its measurement accuracy far exceeds that of ordinary single-frequency microwave moisture analyzers, reaching up to 0.01% — suitable for higher production requirements.
Conventional Installation:1. Pipeline; 2. communicating vessel; 3. liquid storage tank
Installation Cases:Crude Oil Moisture Measurement at a Refinery
Installation Cases:Methanol Solution Moisture Measurement at a Chemical Plant
Installation Cases:Tank-Mounted Installation
Installation Cases:Unloading Installation
Installation Cases:Tank Installation
Installation Cases:Pipeline Installation
Installation Cases:Pipeline Installation
Installation Cases:Pipeline Installation
Technical Specifications
| Range | Freely selectable from 0–100% |
| Accuracy | When medium moisture content < 1% [0.01% (100 ppm)] |
| When medium moisture content is 1%–20% [0.1% (1,000 ppm)] | |
| When medium moisture content > 20% [0.5% (5,000 ppm)] | |
| Temperature Tolerance | Standard type: -15°C to 80°C High-temperature type: -15°C to 120°C Ultra-high-temperature type: -15°C to 150°C |
| Pressure Rating | Standard type < 1 MPa Pressure-resistant type < 4 MPa |
| Mounting | 2-inch NPT thread or standard flange |
| Insertion Depth | Standard 245 mm (length customizable) |
| Weight | 5.5kg |
| Sampling Rate | 1,000 times/second |
| Ingress Protection | IP68 |
| Microwave Frequency | 6.8 GHz and 24 GHz |
| Signal Output | MODBUS protocol RS485 and 4–20 mA |
| Power | 18V-36V |
| Recommended Calibration Interval | 8–12 months |
| On-Screen Display | Real-time moisture value, average value, trend curve, and raw microwave value (switchable displays) |
| Temperature Sensor | PT1000 platinum RTD |
