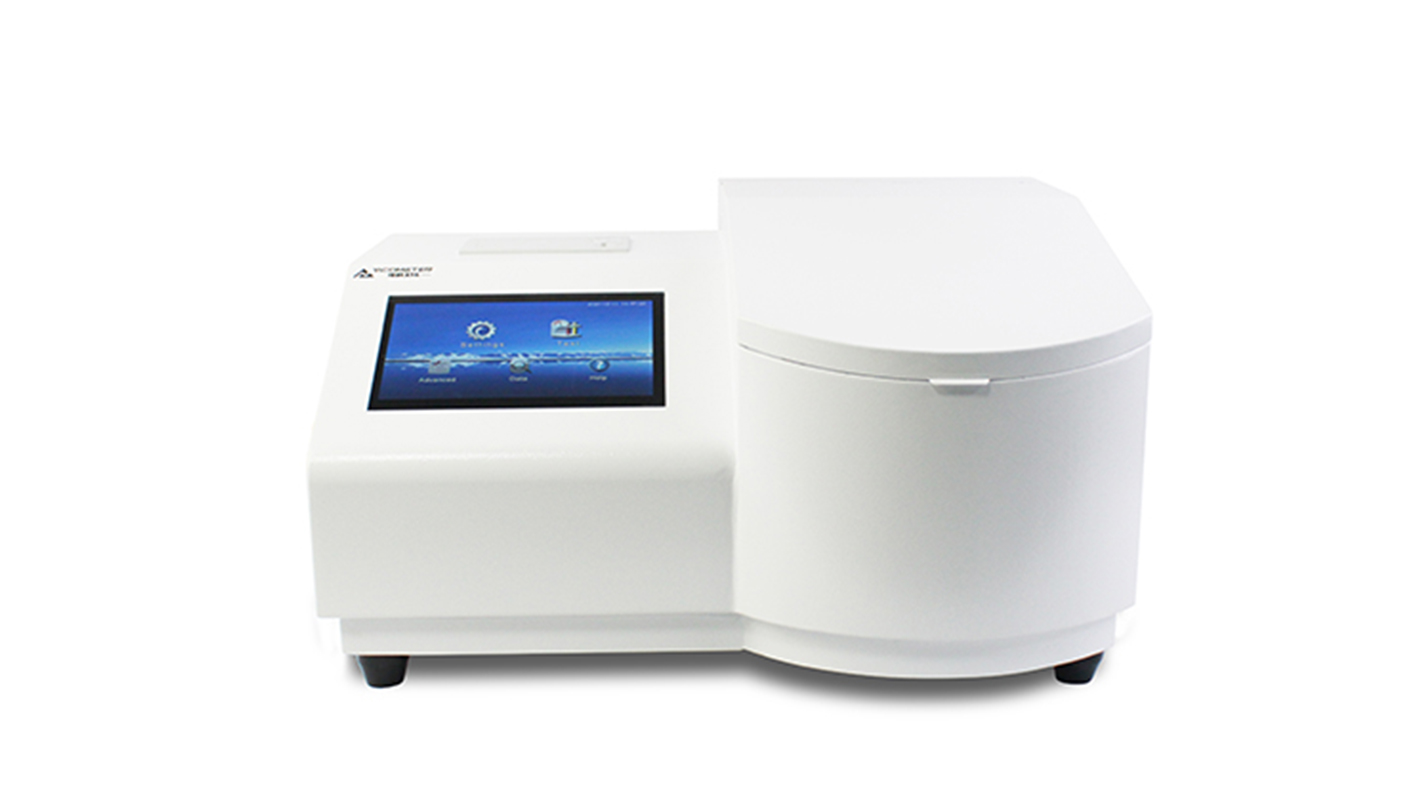

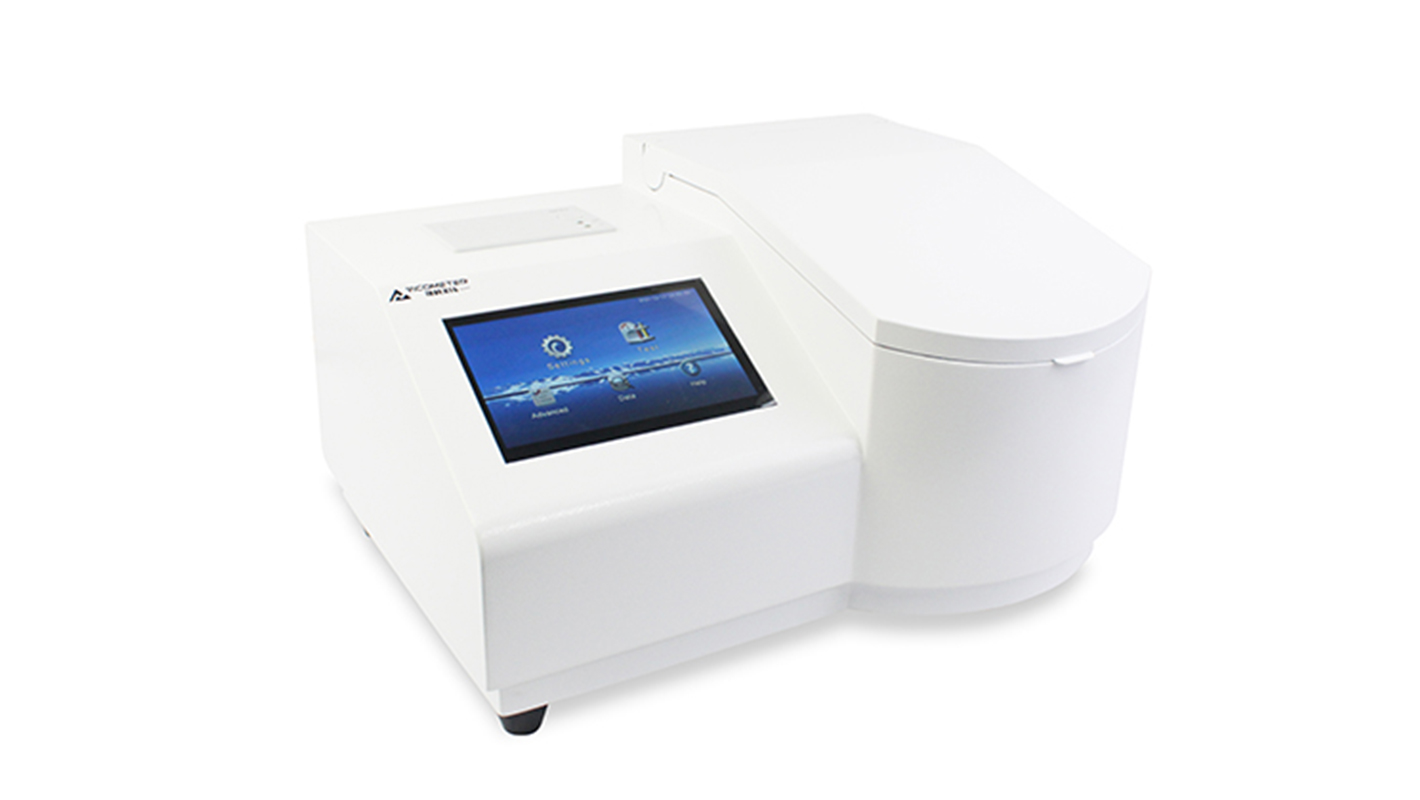

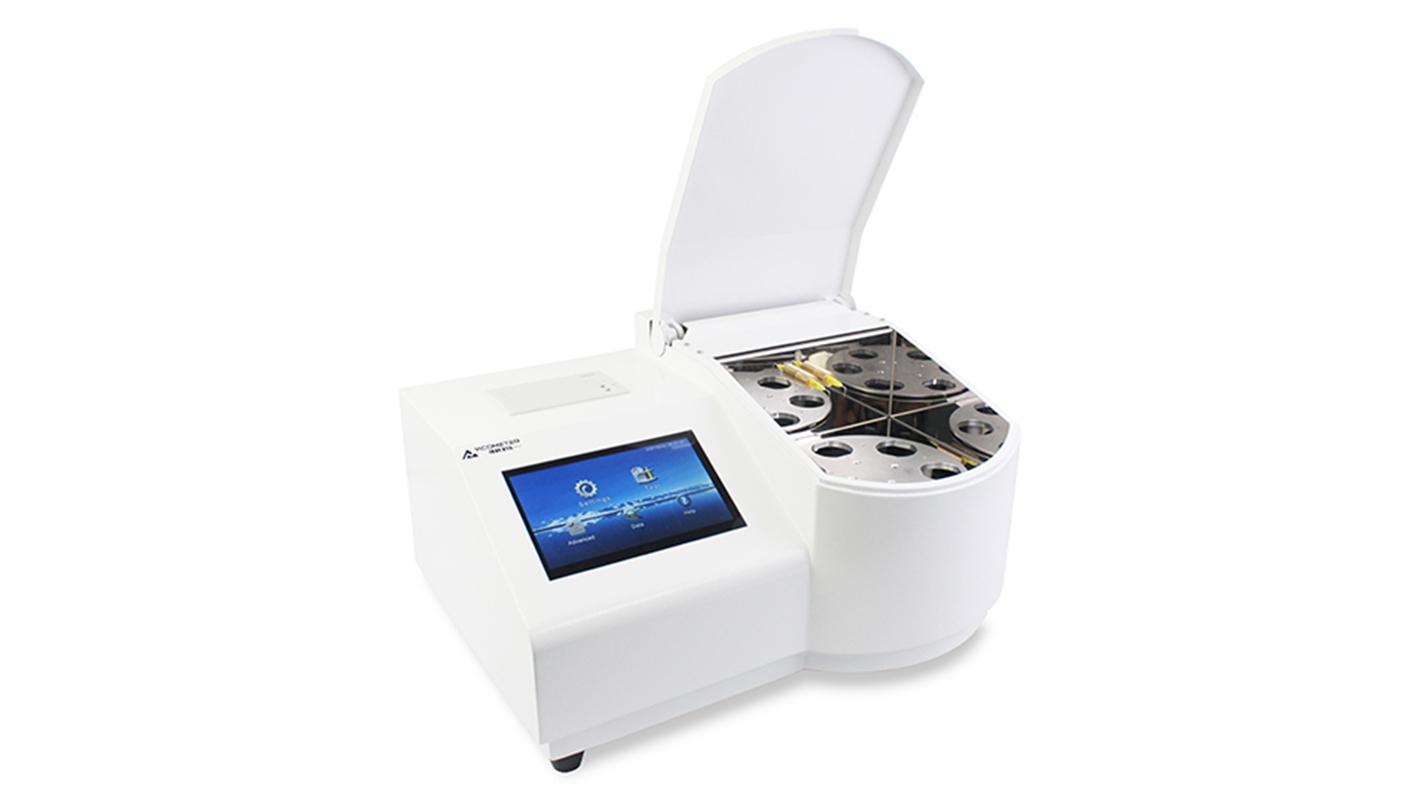

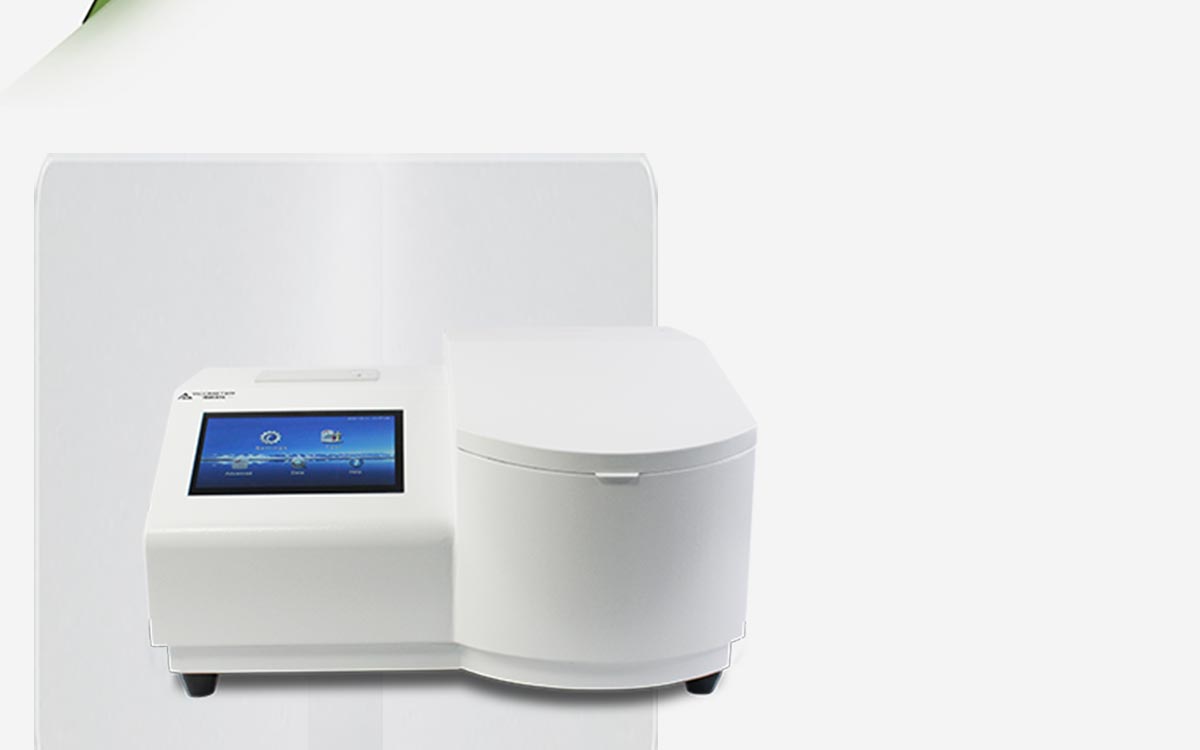

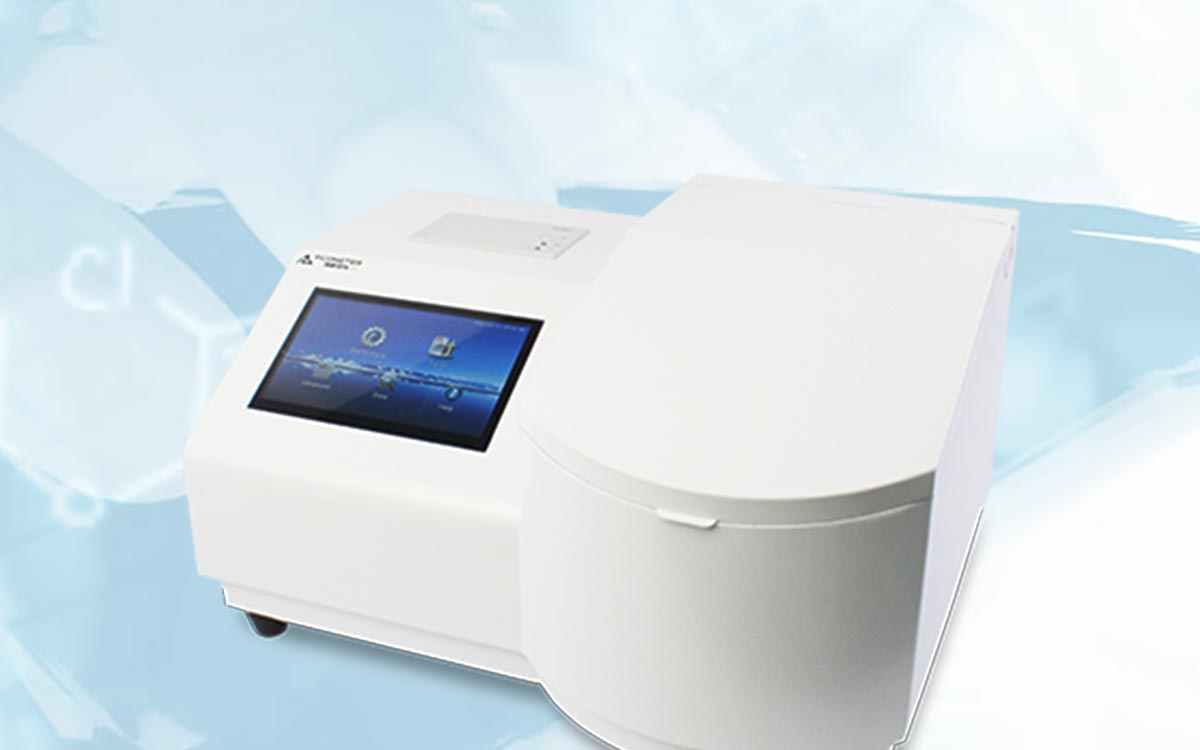

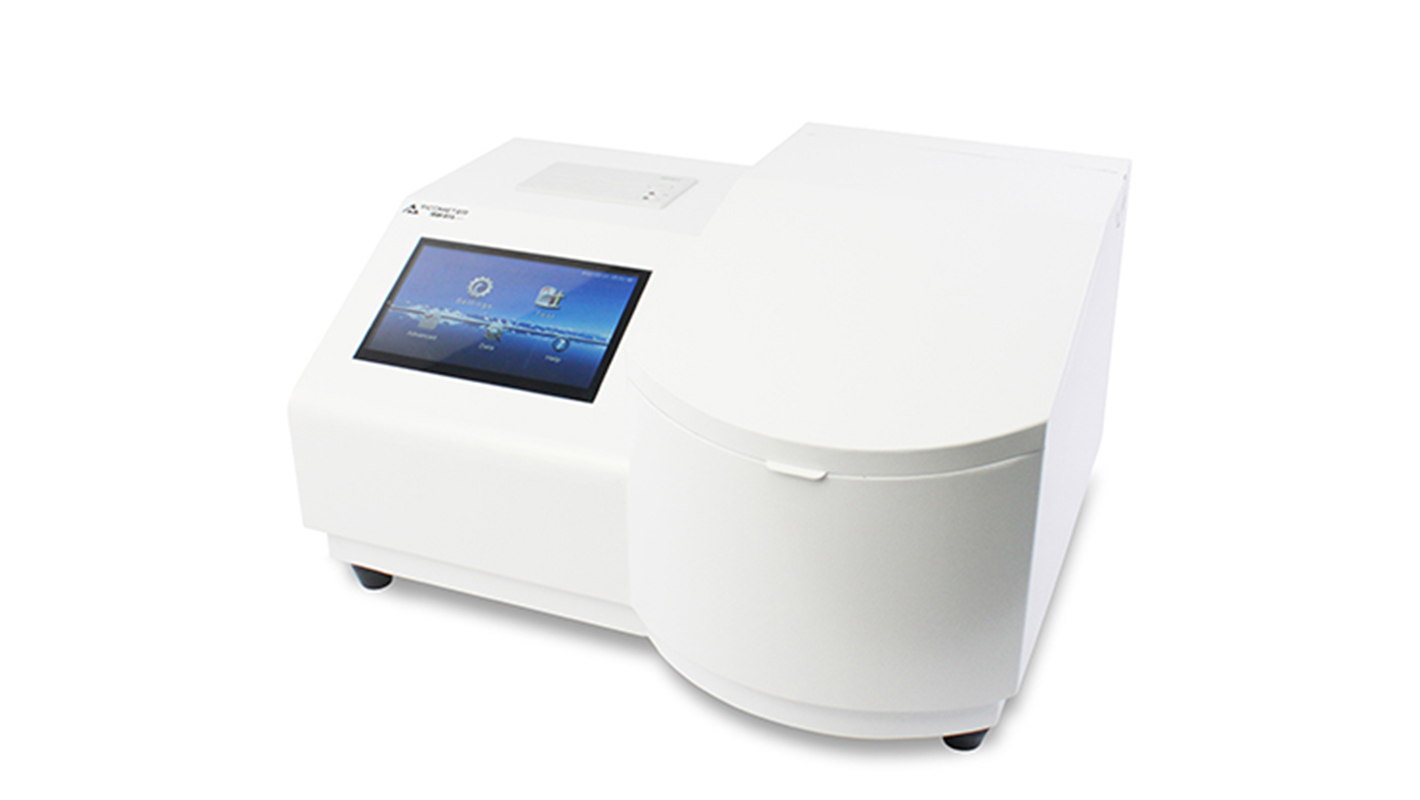

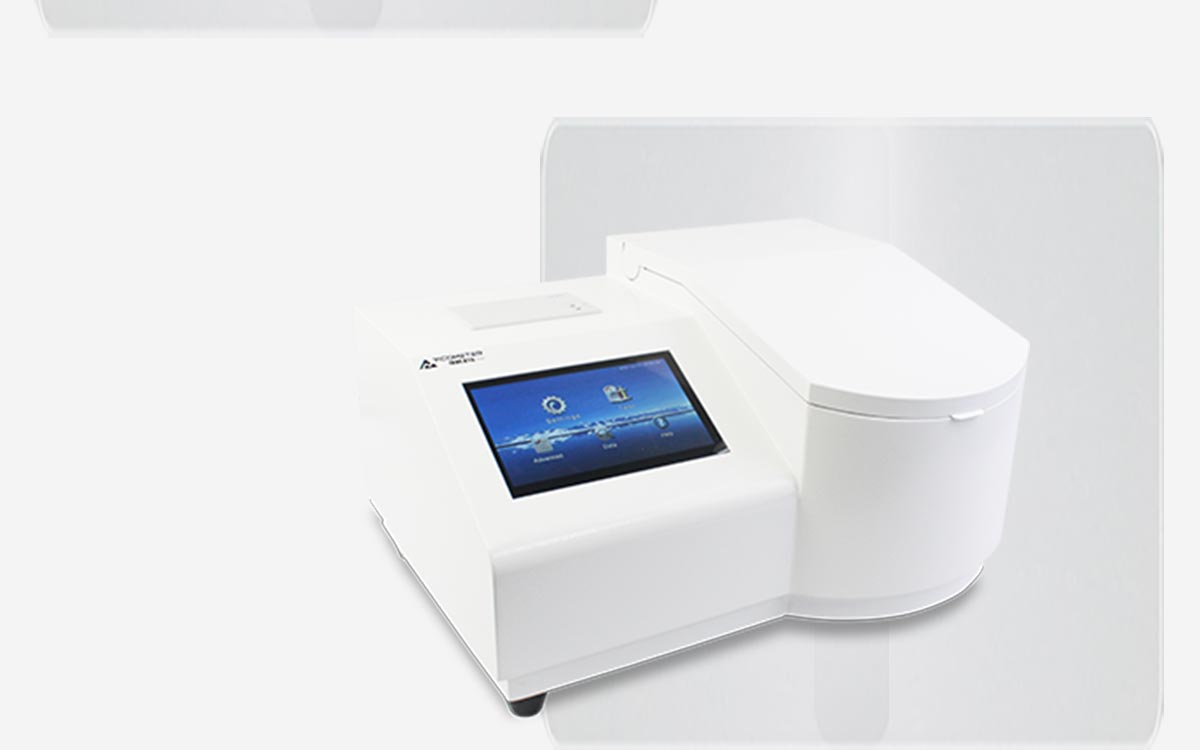

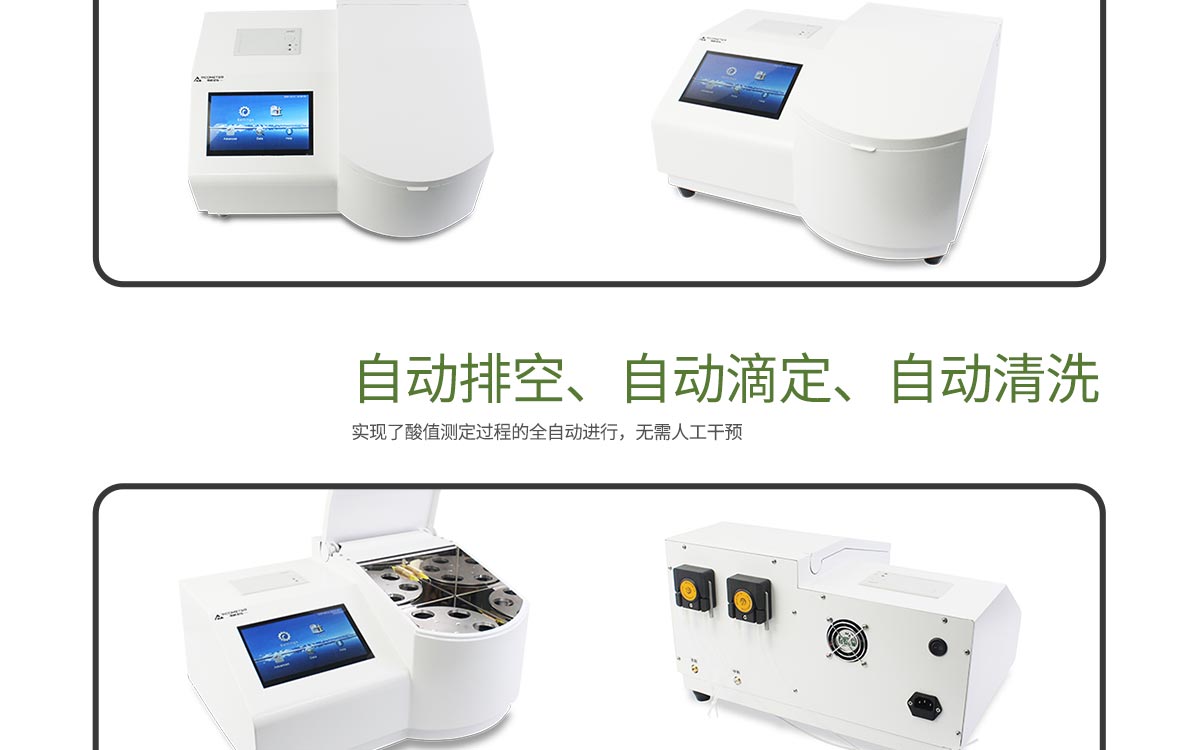

The VicoMeter WKT-SZ6 fully automatic acid value tester is designed and produced to meet the needs of many fields such as electric power, petroleum, chemical, pharmaceutical, and scientific research, and is mainly used to determine the acid value of petroleum products. The WKT-SZ6 uses a peristaltic pump as the core titration component, automatically determines the titration endpoint by an optical method, and achieves fully automatic acid value measurement. It is a cost-effective acid value measurement instrument that can test six oil samples simultaneously, with a 7-inch HD touch screen for human-machine interaction — a powerful, cost-effective acid value measurement instrument.
Product Details

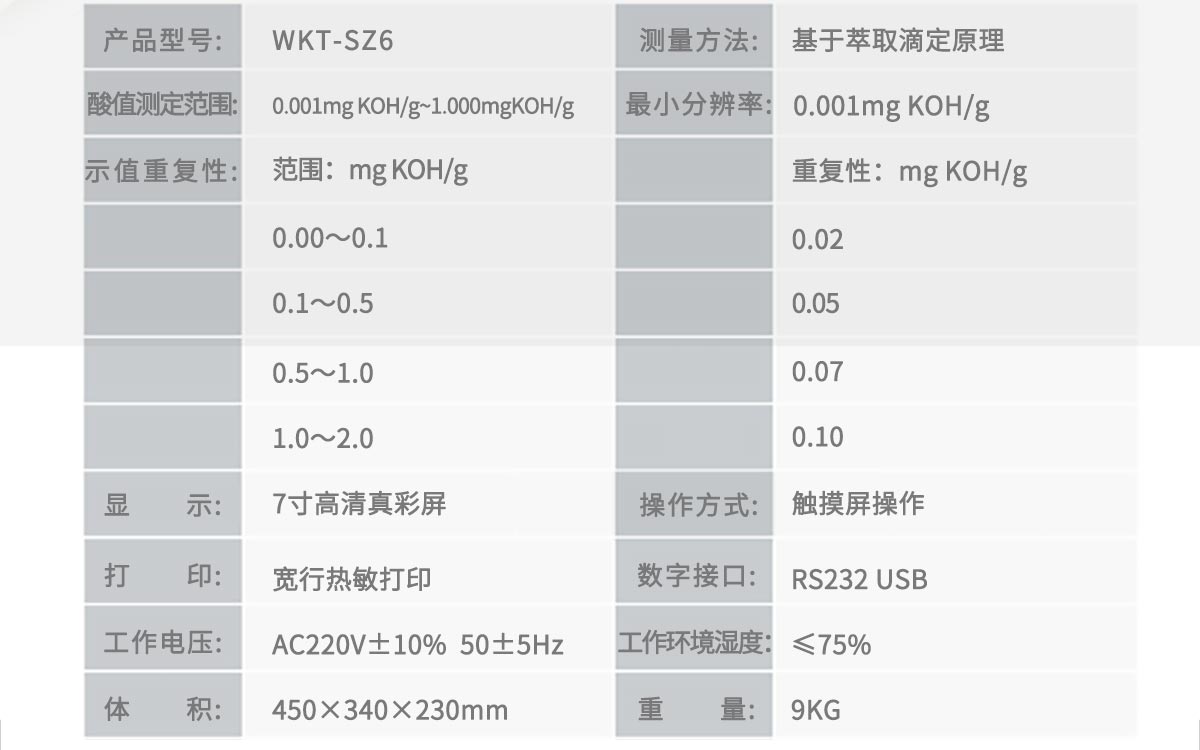

Technical Specifications
| Model | WKT-SZ6 | |
| Measurement Method | Based on the Extraction Titration Principle | |
| Acid Value Measurement Range | 0.001mg KOH/g~1.000mgKOH/g | |
| Minimum Resolution | 0.001mg KOH/g | |
| Indication Repeatability | Range: mg KOH/g | Repeatability：mg KOH/g |
| 0.00～0.1 | 0.02 | |
| 0.1～0.5 | 0.05 | |
| 0.5～1.0 | 0.07 | |
| 1.0～2.0 | 0.10 | |

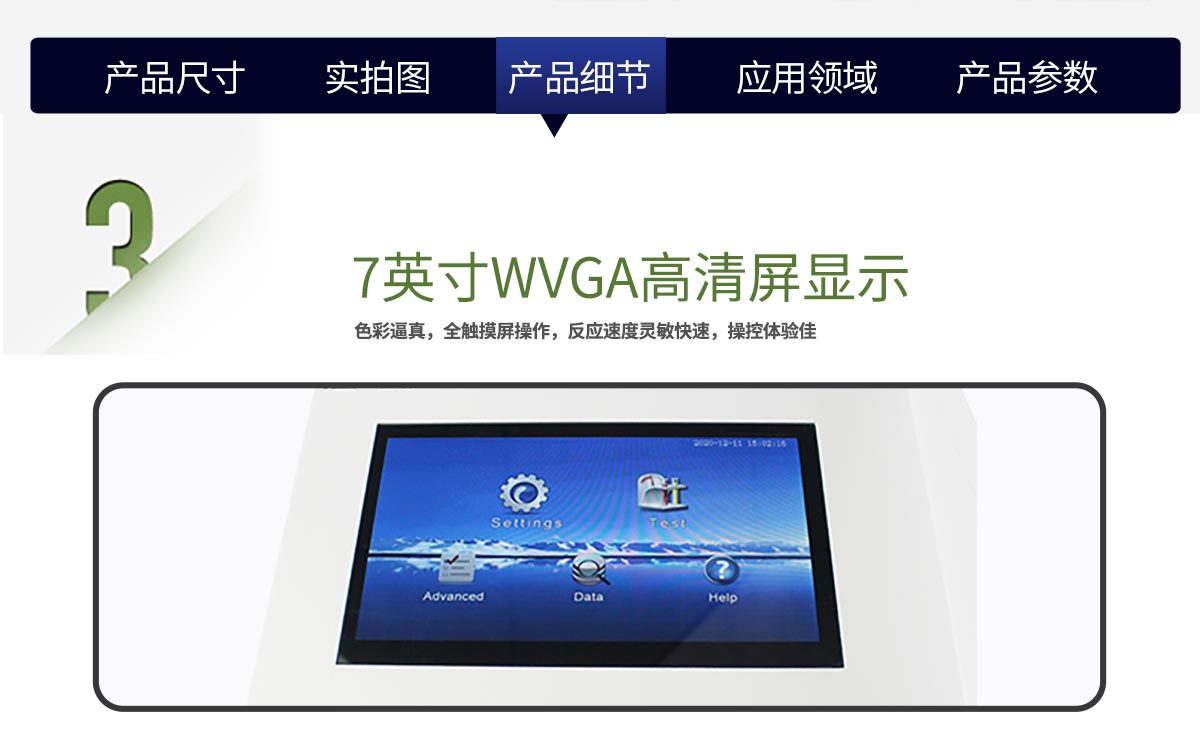

| Display | 7-Inch HD True-Color Screen | |
| Display Resolution | 1024*600 | |
| Operation | Touch Screen Operation | |

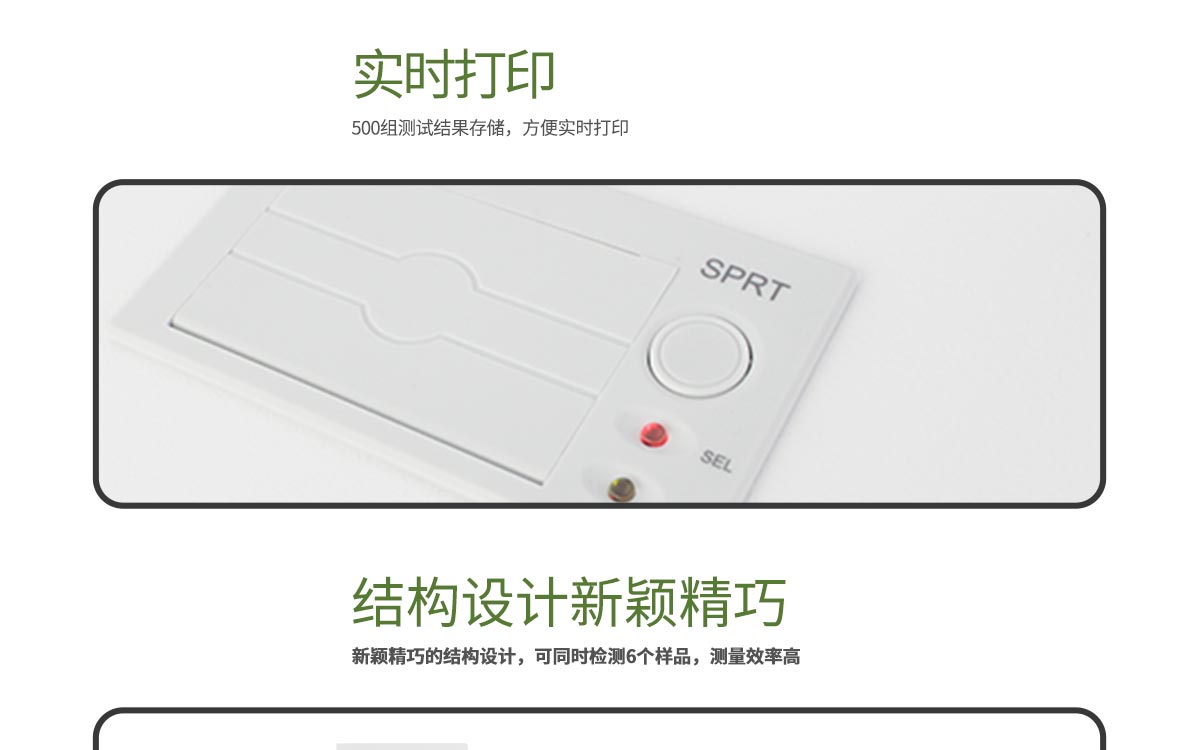

| Printing | Wide-Line Thermal Printing | |
| Digital Interface | RS232 USB | |
| Operating Voltage | AC220V±10%；50±5Hz | |
| Operating Environment Temperature | 10~45℃ | |
| Operating Environment Humidity | ≤75% | |

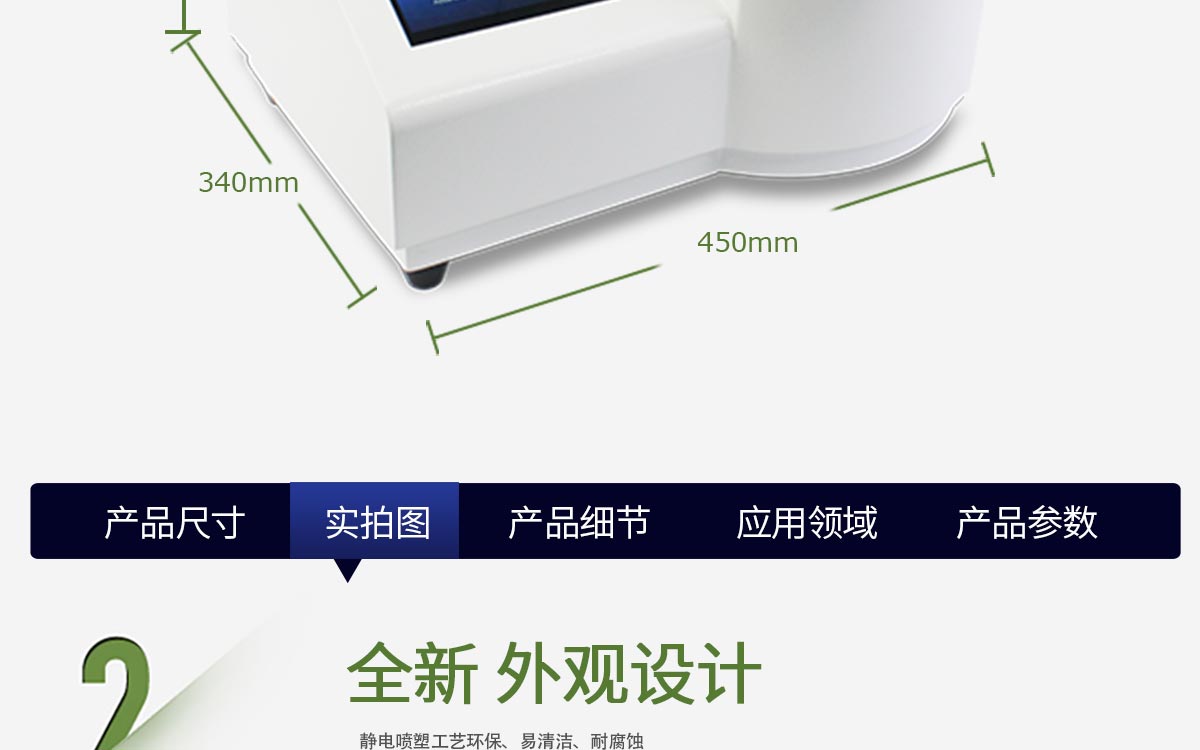

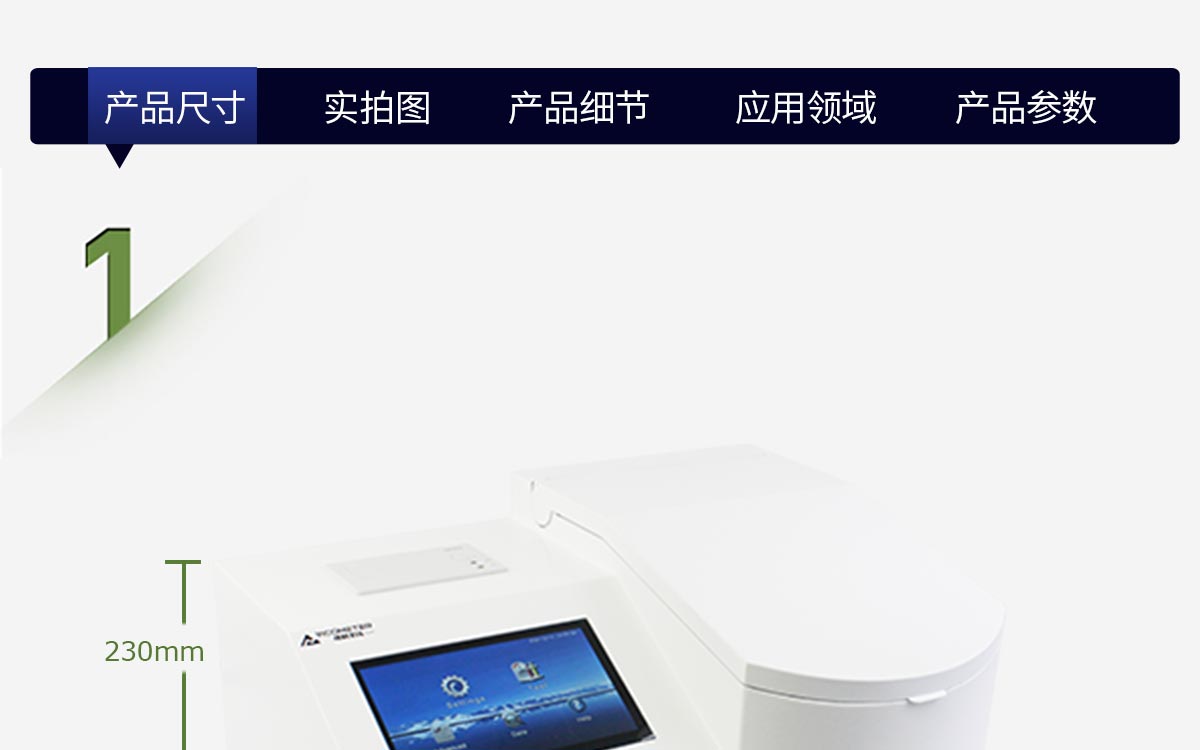

| Dimensions | 450×340×230mm | |
| Weight | 9kg | |
