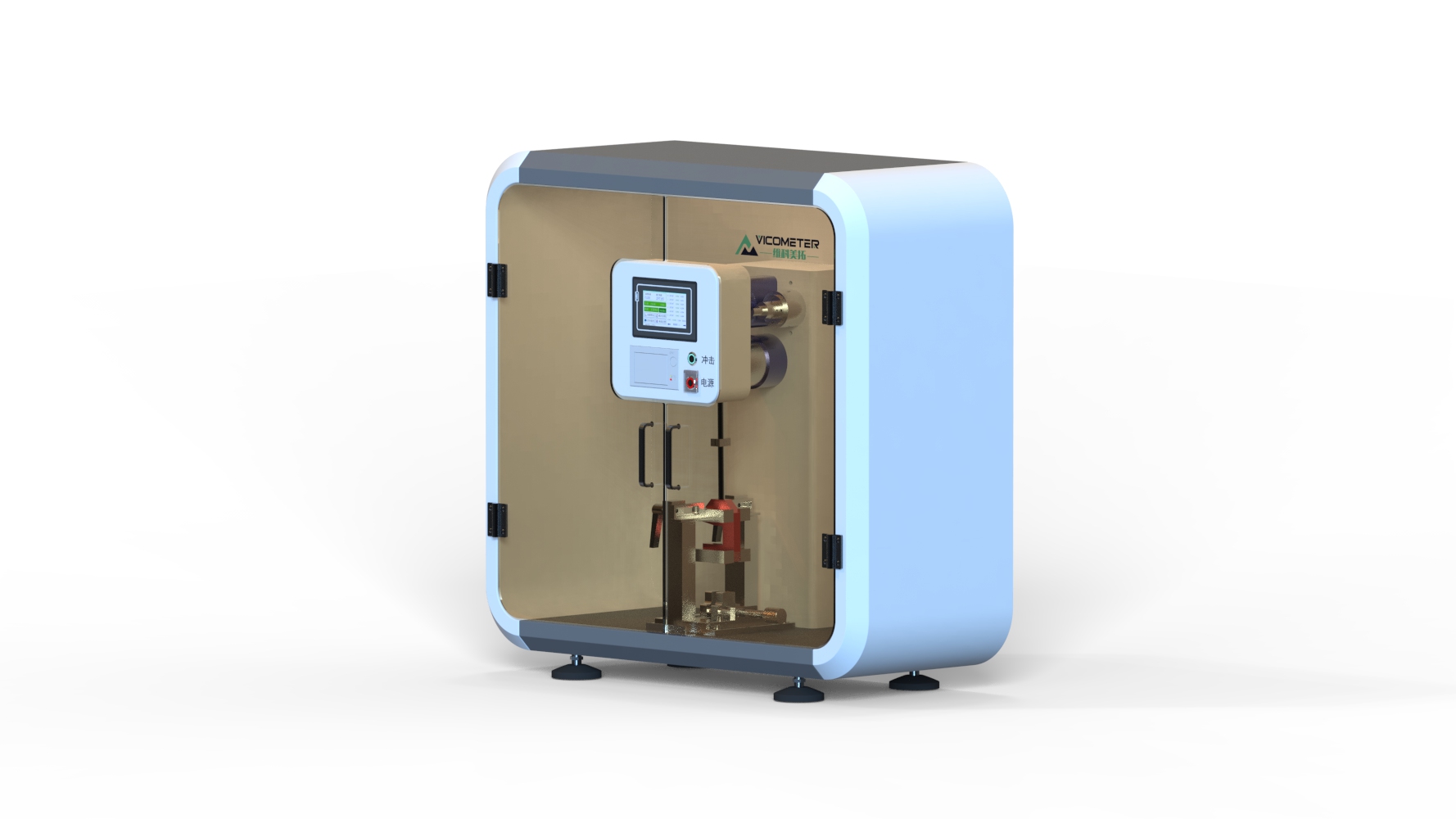

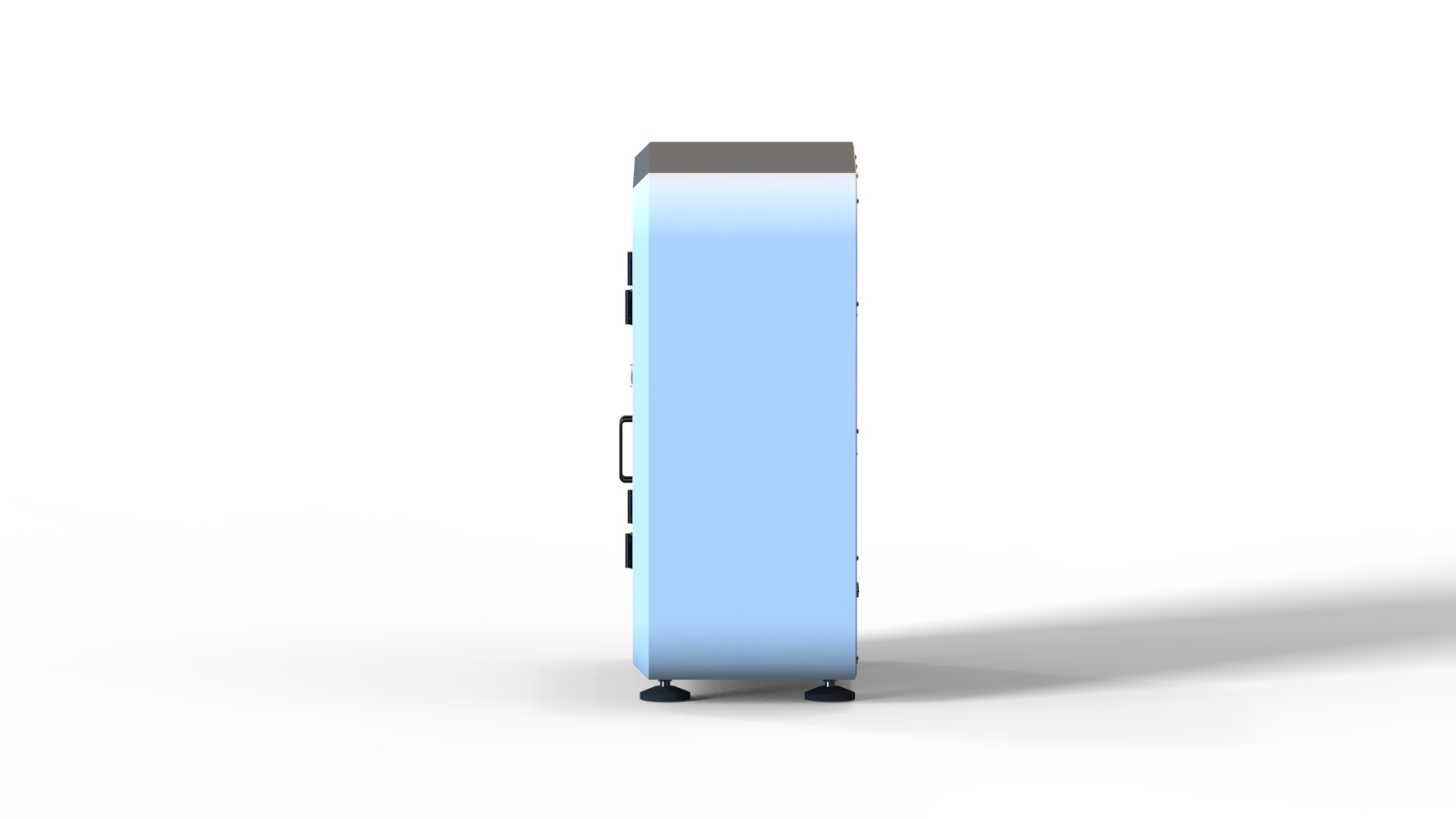

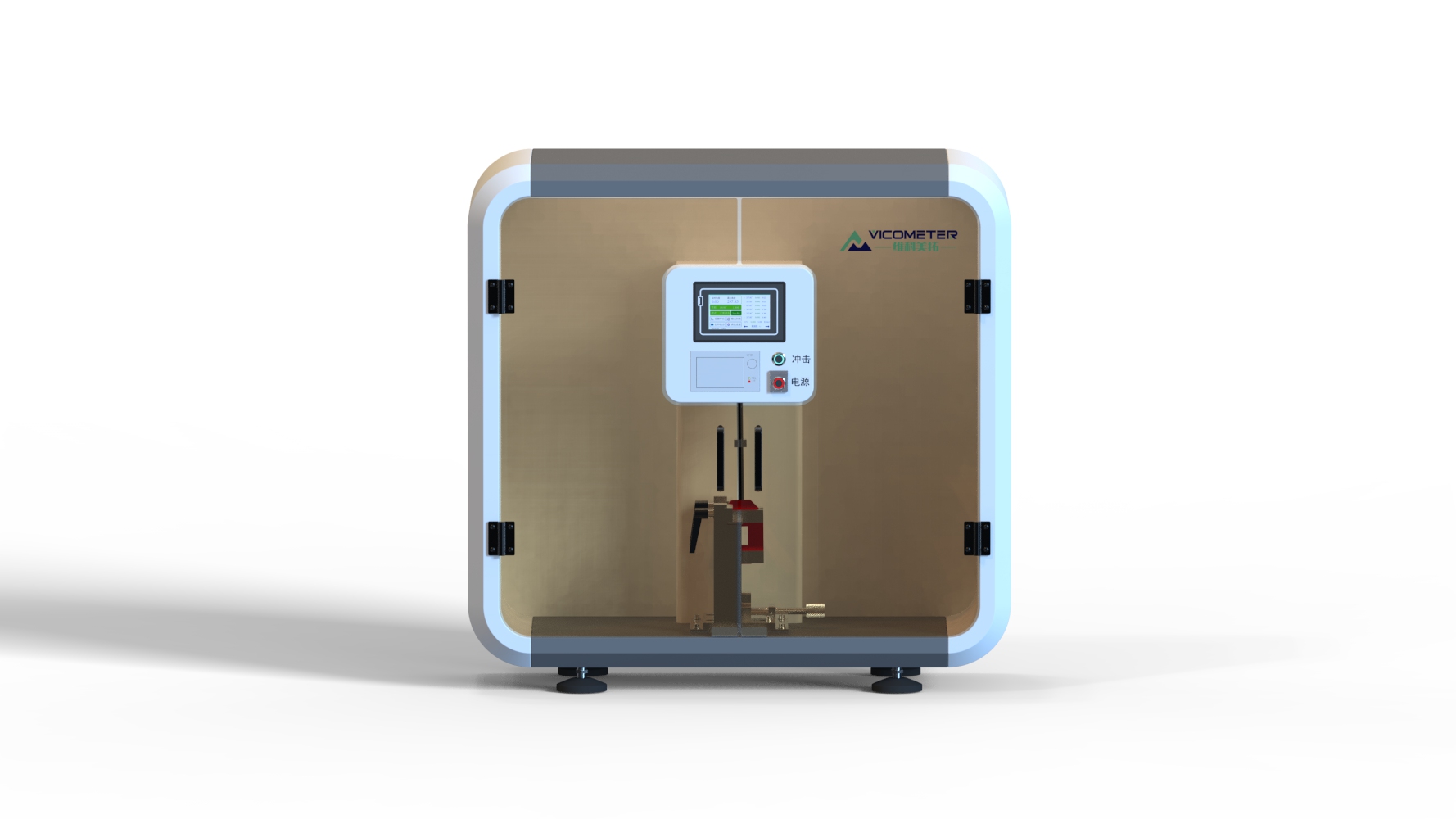

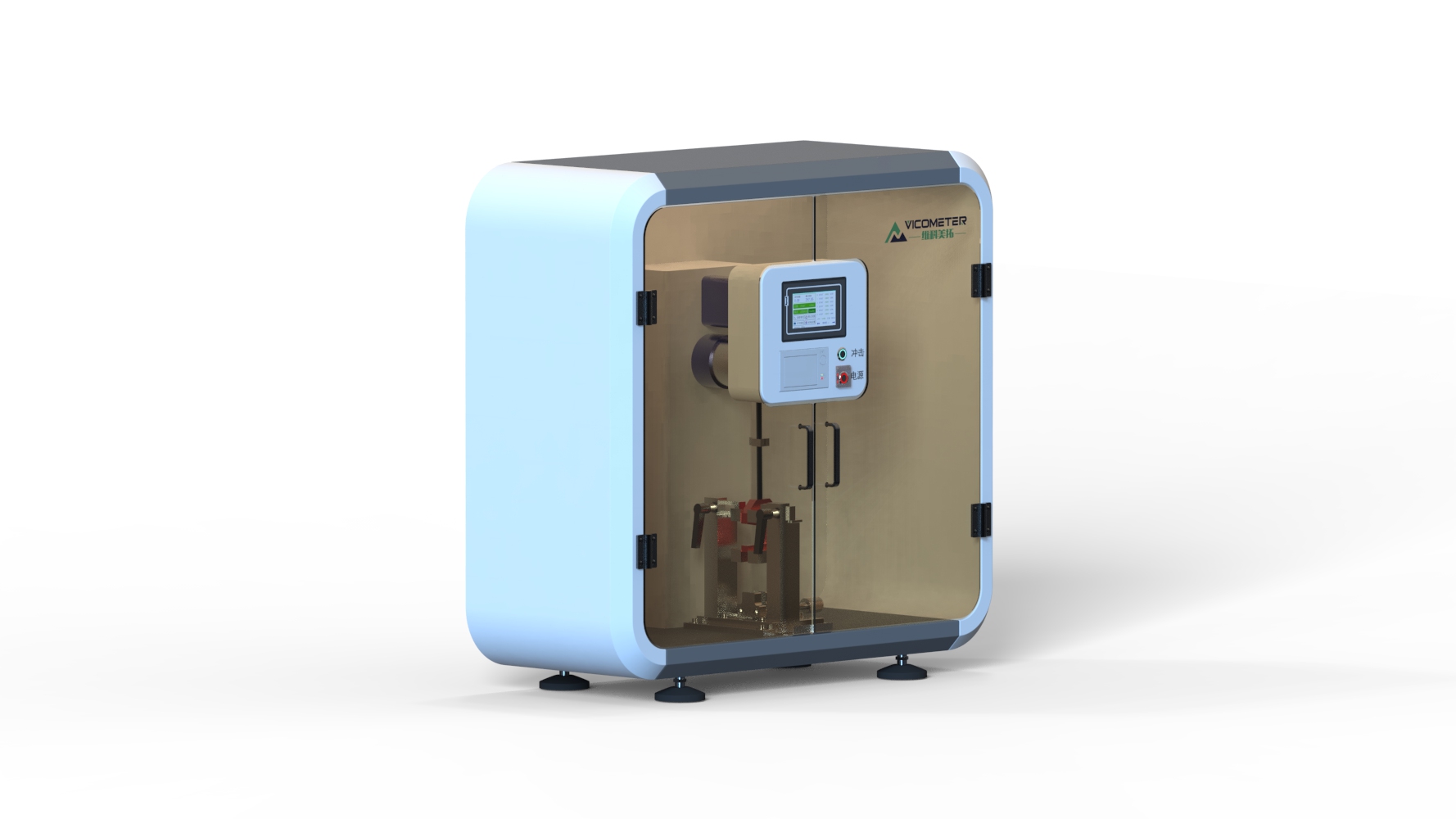

The WKT-J5001 touchscreen Charpy impact tester integrates VicoMeter's proven technology in impact testing, making the entire testing system more complete. The WKT-J5001 adopts a carbon fiber pendulum rod that concentrates the impact mass at the pendulum's center of mass, achieving truly vibration-free testing. The instrument is widely praised by users for its ease of use, simple operation, high test accuracy and long service life.
Overview
Technical Specifications
| Instrument Name | Touchscreen Charpy Impact Tester |
| Instrument Model | Model WKT-J5001 |
| Display | Color touchscreen (Chinese/English) |
| Angle Sensor Accuracy | Original imported OMRON encoder, accuracy 0.01° |
| Impact Energy | 1J、2J、4J、5J |
| Energy Display Accuracy | 0.01J |
| Pre-Lift Angle | 150° |
| Impact Speed | 2.9M/S |
| Pendulum Center Distance | 221mm、380mm |
| Izod Striking Edge Radius | R=1mm |
| Distance from Striking Edge to Upper Jaw Surface | 40mm、60mm、70mm、95mm |
| Striking Edge Angle | 30°±1° |
| Striking Edge Fillet Radius | R=2mm±0.5mm |
| Power Requirements | AC220V±10% 50HZ |
| Instrument Weight | 85Kg |
