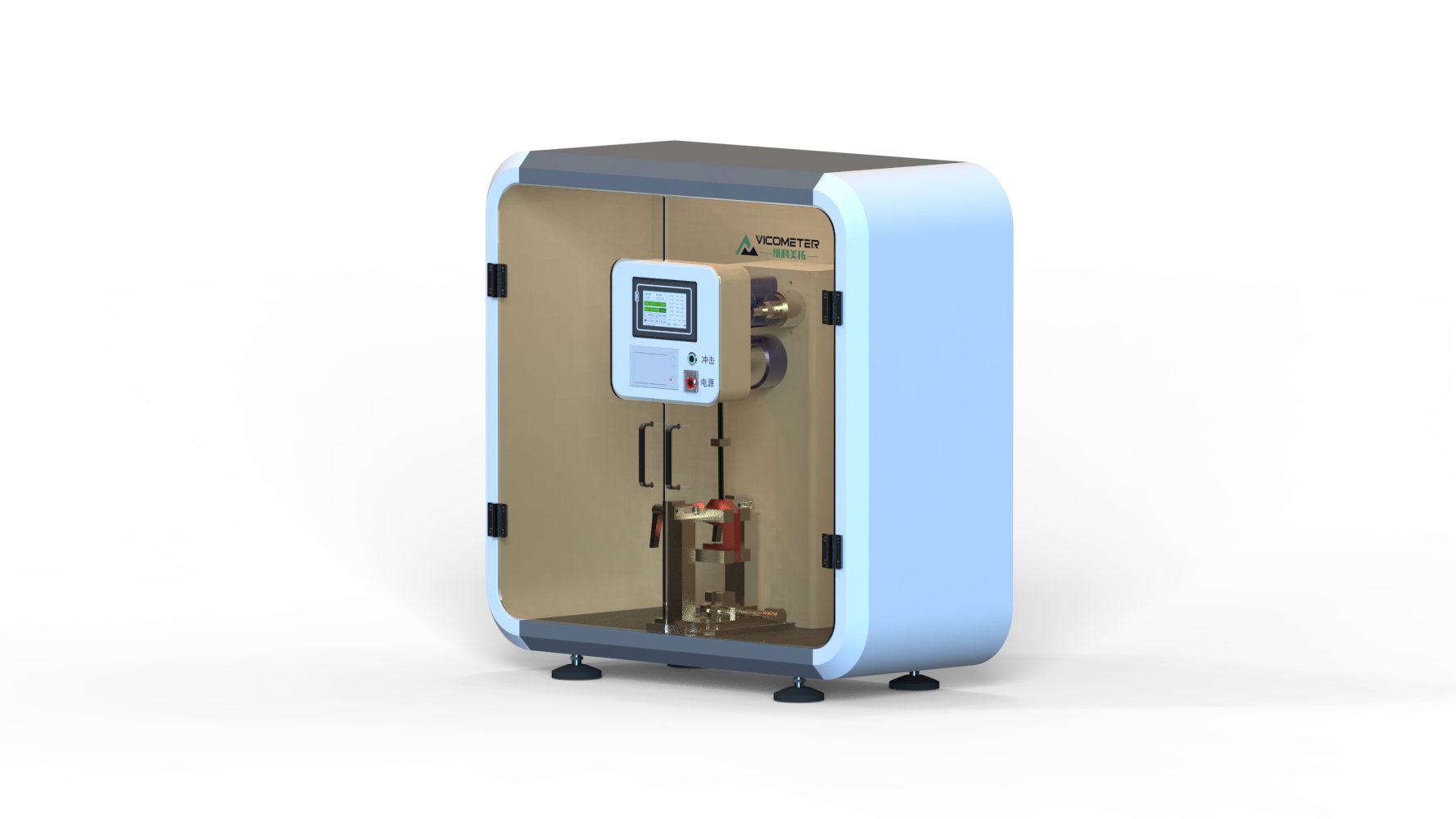

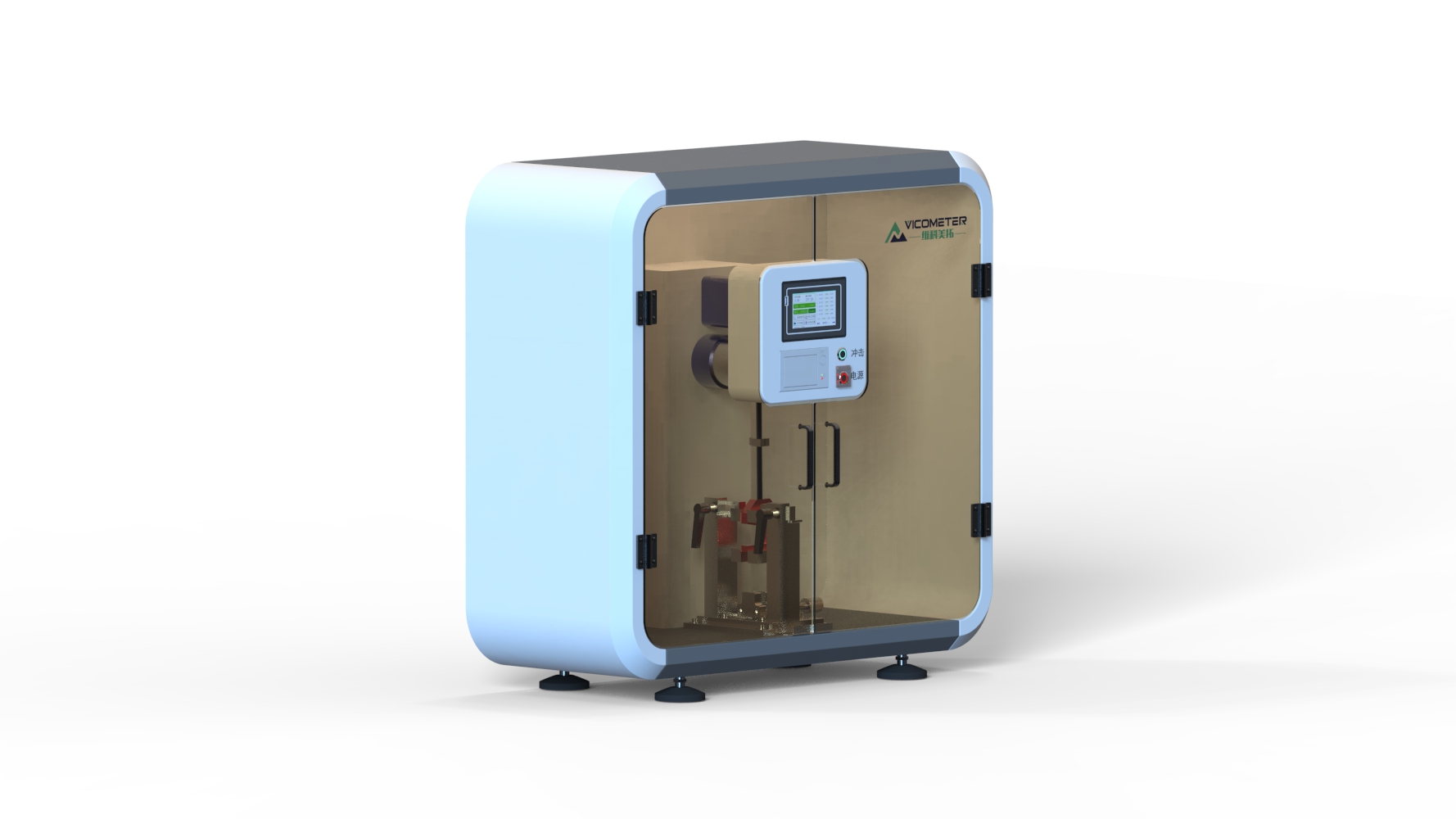

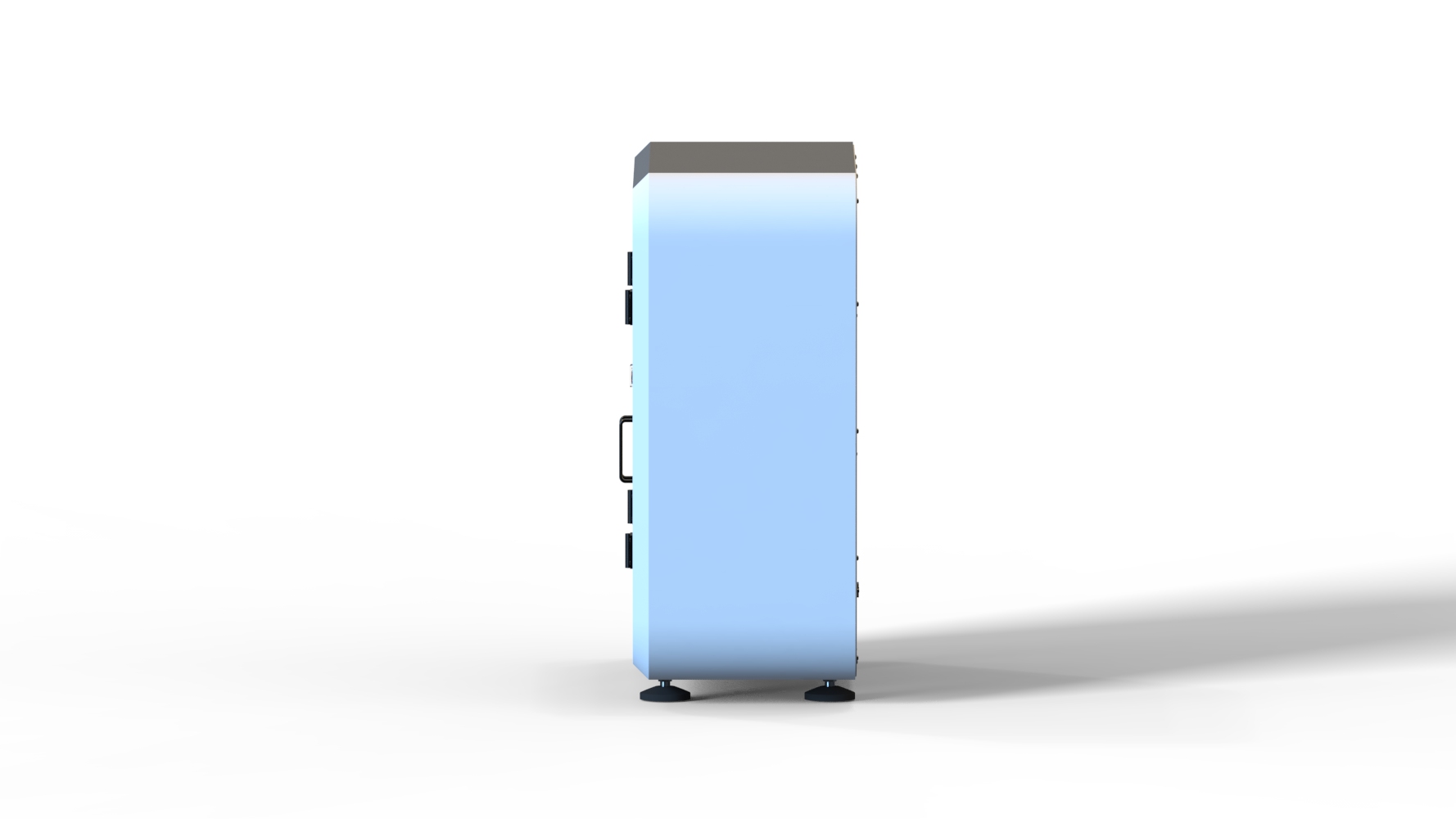

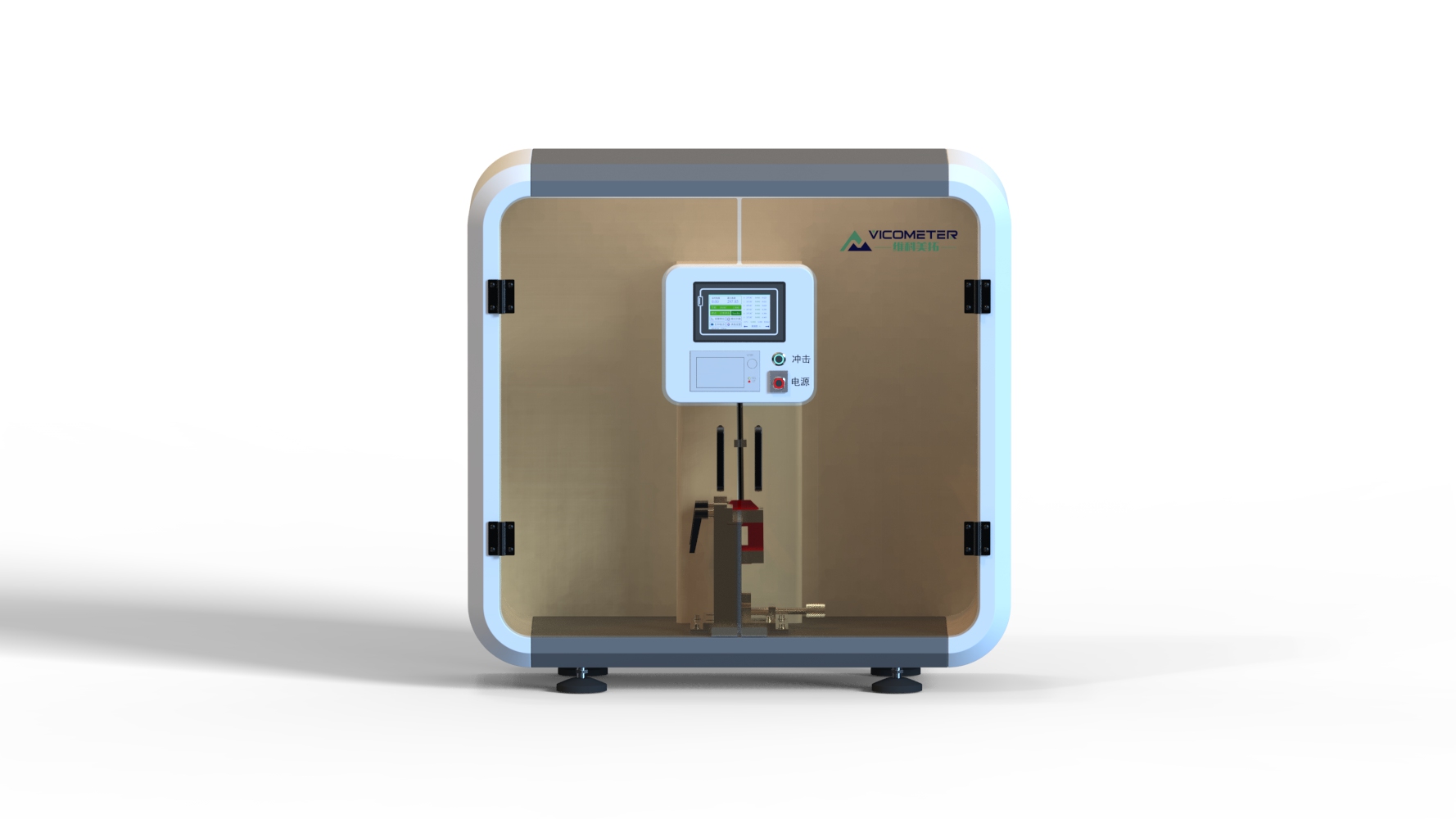

The WKT-X6001 touchscreen Izod impact tester integrates VicoMeter's proven technology in impact testing, making the entire testing system more complete. The WKT-X6001 adopts a carbon fiber pendulum rod that concentrates the impact mass at the pendulum's center of mass, achieving truly vibration-free testing. The instrument is widely praised by users for its ease of use, simple operation, high test accuracy and long service life.
Overview
Technical Specifications
| Instrument Name | Touchscreen Izod Impact Tester |
| Instrument Model | Model WKT-X6001 |
| Display | Color touchscreen (Chinese/English) |
| Angle Sensor Accuracy | Original imported OMRON encoder, accuracy 0.01° |
| Impact Energy | 11J、22J |
| Energy Display Accuracy | 0.01J |
| Pre-Lift Angle | 150° |
| Impact Speed | 3.5M/S |
| Distance from Pendulum Center to Striking Edge | 335mm |
| Distance from Striking Edge to Upper Jaw Plane | 22mm |
| Izod Striking Edge Radius | R=0.8±0.2mm |
| Power Requirements | AC220V±10% 50HZ |
| Instrument Weight | 85Kg |
