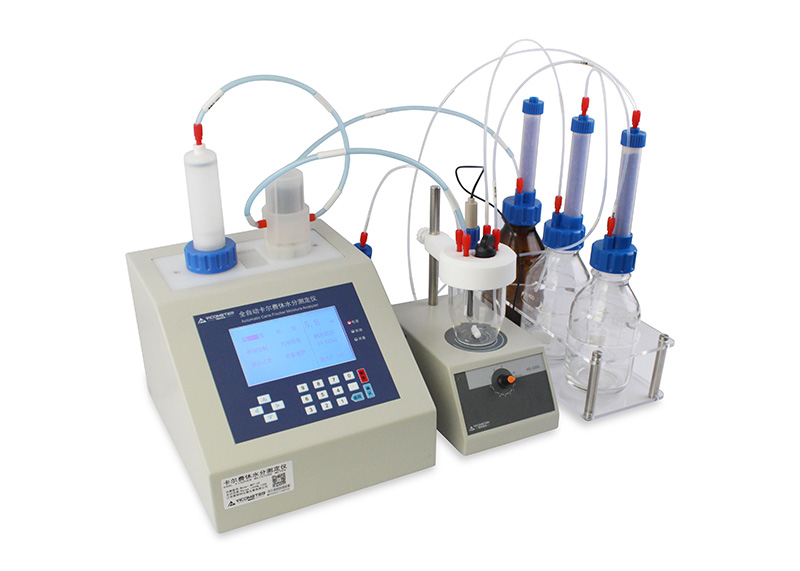

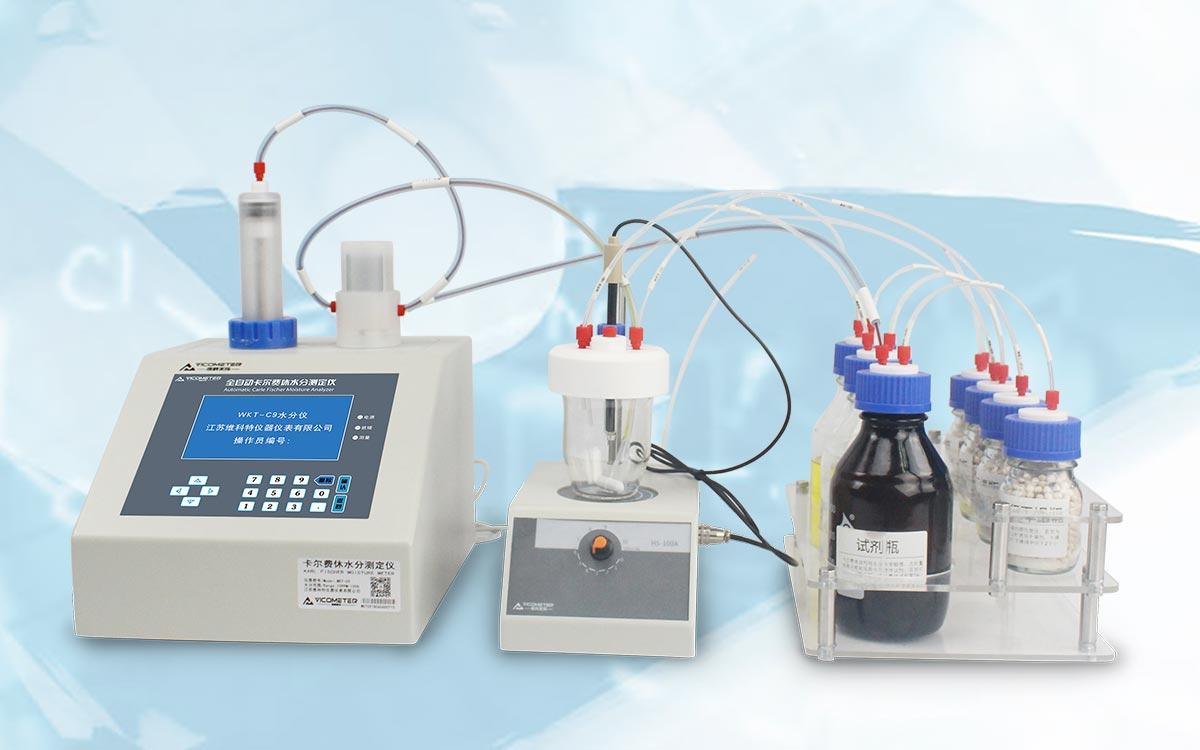

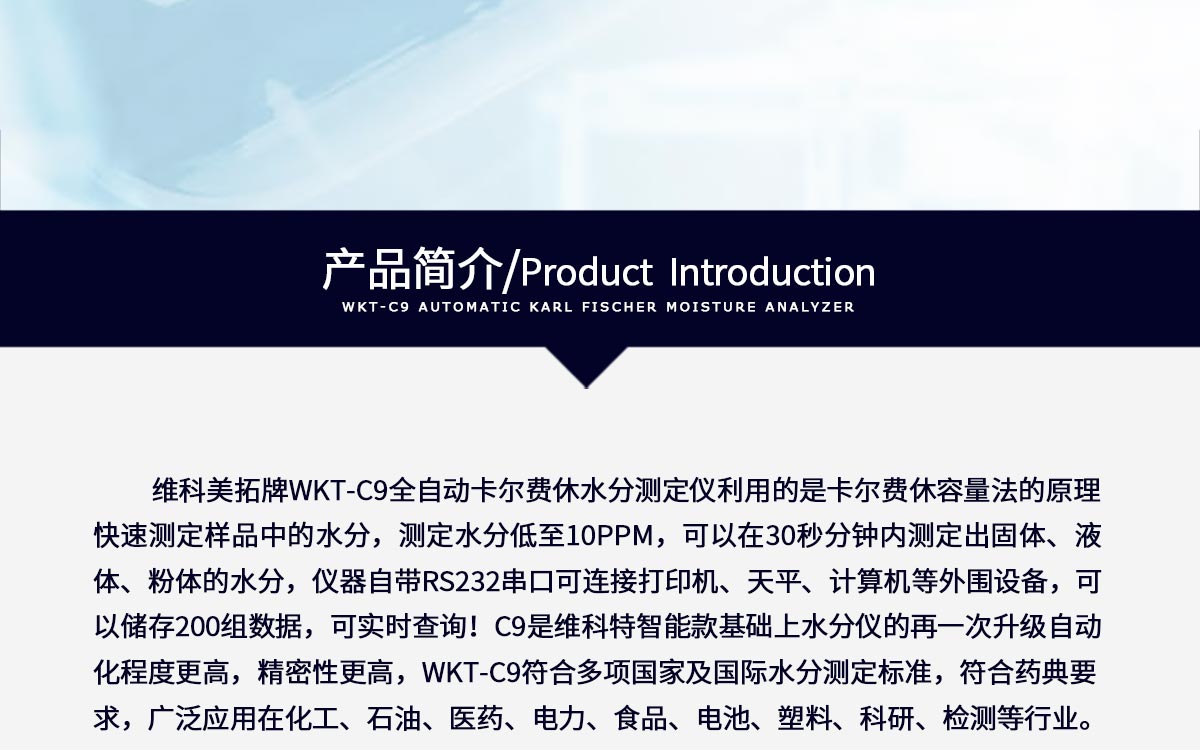

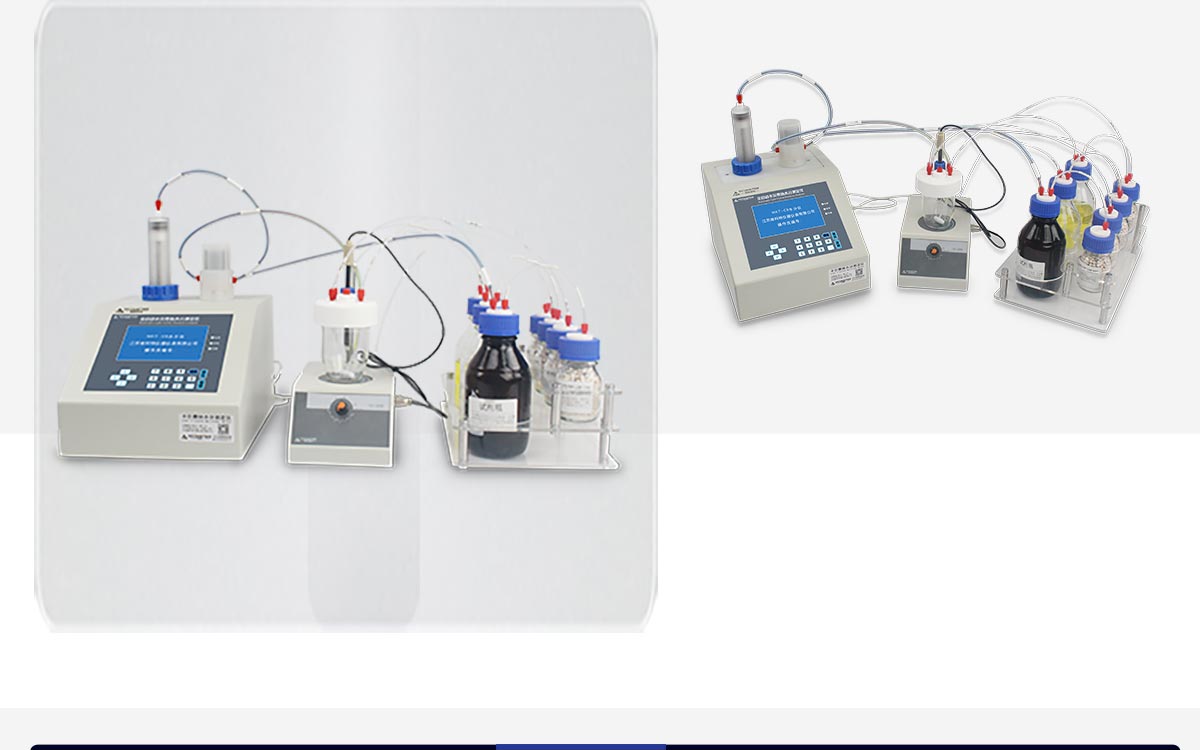

The VicoMeter WKT-C9 fully automatic Karl Fischer moisture analyzer uses the volumetric Karl Fischer principle to rapidly determine moisture down to 10 ppm, measuring solids, liquids, and powders within 30 seconds. Its built-in RS232 port connects printers, balances, computers, and other peripherals, and it stores 200 data sets with real-time query. A further upgrade of the Victor smart-series moisture analyzer, the C9 delivers a higher level of automation and precision. It complies with multiple national and international moisture standards as well as pharmacopoeia requirements and is widely used in chemicals, petroleum, pharmaceuticals, power, food, batteries, plastics, research, and testing.
Overview

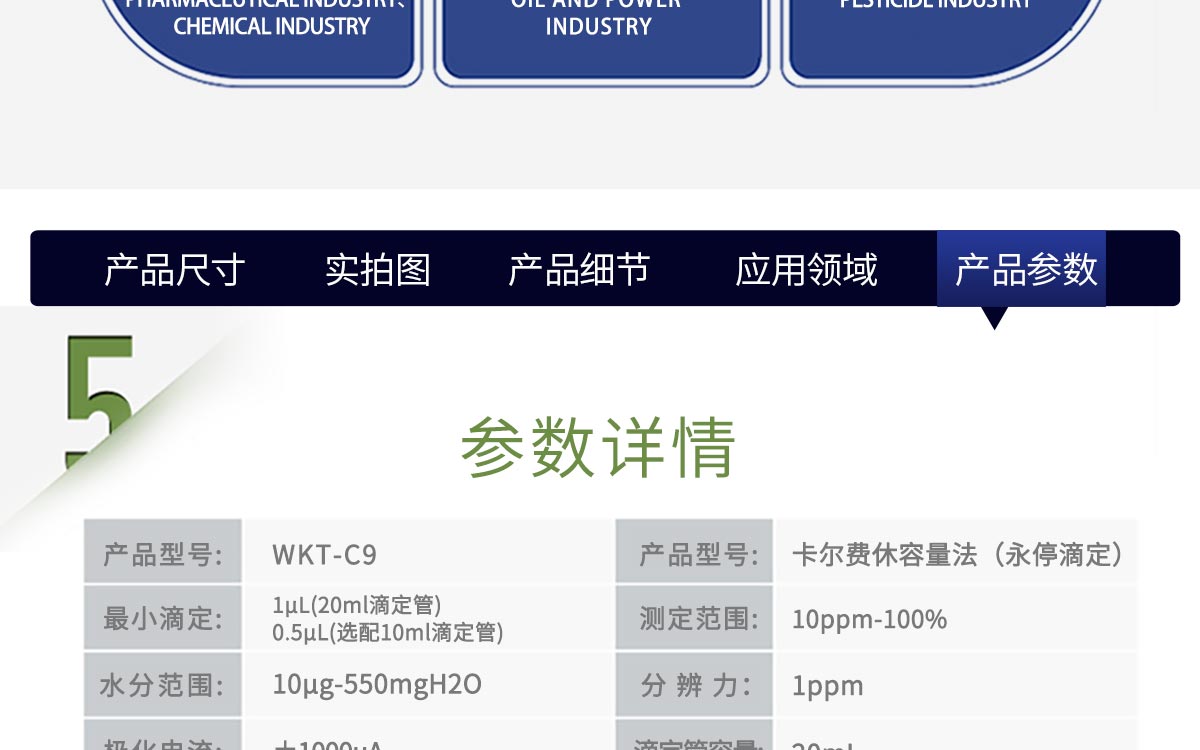

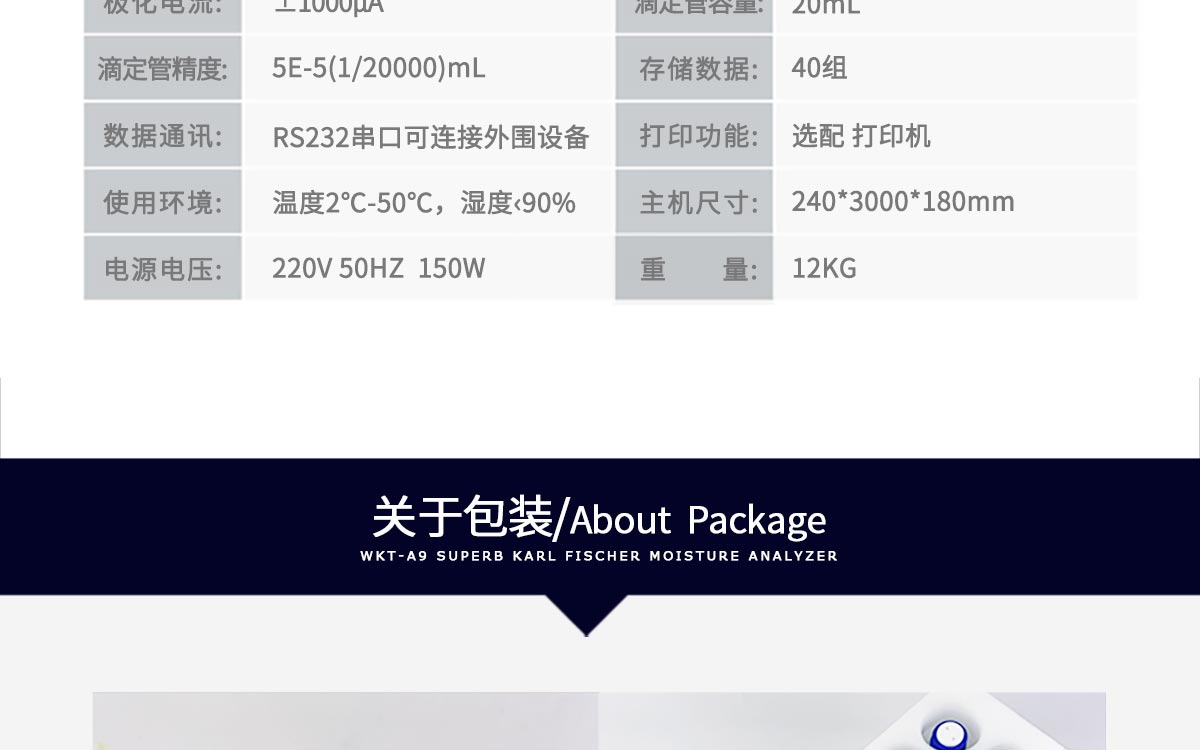

Technical Specifications
| Model | WKT-C9 | |
| Measuring Principle | Karl Fischer Volumetric Method (Dead-Stop Titration) | |
| Minimum Titration | 1μL (20ml burette) | 0.5μL (optional 10ml burette) |
| Measuring Range | 10ppm-100% | |
| Moisture Range | 10μg-550mgH2O | |
| Resolution | 1ppm | |
| Polarization Current | ±1000μA | |

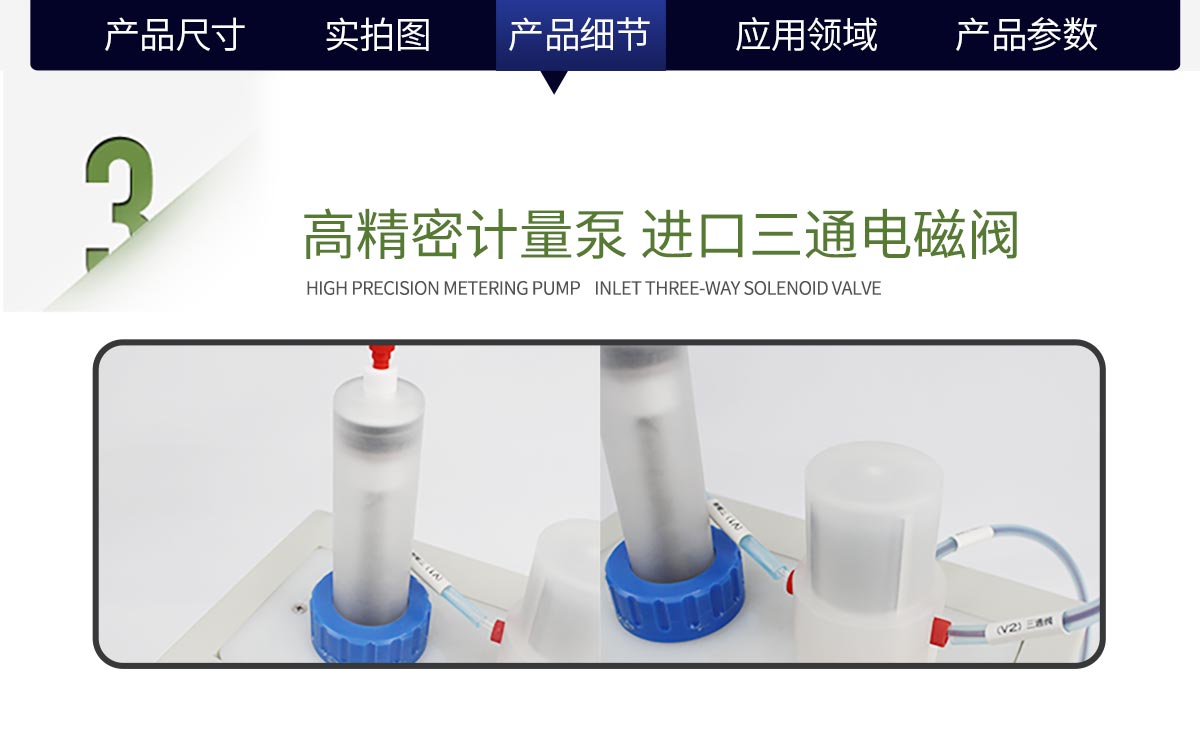

| Burette Capacity | 20mL | |
| Burette Accuracy | 5E-5(1/20000)mL | |
| Titration Linearity Correlation Coefficient | ≥0.999 | |
| Custom Measurement Methods | Up to 10 groups | |
| Display & Operation | 4.3-inch large LCD display with keypad input | |
| Stirring Speed | Stepless adjustment | |
| Drift/Blank Subtraction | Drift value measurable; freely set whether to deduct | |

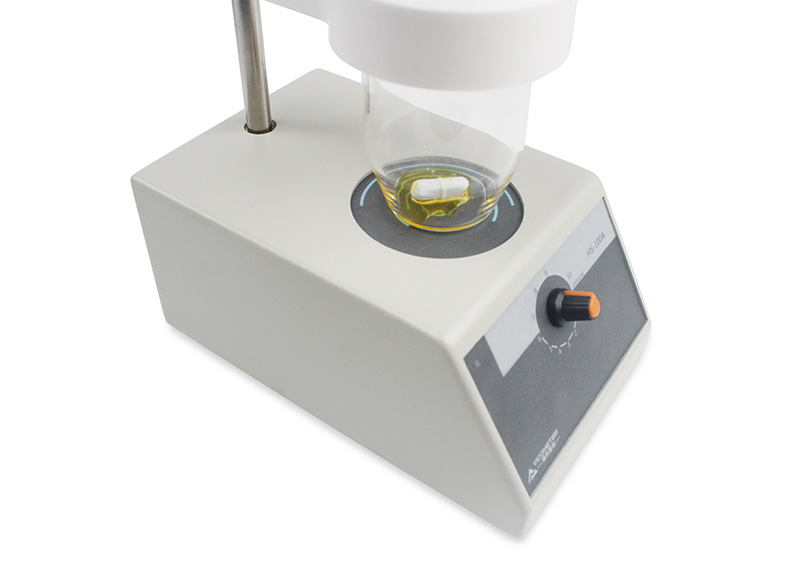

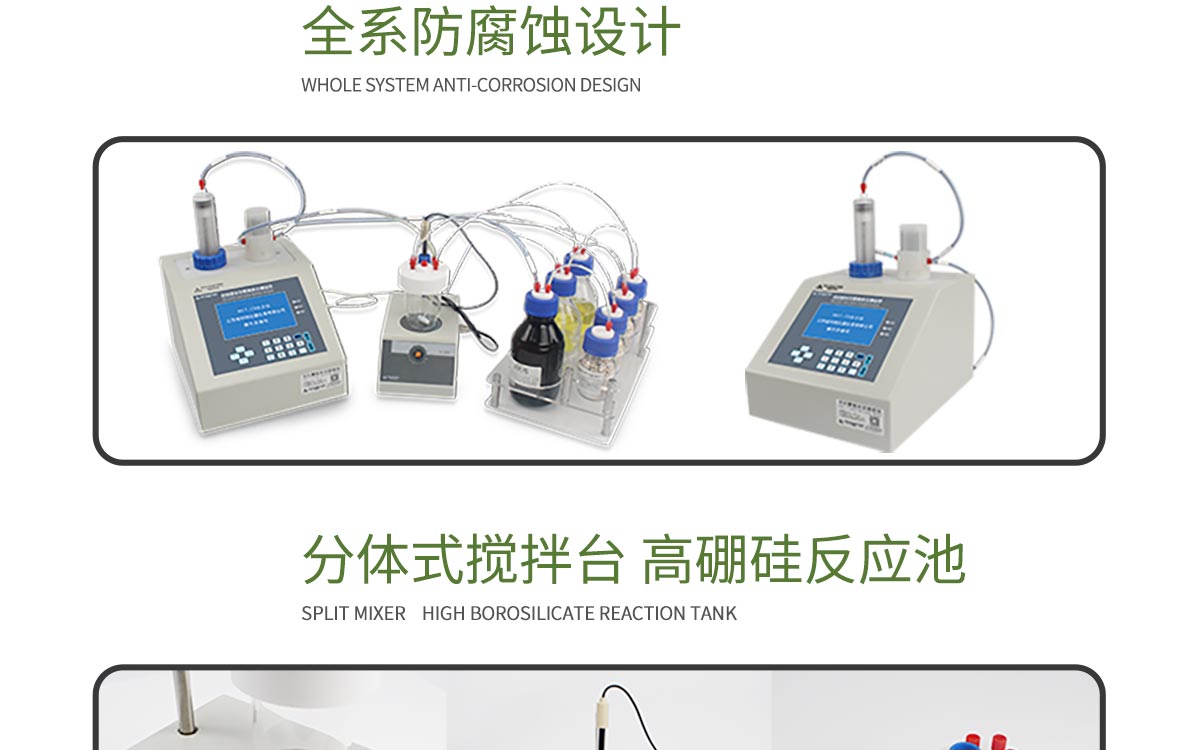

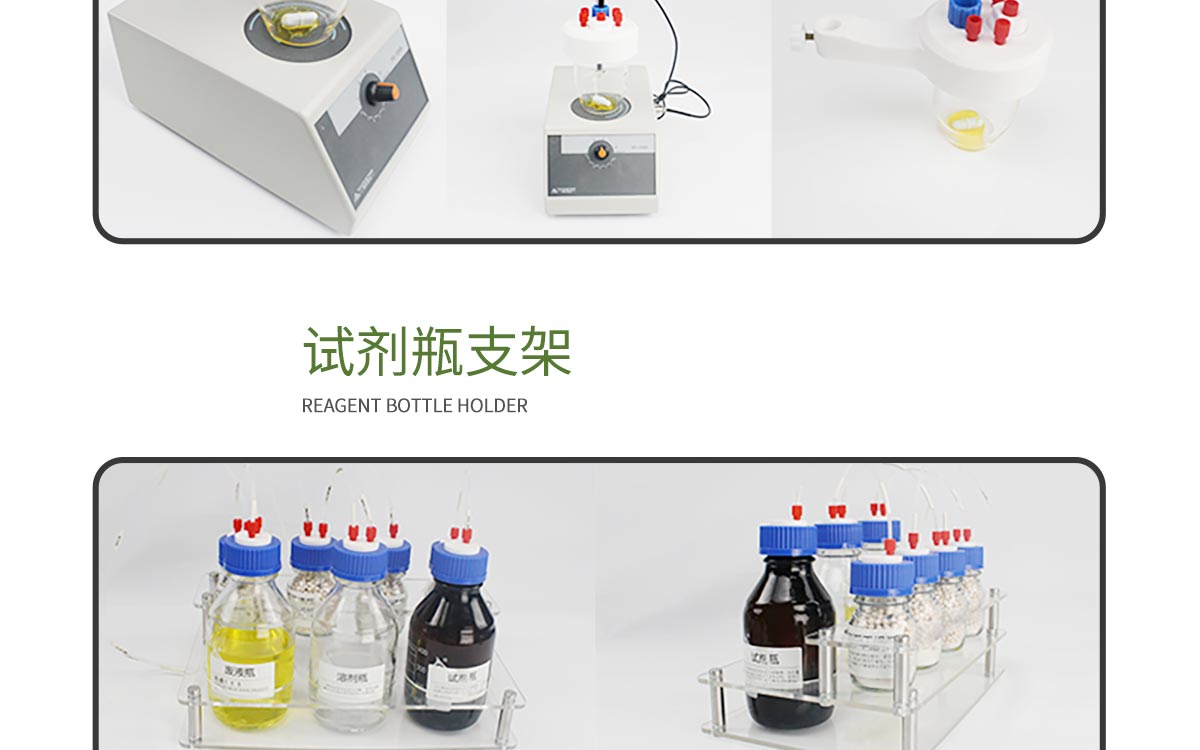

| Special Functions | Separate stirring stand, titration delay, endpoint determination delay, automatic cleaning, automatic operation, constant-temperature stirring (optional) | |
| Number Setting | Users can freely set operator and sample numbers | |
| Automatic Cleaning | One-button cleaning functions including startup cleaning, shutdown cleaning, standby cleaning, pipeline cleaning and titration cell cleaning | |
| Stored Records | 200 records | |
| Printing | Optional external dedicated printer | |
| Data Communication | RS232 serial port for connecting peripheral devices | |
| Calendar/Clock | Current time, date and test time/date display and printout (GLP compliant) | |
| Endpoint Indication | Screen prompt / audible warning / endpoint light indication / printout (printer required) | |
| Operating Environment | Temperature 2 ℃–50 ℃, humidity <90% | |
| Power Consumption | ≤50W | |

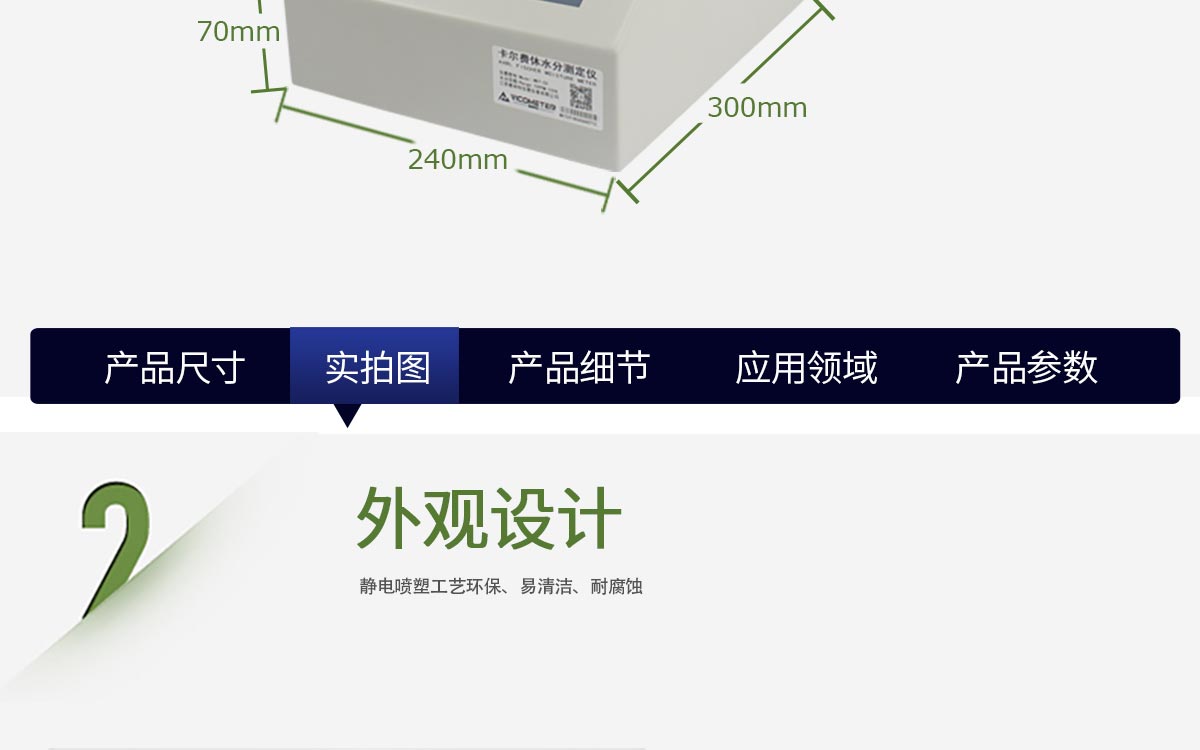

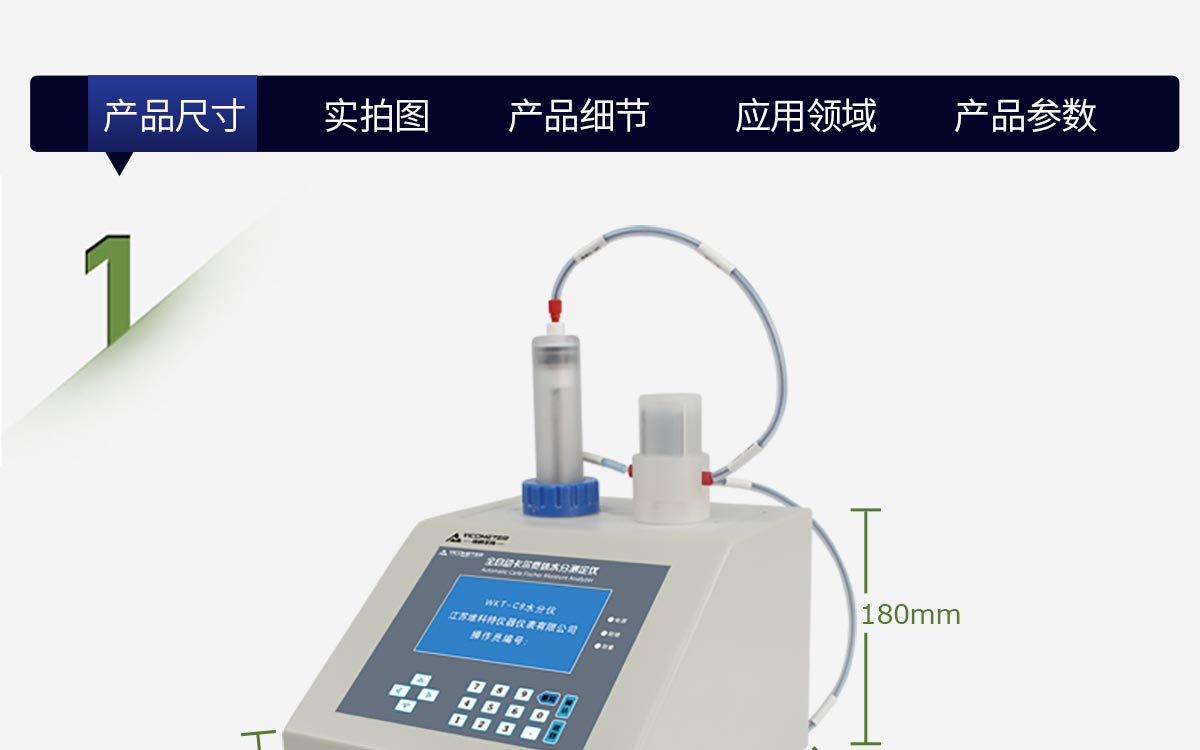

| Unit Dimensions | 350mm*300mm*170mm | |
| Power Supply | 220V 50HZ 150W | |
| Weight | 12KG | |
Applicable Industries
| Liquid | Chemical industry: alcohols, ethers, acids, benzenes, phenols, organic solvents and other products suitable for Karl Fischer determination Petroleum and electric power industry: insulating oils, transformer oils and other oil products Pharmaceutical industry: pharmaceutical raw materials, etc. Pesticide industry: emulsifiers, fertilizers, pesticides, etc.; food and beverages, surfactants, cosmetics Other industries: lithium battery electrolytes, etc. |
| Solid | Various inorganic salts, citric acid, freeze-dried powders, pharmaceuticals and other highly soluble solids |
| Gas | Gases such as nitrogen, SF6, natural gas, liquefied petroleum gas, Freon, and butadiene |

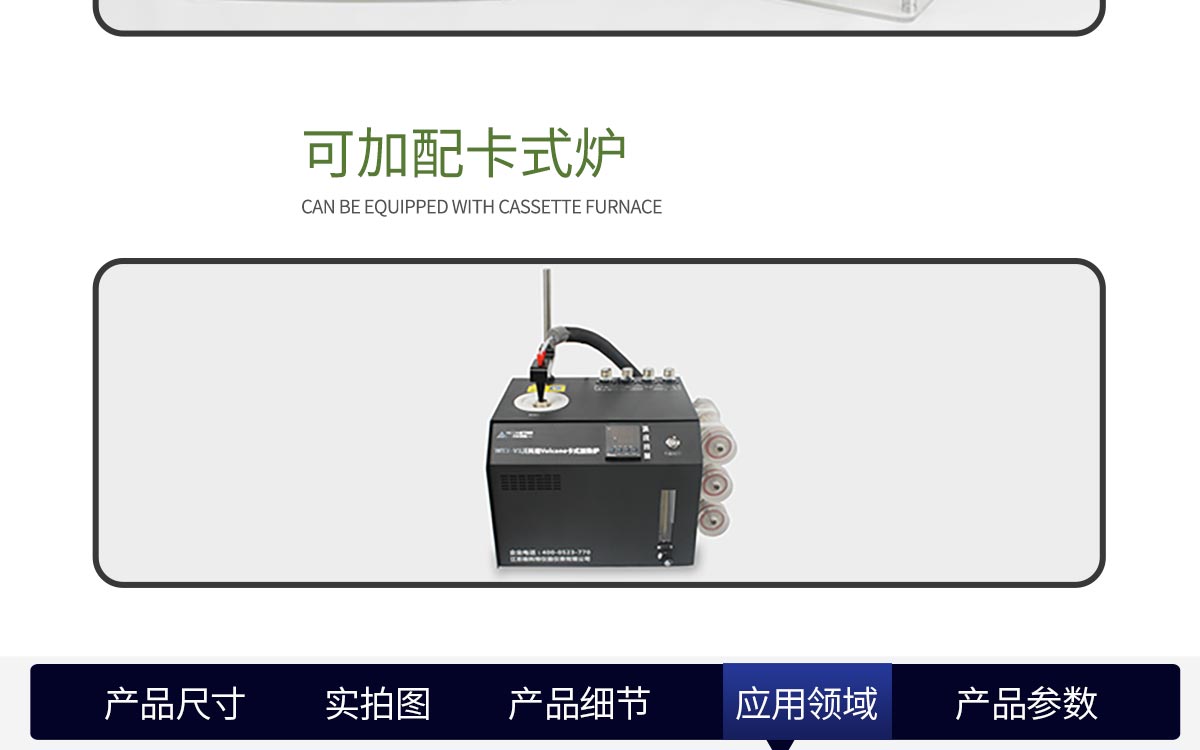

| The following industries require a Karl Fischer oven | |
| Insoluble Solids | Lithium batteries, plastics, medical, ceramic powders, metal powders, etc. |
| Other Insoluble Solids | Insoluble solids, easily contaminated and cross-contaminating samples (lubricating greases, aldehydes and ketones), samples that react with Karl Fischer reagent, and samples with slow moisture release |
