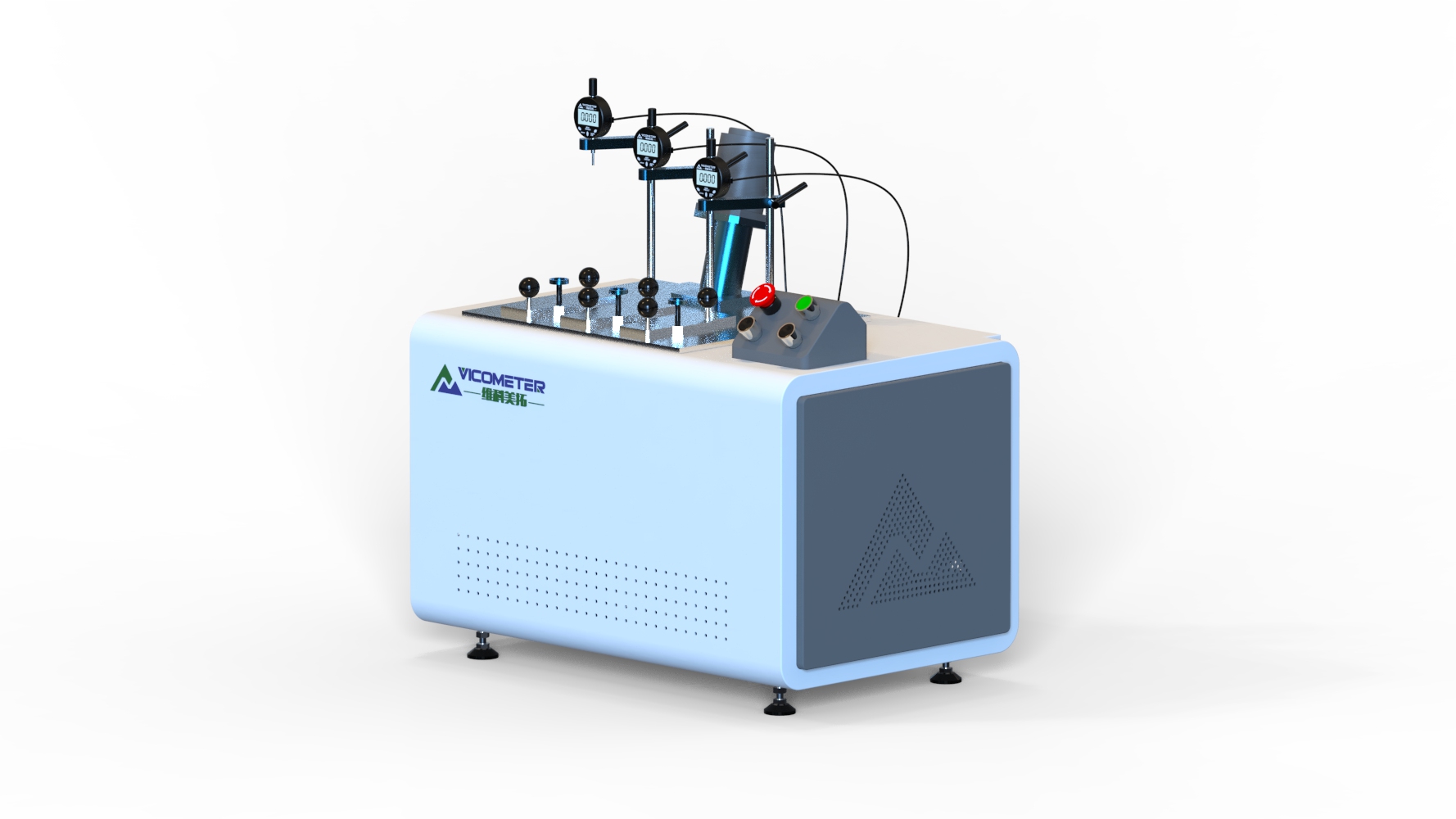

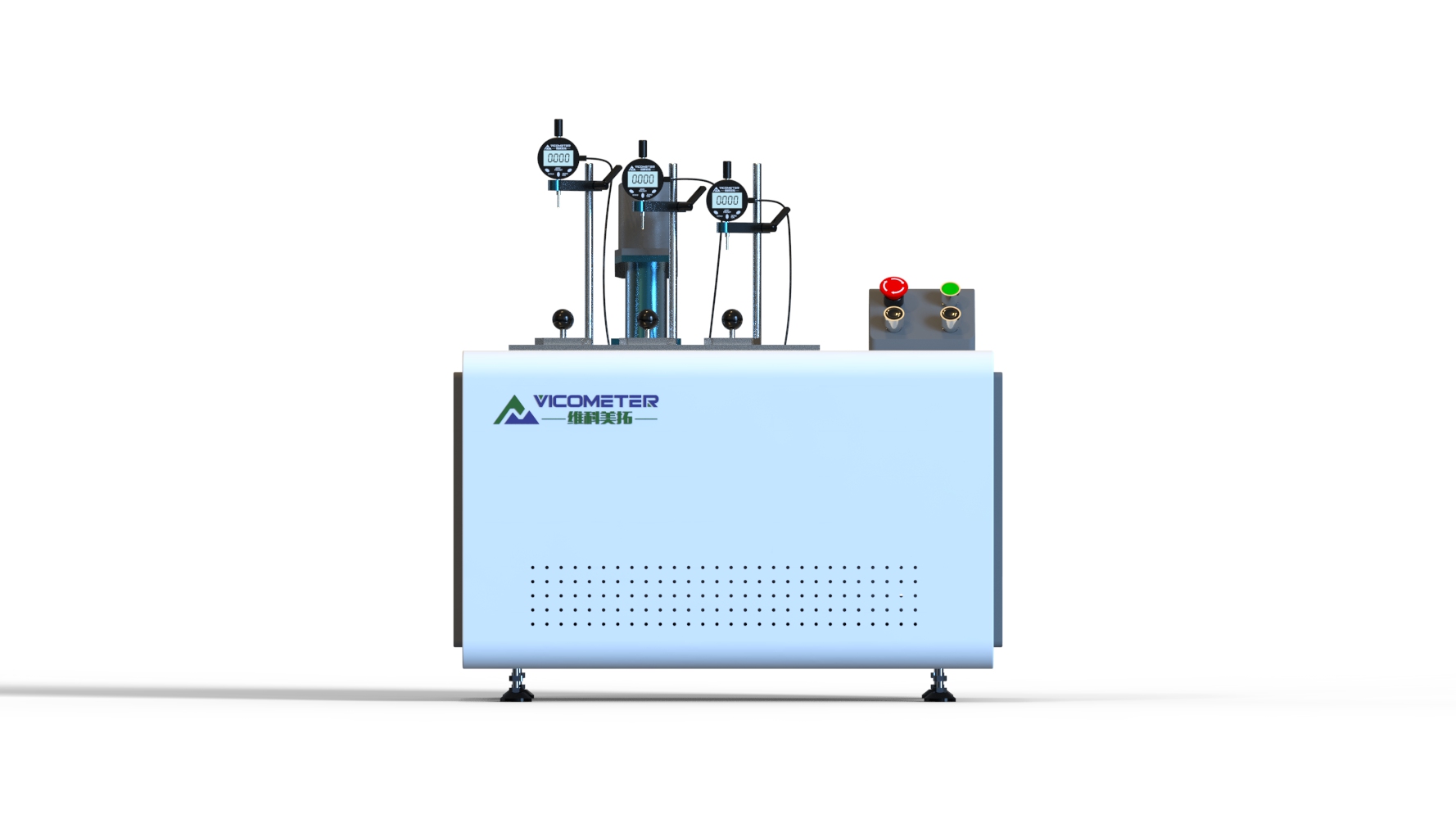

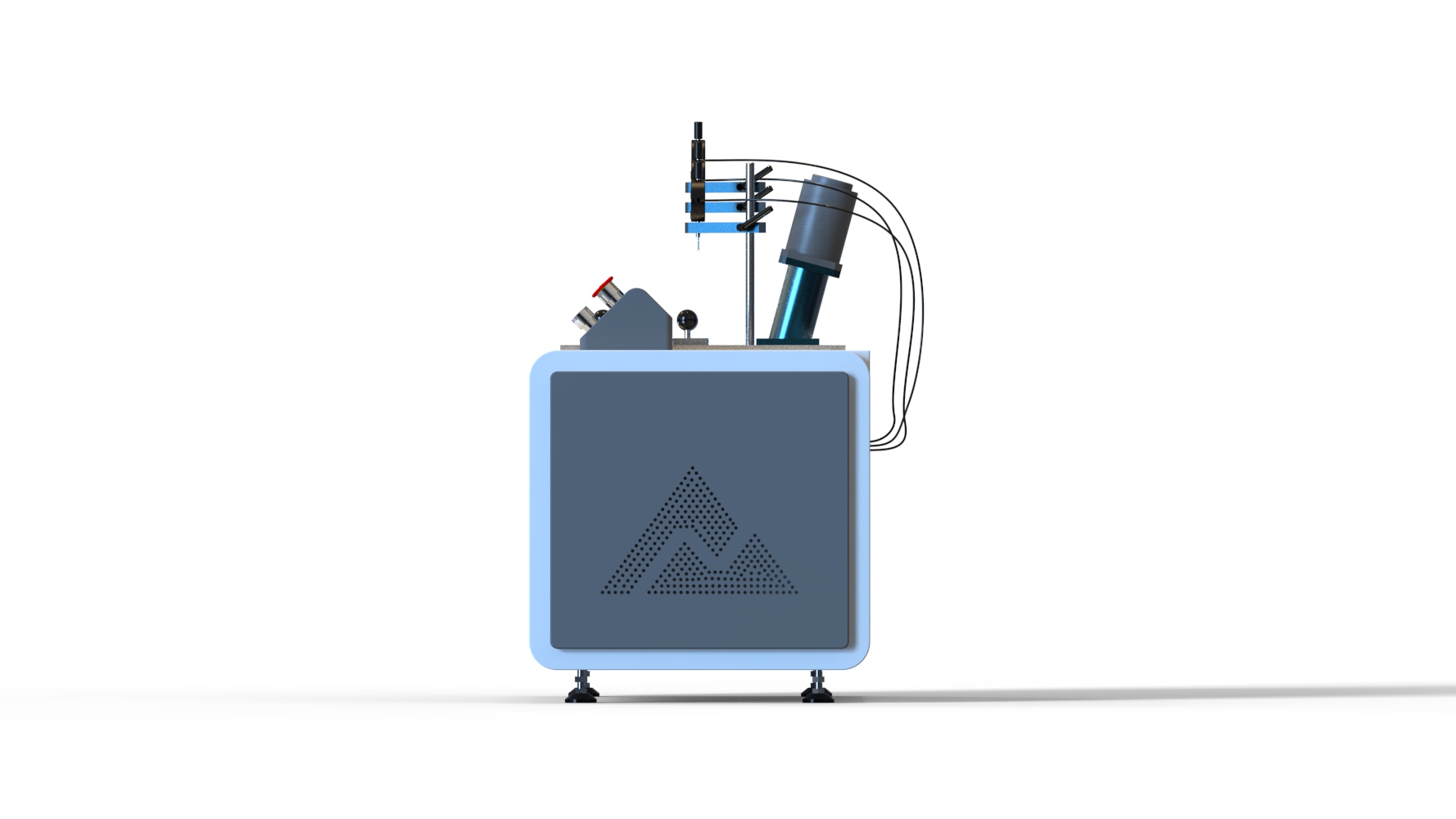

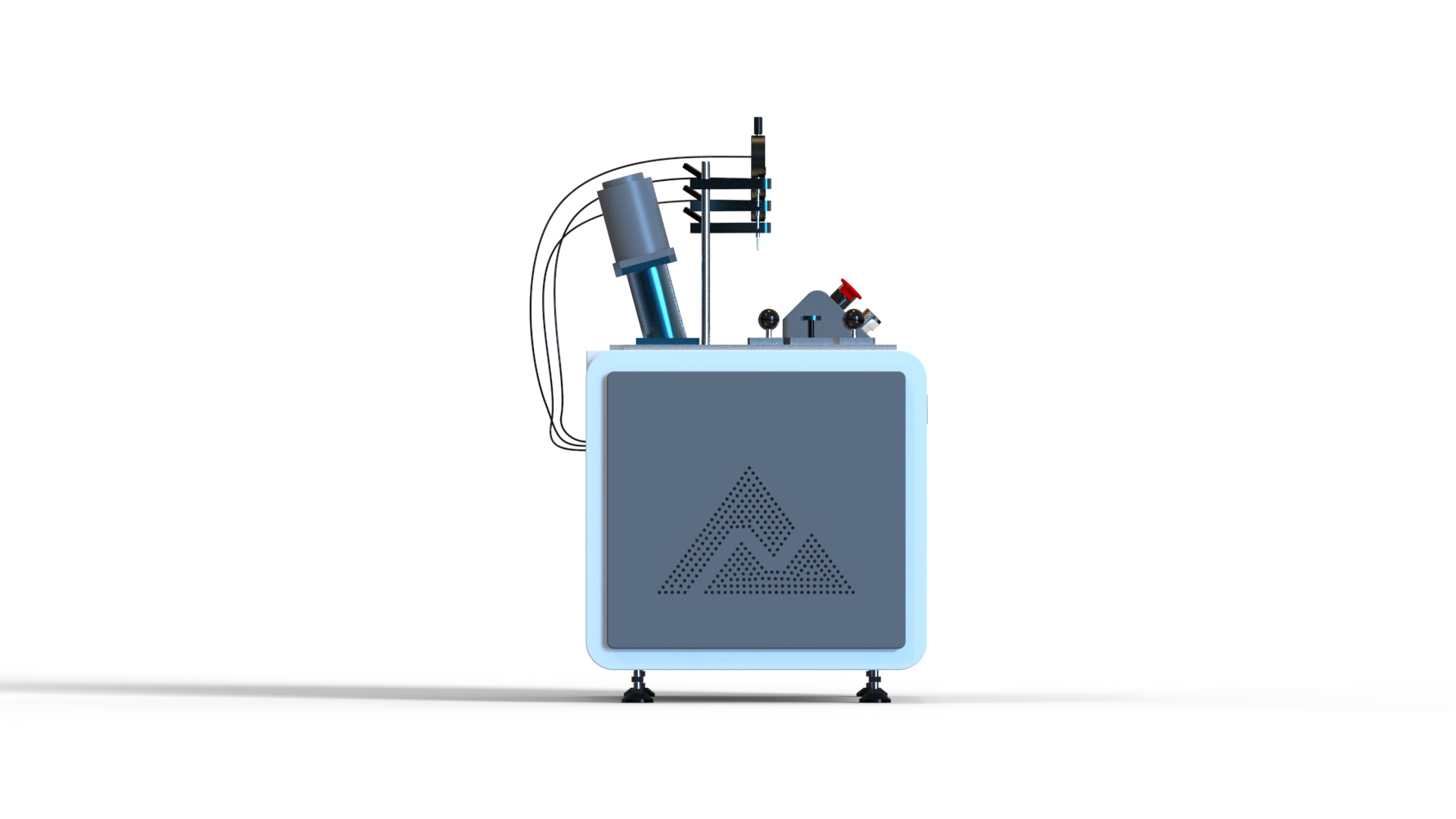

The VicoMeter WKT-VST100DW HDT/Vicat softening point temperature tester features 1 station, PC software control for operation and analysis, natural cooling or water cooling, and a specimen-frame lifting function to raise or lower the frame at test start or end. It is mainly used to determine the HDT and Vicat softening point temperature of non-metallic materials such as plastics, rubber, nylon and electrical insulation materials. The product complies with ISO 75(E), ISO 306(E), GB/T 8802, GB/T 1633, GB/T 1634 and other standards, widely used for HDT and Vicat measurement of plastics, rubber, nylon, electrical insulation materials, chemical building materials and more.
Overview
The Vicat Softening Temperature (VST) measured by the VicoMeter WKT-VST100DW is the temperature at which a thermoplastic specimen, placed in a liquid heat-transfer medium under a given load and constant heating rate, is penetrated 1 mm by a 1 mm² indenting needle; the corresponding national standard is GB/T 1633-2000. VST is an indicator of heat resistance, reflecting physical-mechanical properties under heating. Although it cannot directly evaluate actual service temperature, it guides quality control. The higher the VST, the better the dimensional stability under heat and the smaller the thermal deformation—better heat-deformation resistance, greater rigidity and higher modulus.
1. Intelligent PID control with accurate heating rate and precise, uniform temperature control
2. Performs HDT tests on various standard specimens
3. Performs Vicat softening point tests on various standard specimens
4. Performs HDT and Vicat softening point tests simultaneously
5. Automatically calculates the required load based on test standard and specimen dimensions
6. Two selectable heating rates, freely switchable, simple to operate
7. Automatically shuts off temperature control and powers down when the test completes or the temperature limit is exceeded
8. Dual protection: software over-temperature protection plus external mechanical over-temperature protector for worry-free testing
Versatile report settings with comprehensive report printing
The WKT-VST100DW is mainly used for HDT and Vicat softening point measurement of non-metallic materials (plastics, rubber, nylon, electrical insulation materials), widely used for HDT and Vicat measurement of plastics, rubber, nylon, electrical insulation materials, chemical building materials and more.
Technical Specifications
| Model | WKT-VST100DW |
| Temperature Control Range | Ambient-300℃ |
| Ramp Rate | (120±10)℃/h (12±1)℃/6min |
| (50±5)℃/h (5±0.5)℃/6min | |
| Temperature Indication Resolution | 0.1℃ |
| Temperature Control Error | ±0.5℃ |
| Maximum Deformation Indication Error | ±0.001mm |
| Maximum Deformation Measurement Range | 0-12mm |
| Number of Specimen Frames | 1 |
| Specimen Frame Material | Invar steel specimen frame (low deformation) |
| Indenting Needle Material | Titanium Alloy |
| Heating Medium | Methyl silicone oil (kinematic viscosity generally 100 cSt) or transformer oil |
| Maximum Heating Power | 4 kW 16A |
| Cooling Method | Air cooling above 150℃, water cooling below 150℃ |
| Load Rod and Pan Mass | 68g |
| Oil Tank Capacity | 20L |
| Operation | Computer Software Operation |
| Power Requirements | AC220V ±10% 50HZ |
