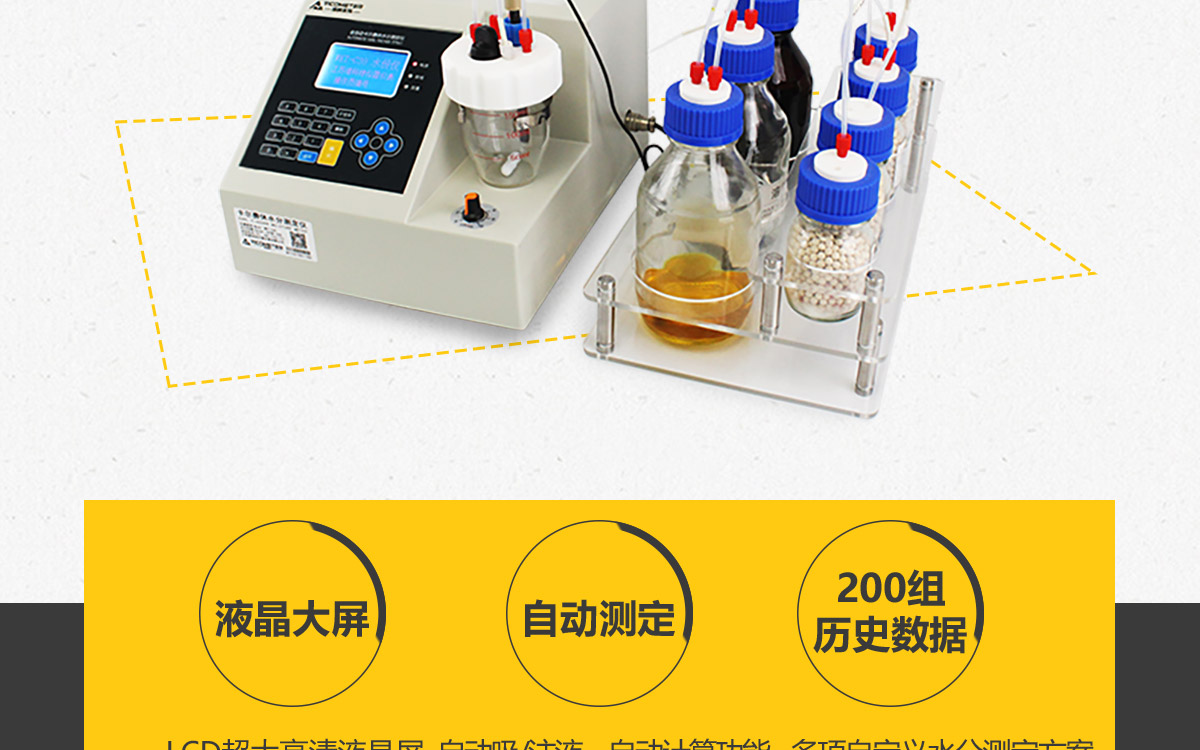

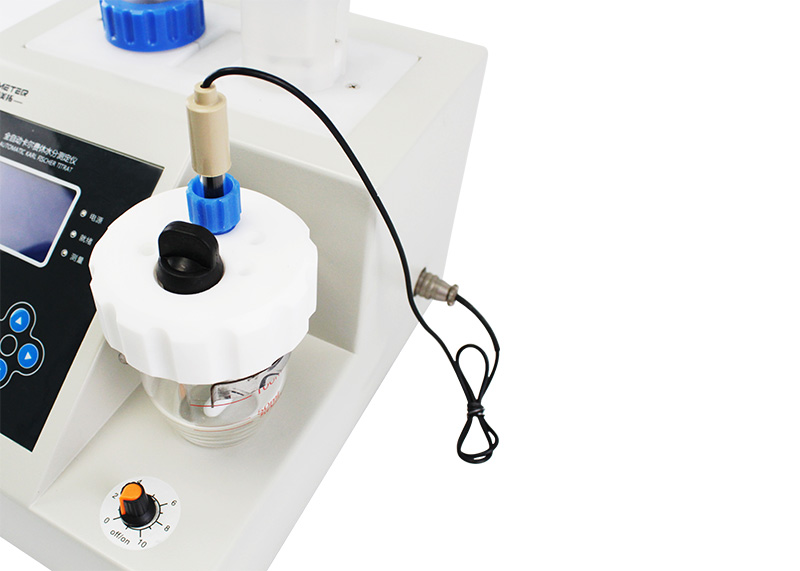

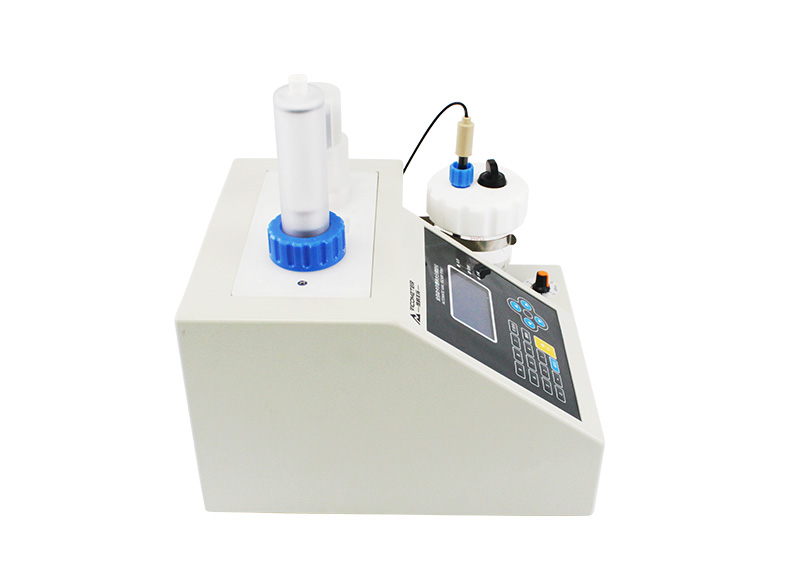

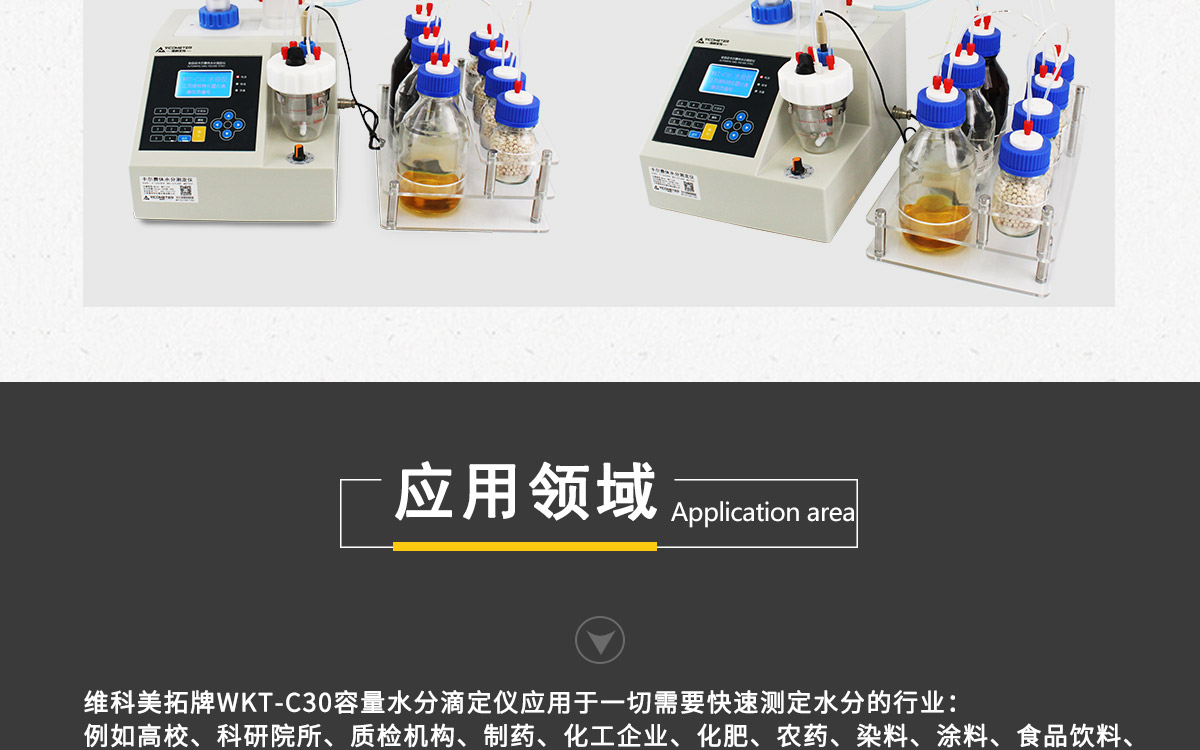

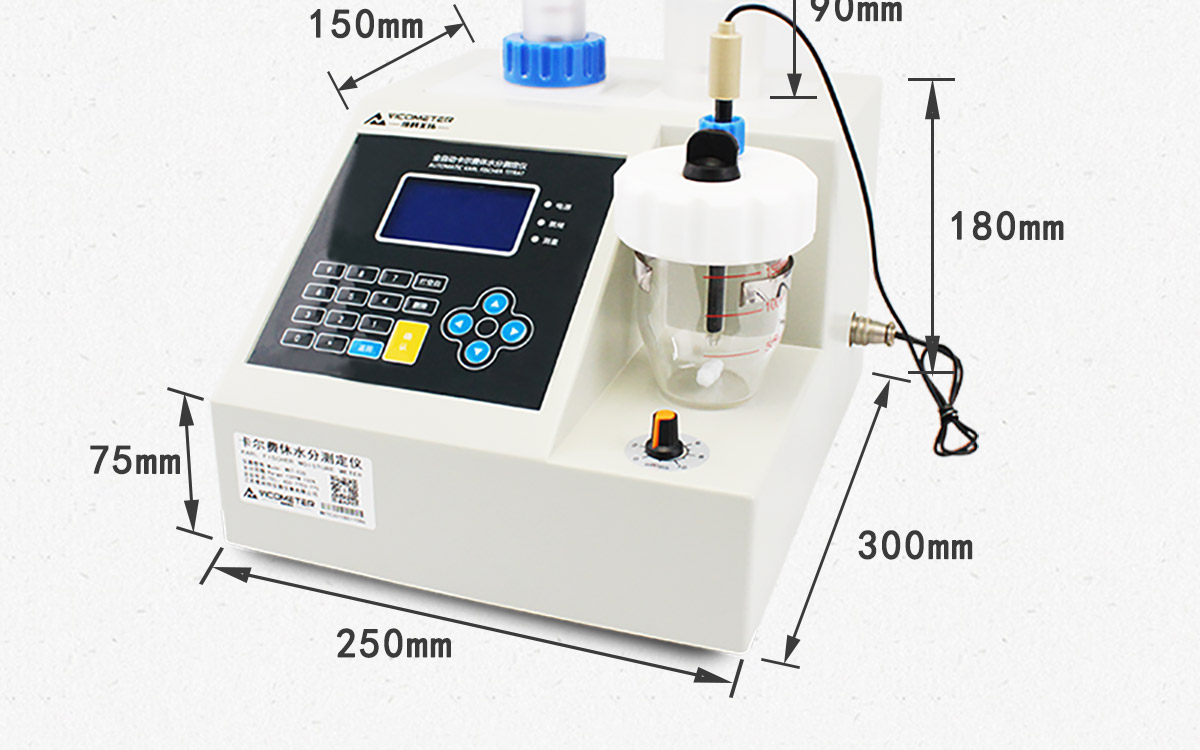

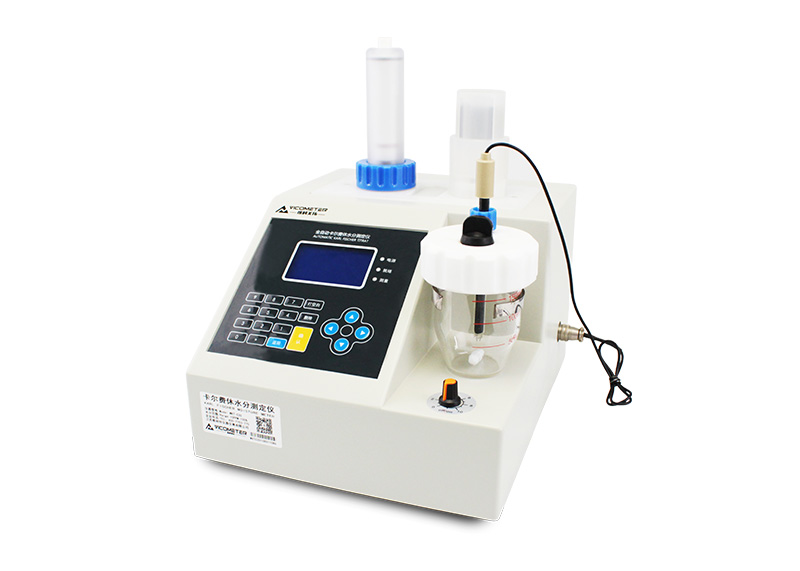

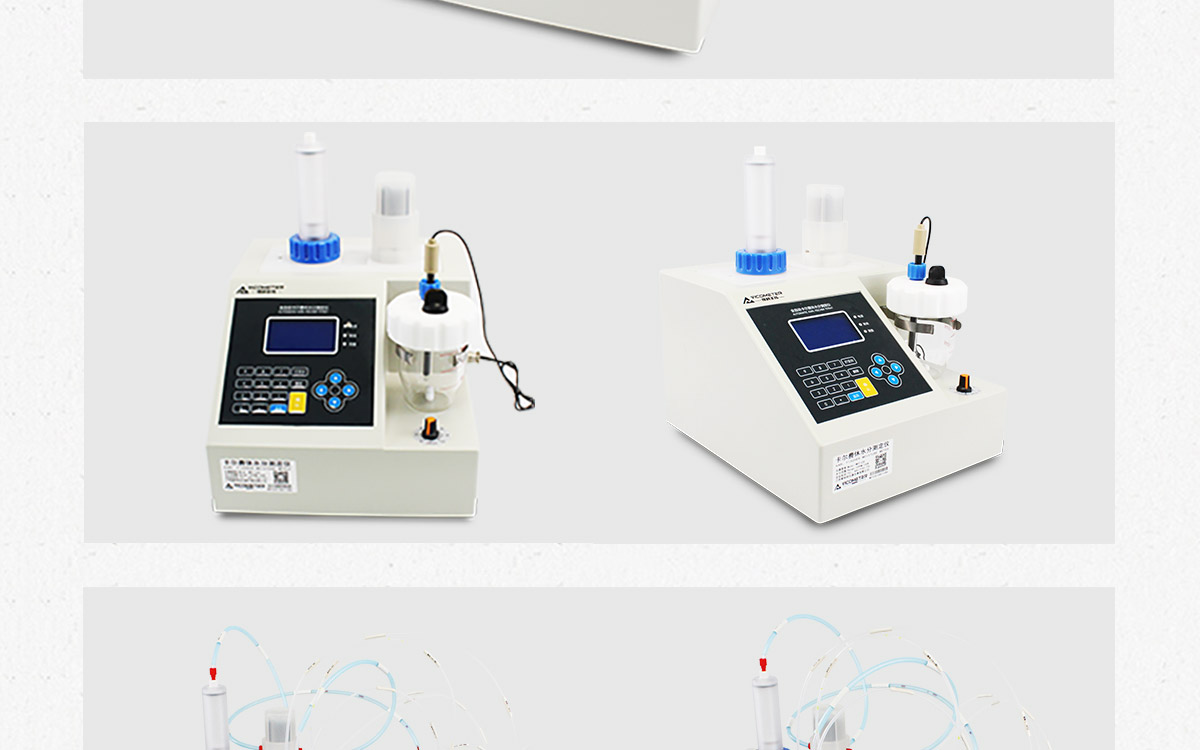

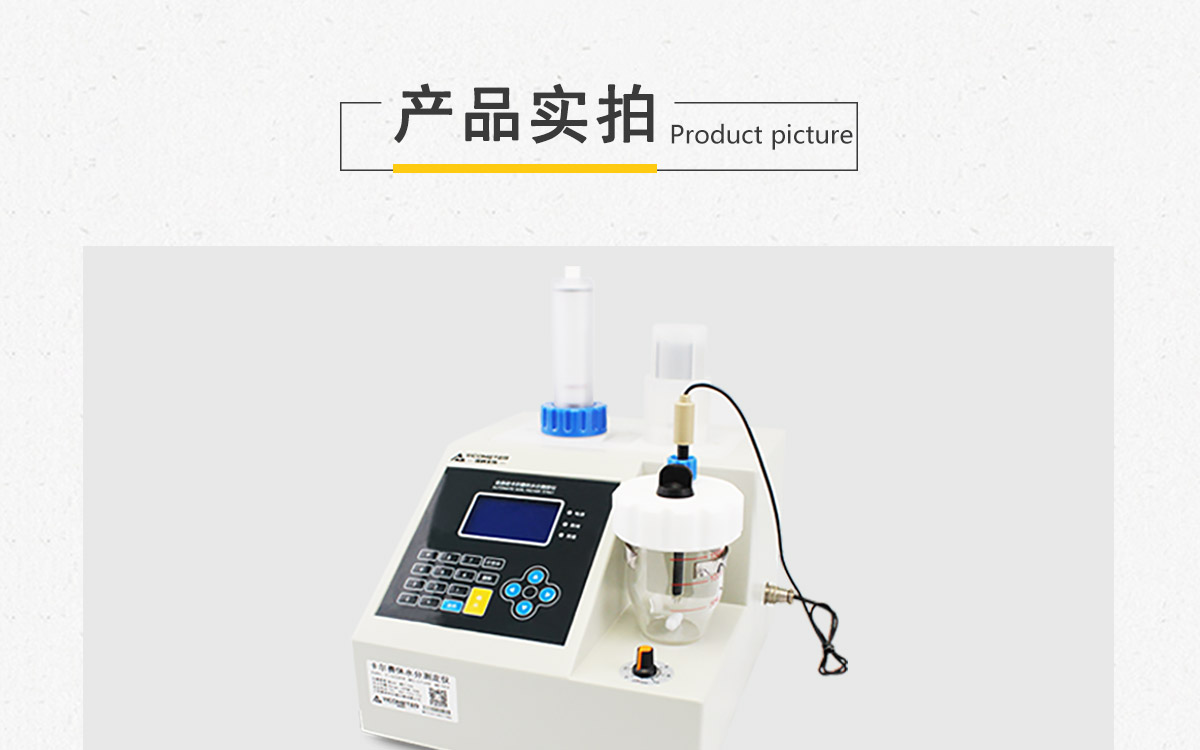

The WKT-C30 "fully automatic" Karl Fischer moisture analyzer uses the volumetric Karl Fischer principle to rapidly determine moisture down to 10 ppm, measuring solids, liquids, and powders within 30 seconds. Its RS232 port connects to printers, balances, computers, and other peripherals, and it stores 200 data sets with real-time query. A further upgrade of the Victor smart-series moisture analyzer, the C30 delivers a higher level of automation and precision. It complies with multiple national and international moisture standards as well as pharmacopoeia requirements and is widely used in chemicals, petroleum, pharmaceuticals, power, food, batteries, plastics, research, and testing.

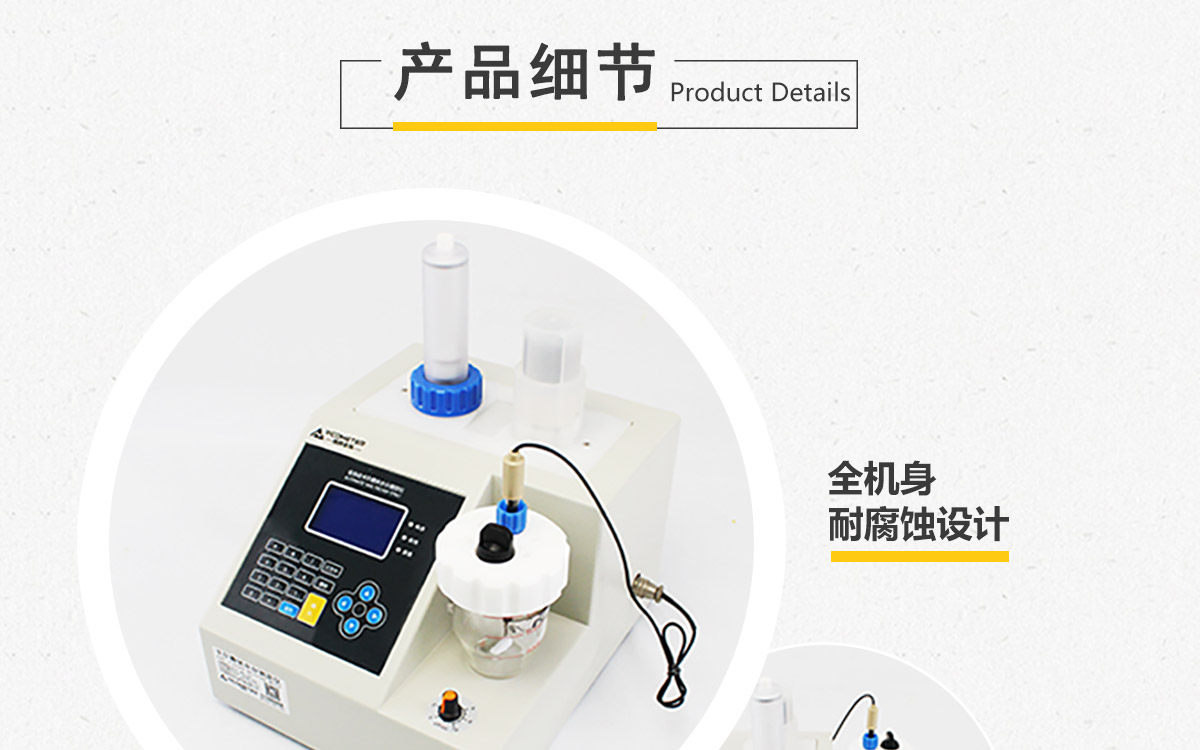

Product Details

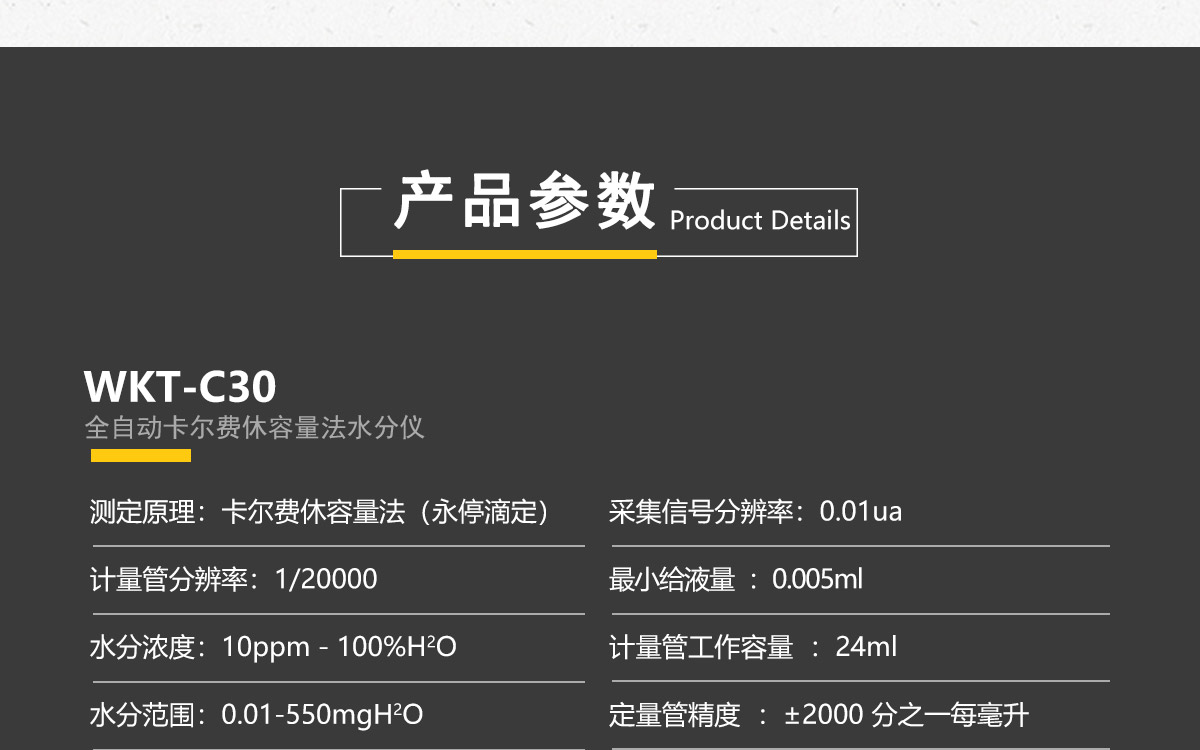

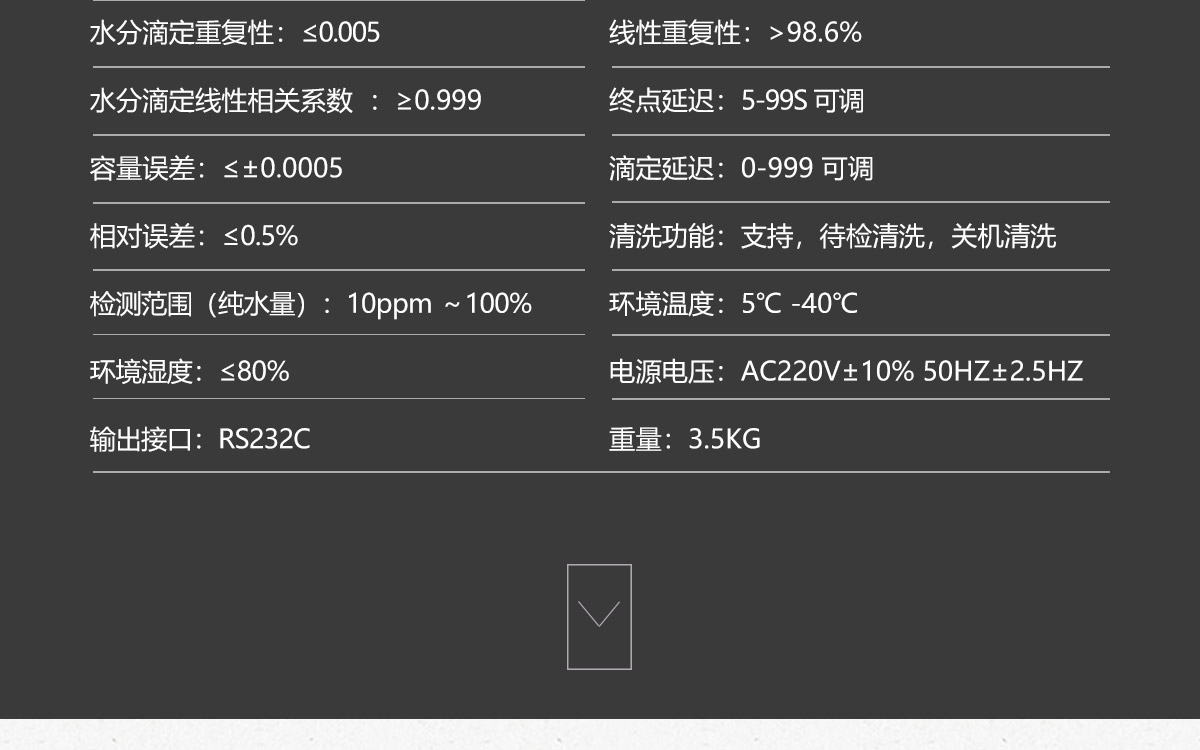

Technical Specifications
| Model | WKT-C30 |
| Measuring Principle | Karl Fischer Volumetric Titration |
| Moisture Range | 0.01－550 mg H2O |
| Measuring Range | 10 ppm－100% H2O |
| Metering Tube Resolution | 1/20000 |
| Moisture Titration Repeatability | ≤0.005 |
| Moisture Titration Linearity Correlation Coefficient | ≥0.999 |
| Volumetric Error | ≤±0.0005 |
| Relative Error | ≤0.5% |
| Measuring Range (Pure Water) | 10ppm ～100% |
| Signal Acquisition Resolution | 0.01ua |
| Minimum Dosing Volume | 0.001ml |
| Metering Tube Working Capacity | 24ml |
| Dosing Tube Accuracy | ±1/2000 per ml |
| Linear Repeatability | >98.6% |
| Endpoint Delay | 5-99S adjustable |
| Titration Delay | 0-999 adjustable |
| Cleaning Function | Supported, standby cleaning, shutdown cleaning |
| Ambient Temperature | 5℃ -40℃ |
| Ambient Humidity | ≤80% |
| Output Interface | RS232C |
| Power Supply | AC220V±10% 50HZ±2.5HZ |
| Weight | 3.5KG |
Applicable Industries
| Liquid | Chemical industry: alcohols, ethers, acids, benzenes, phenols, organic solvents, and other products suited to Karl Fischer determination. Petroleum and power industry: insulating oil, transformer oil, and other oil products. Pharmaceutical industry: pharmaceutical raw materials, etc. Pesticide industry: emulsifiers, etc. Other industries: lithium battery electrolytes, etc. |
| Solid | Freely soluble solids such as various inorganic salts and citric acid |
| Gas | Gases such as nitrogen, SF6, natural gas, liquefied petroleum gas, Freon, and butadiene |
| The following industries require a Karl Fischer oven | |
| Insoluble Solids | Lithium batteries, plastics, medical, ceramic powders, metal powders, etc. |
| Other Insoluble Solids | Insoluble solids, easily contaminated and cross-contaminating samples (lubricating greases, aldehydes and ketones), samples that react with Karl Fischer reagent, and samples with slow moisture release |
Applications
GB/T 11133-1989 "Determination of Water Content in Liquid Petroleum Products (Karl Fischer Method, Volumetric Method)"
GB/T 7380-1995 "Determination of Water Content in Surfactants (Karl Fischer Method, Volumetric Method)"
GB/T 6283-2008 Determination of Water Content in Chemical Products — Karl Fischer Method (General Method)
GB/T 606-2003 "General Method for Determination of Water in Chemical Reagents — Karl Fischer Method"
GB/T 10670-1989 "Determination of Trace Water in Fluoromethanes for Industrial Use — Karl Fischer Method"
GB/T 7376-2008 Determination of Trace Water in Fluorinated Alkanes for Industrial Use — Karl Fischer Method
ISO 10337-1997 Determination of Water in Crude Petroleum — Karl Fischer Method
GB/T 11146-2009 Determination of Water Content in Crude Oil — Karl Fischer Method
GB/T 3727-2003 Determination of Trace Water in Ethylene and Propylene for Industrial Use
GB/T 18826-2002 1,1,1,2-Tetrafluoroethane (HFC-134a) for Industrial Use
GB/T 18350-2001 "Denatured Fuel Ethanol"
GB/T 3776.1-1983 "Method for Determination of Water in Pesticide Emulsifiers"
GB/T 12717-2007 "Test Methods for Acetates for Industrial Use"
ASTM D4928-00 (2010) Determination of Water Content in Crude Oils by Coulometric Karl Fischer Titration
ASTM D6304-2007 Determination of Water in Petroleum Products, Lubricating Oils, and Additives by Coulometric Karl Fischer Titration
GB/T 5074-1985 Microcoulometric Method for Determination of Water Content in Coking Products
GB/T 18619.1-2002 Determination of Water Content in Natural Gas — Coulometric Karl Fischer Method
GB/T 7600-1987 "Determination of Water Content in Transformer Oil in Service (Coulometric Method)"
SH/T 0246 "Determination of Water Content in Light Petroleum Products (Coulometric Method)"
GB/T 6023-1999 "Determination of Trace Water in Butadiene for Industrial Use — Coulometric Karl Fischer Method"
Complies with the technical requirements of the National Pharmacopoeia for the determination of water content in pharmaceuticals by the Karl Fischer method
