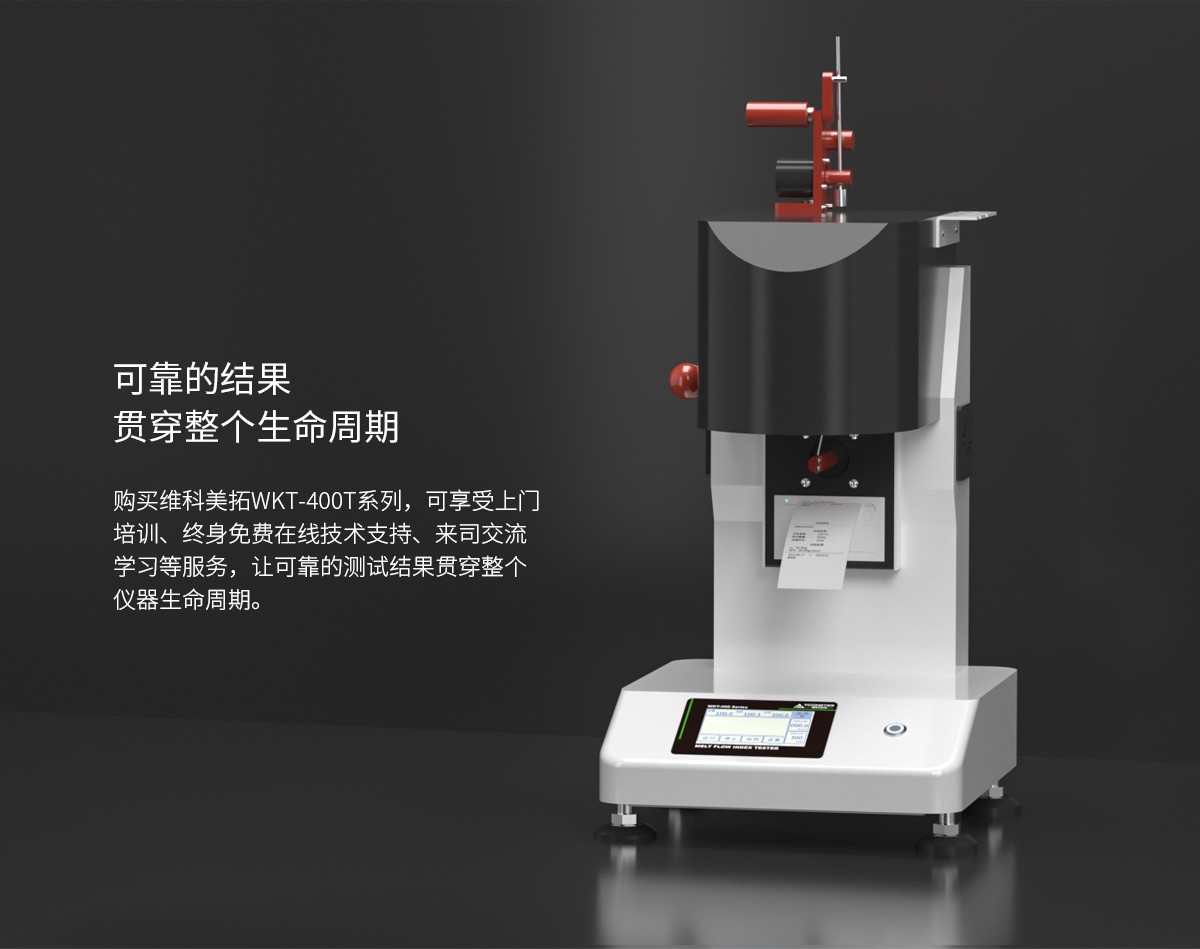

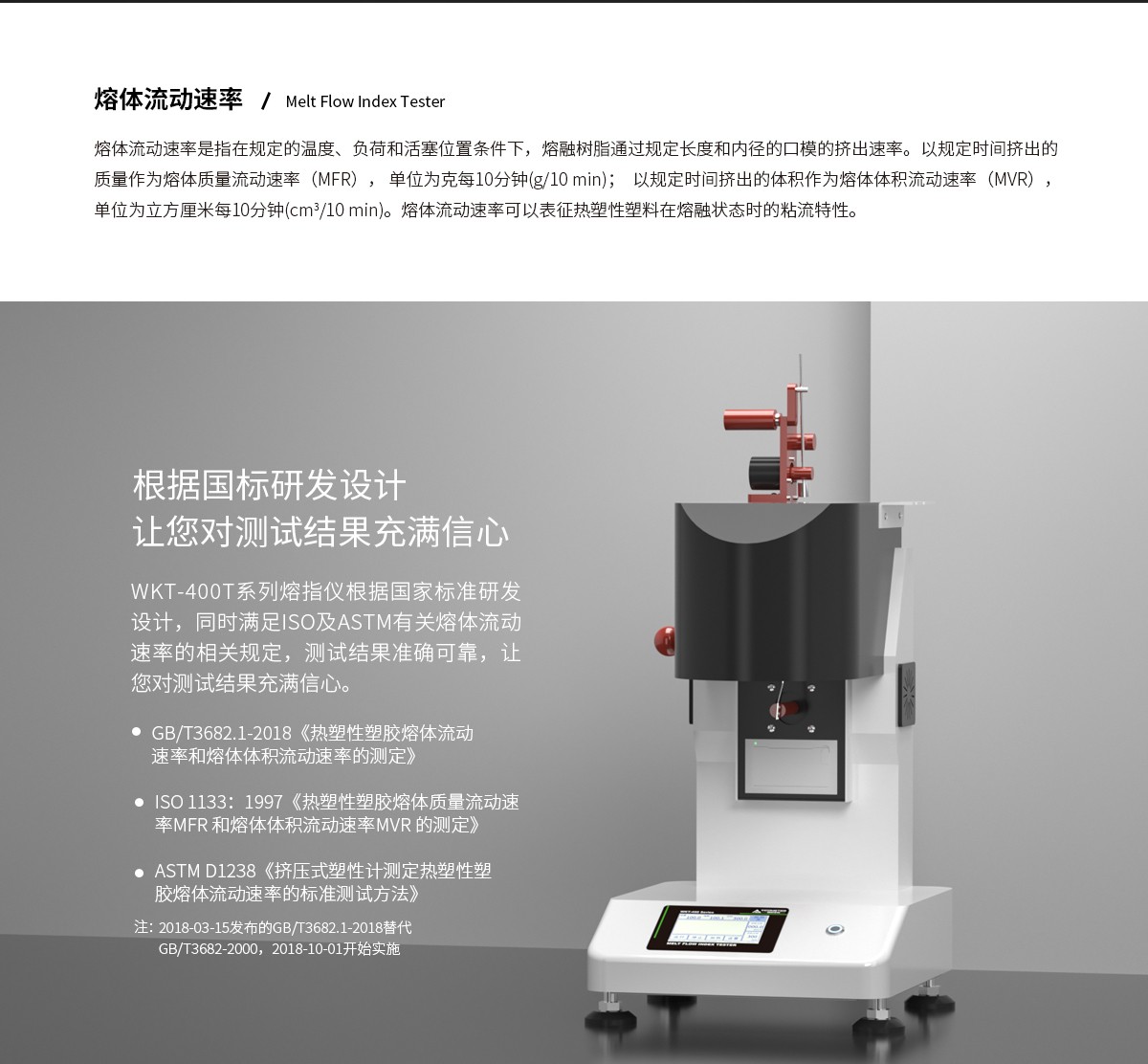

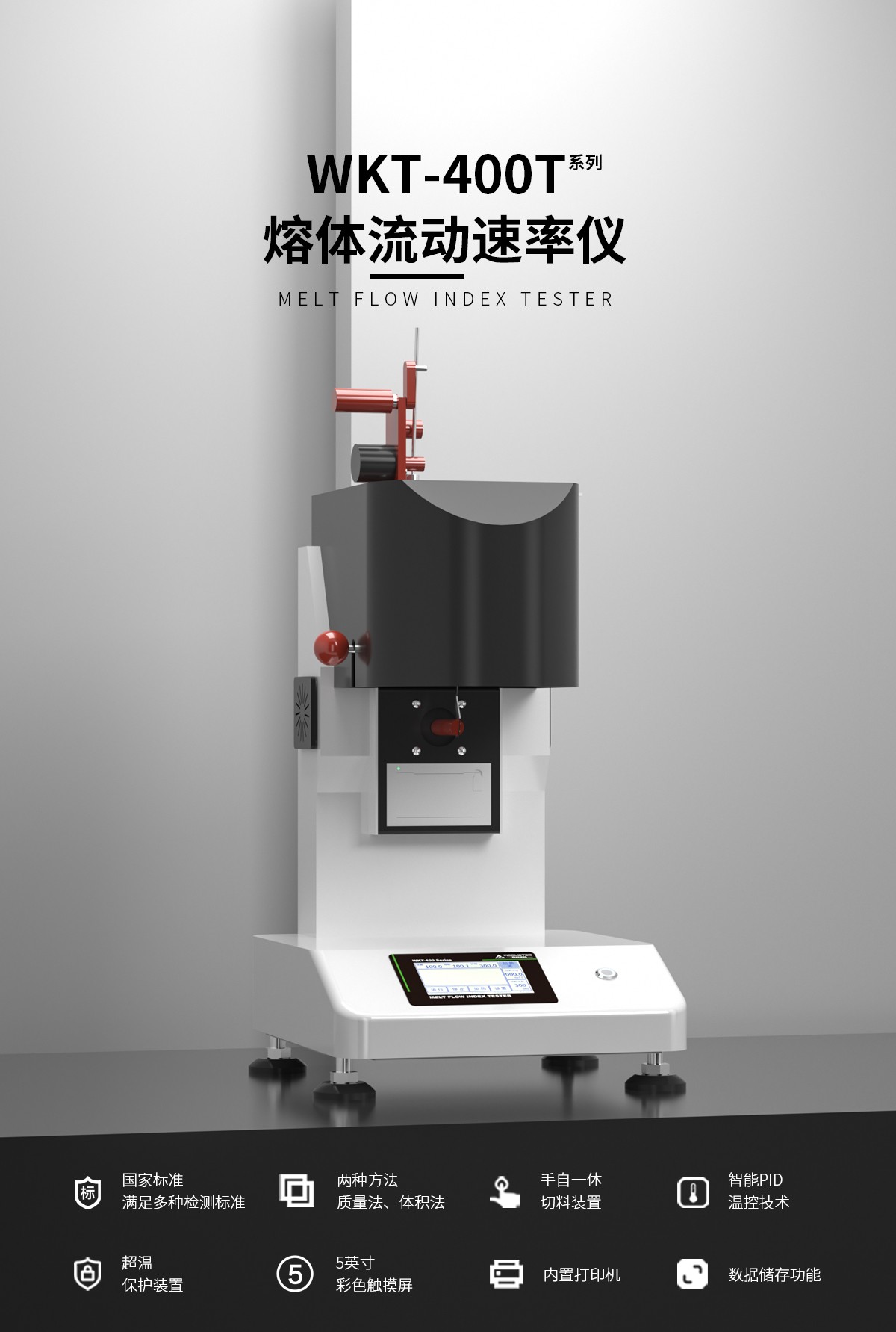

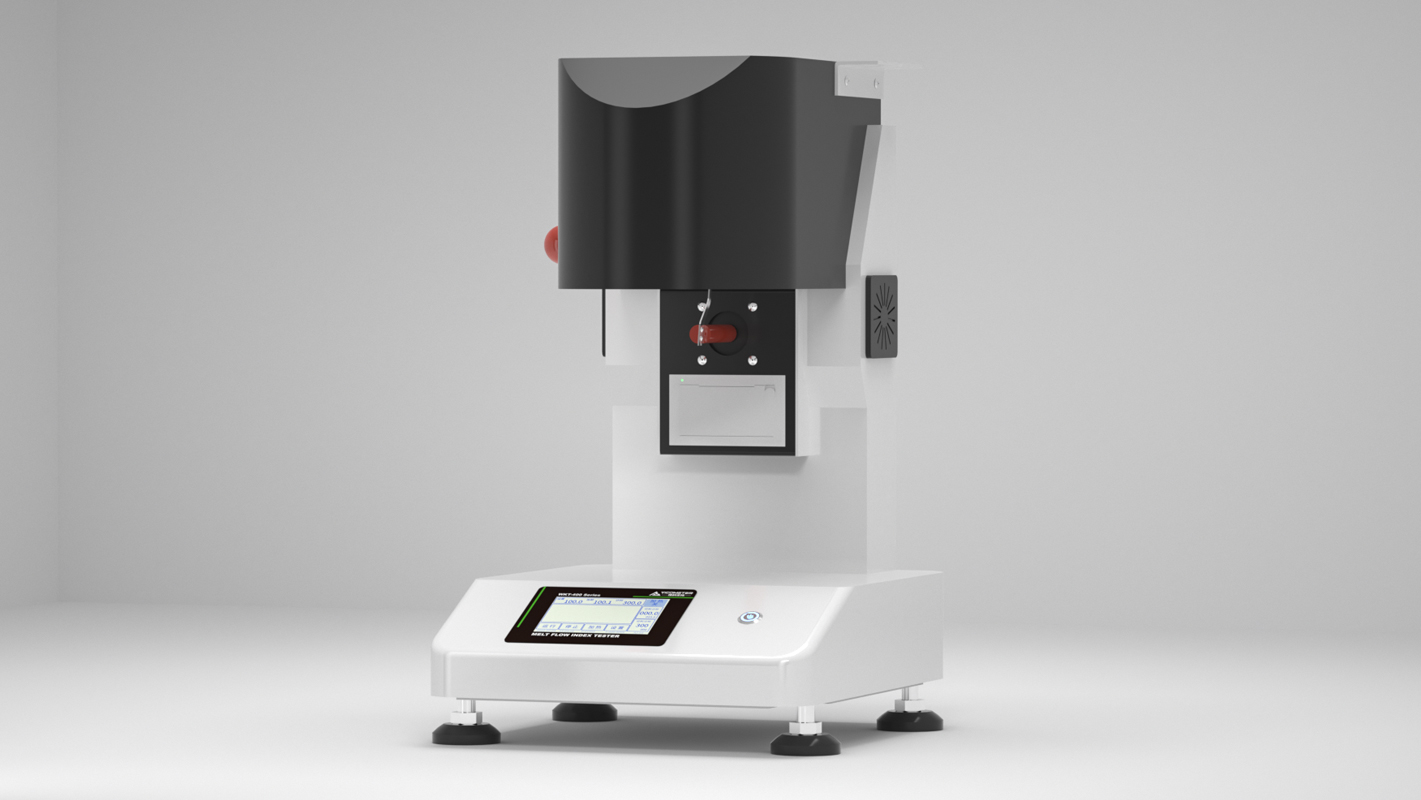

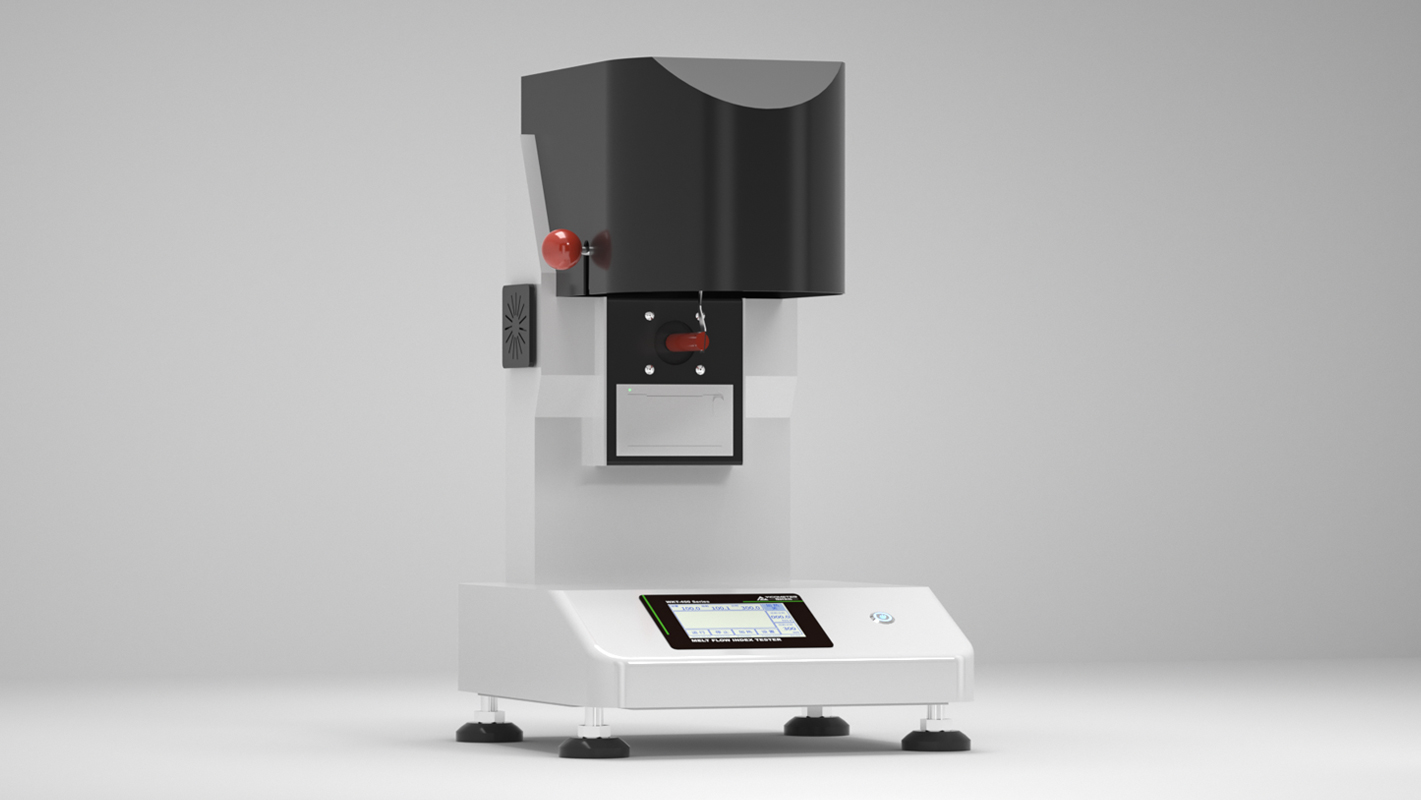

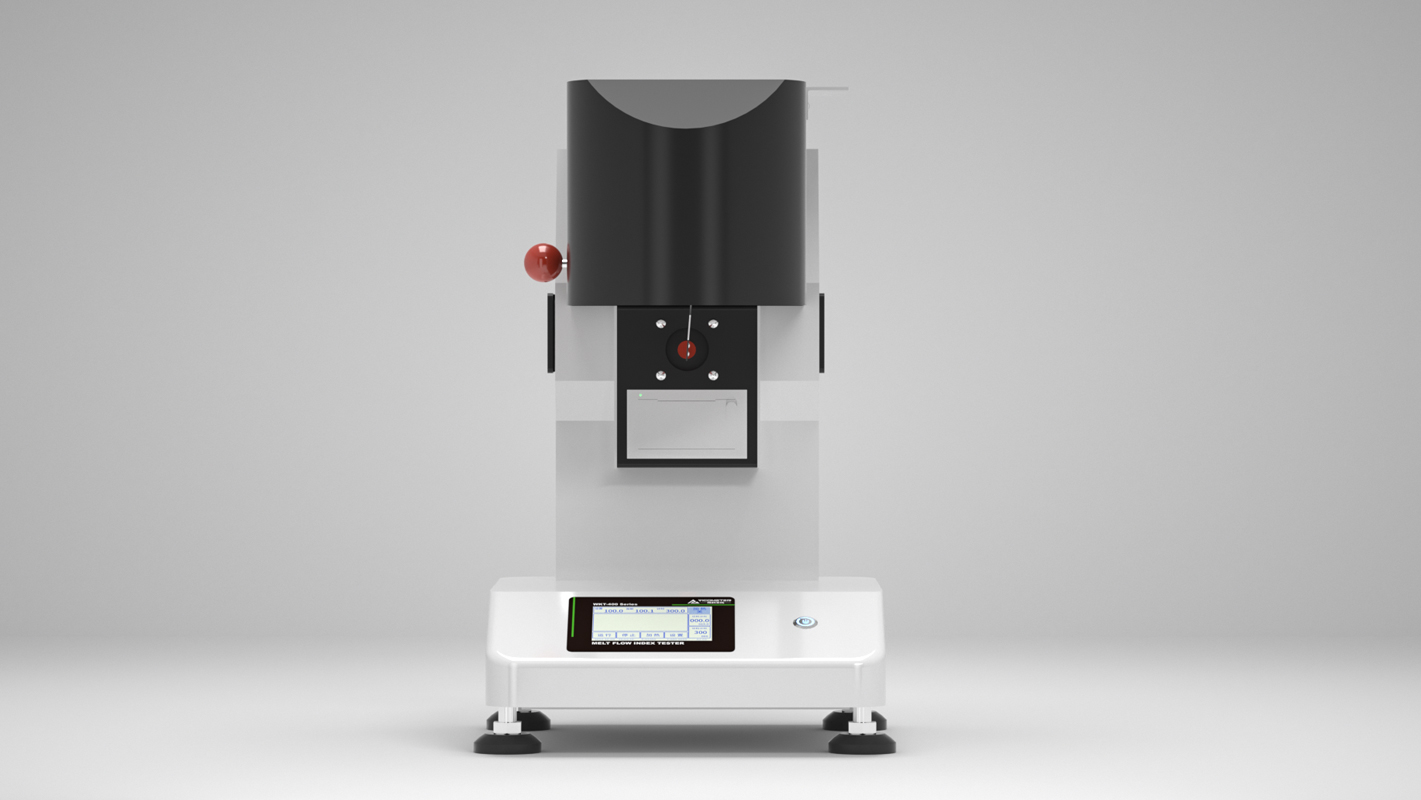

The WKT-400T touchscreen melt flow indexer (melt index tester) measures melt flow rate (MFR) by the mass method. With a large touchscreen display and operation plus an integrated manual/automatic cutting design, it is designed and built to authoritative standards for determining the melt flow rate (MFR) of various plastics and resins in the viscous-flow state. It is widely used in plastics production, plastic products, and petrochemicals, as well as by universities, research institutes, and commodity inspection departments.
Product Details

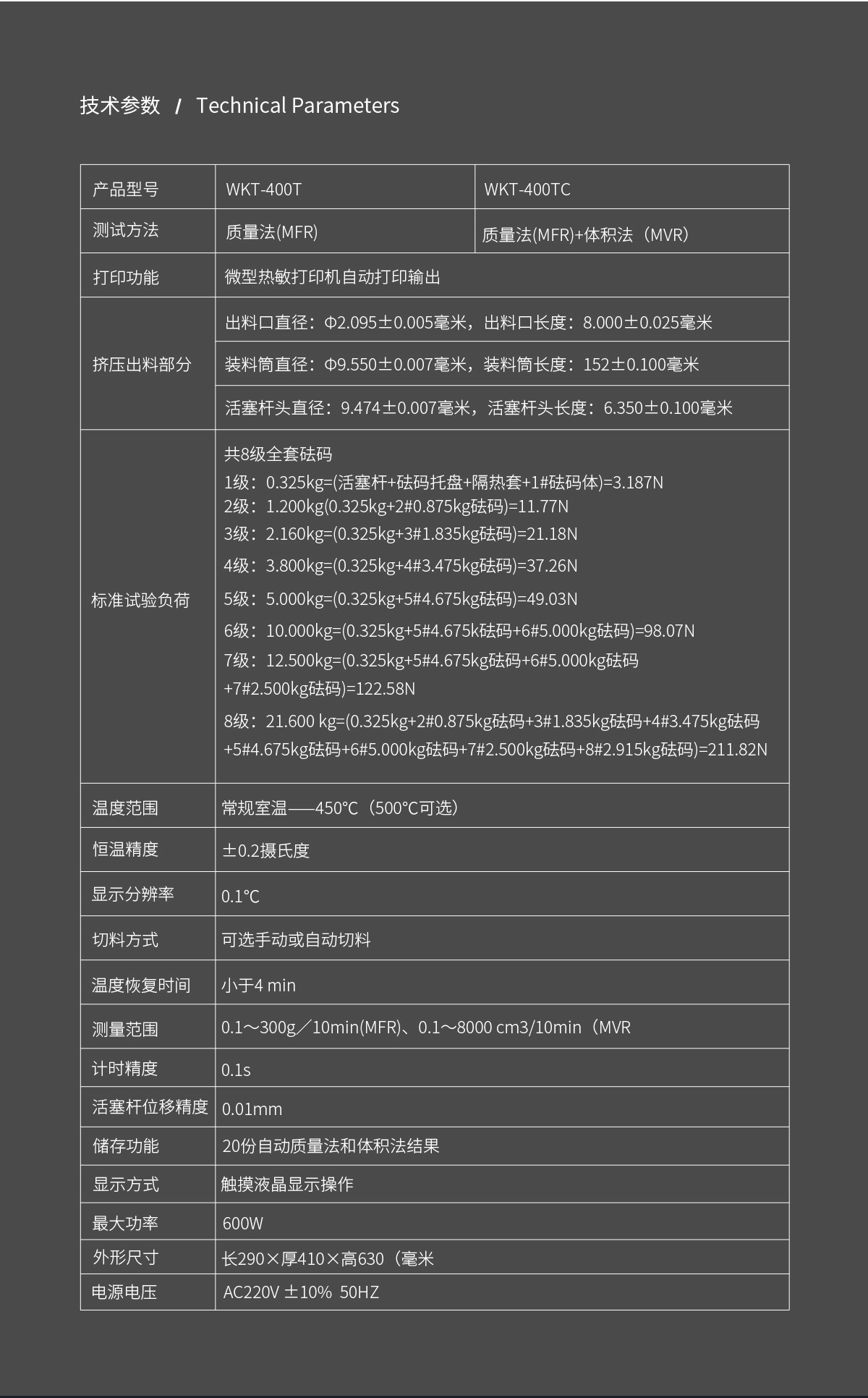

Technical Specifications
| Model | WKT-400T |

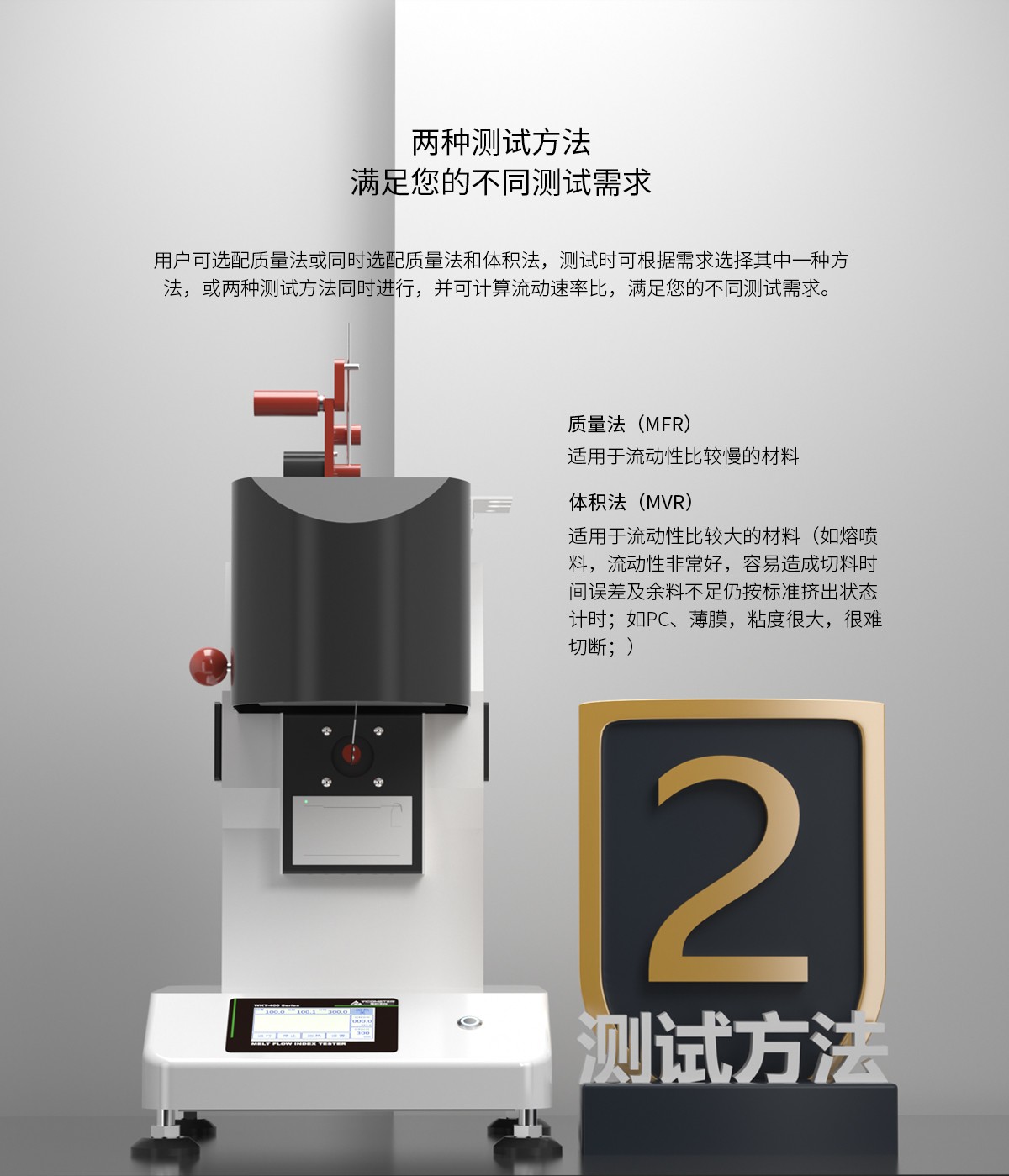

| Test Method | Mass Method (MFR) |

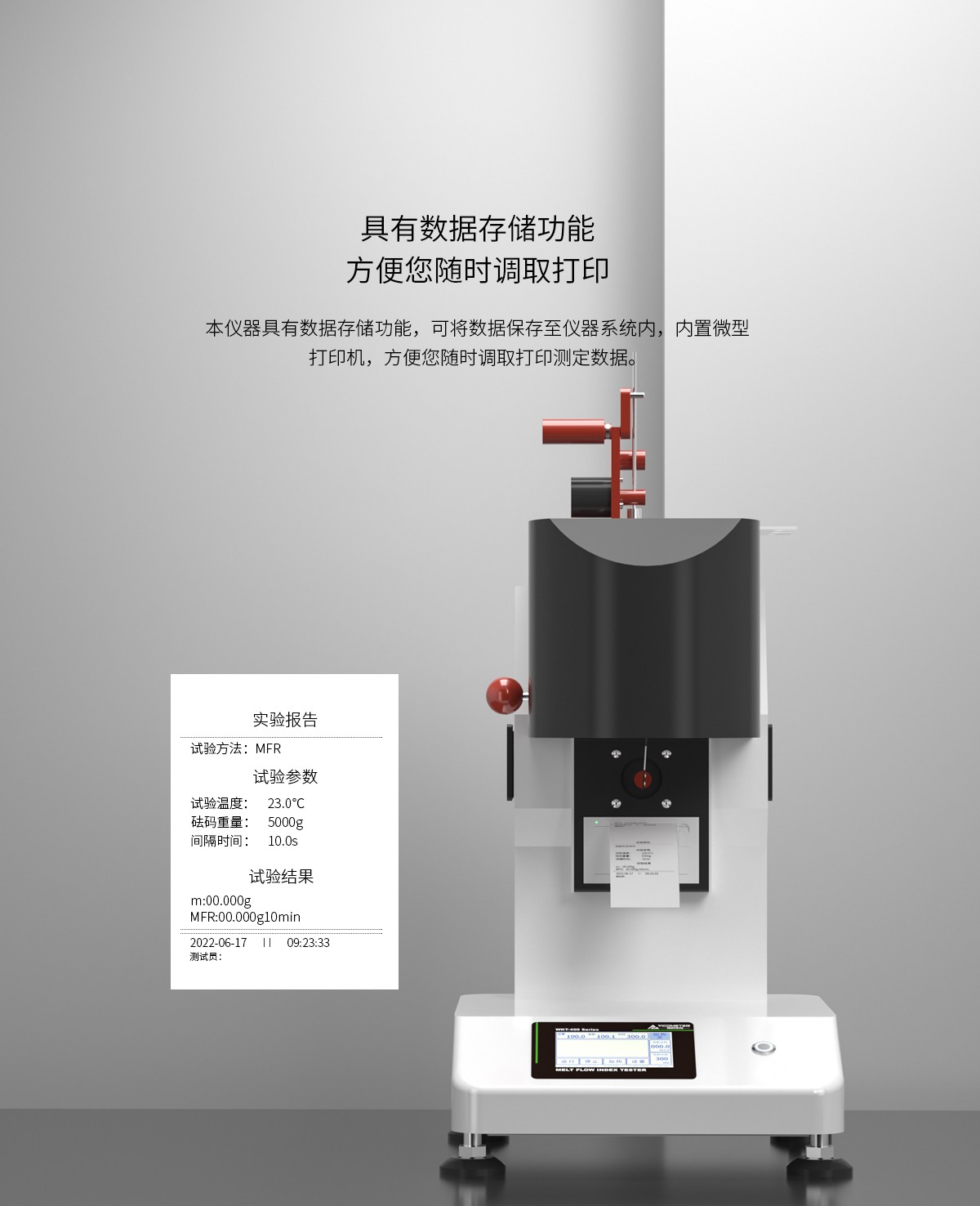

| Printing | Automatic Print Output via Micro Thermal Printer |
| Extrusion and Discharge Section | Die diameter: Φ2.095±0.005 mm; die length: 8.000±0.025 mm |
| Barrel diameter: Φ9.550±0.025 mm; barrel length: 152±0.100 mm | |
| Piston head diameter: 9.475±0.015 mm; piston head length: 6.350±0.100 mm | |
| Standard Test Loads | Full set of weights, 8 levels in total |
| Level 1: 0.325kg = (piston rod + weight tray + heat-insulating sleeve + No. 1 weight body) = 3.187N | |
| Level 2: 1.200kg (0.325kg + No. 2 0.875kg weight) = 11.77N | |
| Level 3: 2.160kg = (0.325kg + No. 3 1.835kg weight) = 21.18N | |
| Level 4: 3.800kg = (0.325kg + No. 4 3.475kg weight) = 37.26N | |
| Level 5: 5.000kg = (0.325kg + No. 5 4.675kg weight) = 49.03N | |
| Level 6: 10.000kg = (0.325kg + No. 5 4.675kg weight + No. 6 5.000kg weight) = 98.07N | |
| Level 7: 12.500kg = (0.325kg + No. 5 4.675kg weight + No. 6 5.000kg weight + No. 7 2.500kg weight) = 122.58N | |
| Level 8: 21.600 kg = (0.325kg + No. 2 0.875kg weight + No. 3 1.835kg weight + No. 4 3.475kg weight + No. 5 4.675kg weight + No. 6 5.000kg weight + No. 7 2.500kg weight + No. 8 2.915kg weight) = 211.82N | |
| Temperature Range | Room temperature – 450℃ (500℃ optional) |
| Temperature Accuracy | ±0.2℃ |
| Display Resolution | 0.1℃ |

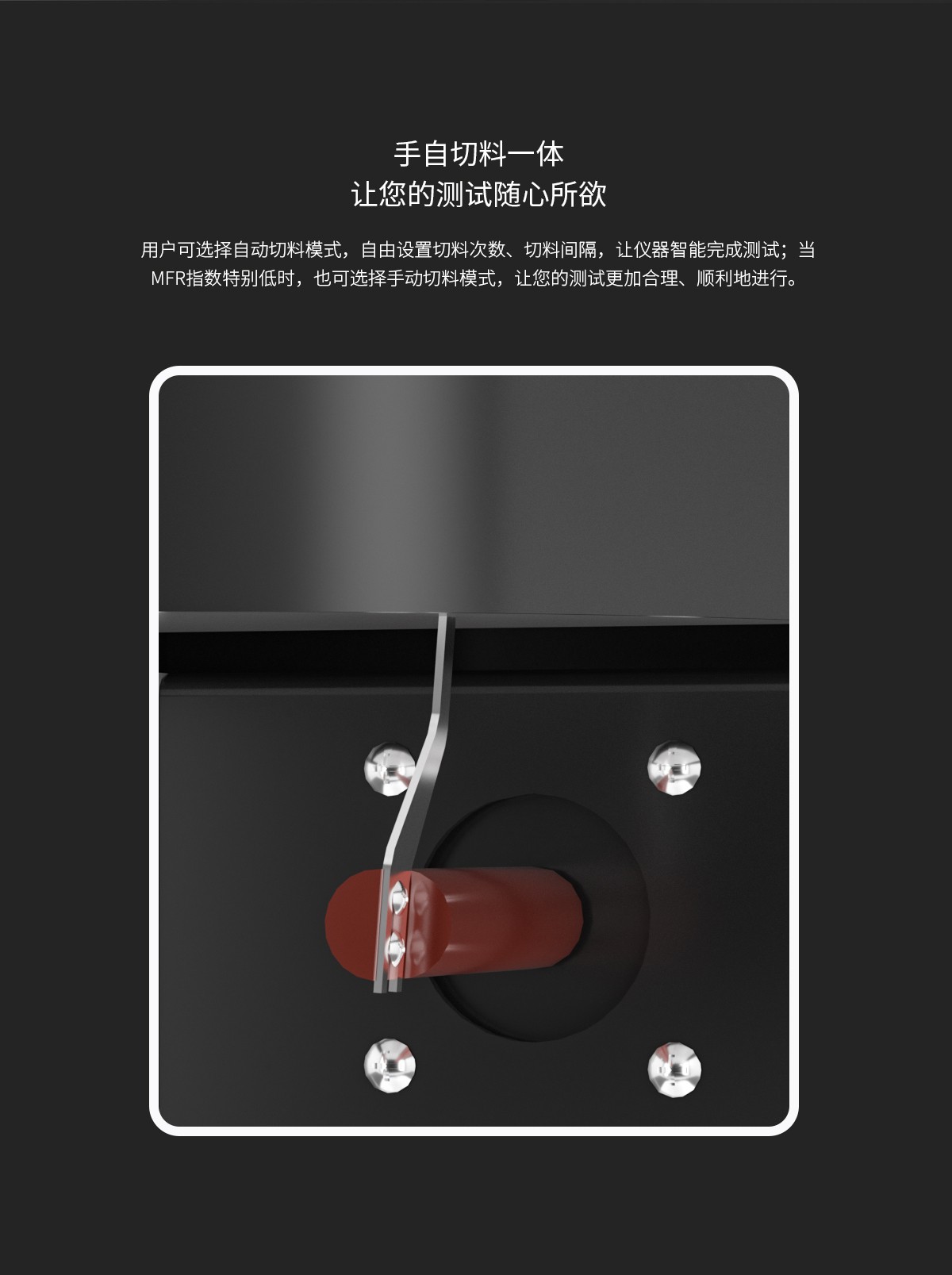

| Cutting Mode | Optional manual or automatic cutting |
| Temperature Recovery Time | Less than 4 min |
| Measuring Range | 0.1～300g／10min(MFR) |
| Timing Accuracy | 0.1s |
| Piston Displacement Accuracy | 0.01mm |
| Data Storage | 20 Automatic Results |

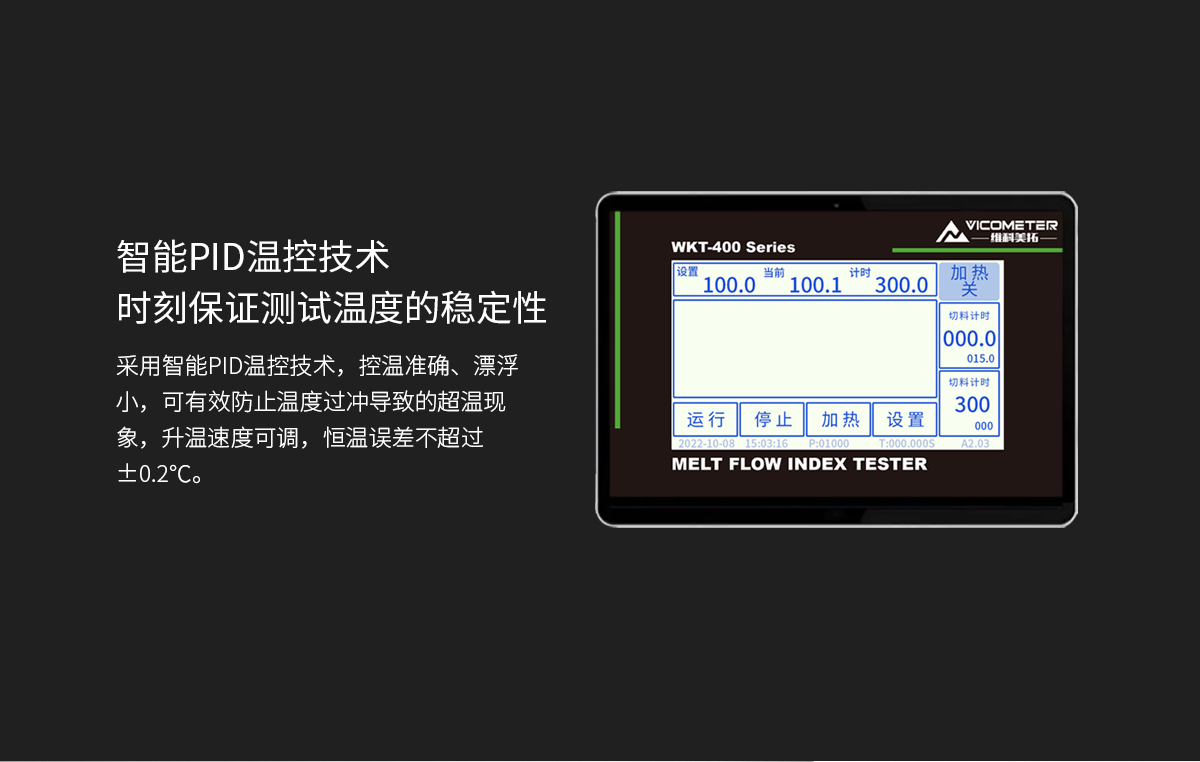

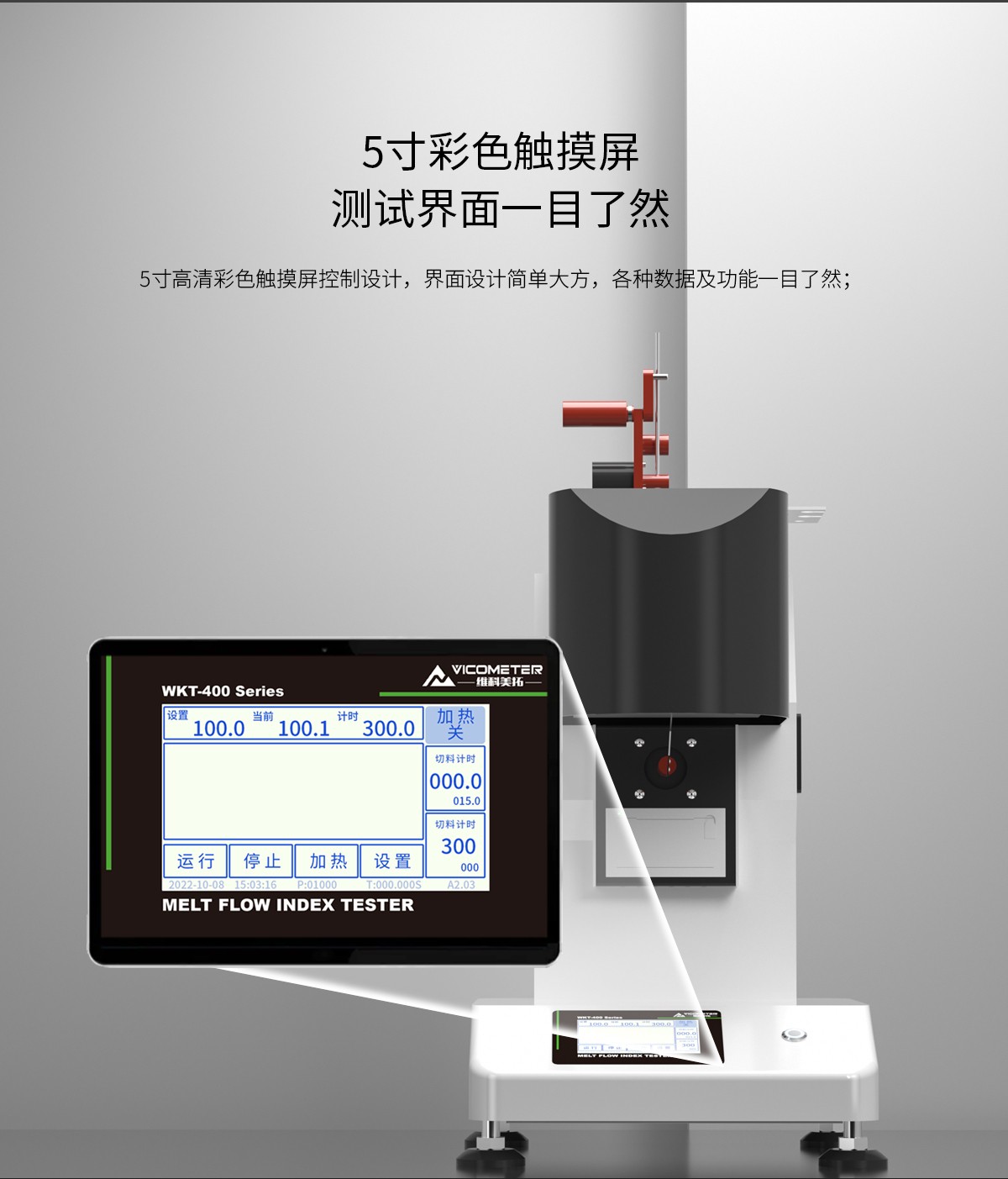

| Display | Chinese LCD display, touch screen operation |
| Overall Dimensions | L 290 × W 410 × H 630 (mm) |
| Power Supply | AC220V ±10% 50HZ |
| Max Power | 600W |
