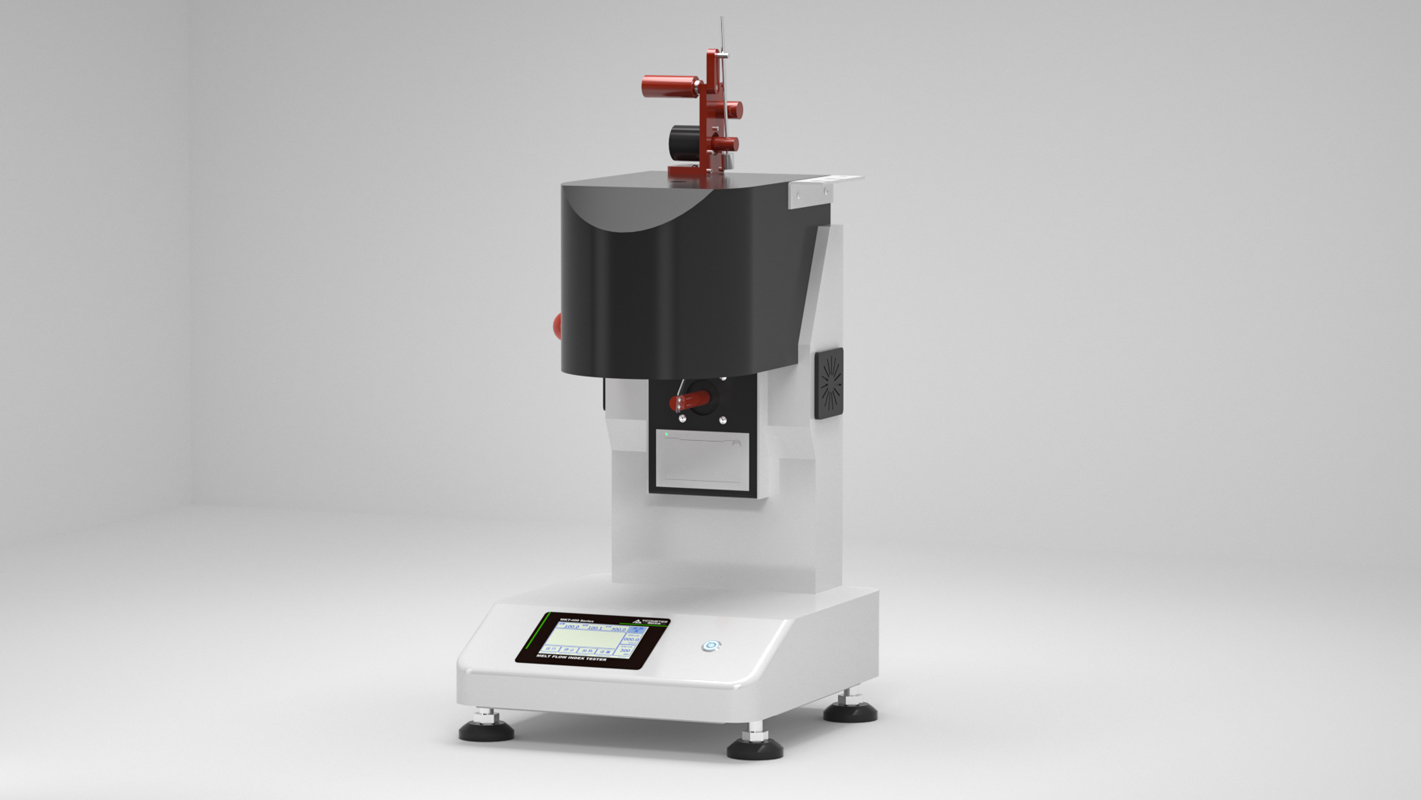

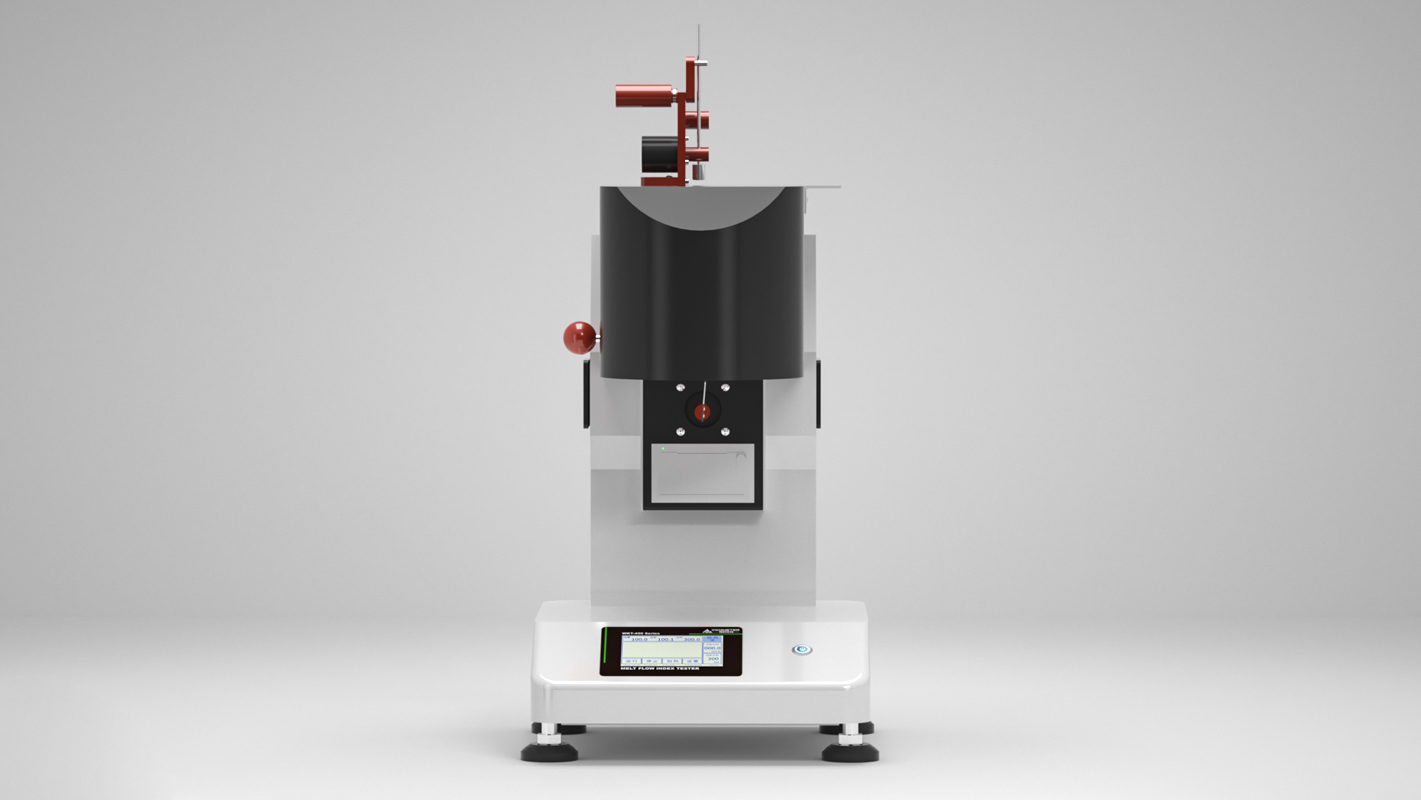

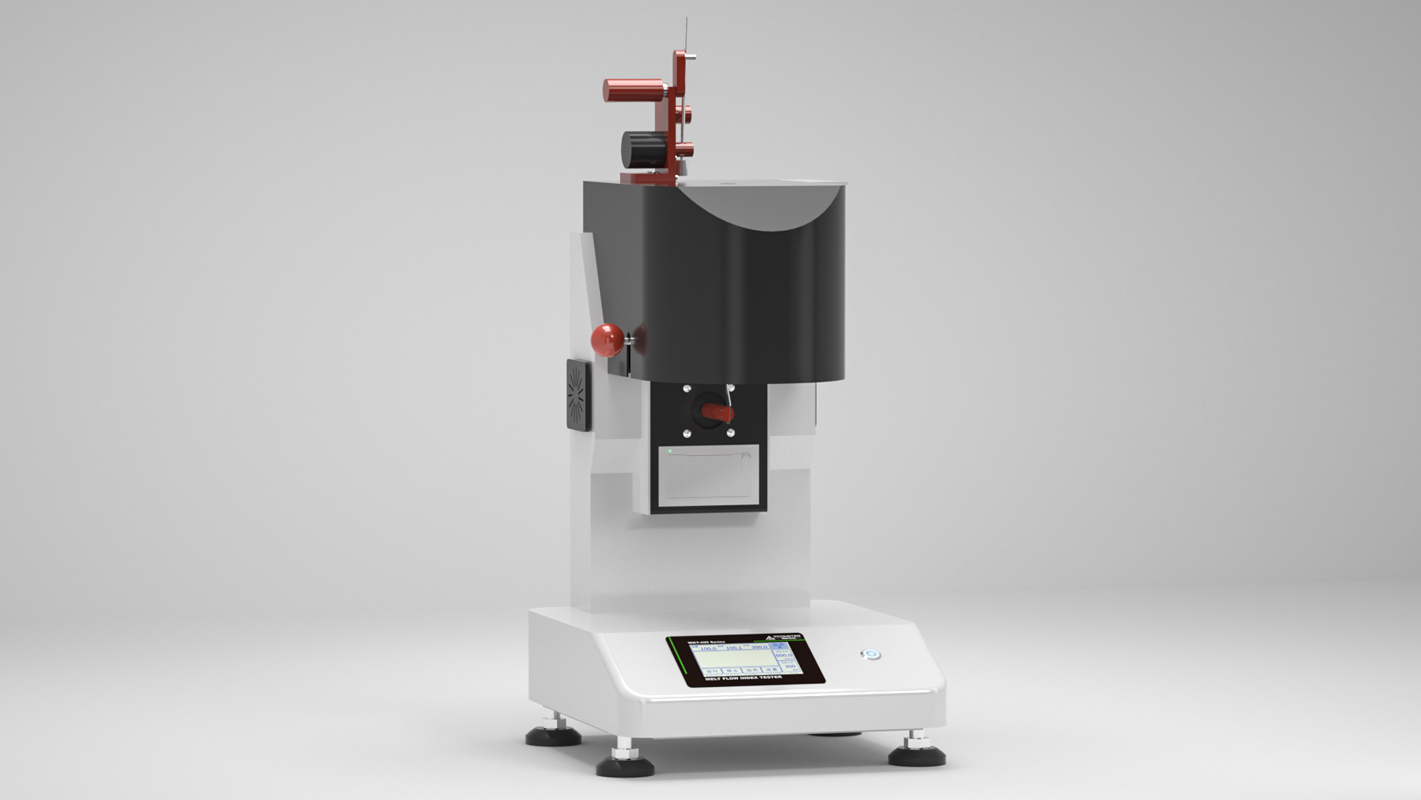

The WKT-400TC touchscreen melt flow indexer (melt indexer) integrates the mass-based (MFR) and volume-based (MVR) methods in one instrument, with a large touchscreen display and operation and an integrated manual/automatic cutting design. Designed and manufactured to authoritative standards, it determines the melt flow rate (MFR and MVR) of various plastics and resins in the viscous flow state. It is suitable for engineering plastics with high melting temperatures such as polycarbonate, polyarylsulfone, fluoroplastics and nylon, as well as plastics with lower melting temperatures such as polyethylene (PE), polystyrene (PS), polypropylene (PP), ABS resin, polyoxymethylene (POM) and polycarbonate (PC) resin. It is widely used in plastics production, plastic products, petrochemicals and other industries, as well as in universities, research institutes and commodity inspection departments.
Product Details
Technical Specifications
| Model | WKT-400TC |
| Test Method | Mass Method (MFR) + Volume Method (MVR) |
| Printing | Automatic Print Output via Micro Thermal Printer |
| Extrusion and Discharge Section | Die diameter: Φ2.095±0.005 mm; die length: 8.000±0.025 mm |
| Barrel diameter: Φ9.550±0.025 mm; barrel length: 152±0.100 mm | |
| Piston head diameter: 9.475±0.015 mm; piston head length: 6.350±0.100 mm | |
| Standard Test Loads | Full set of weights, 8 levels in total |
| Level 1: 0.325kg = (piston rod + weight tray + heat-insulating sleeve + No. 1 weight body) = 3.187N | |
| Level 2: 1.200kg (0.325kg + No. 2 0.875kg weight) = 11.77N | |
| Level 3: 2.160kg = (0.325kg + No. 3 1.835kg weight) = 21.18N | |
| Level 4: 3.800kg = (0.325kg + No. 4 3.475kg weight) = 37.26N | |
| Level 5: 5.000kg = (0.325kg + No. 5 4.675kg weight) = 49.03N | |
| Level 6: 10.000kg = (0.325kg + No. 5 4.675kg weight + No. 6 5.000kg weight) = 98.07N | |
| Level 7: 12.500kg = (0.325kg + No. 5 4.675kg weight + No. 6 5.000kg weight + No. 7 2.500kg weight) = 122.58N | |
| Level 8: 21.600 kg = (0.325kg + No. 2 0.875kg weight + No. 3 1.835kg weight + No. 4 3.475kg weight + No. 5 4.675kg weight + No. 6 5.000kg weight + No. 7 2.500kg weight + No. 8 2.915kg weight) = 211.82N | |
| Temperature Range | Room temperature – 450℃ (500℃ optional) |
| Temperature Accuracy | ±0.2℃ |
| Display Resolution | 0.1℃ |
| Cutting Mode | Optional manual or automatic cutting |
| Temperature Recovery Time | Less than 4 min |
| Measuring Range | 0.1～300g／10min(MFR)、0.1～8000cm³/10min（MVR） |
| Timing Accuracy | 0.1s |
| Piston Displacement Accuracy | 0.01mm |
| Data Storage | 20 automatic mass-method and volume-method results |
| Display | Chinese LCD display, touch screen operation |
| Overall Dimensions | L 290 × W 410 × H 630 (mm) |
| Power Supply | AC220V ±10% 50HZ |
| Max Power | 600W |
