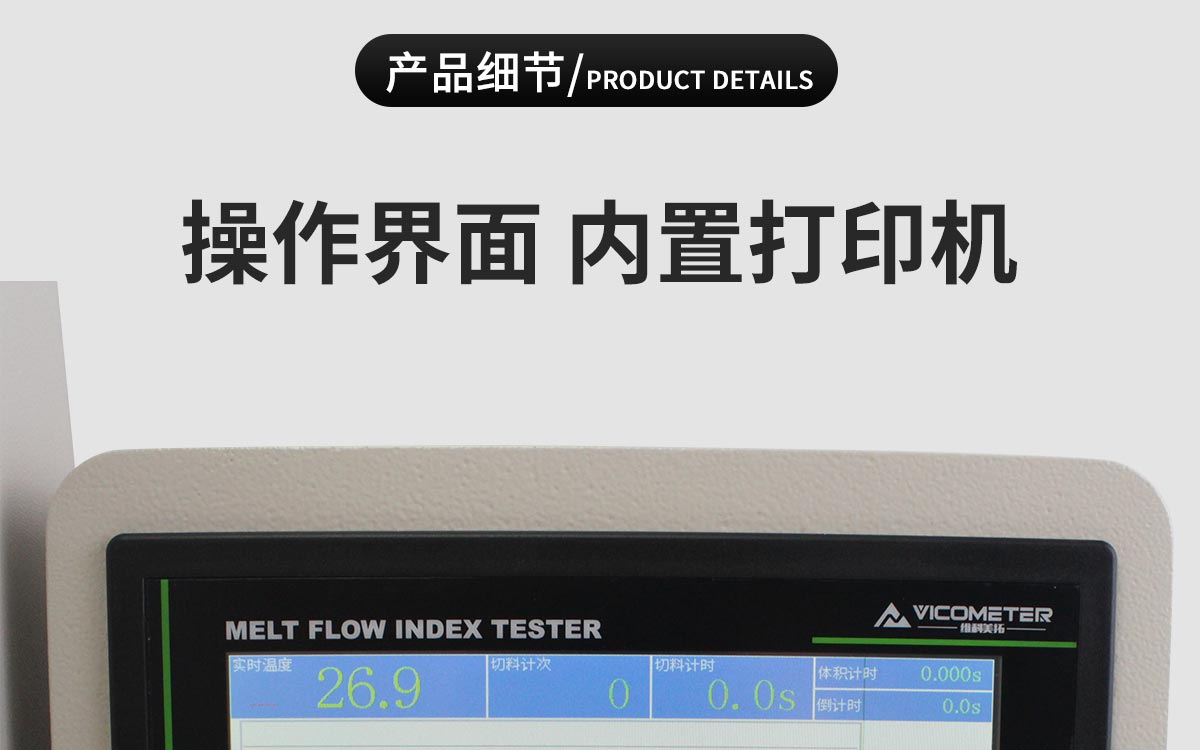

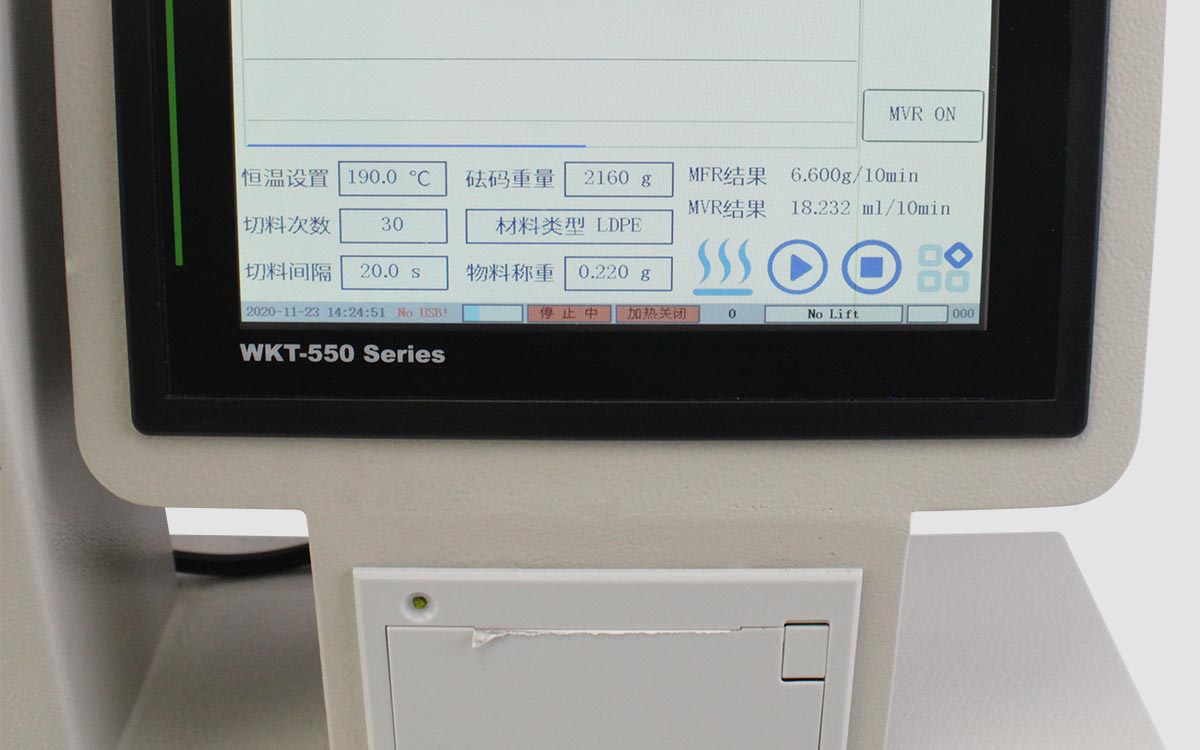

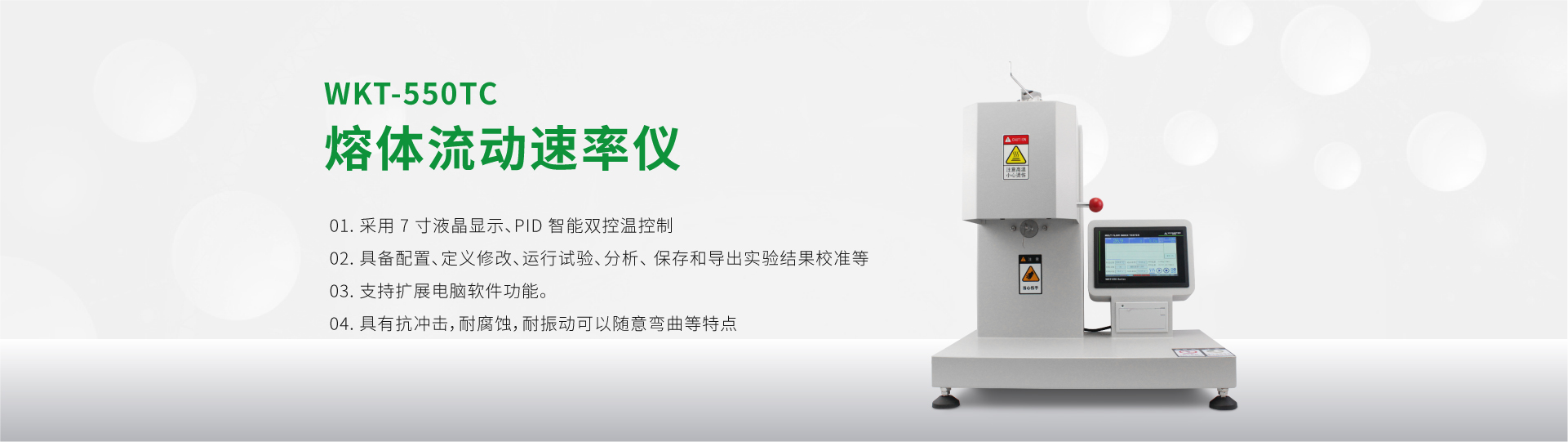

7-inch LCD display with intelligent dual PID temperature control
Configuration, definition editing, test execution, analysis,
saving and export of test results, calibration, etc.,
with optional expansion to PC software.
Impact-resistant, corrosion-resistant, vibration-resistant and freely bendable
Product Details
Technical Specifications
| Model | WKT-550TC |
| Temperature Range | 50-450℃ |
| Temperature Accuracy | ±0.2℃ |
| Temperature Recovery Time | 2min |
| Test Method | MFR Mass Method, MVR Volume Method |
| Test Range | 0.1-80g/10min（MFR）,0.1-3000g/10min(MVR) |
| Timing Accuracy | 0.1 s |
| Max Cuts | 999 times |
| Max Cut Time | 999 s |
| Operating Conditions | Ambient temperature 10℃-40℃; relative humidity 30%-80%; no corrosive media and no strong air convection in the surroundings; no vibration and no strong magnetic field interference in the surroundings |

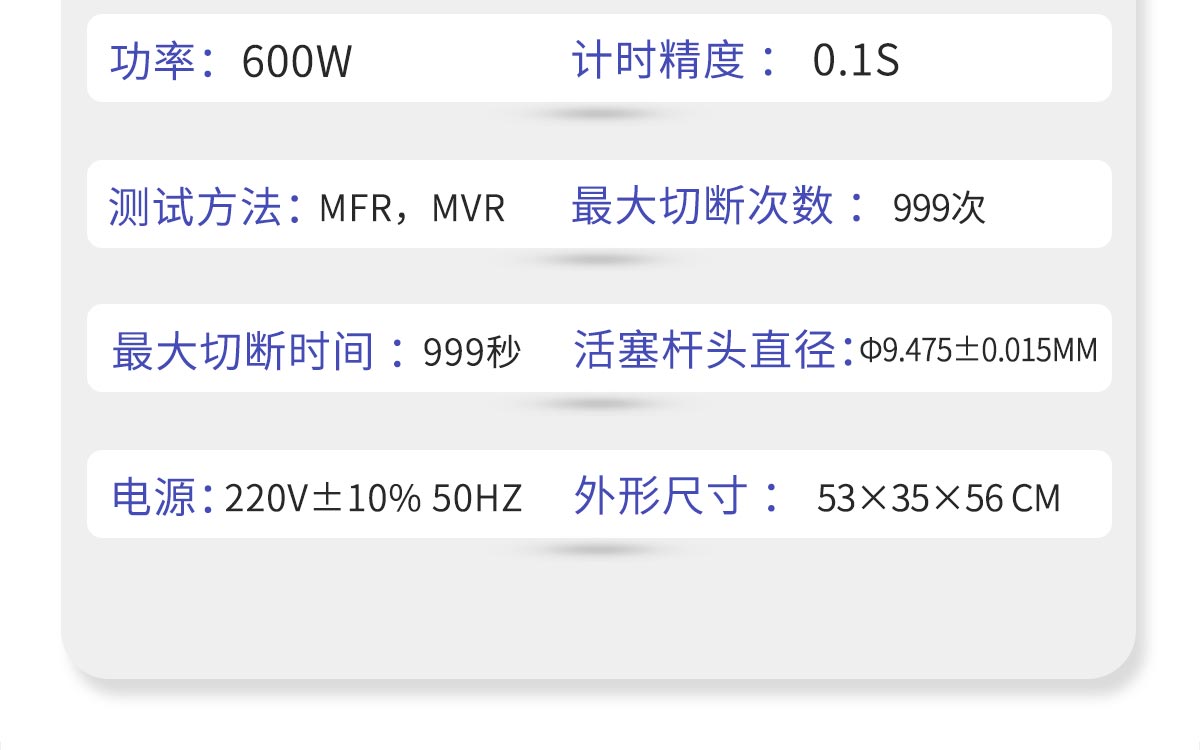

| Power | 600W |
| Power | 220V±10% 50Hz |

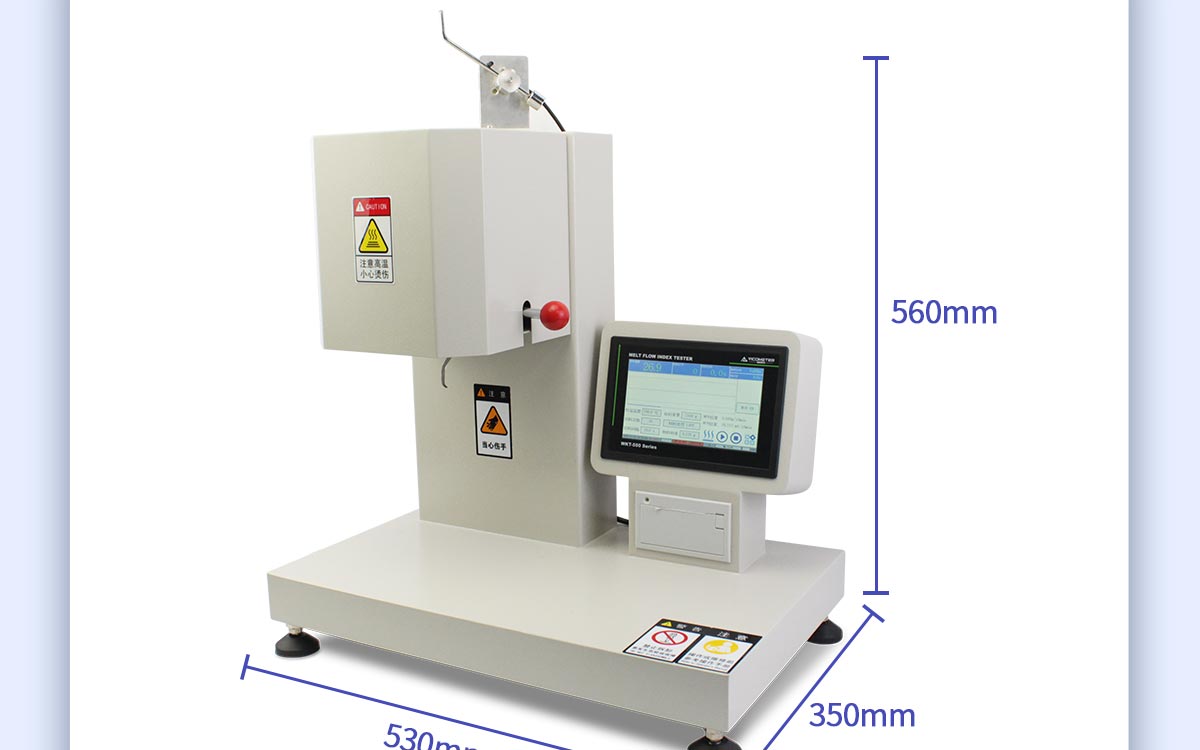

| Overall Dimensions | 53×35×56 CM (L×W×H) |
| Cutting Mode | Integrated Manual and Automatic Cutting |
| Extrusion and Discharge Section | |
| Extrudate Outlet | Diameter φ2.095±0.005mm Length 8.000±0.025mm |
| Barrel Spec | Diameter φ9.550±0.025mm Length 152±0.1 mm |
| Piston Head Diameter | φ9.475±0.015mm |
| Piston Head Length | 6.350±0.100mm |
| Eight Levels of Standard Test Force | |
| Level 1 | 0.325kg = (Piston Rod + Weight Tray + Insulating Sleeve + No.1 Weight) = 3.187N |
| Level 2 | 1.200 kg = (0.325 + No. 2 0.875 weight) = 11.77 N |
| Level 3 | 2.160 kg = (0.325 + No. 3 1.835 weight) = 21.18 N |
| Level 4 | 3.800 kg = (0.325 + No. 4 3.475 weight) = 37.26 N |
| Level 5 | 5.000 kg = (0.325 + No. 5 4.675 weight) = 49.03 N |
| Level 6 | 10.000 kg = (0.325 + No. 5 4.675 weight + No. 6 5.000 weight) = 98.07 N |
| Level 7 | 12.500 kg = (0.325 + No. 5 4.675 weight + No. 6 5.000 + No. 7 2.500 weight) = 122.58 N |
| Level 8 | 21.600 kg = (0.325 + No. 2 0.875 + No. 3 1.835 + No. 4 3.475 + No. 5 4.675 + No. 6 5.000 + No. 7 2.500 + No. 8 2.915 weights) = 211.82 N |
