The WKT-1522 low-temperature closed-cup flash point tester uses advanced microcomputer technology with strong anti-interference capability for more stable and reliable system operation. It is a new-generation automated product designed and manufactured in accordance with GB/T 5208, Rapid Equilibrium Closed Cup Method, and also meets the requirements of ISO 1523 and ISO 3679. The instrument features automatic heating and cooling temperature control, automatic ignition, automatic printout, automatic cooling and automatic flash point display, as well as self-diagnostics. It is widely used in petroleum, chemicals, coatings, paints, electric power, commodity inspection, universities, research and urban environment departments.
Product Details

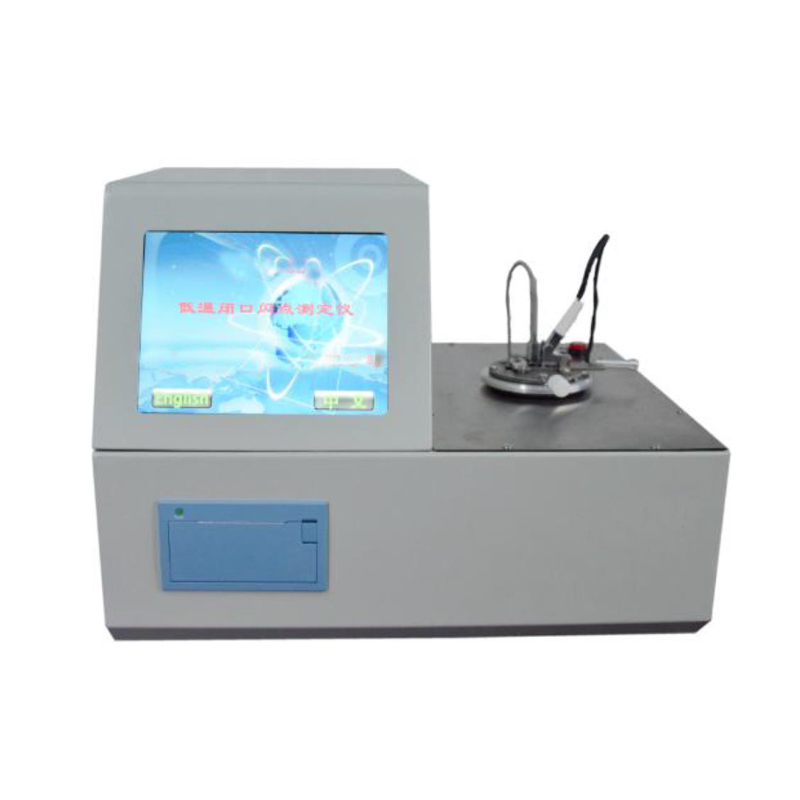

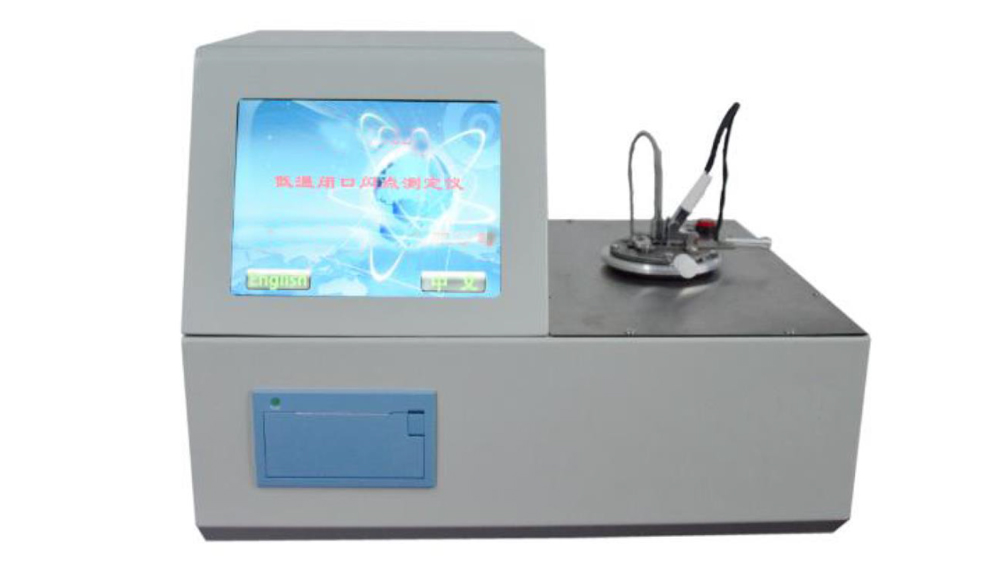

WKT-1522 Low-Temperature Closed-Cup Flash Point Tester
(Click image to enlarge)
The WKT-1522 low-temperature closed-cup flash point tester uses advanced microcomputer technology with strong anti-interference capability for more stable and reliable system operation. It is a new-generation automated product designed and manufactured in accordance with GB/T 5208, Rapid Equilibrium Closed Cup Method, and also meets the requirements of ISO 1523 and ISO 3679. The instrument features automatic heating and cooling temperature control, automatic ignition, automatic printout, automatic cooling and automatic flash point display, as well as self-diagnostics. It is widely used in petroleum, chemicals, coatings, paints, electric power, commodity inspection, universities, research and urban environment departments.
The WKT-SR10 fully automatic water-soluble acid tester has the following features:
8-inch color LCD touchscreen for intuitive, convenient operation and clear display
Simple operation, rational structure, accurate measurement and stable performance
Original imported Renesas single-chip microcomputer and imported high-precision PT100 temperature sensor
Semiconductor cooling technology for rapid cooling, greatly reducing test time
Standard aluminum test cup; brass oil cup optional for flash point testing of corrosive samples
Built-in high-precision flash point detection sensor with millisecond-level detection time
Cooling, heating, ignition, detection and printing—fully automatic test process
Automatic atmospheric pressure correction with calculated correction values
Simulated tracking display of the temperature-rise versus test-time function curve
Time-stamped history records, storage for 150 records
Full Chinese/English interface display (optional)
Technical Specifications
| Applicable Standards | GB/T 5208 |
| Temperature Range | -30°C to 100°C (below -20°C requires a water chiller) |
| Resolution | 0.1℃ |
| Accuracy | ±0.5℃ |
| Repeatability | Absolute difference between two test results less than 2°C (same operator) Absolute difference between two test results less than 3°C (different operators) |
| Test Cup | Aluminum; brass (optional) |
| Ignition Method | Gas flame, electronic ignition (optional) |
| Cooling Method | Semiconductor Cooling |
| Self-Check Functions | Detection System |
| Power | ≤300W |
| Ambient Temperature | 5℃～45℃ |
| Relative Humidity | 10%～80%Rh |
| Power Supply | 220V±10％ 50Hz |
