WKT-VST600C Automatic Cooled HDT & Vicat Tester

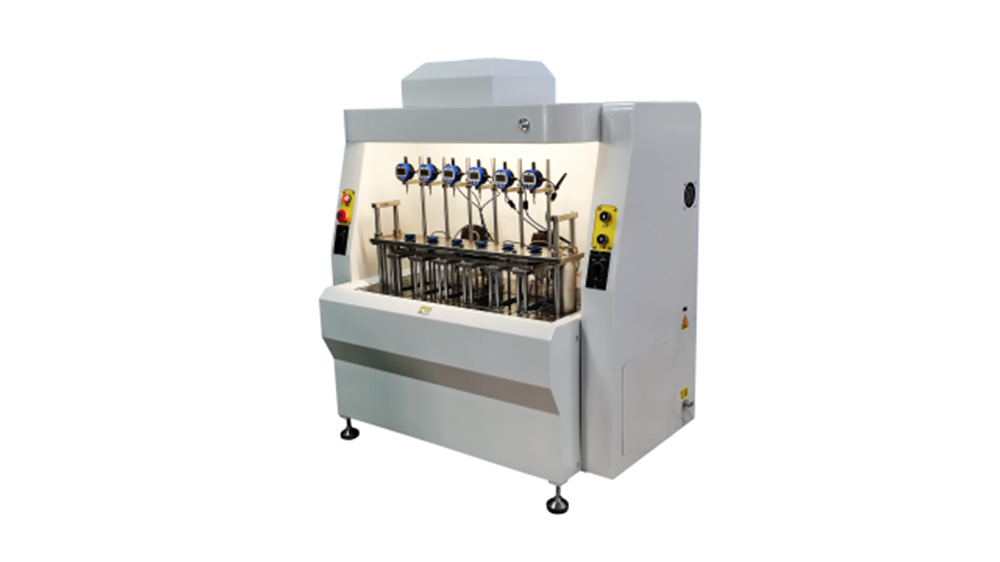

The VicoMeter WKT-VST600C HDT/Vicat softening point temperature tester uses a PLC programmable controller for temperature regulation with computer display and operation. With the specimen rack lifting function, the rack can be raised or lowered at the start or end of a test. Compressor refrigeration enables rapid continuous testing. The instrument is easy to operate, convenient to use, stable in performance, and highly accurate, and test temperature and deformation can be monitored in real time during the test. When the test ends, the system automatically stops heating and can print test reports and curves. The latest cooling system enables rapid switching between hot and cold oil; the French Tecumseh compressor automatically performs hot-oil unloading, refrigeration, and oil pumping, improving efficiency by more than three times. This series is an essential instrument for quality inspection agencies, universities, and in-house enterprise testing. The product complies with standards including ISO 75(E), ISO 306(E), GB/T 8802, GB/T 1633, and GB/T 1634.

The WKT-VST600C is mainly used for HDT and Vicat softening point measurement of non-metallic materials (such as plastics, rubber, nylon, and electrical insulating materials). It is widely applied to HDT and Vicat softening point testing of plastics, rubber, nylon, electrical insulating materials, and chemical building materials.

The Vicat Softening Temperature (VST) is the temperature at which a thermoplastic specimen, placed in a liquid heat-transfer medium under a specified load and a constant heating rate, is penetrated to a depth of 1 mm by a 1 mm² needle; the corresponding national standard is GB/T 1633-2000. VST is one of the indicators used to evaluate a material's heat resistance, reflecting the physical and mechanical properties of a product under heated conditions. Although VST cannot be used directly to evaluate a material's actual service temperature, it can guide quality control. The higher the Vicat softening temperature, the better the material's dimensional stability when heated and the smaller the thermal deformation — that is, the better its resistance to heat deformation, the greater its rigidity, and the higher its modulus.

The WKT-VST400DW is mainly used for HDT and Vicat softening point measurement of non-metallic materials (such as plastics, rubber, nylon, and electrical insulating materials). It is widely applied to HDT and Vicat softening point testing of plastics, rubber, nylon, electrical insulating materials, and chemical building materials.

1. GB/T 1633 "Plastics — Thermoplastic Materials — Determination of Vicat Softening Temperature (VST)"

2. GB/T 1634 "Plastics — Determination of Temperature of Deflection Under Load  Part 1: General Test Method"

3. GB/T 8802 "Determination of Softening Temperature of Plastic Pipes and Fittings"

4. ISO 75-2013 "Plastics — Determination of Temperature of Deflection Under Load"

5. ASTM D 648 "Standard Test Method for Deflection Temperature of Plastics Under Flexural Load"

6. ASTM D 1525 "Standard Test Method for Vicat Softening Temperature of Plastics"

1. Capable of Vicat softening point tests on various standard specimens

2. HDT and Vicat softening point tests can be performed simultaneously

3. Automatically calculates the required load based on the test standard and specimen dimensions

4. Two heating rates available, freely switchable, easy to operate

5. Supports multi-specimen testing with color-coded test curves, giving a clear view of the test process for each group of specimens

6. Automatically shuts off temperature control and powers down when the test is complete or the upper temperature limit is exceeded

7. 7-inch touch-screen controller for the refrigeration system, French imported compressor, and automatic hot/cold oil switching

8. Truly enables multiple continuous uninterrupted operations, cutting changeover time to under 5 minutes

9. Automatically senses oil temperature for intelligent refrigeration control, with no need for excessive manual intervention

10. Dual protection with software over-temperature protection and an external mechanical over-temperature protector, for worry-free testing

11. Versatile report settings and comprehensive report printing functions
