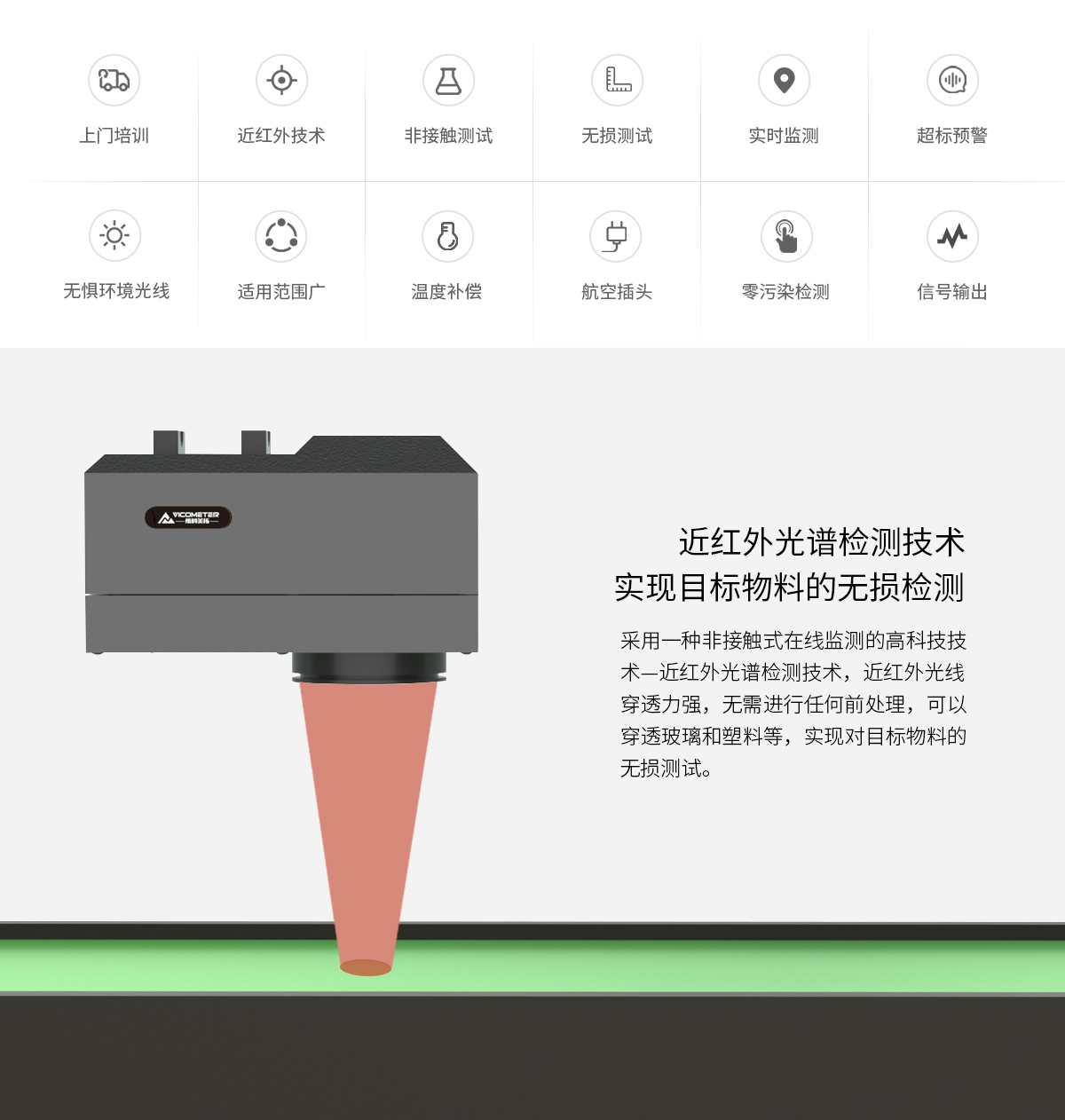

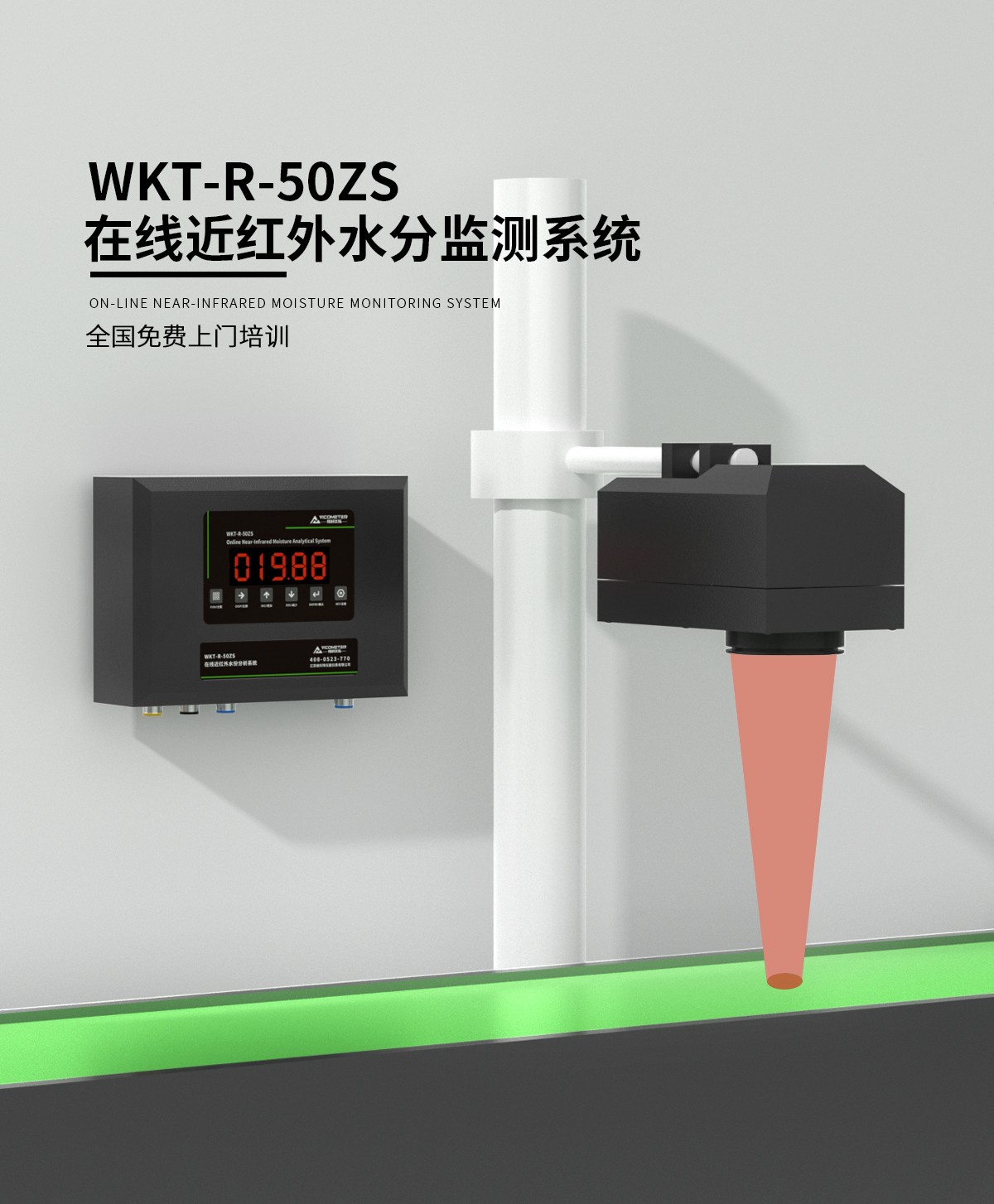

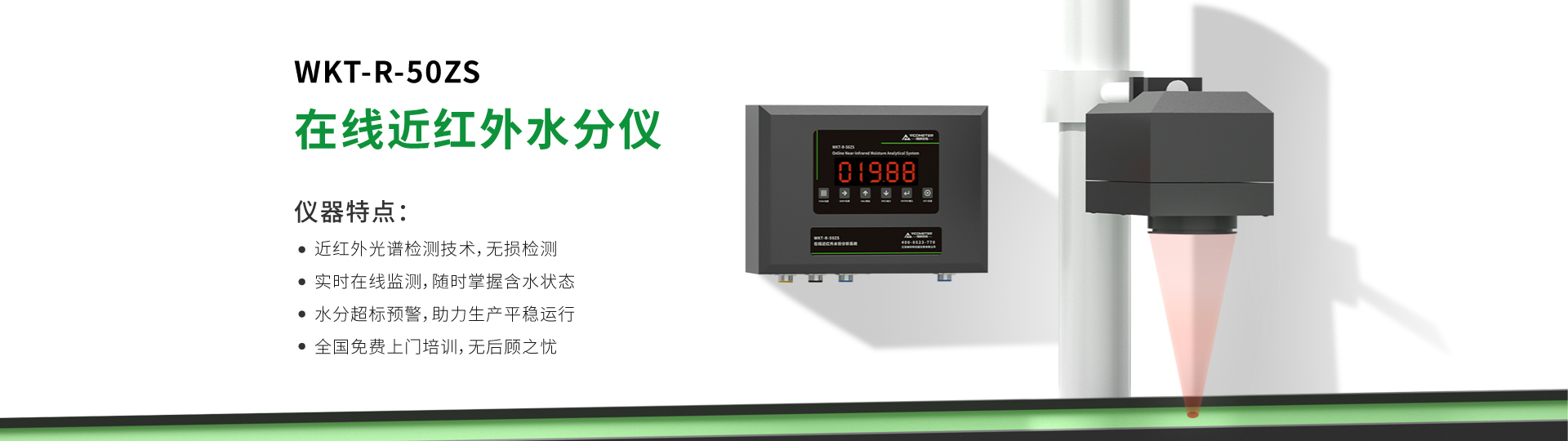

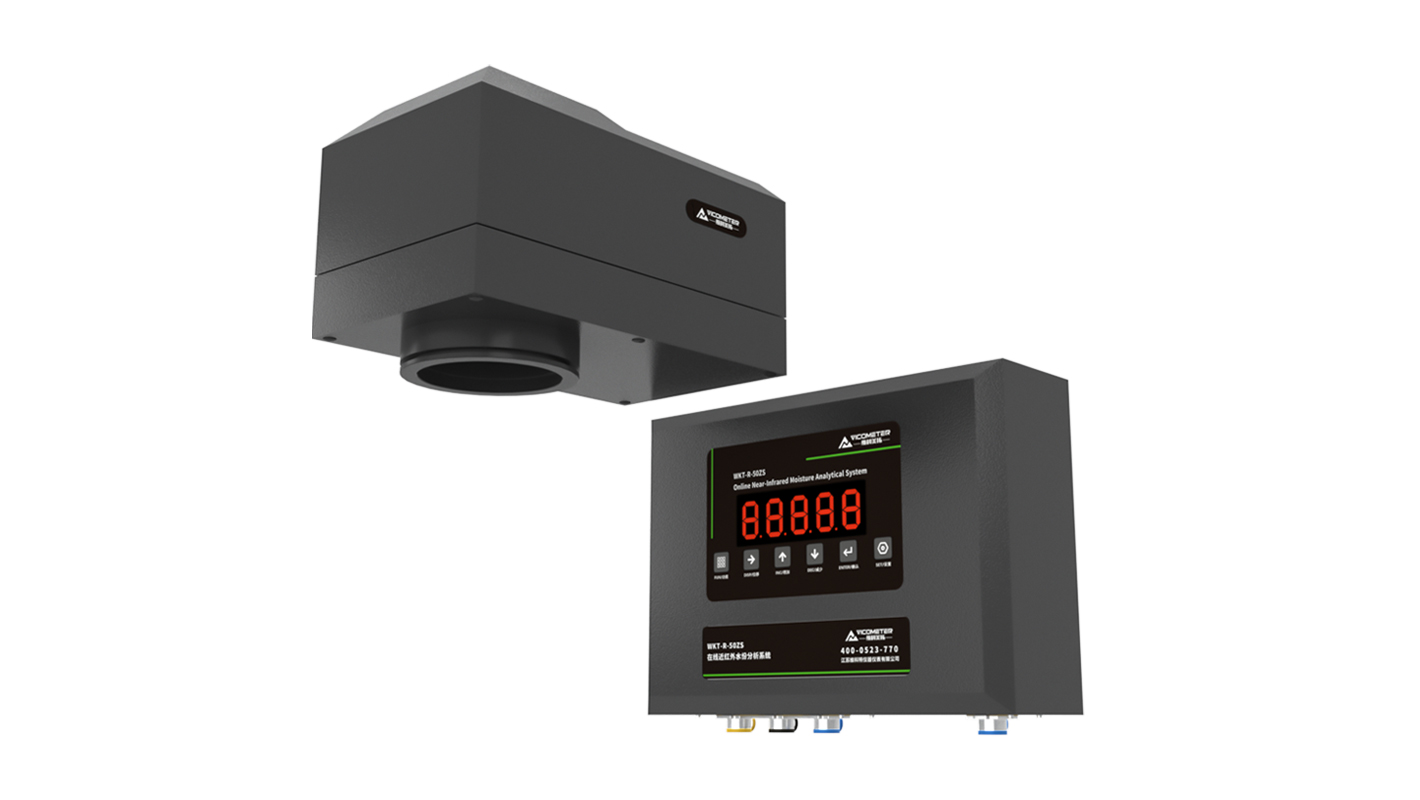

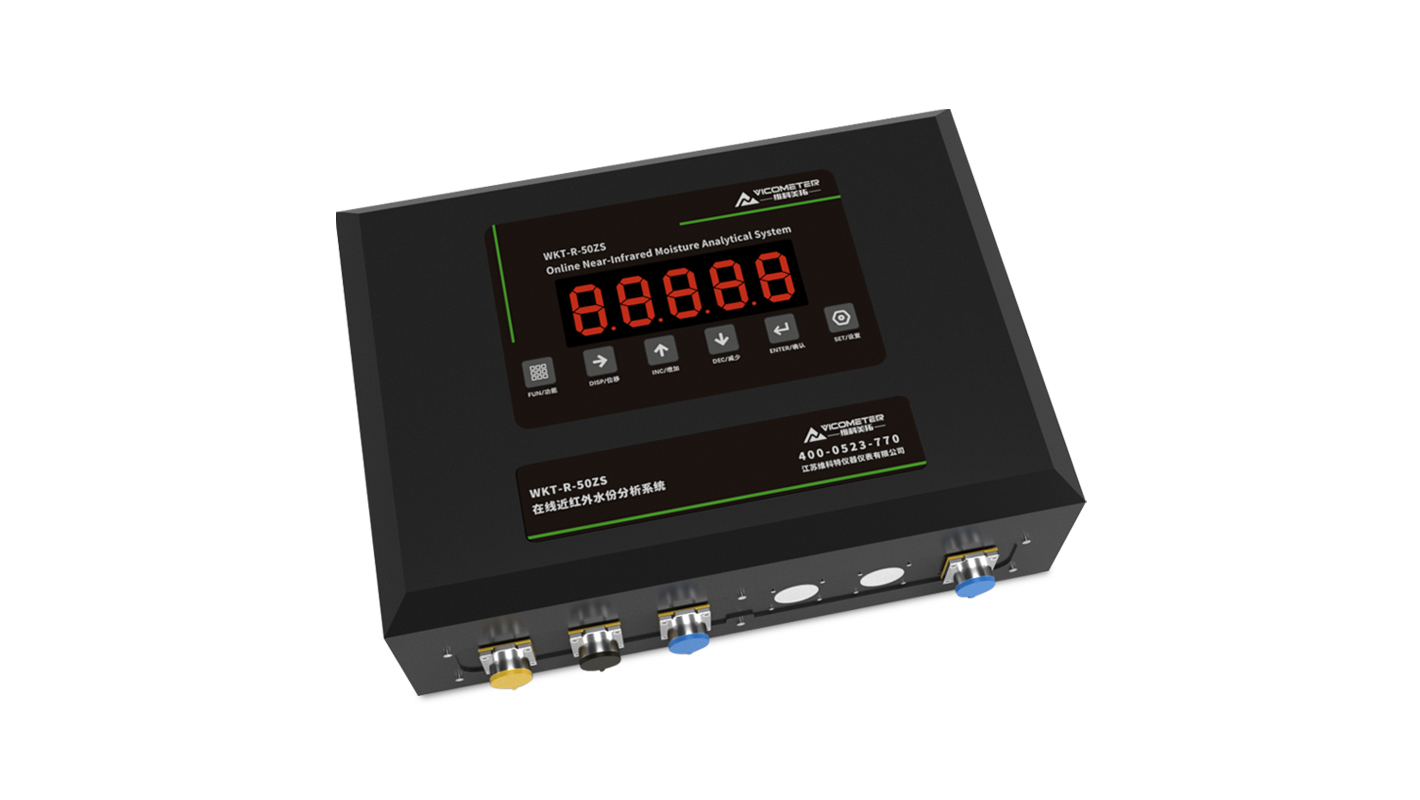

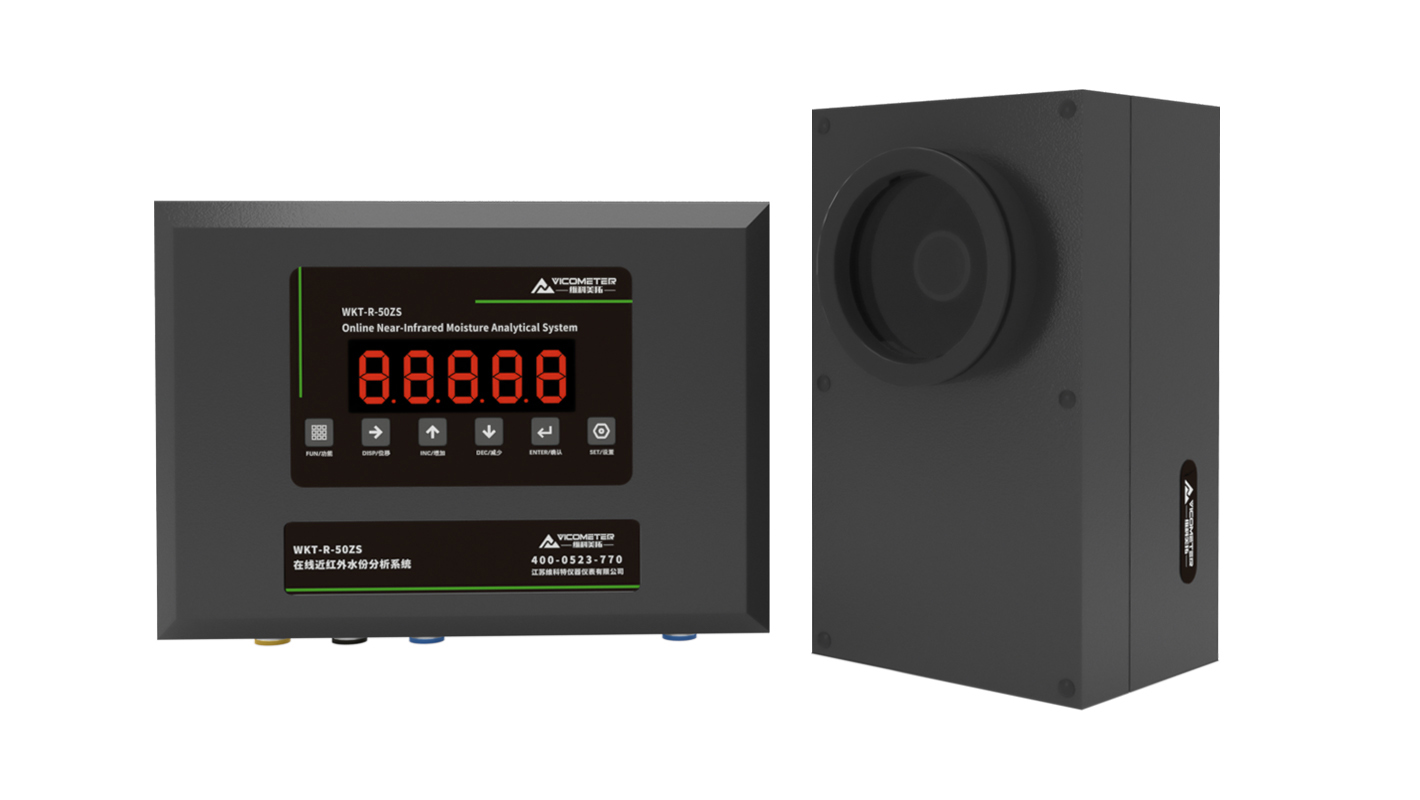

The WKT-R-50ZS online NIR analyzer serves industries needing rapid moisture determination, testing chemical raw materials, grain, wood shavings, and more online. NIR spectroscopy qualitatively and quantitatively analyzes organics: specific wavelengths pass through lens, filter wheel, and mirror onto the material; absorbed and scattered light is focused onto the NIR sensor, whose processor feeds reference and measurement signals to the host for rapid moisture display.
Product Details
Technical Specifications
| Model | WKT-R-50ZS |
| Measuring Range | 1-50% (range extendable provided the material has no water seepage) |
| Display Resolution | 0.01% |

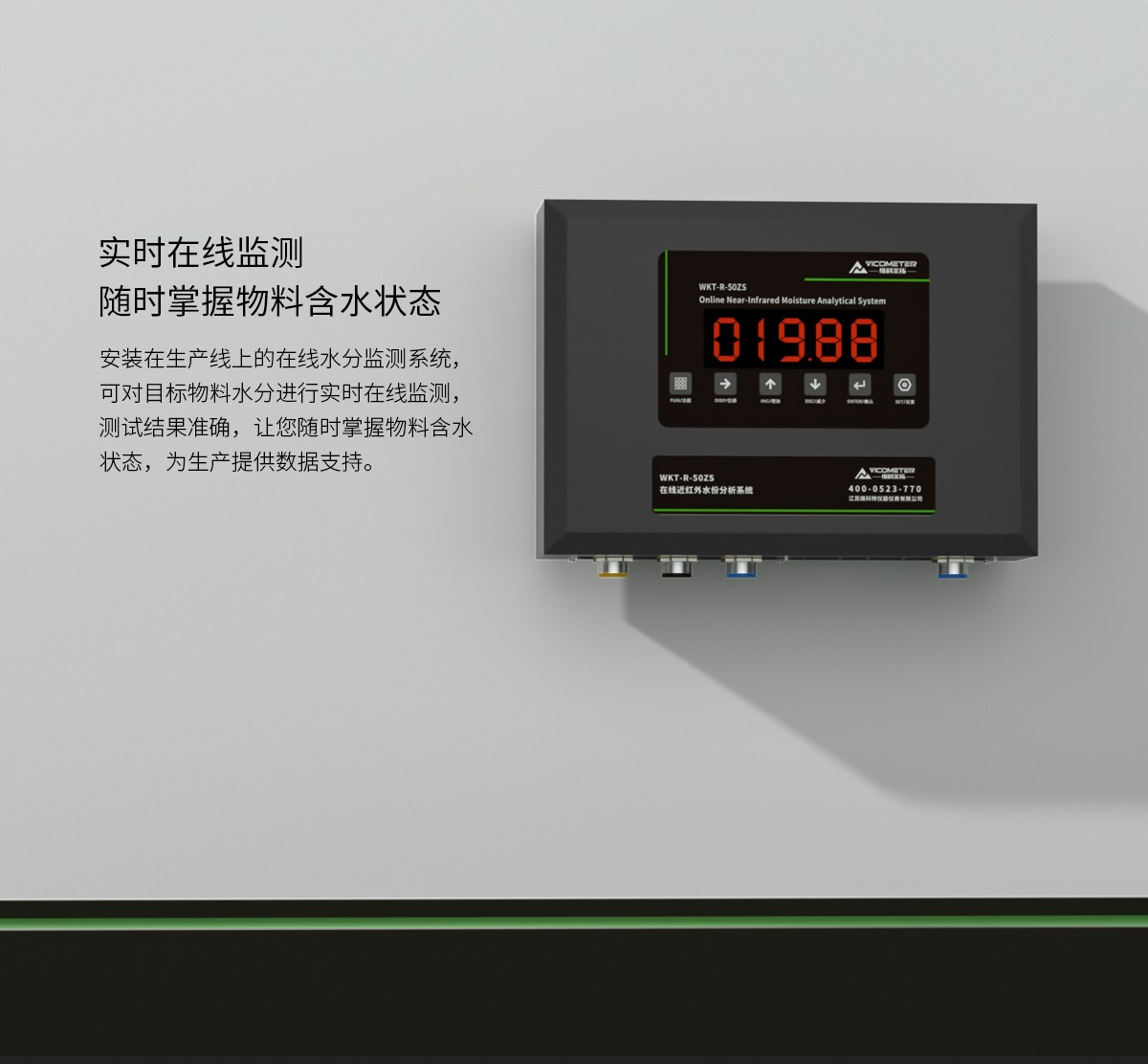

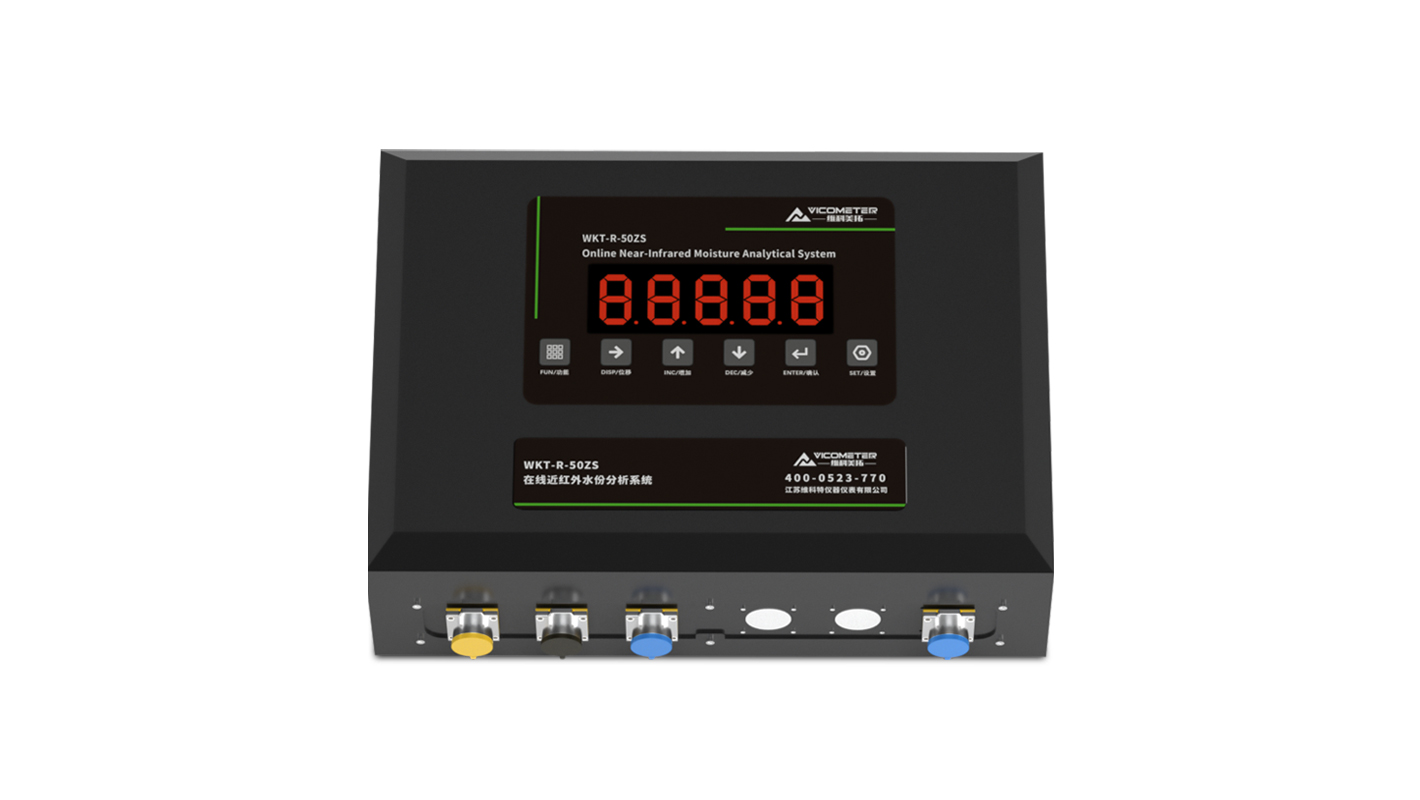

| Display | 5-digit digital tube display |
| Accuracy | ±0.1--±0.5% (varies with material texture) |
| Channels | 10 |
| Height Range | 250mm±100mm |
| Ambient Temperature | -30-60℃ Automatic temperature compensation; largely unaffected by ambient temperature changes |
| Ambient Humidity | 5-90% |
| Repeatability | ≤0.1% |
| Response Time | 0-60 seconds adjustable |
| Filter Range | 0-2.5% |

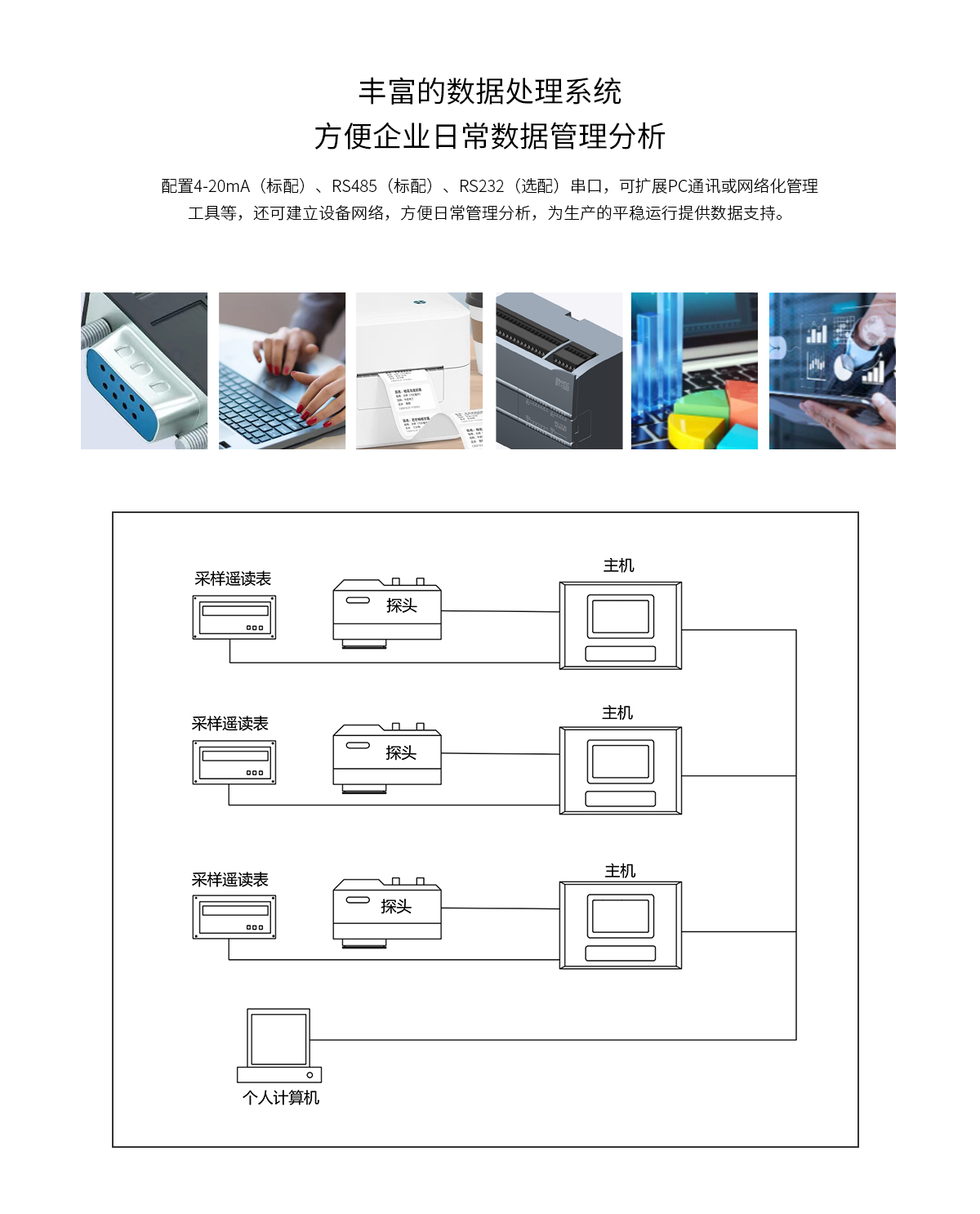

| Signal Output | Standard (4-20mA, RS485) Optional RS232, voltage signal, digital output, etc. |
| Power Consumption | 100W |
| Ingress Protection | IP65 |
| Light Interference | No light shield required for the probe; unaffected by ambient light changes, |
| Light Sampling Interval | 8ms |
| Sensor Weight | 6KG |
| Main Unit Weight | 8KG |
| Power Requirements | Voltage 220V, frequency 50HZ |

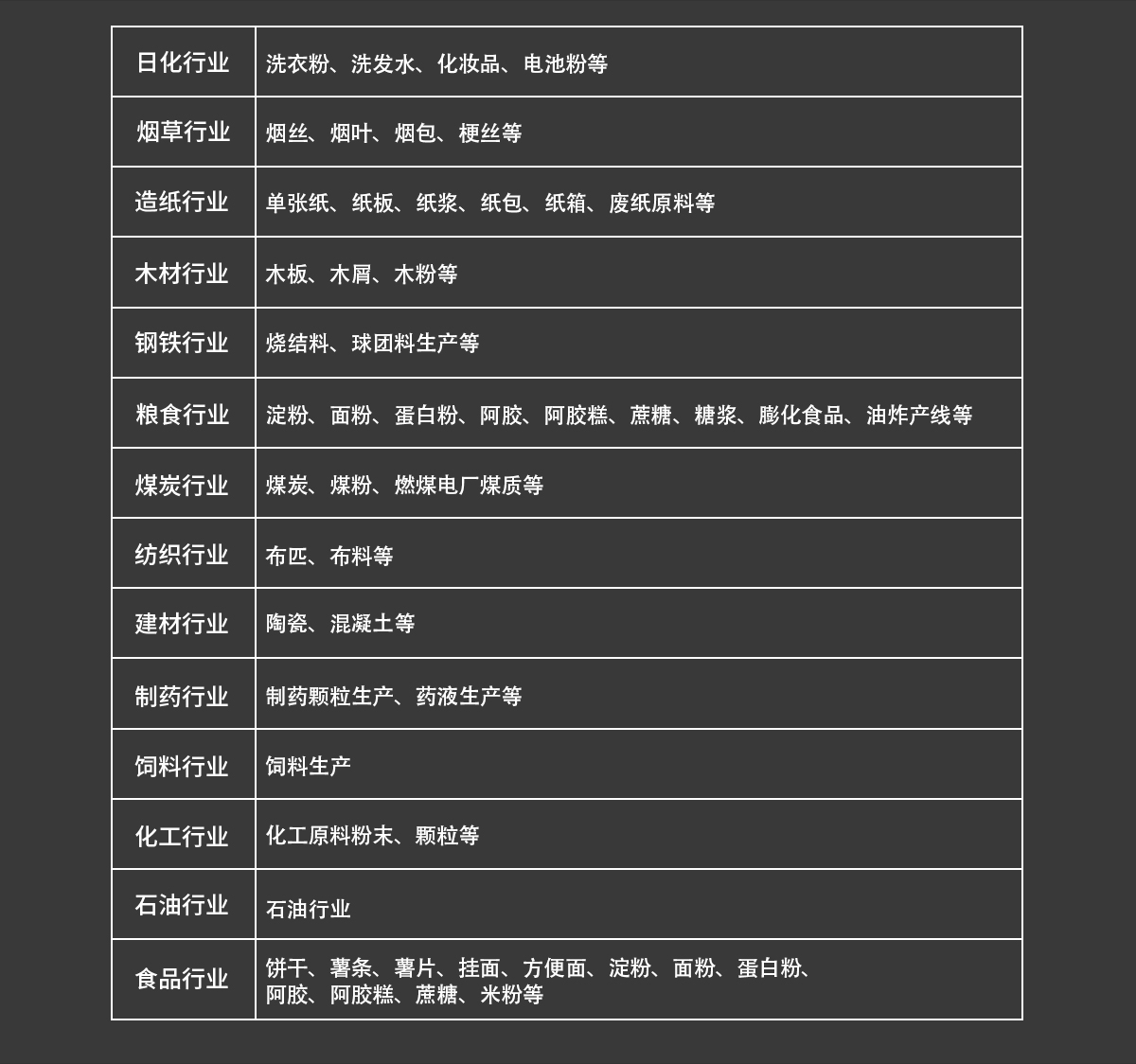

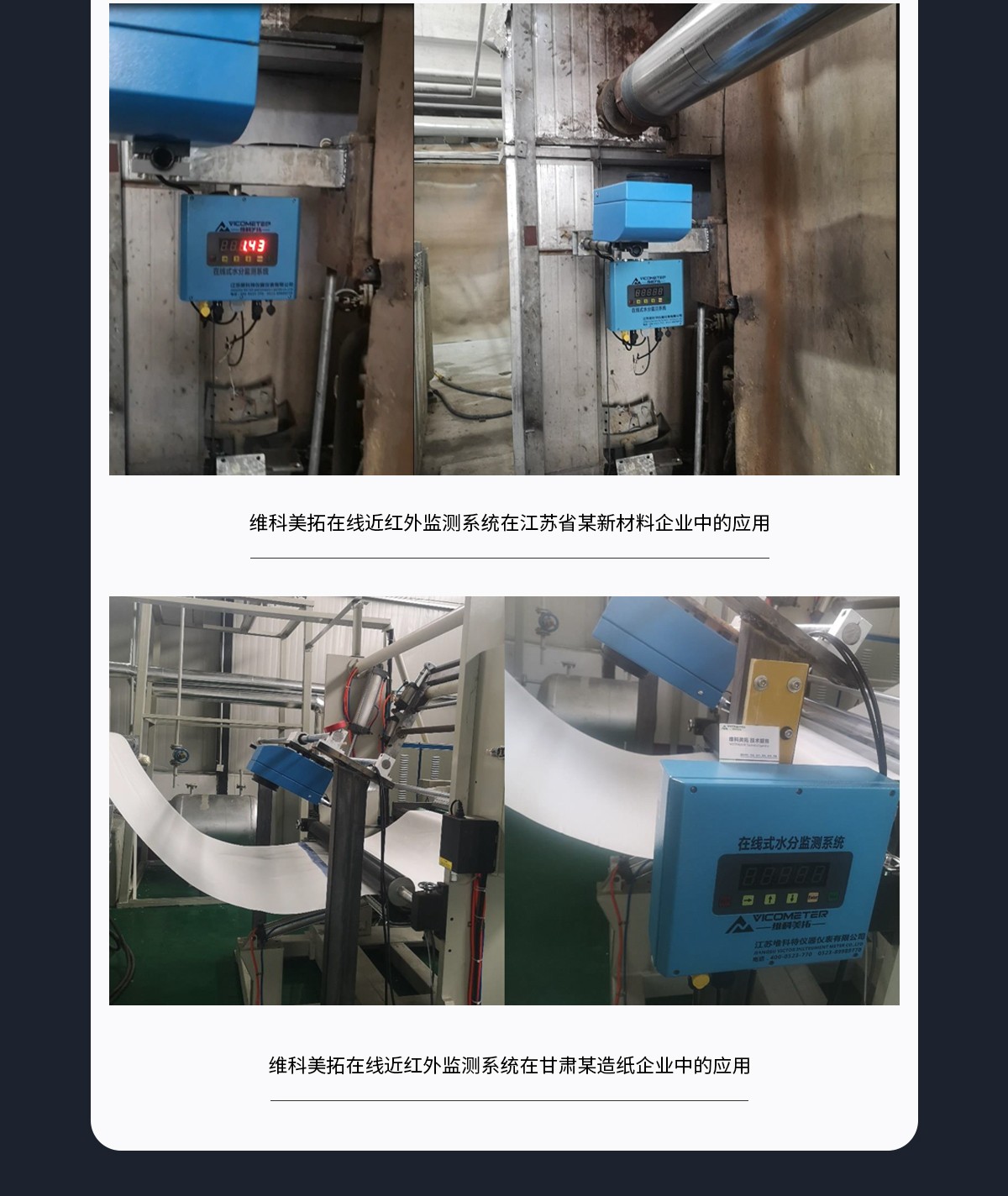

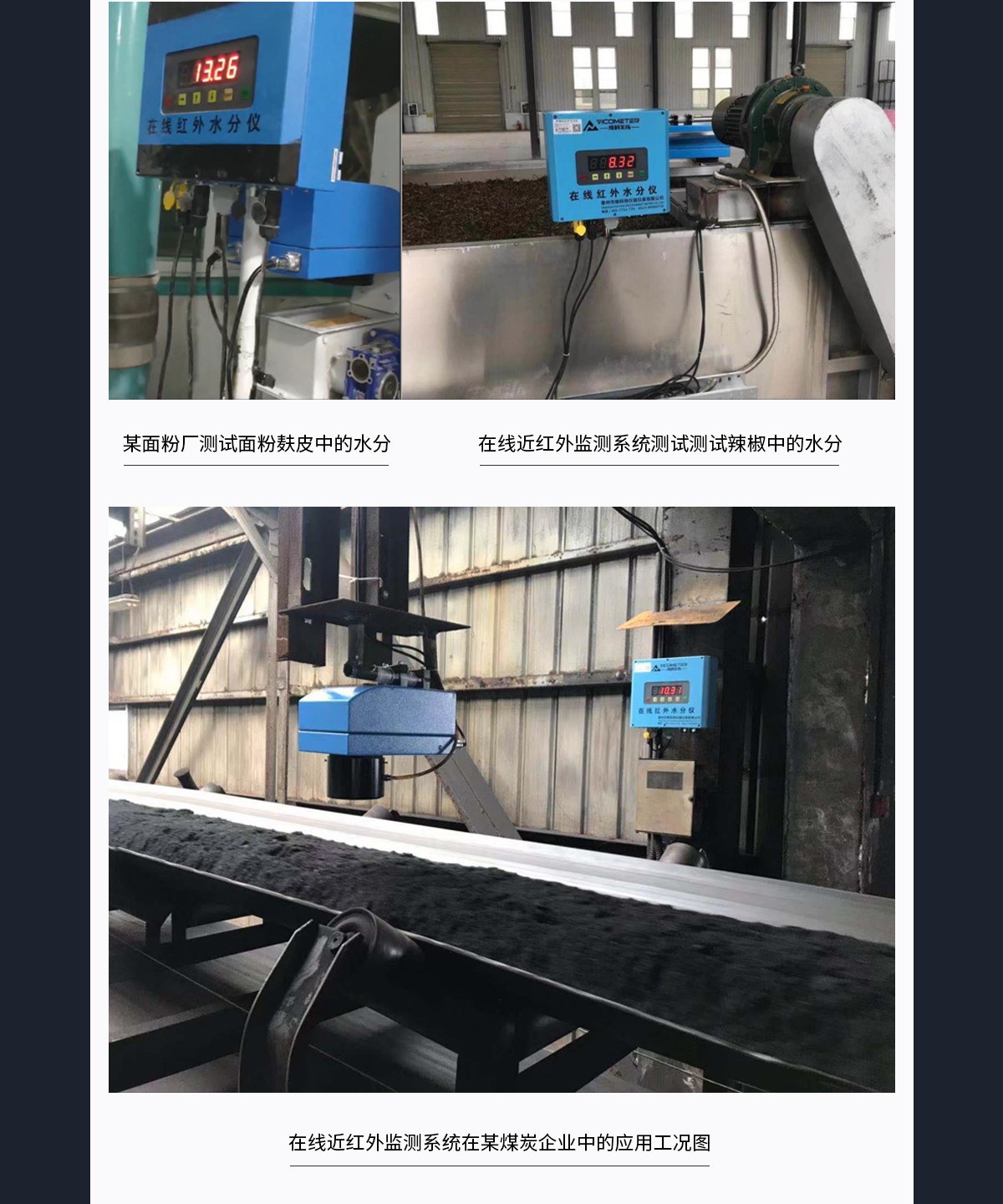

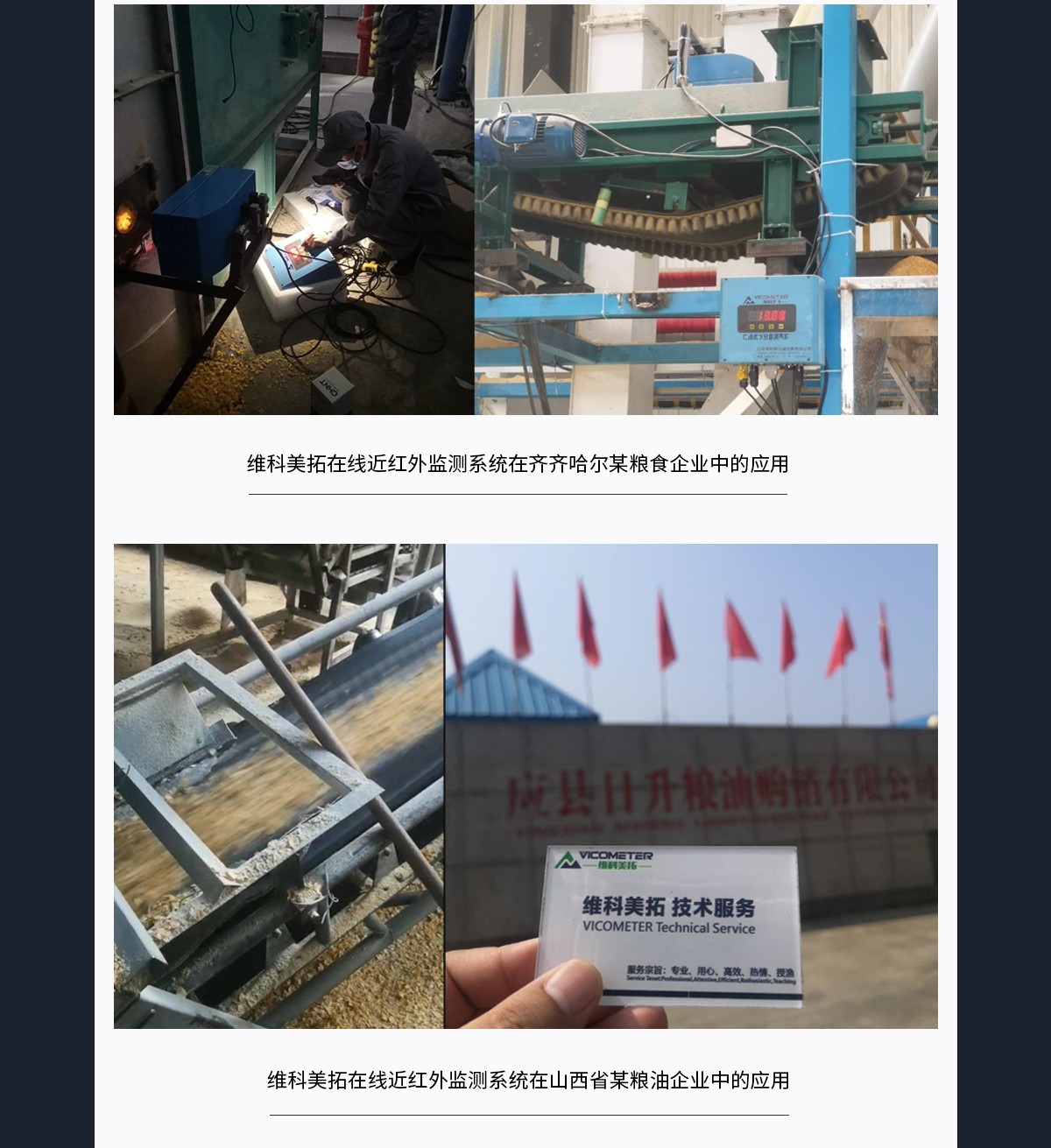

Applicable Industries
| Daily Chemical Industry | Laundry detergent, shampoo, cosmetics, battery powder, etc. |
| Tobacco | Cut tobacco, tobacco leaves, tobacco bales, stem cut, etc. |
| Paper Industry | Sheet paper, paperboard, pulp, paper bales, cartons, waste paper raw materials, etc. |
| Wood Industry | Wood boards, wood chips, wood flour, etc. |
| Steel Industry | Sinter, pellet production, etc. |
| Grain Industry | Corn, soybeans, rice, highland barley, wheat, starch, etc. |
| Coal Industry | Coal, coal powder, coal quality at coal-fired power plants, etc. |
| Food | Starch, flour, protein powder, ejiao, ejiao cake, sucrose, syrup, puffed food, frying lines, etc. |
| Textiles | Fabrics, cloth, etc. |
| Building Materials Industry | Ceramics, concrete, etc. |
| Pharmaceutical Industry | Pharmaceutical granule production, liquid medicine production, etc. |
| Feed Industry | Feed production |
| Chemicals | Chemical raw material powders, granules, etc. |
| Petroleum Industry | Crude oil downhole extraction, oil refining, etc. |
