VicoMeter On-site Training

•
•
•
•

Customer Profile

The customer purchased the VicoMeter WKT-A9 'Exquisite' Karl Fischer trace moisture analyzer together with the matching WKT-V1 Karl Fischer oven. Based on the coulometric Karl Fischer principle, the VicoMeter WKT-A9 'Exquisite' rapidly determines trace moisture in samples down to 0.001ppm, and can measure trace moisture in solids, liquids, and powders within 1 minute. The instrument features a built-in printer and can store 500 sets of data for real-time query and printing. Innovative navigation-style prompts and a built-in electronic manual make operation effortless. Complying with multiple national and international moisture determination standards, the WKT-A9 includes eight built-in moisture calculation formulas and six determination methods to meet the needs of various industries. It is widely used in the chemical, petroleum, pharmaceutical, power, food, research, and testing industries.

WKT-A9 Karl Fischer Trace Moisture Analyzer Coulometric

WKT-A9 Karl Fischer Trace Moisture Analyzer Coulometric

Coulometric (coulometry) principle, ideal for trace-level testing; 5-inch color touchscreen with smart operation, automatic result calculation, and freely configurable sample IDs; complies with multiple national standards and suits virtually every industry.

• 8 moisture calculation formulas, 6 determination methods, and 8 end-point detection algorithms


• Automatic drift compensation, automatic subtraction of ambient and background moisture, and self-diagnostic fault alerts

• One-touch start for reliable results

• Outstanding automation — connects seamlessly to the Karl Fischer oven for difficult samples

• RS232 interface for connection to a PC, printer, PLC, or LIMS


WKT-V2 Karl Fischer Oven Moisture Measurement System

WKT-V2 Karl Fischer Oven Moisture Measurement System

When measuring moisture with a Karl Fischer analyzer, most samples can be added directly to the generator cell/titration cell for simple, accurate testing. Some samples, however, cannot be added directly because their moisture is not released naturally or they undergo side reactions with the Karl Fischer reagent — for example powders, granules, pastes, and oxidizing inorganic salts.

For samples that cannot be added directly to the cell, pairing the WKT-V2 Karl Fischer oven for gas-phase extraction is the perfect solution. The sample is placed in a vial and moved onto the oven, heated to a specific temperature (up to 300˚C), and the moisture is extracted and carried into the cell by dry air or nitrogen, then measured perfectly.

VicoMeter at the Customer Site

The customer's sample is an organic substance soluble in methanol, with low moisture content and a relatively high price. The customer already had a volumetric instrument, but testing with a volumetric instrument inevitably requires a larger sample size to ensure accuracy, resulting in significant sample waste. The VicoMeter WKT-A9 'Exquisite' Karl Fischer trace moisture analyzer needs only about 50mg of sample to accurately measure its moisture content.

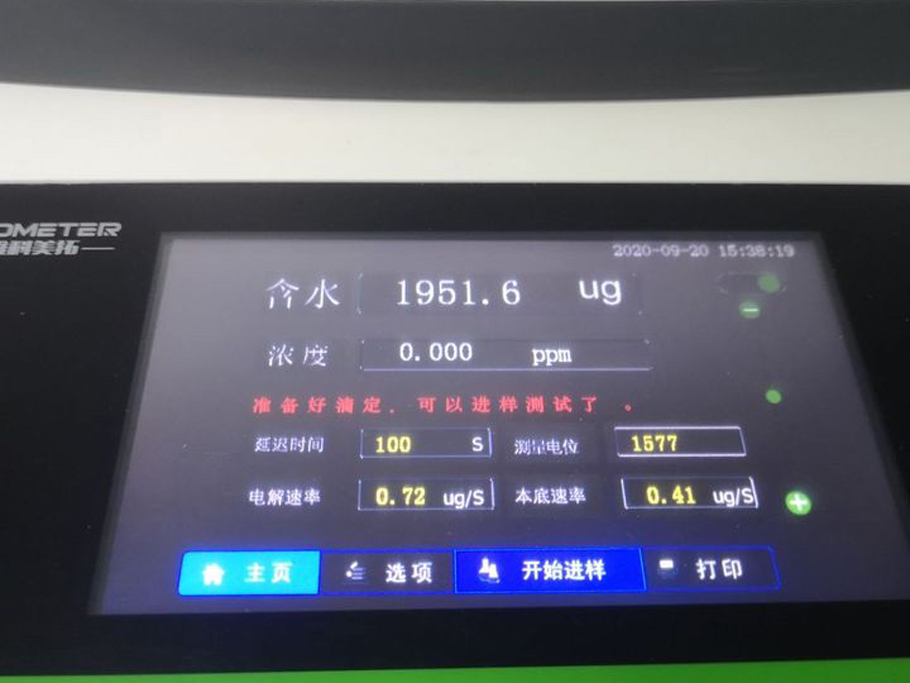

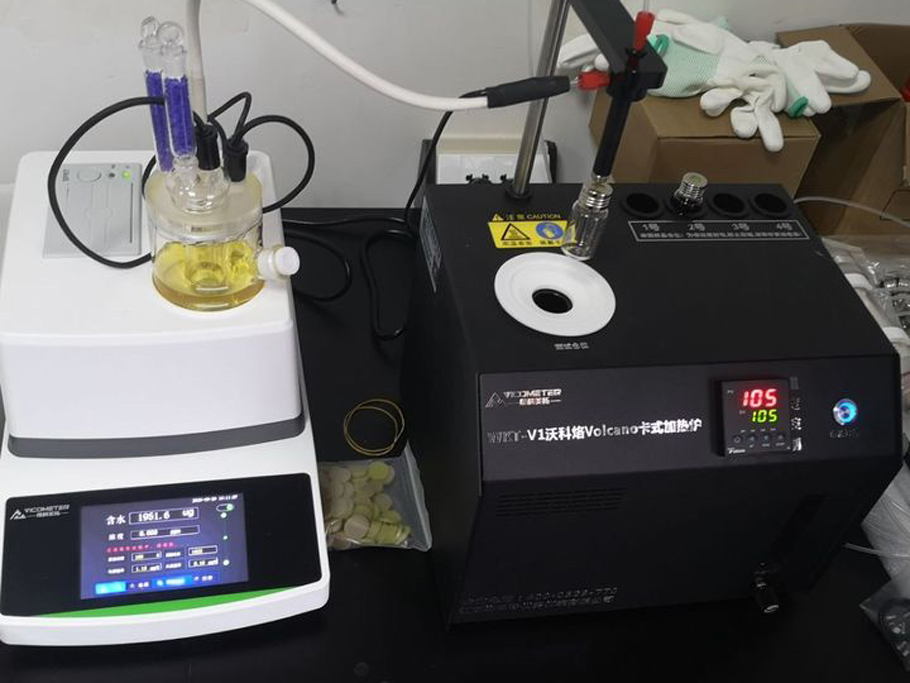

After arriving at the customer's site, the VicoMeter technical engineer first installed and commissioned the instrument, then verified it with deionized water: 2ul of deionized water was injected into the sample boat, and three tests gave results of 1937ug, 1942ug, and 1932ug — good repeatability and accurate results. The customer was very satisfied with the VicoMeter instrument. For insoluble solids and expensive samples, VicoMeter's WKT-V1-A9 is an excellent choice for moisture testing.

Customer Profile

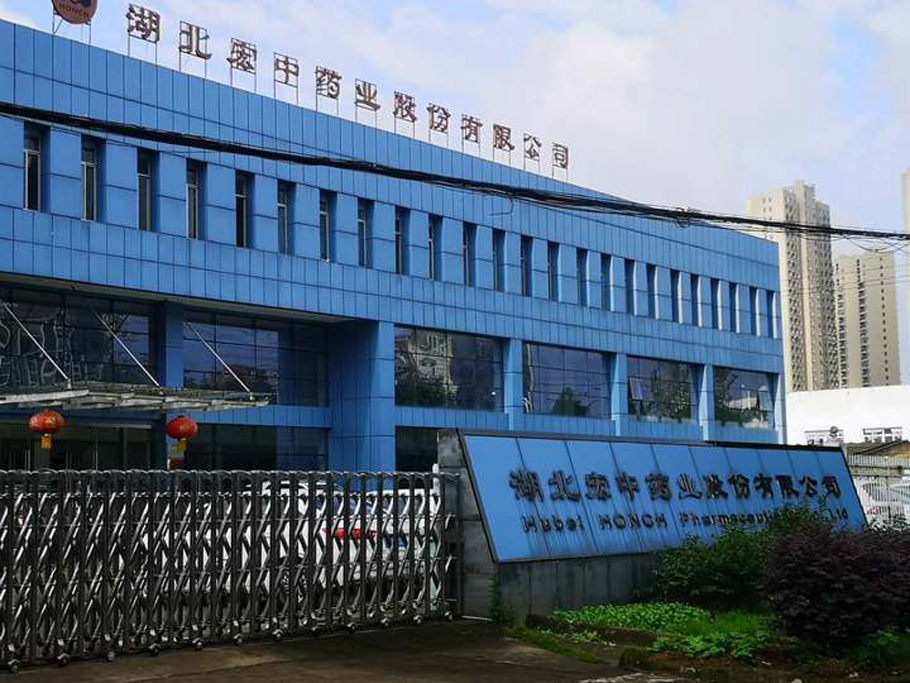

Hubei Hongzhong Pharmaceutical Co., Ltd.

(Click image to enlarge)

Hubei Hongzhong Pharmaceutical Co., Ltd.

Hubei Hongzhong Pharmaceutical Co., Ltd. is located in the picturesque hometown of the Medicine Saint — the Li Shizhen Pharmaceutical Industrial Park. It is a high-tech enterprise specializing in new anti-tumor and veterinary API products. Founded in September 2007, the company was recognized as a national high-tech enterprise in 2011. Its anti-tumor APIs and veterinary APIs have obtained domestic GMP certification and European CEP certificates. In October 2015, the company was successfully listed on the NEEQ (stock code 833746), with a current market value exceeding RMB 170 million. To meet market demand, the company is expanding its production capacity twentyfold and urgently needs to recruit related production and technical personnel. We adhere to the Hongzhong dream — a people-oriented value of shared destiny between the enterprise and its employees — and provide employees with a good development platform.
